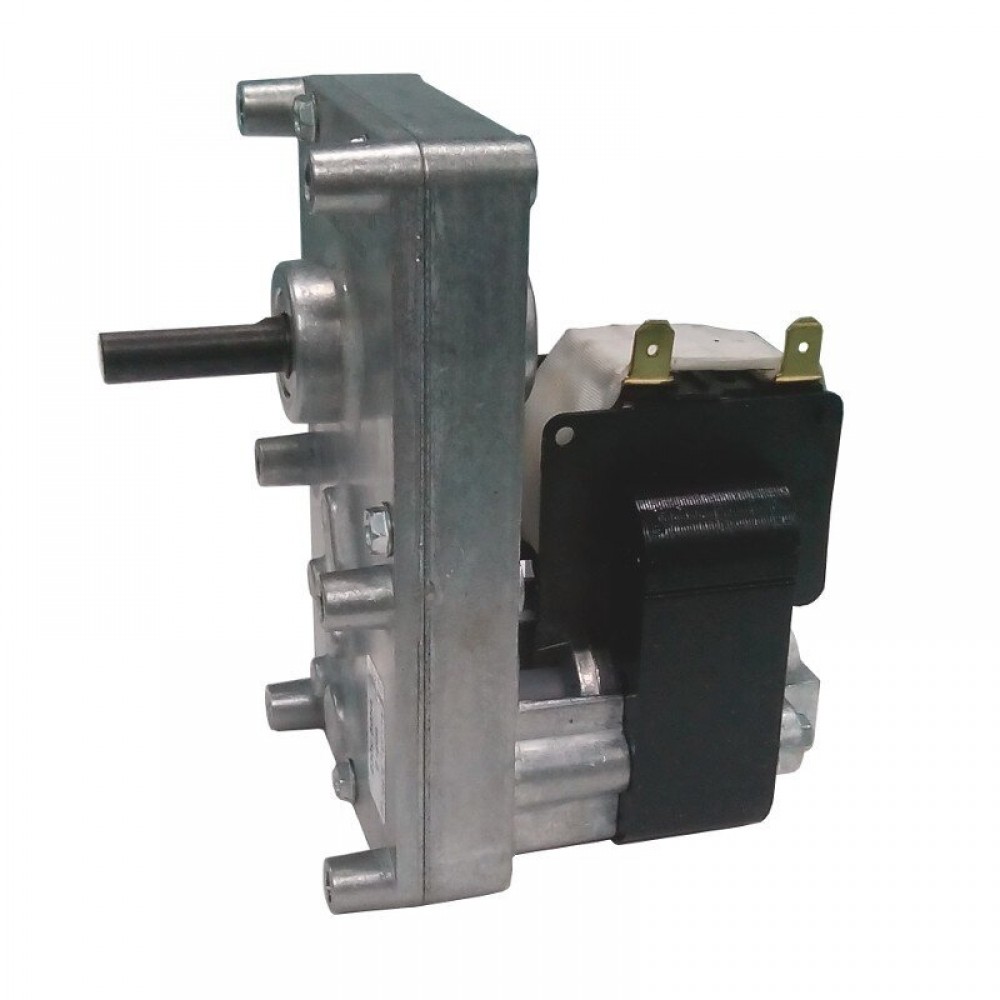

Pellet stove auger motor Mellor FB1324, 2RPM for Caminetti Montegrappa, Edilkamin and others

Pellet stove auger motor Mellor FB1324, 2RPM for Caminetti Montegrappa, Edilkamin and others

T3 series gear motor for pellet stoves, 220 V AC power supply

  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.004
£110.90
Excl. VAT
2 or more £99.81
3 or more £94.27
Estimated delivery
04.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1324 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

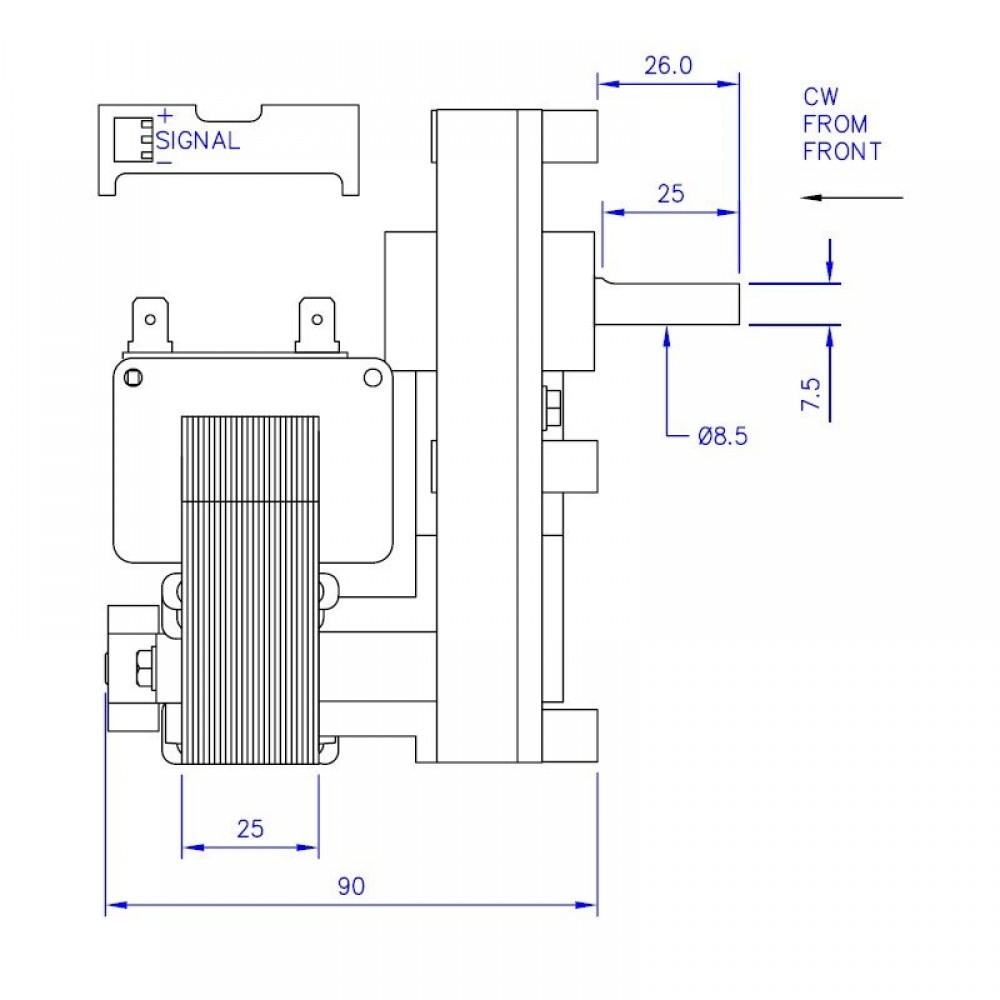

T3 series with encoder, 23Nm output torque, 17 Watt consumption, 2rpm speed, clockwise rotation, 8.5mm shaft diameter, 25mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

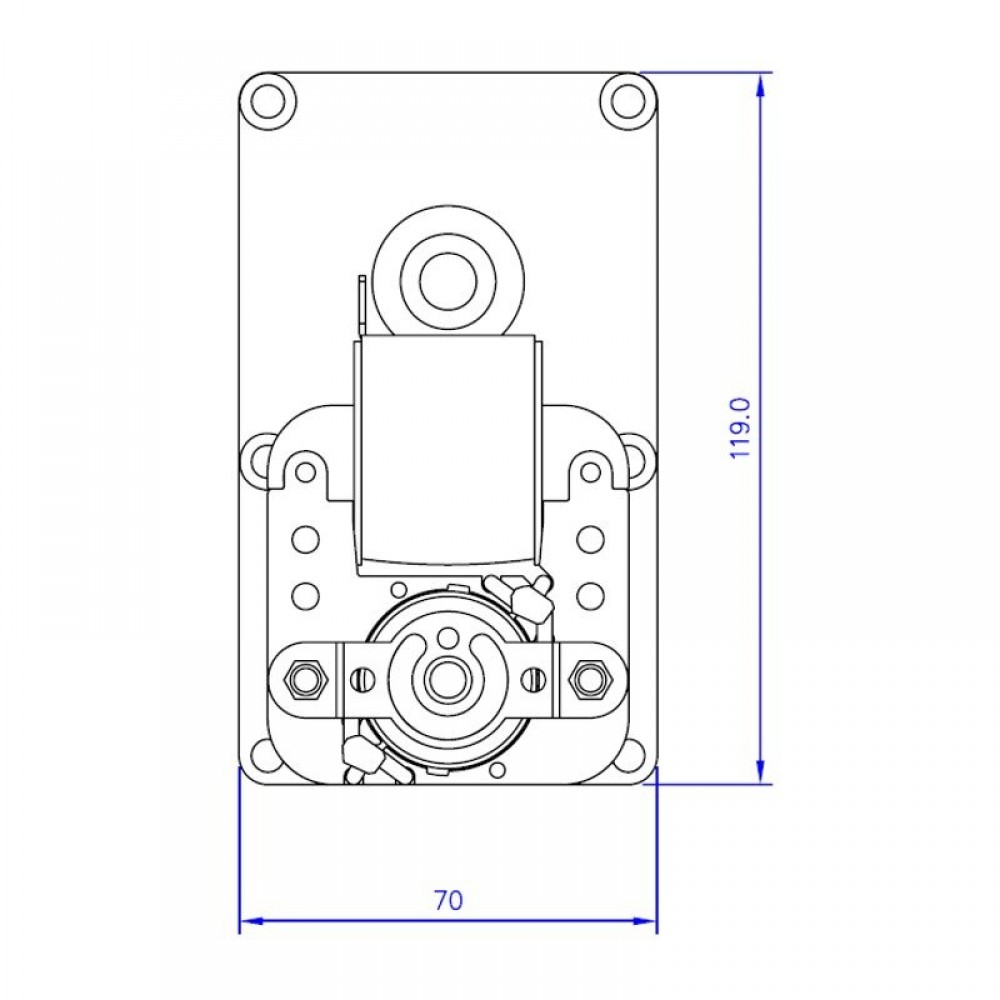

Dimension Depth (mm) 119
Dimension Width (mm) 70
Dimension Height (mm) 116
Warranty 6 months
MPN 14702021
Electric power supply (V/Hz) 220-240/ 50-60
Power consumption (W) 17
Type Gear motor
Rotation speed (rpm) 2
Magnetic core (mm) 25
Shaft diameter (mm) 8.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 23
Compatibility Caminetti Montegrappa, Edilkamin
