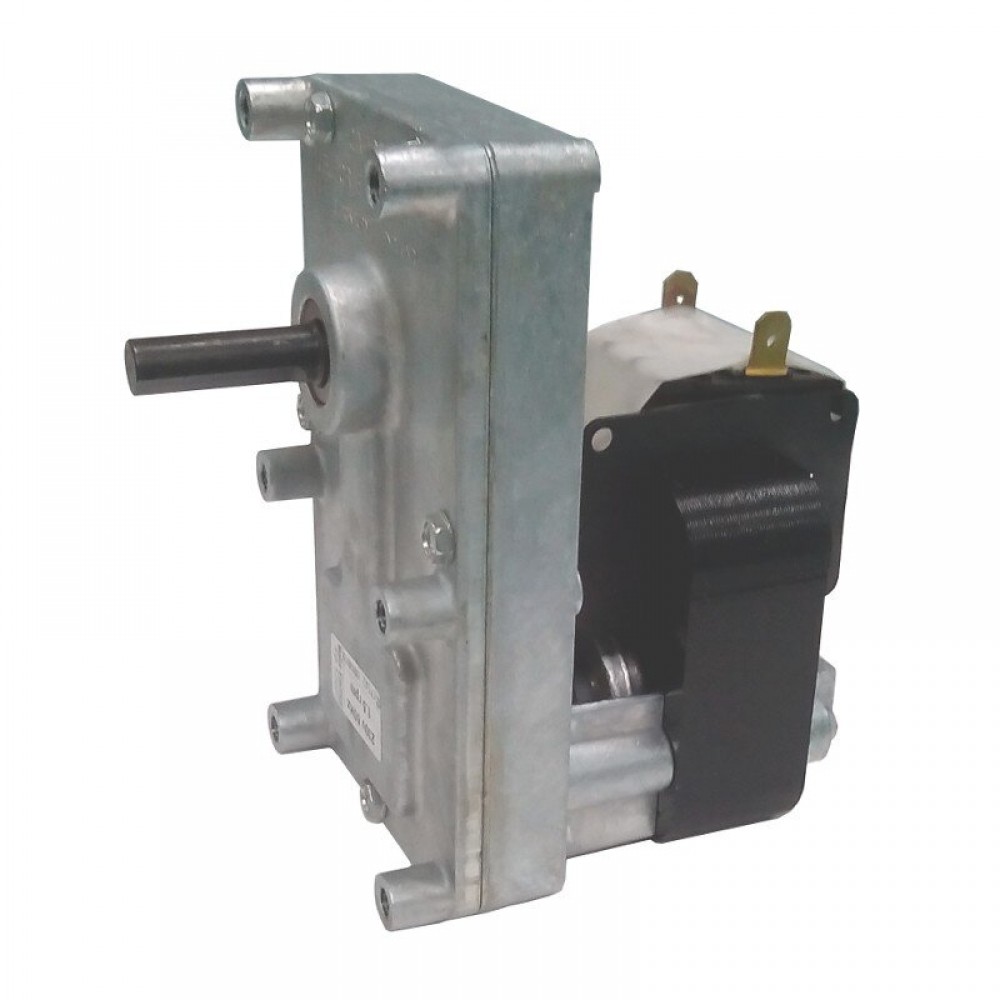

Pellet stove auger motor Mellor FB1222, 1.5RPM for Caminetti Montegrappa, Clam, MCZ and others

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1222 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

For stoves CLAM Cod. 05011197 Mod. Atlas - Mizar - Elegance - Oslo - Sirio - Sirio - Sirio+ - Astra - Astra+ - Venere - Venere+ - Vega - Vega+ - Brooklyn - New York - Vienna - Parigi - Style - Time - Vintage - Retrò - Vittoria 20 kW

CLAM Cod. 05011412 Mod. Suez+ - Pratico Small+ - Favilla F.P. 15 - Suez Idro Air Power - Molina EVO - Tivoli 8/20 kW - Vittoria EVO 20 kW

CLAM Cod. 05010501 Mod. Molina

CLAM Cod. 05010017 Mod. Pulsar

Equivalent Kenta K9115003 cod. 14702061

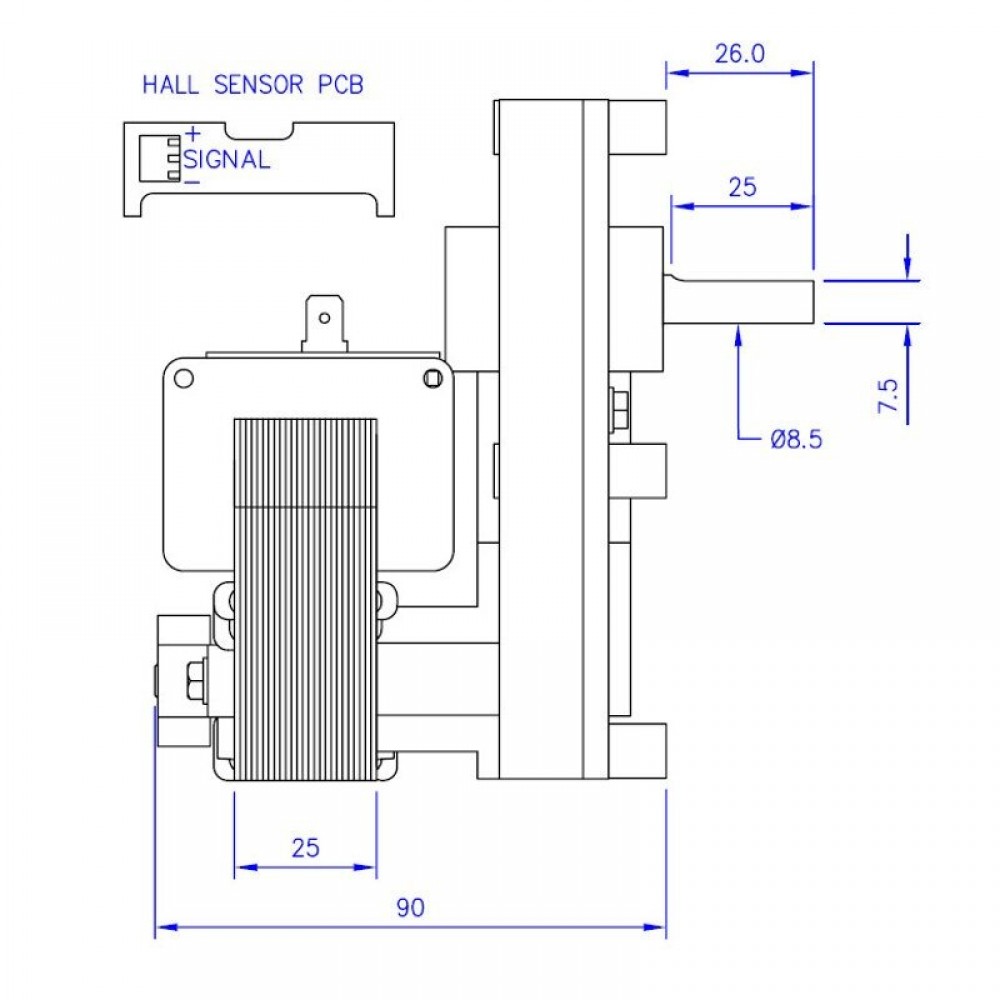

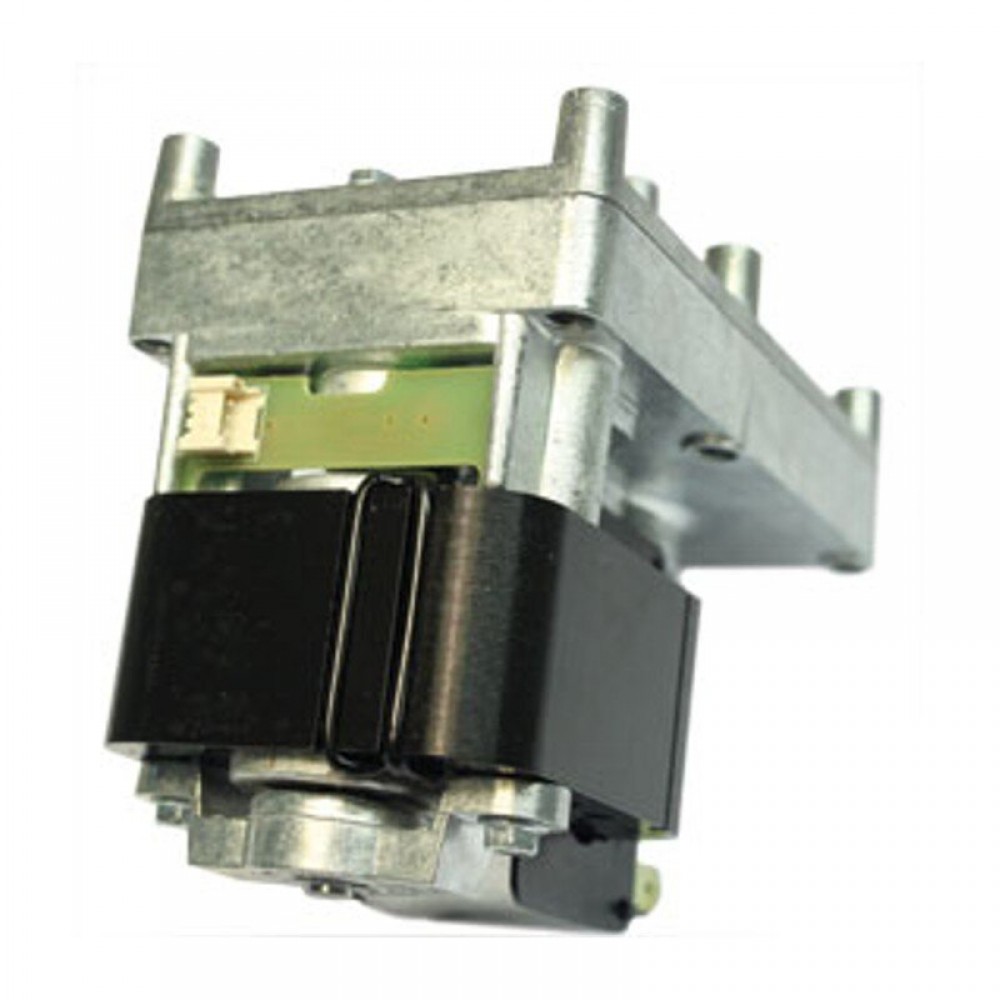

T3 series with encoder, 24Nm output torque, 16.5 Watt consumption, 1.5rpm speed, clockwise rotation, 8.5mm shaft diameter, 25mm magnetic core, 220 V AC 50/60 Hz power supply.
