Pellet stove auger motor Mellor FB1187, 2RPM for Eco Spar and others

Pellet stove auger motor Mellor FB1187, 2RPM for Eco Spar and others

Motor reductor T3 series for pellet stoves.

  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.001
£78.31
Excl. VAT
Estimated delivery
03.Jan.2025
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life.

FBT3 Series AC Gear Motors

Available in 5 motor sizes (19mm - 50mm)

Output Torque: Up to 35Nm, depending on speed and motor size

Speed Range: 0.8 - 50rpm

The motor is compatible with several models pellet stoves:

La Nordica Extraflame

EcoSpar

Burnit

Artel

The T3 AC Gear Motor is suitable for use also in: pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.



Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

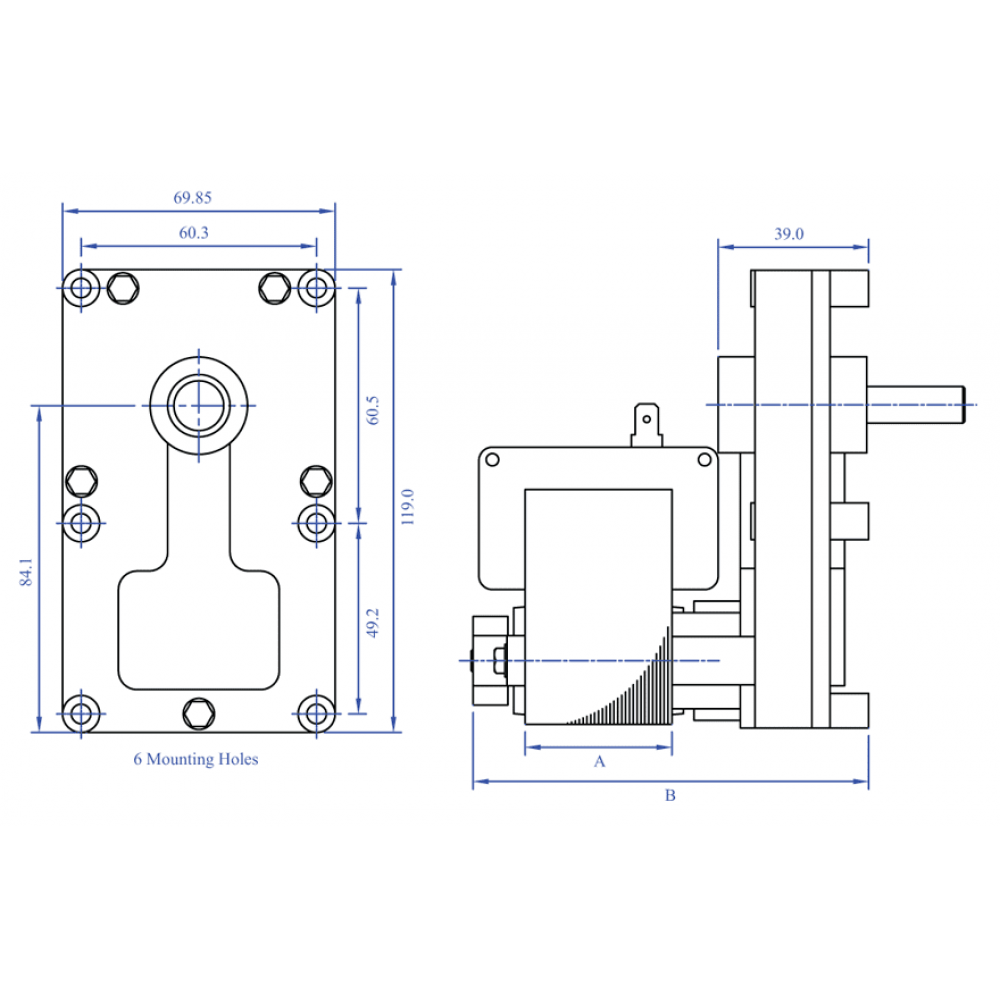

Dimension Depth (mm) 119
Dimension Width (mm) 70
Dimension Height (mm) 91
Warranty 6 months
MPN 14702004
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 25
Type Gear motor
Rotation speed (rpm) 2
Magnetic core (mm) 25
Shaft diameter (mm) 8.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 23
Compatibility Eco Spar
