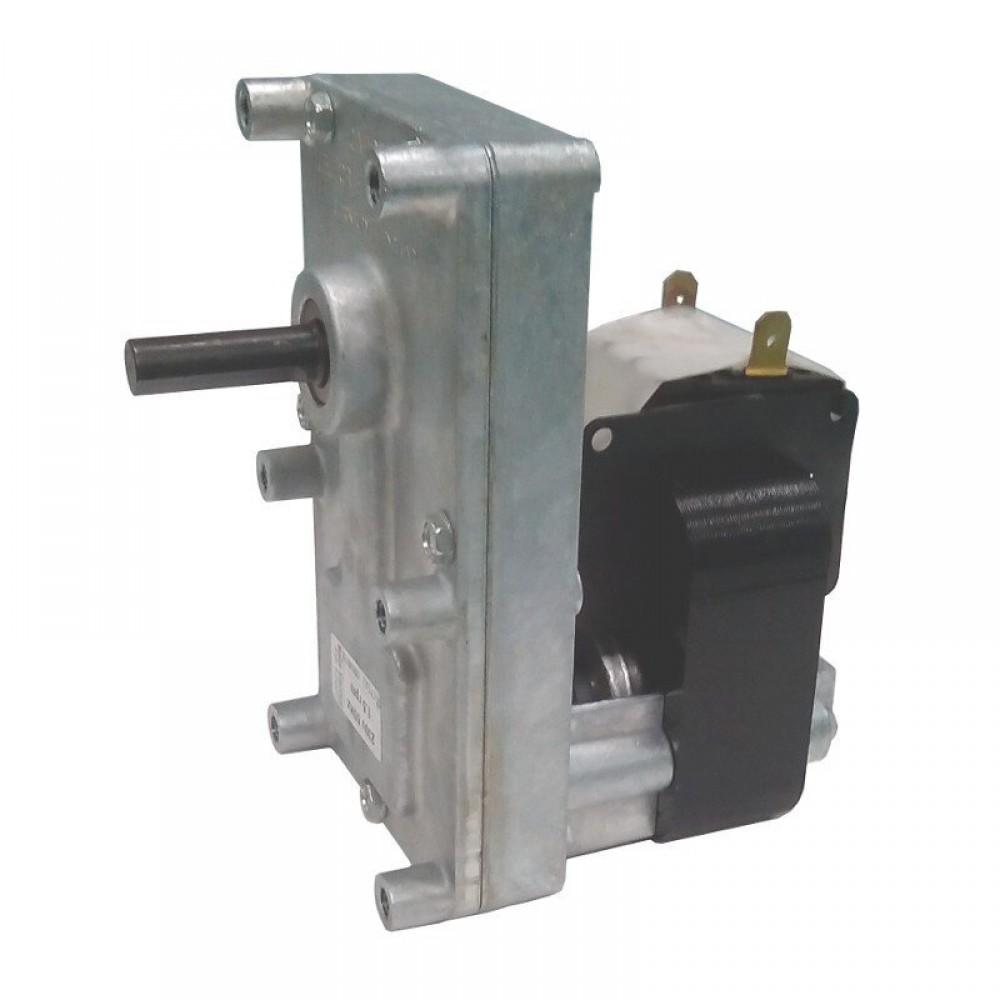

Mellor gear motor for pellet stoves.
Free return
60 daysSee details
We accept payments
See details
The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.
FB1268 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.
T3 series, 23Nm output torque, 19Watt consumption, 1.5rpm speed, anti-clockwise rotation, 9.5mm shaft diameter, 19mm magnetic core, 220 V AC 50/60 Hz power supply.

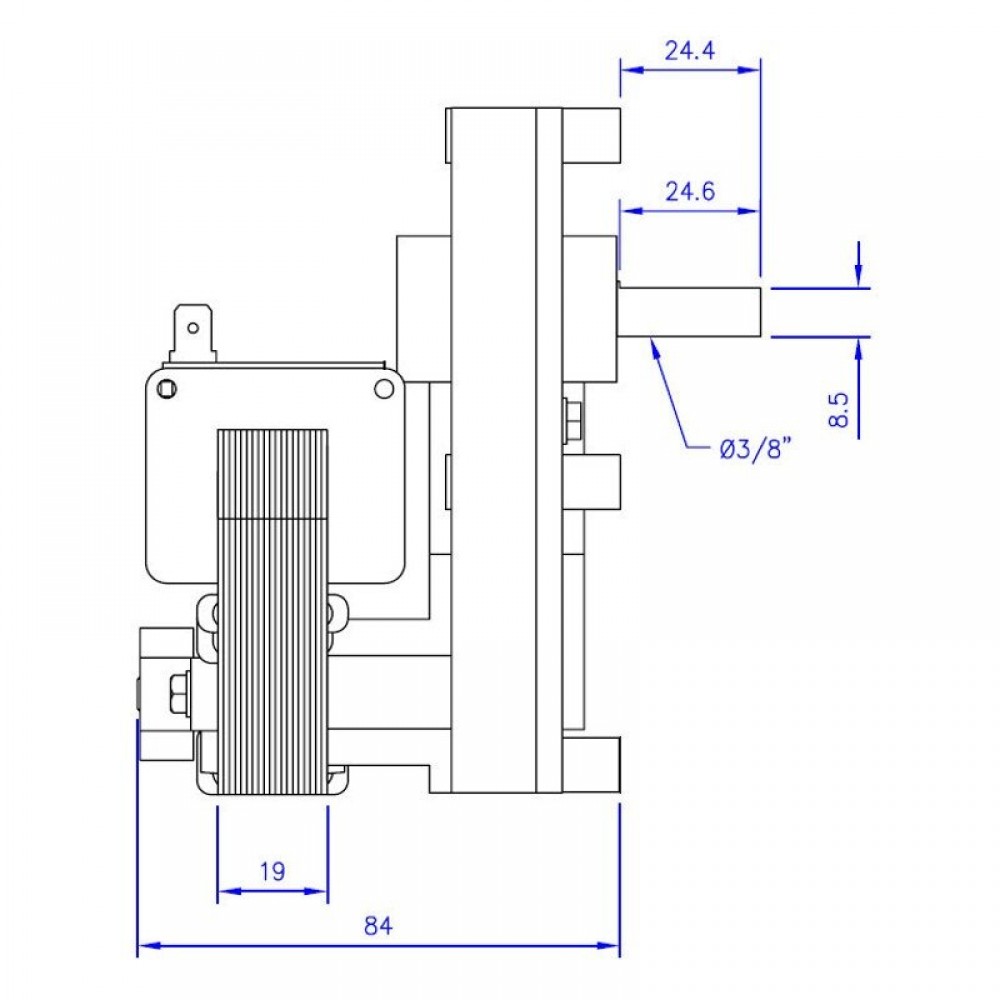

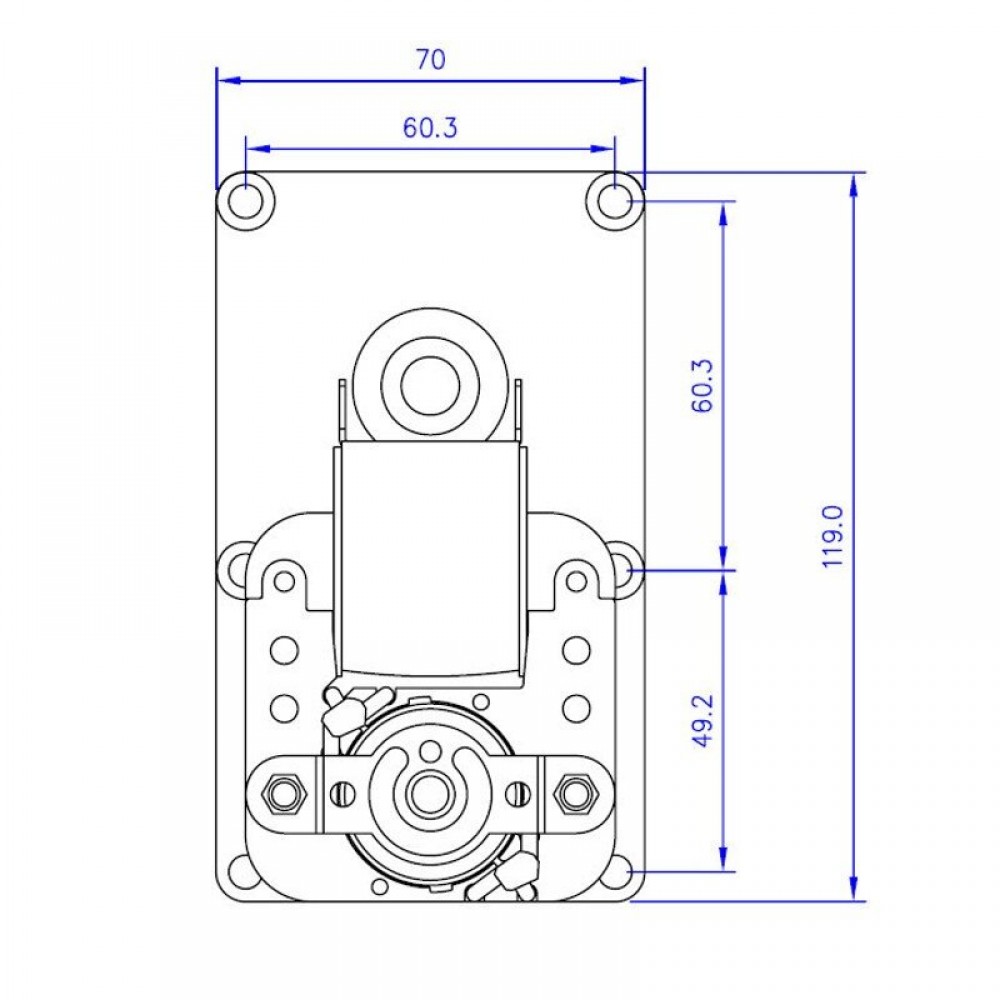

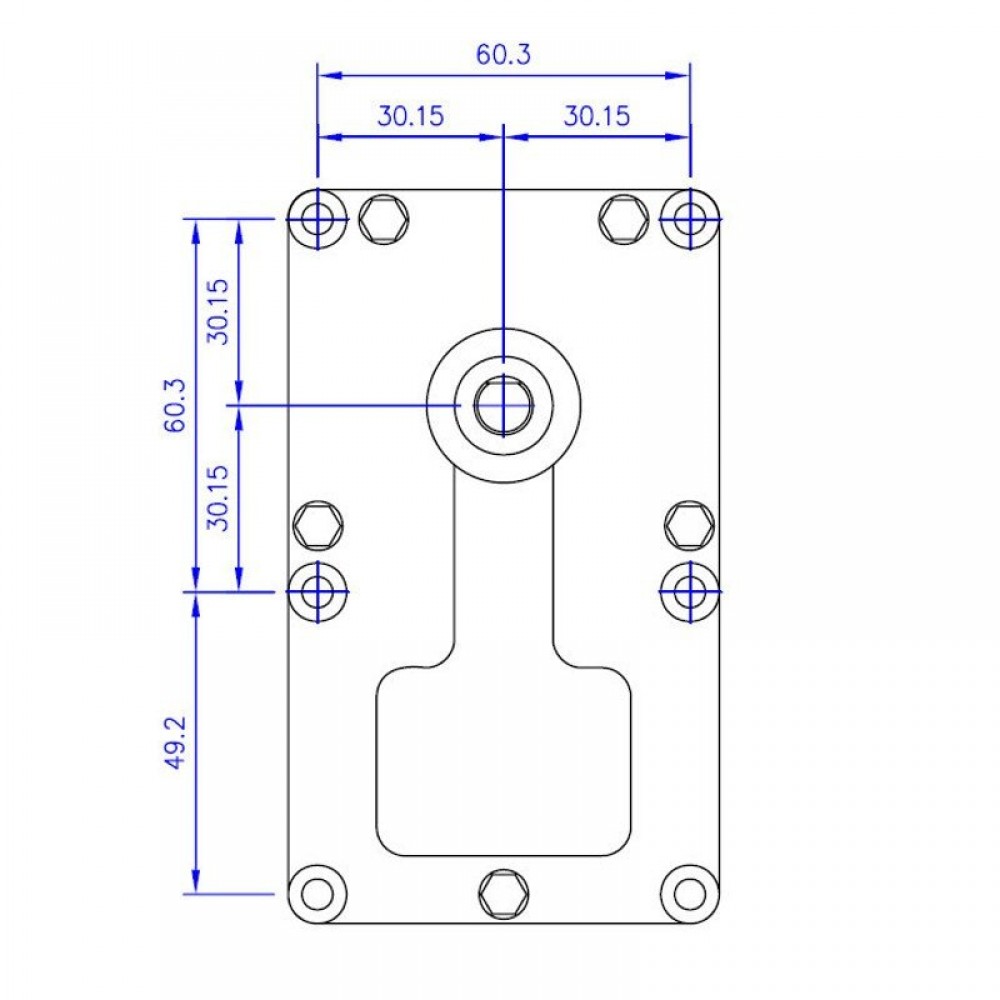

Characteristics | |
Weight (kg) | 1.0000 |
Dimension Depth (mm) | 119 |
Dimension Width (mm) | 70 |
Dimension Height (mm) | 110 |
Warranty | 6 months |
MPN | 14702001 |
Electric power supply (V/Hz) | 220/ 50-60 |
Power consumption (W) | 19 |
Type | Gear motor |
Rotation speed (rpm) | 1.5 |
Magnetic core (mm) | 19 |
Shaft diameter (mm) | 9.5 |
Shaft milling | single |
Rotation | anticlockwise |
Output torque (Nm) | 23 |
Compatibility | Karmek One, Eurostek |
