Pellet stove auger motor Mellor FB1218 for Arce, Clementi, Enviro, Vescovi, Pasqualicchio, 3RPM

Pellet stove auger motor Mellor FB1218 for Arce, Clementi, Enviro, Vescovi, Pasqualicchio, 3RPM

Mellor gear motor for pellet stoves:

Model Commo by Alfa Plam.



Models Lexia, Lexia Plus, Hetna, Hetna Plus, Circle, Circle Plus, Circel Canalizzata, Circle Canalizzata Plus, Circle Idro Large, Circle Idro Medium and Circle Idro Small by Arce.

Models by Clementi.

Model EF Thermo 28 by Enviro.

Models by Vescovi.

Model Cantinola SV2 27 by Pasqualicchio.

  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.031
£107.00
Excl. VAT
2 or more £96.30
3 or more £90.95
Estimated delivery
04.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1218 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

For stoves: VESCOVI - CLEMENTI - MONTEGRAPPA

T3 series, 26Nm output torque, 25Watt consumption, 3rpm speed, clockwise rotation, 9.5mm shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

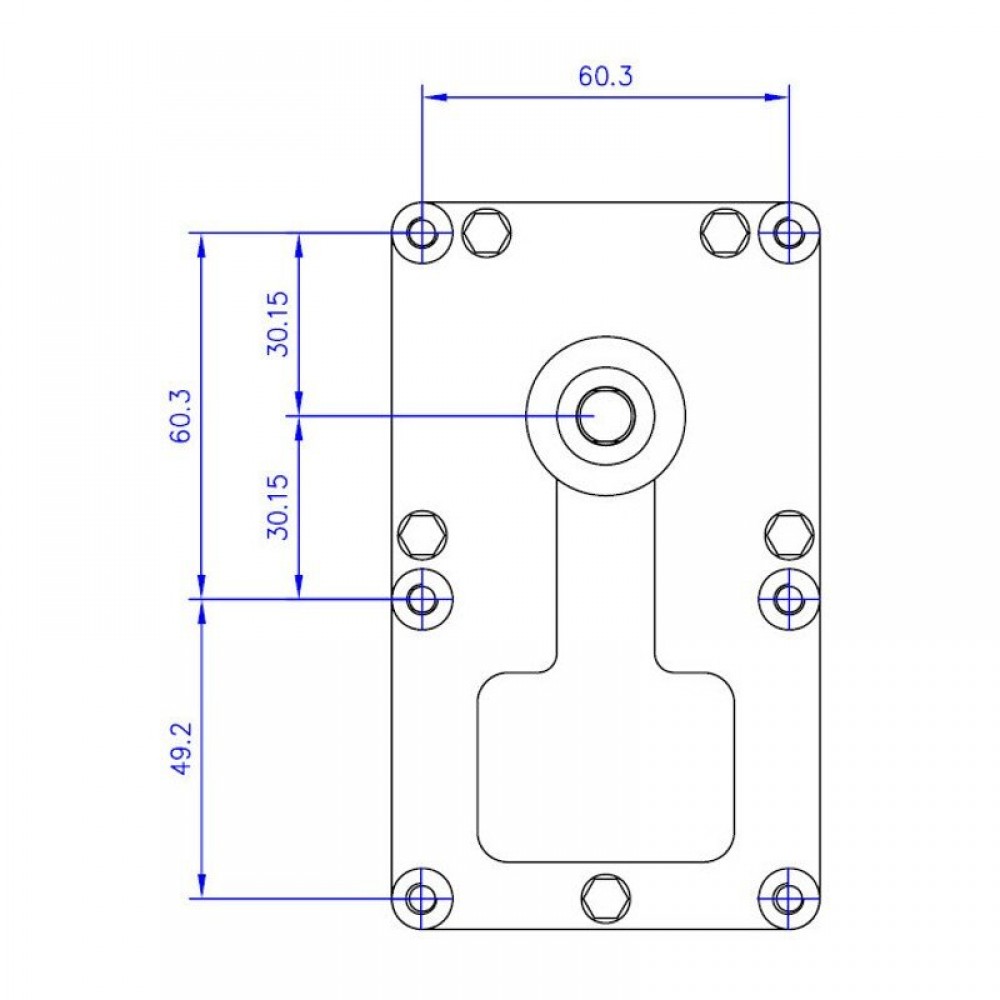

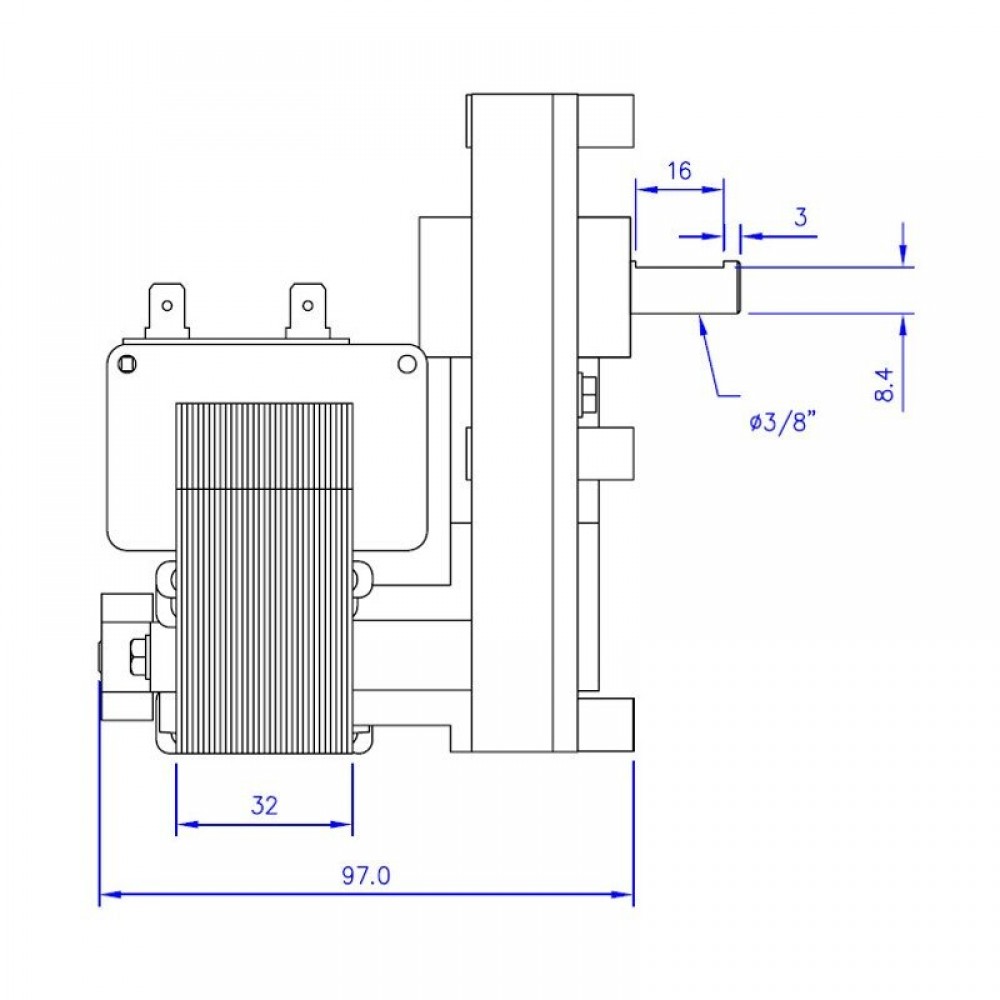

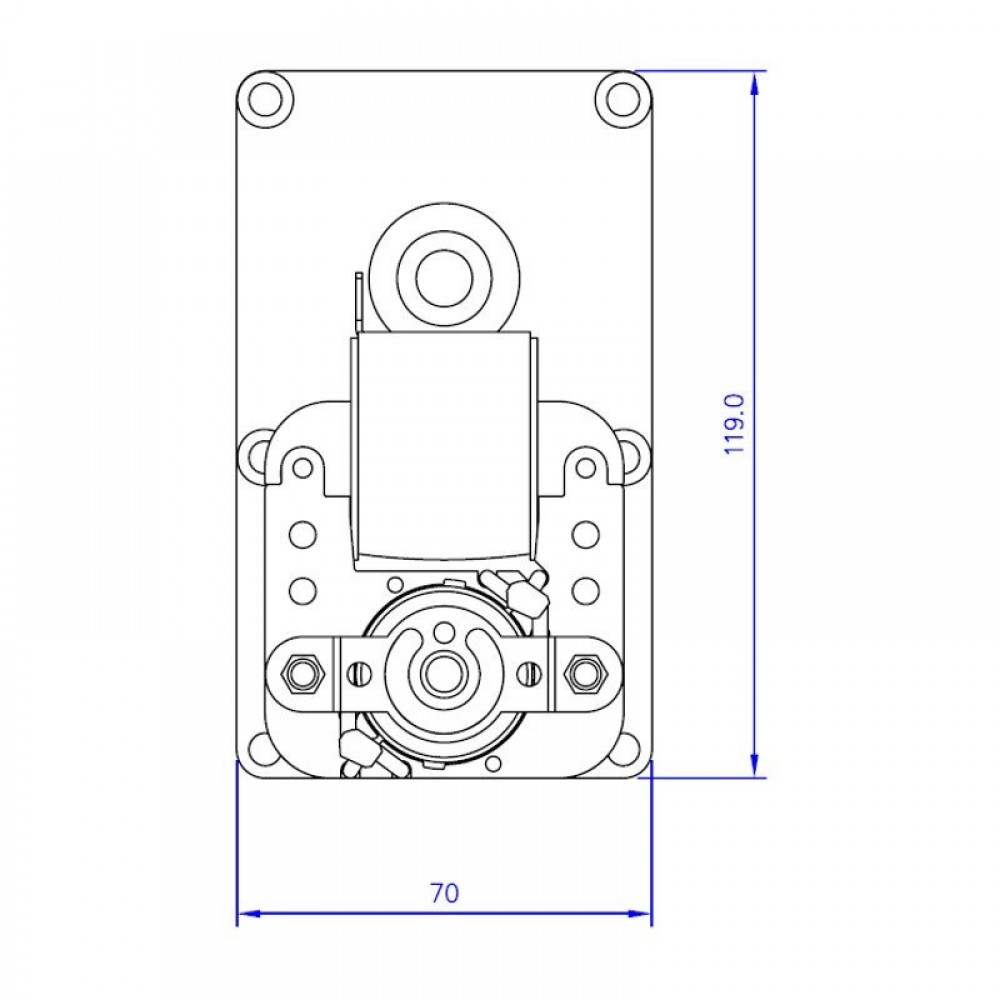

Dimension Depth (mm) 119
Dimension Width (mm) 70
Dimension Height (mm) 97
Warranty 6 months
MPN 14702012
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 25
Type Gear motor
Rotation speed (rpm) 3
Magnetic core (mm) 32
Shaft diameter (mm) 9.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 26
Compatibility Alfa Plam, Arce, Clementi, Enviro, Vescovi, Pasqualicchio
