Hollow-shaft pellet stove auger motor Mellor KB1008 5RPM for Cadel, Deville, Eurofiamma, Eurostek, Italiana Camini, Karmek One, Zibro, Puros, Qlima, Italflame, Tecnoflam, Bestfire, TMC, MG, Ambiente e Calore, Fair, King Fire, Mecatech and others

Hollow-shaft pellet stove auger motor Mellor KB1008 5RPM for Cadel, Deville, Eurofiamma, Eurostek, Italiana Camini, Karmek One, Zibro, Puros, Qlima, Italflame, Tecnoflam, Bestfire, TMC, MG, Ambiente e Calore, Fair, King Fire, Mecatech and others

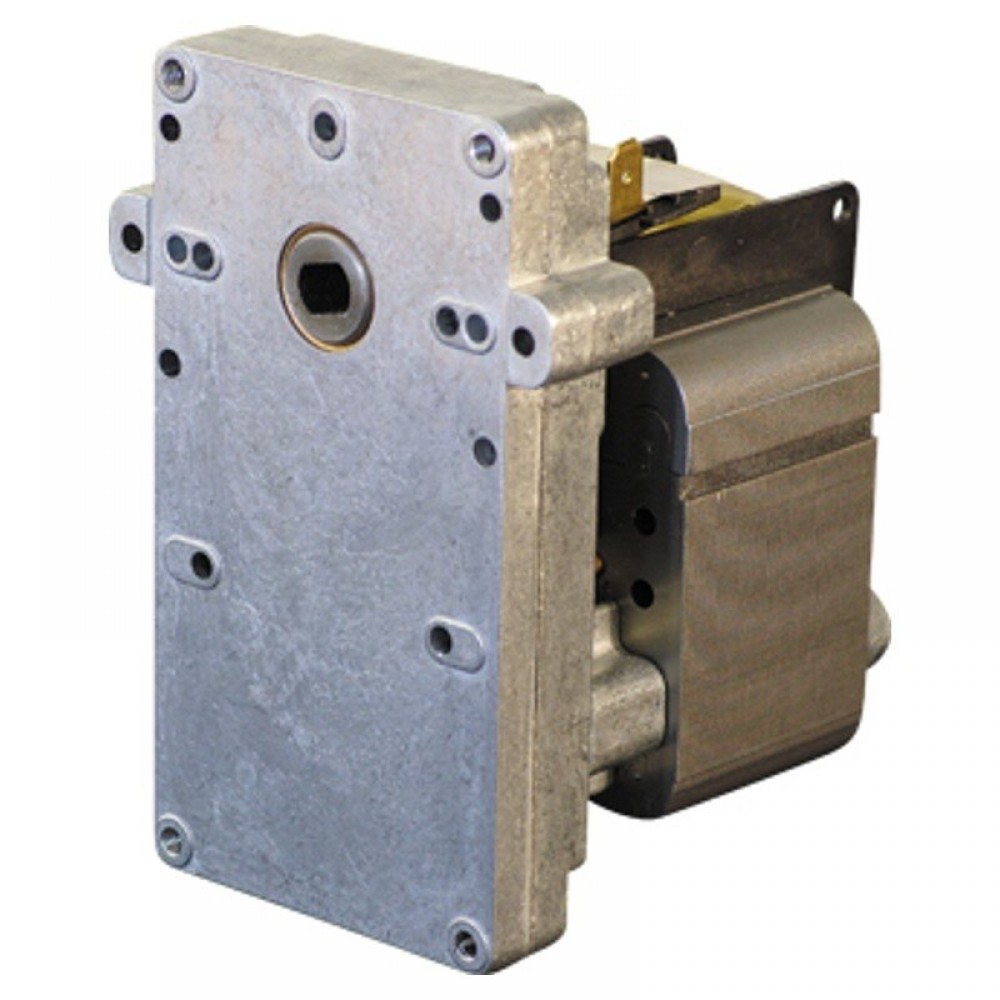

Mellor hollow-shaft gear motor for pellet stoves.
  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.035
£94.39
Excl. VAT
Estimated delivery
12.Jan.2025
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

This geared motor was originally designed to complement our range between the FBT3 and UBT6. Designed with a slimline gearbox but with high torque capability allowing this unit to be used in many applications where space is limited but a high torque is required. Typical applications include pellet stoves, vending and actuation.

KB1008 geared motor is suited to be used as rotor in pellet stoves.

For stoves AMBIENTE E CALORE - KARMEK ONE - CADEL - ITALFLAME - TECNOFLAM - TMC - BESTFIRE - MG - ITALIANA CAMINI - PUROS - EDILKAMIN - EUROFIAMMA - MECATECH - FAIR - KING FIRE - EUROSTEK - QCLIMA

ZIBRO Ref. COM0232 Mod. Adina - Carmen - Titania - Tosca

Compatible kenta K9117153 cod. 14702054 - K9117155 - K9117157 cod. 14702056 - K9117163 -  K9117164

T14 series, 16Nm output torque, 26Watt consumption, 5rpm speed, clockwise rotation, 8.5mm hollow shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

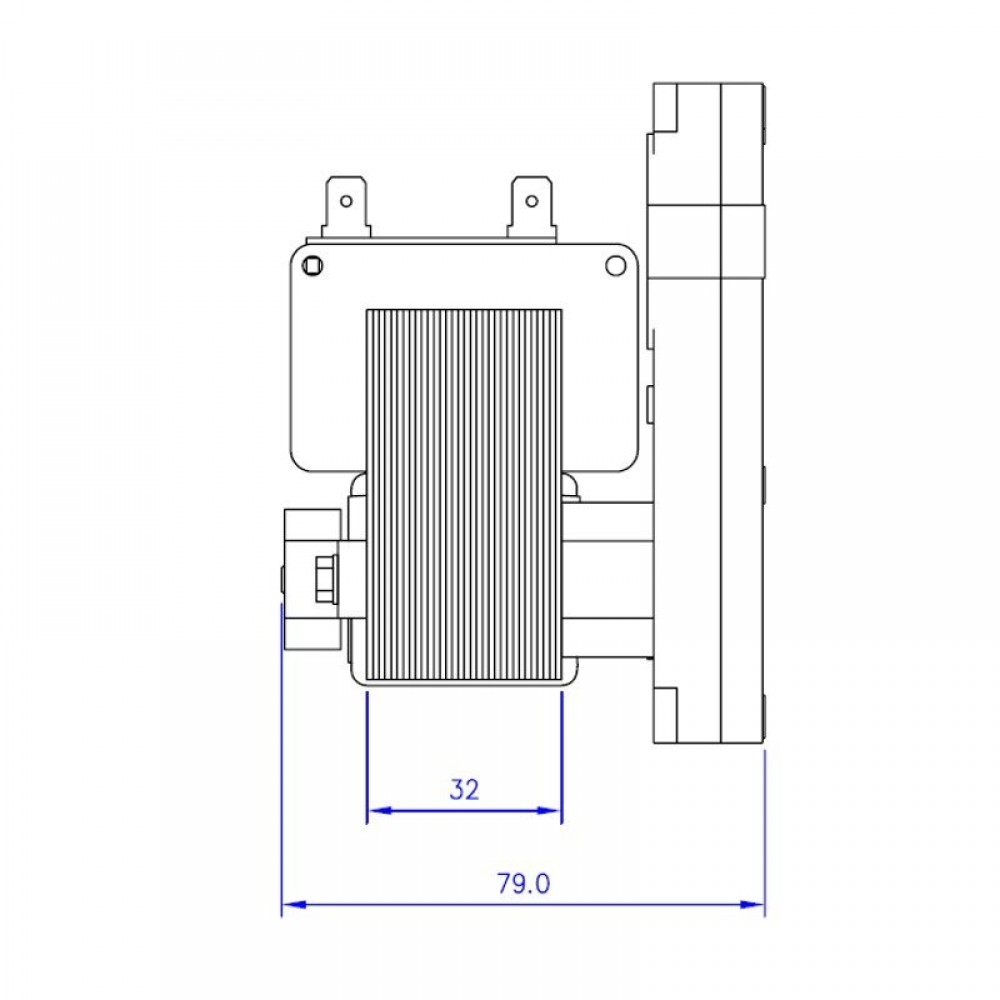

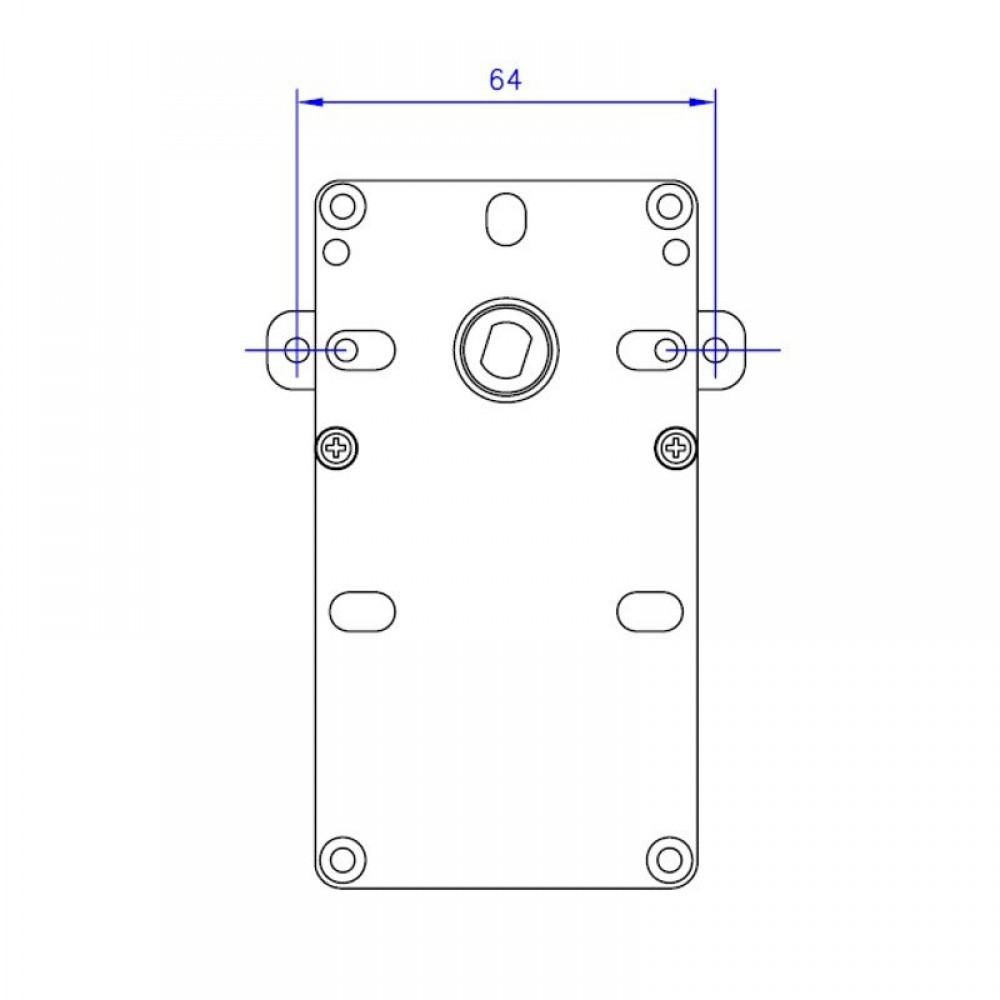

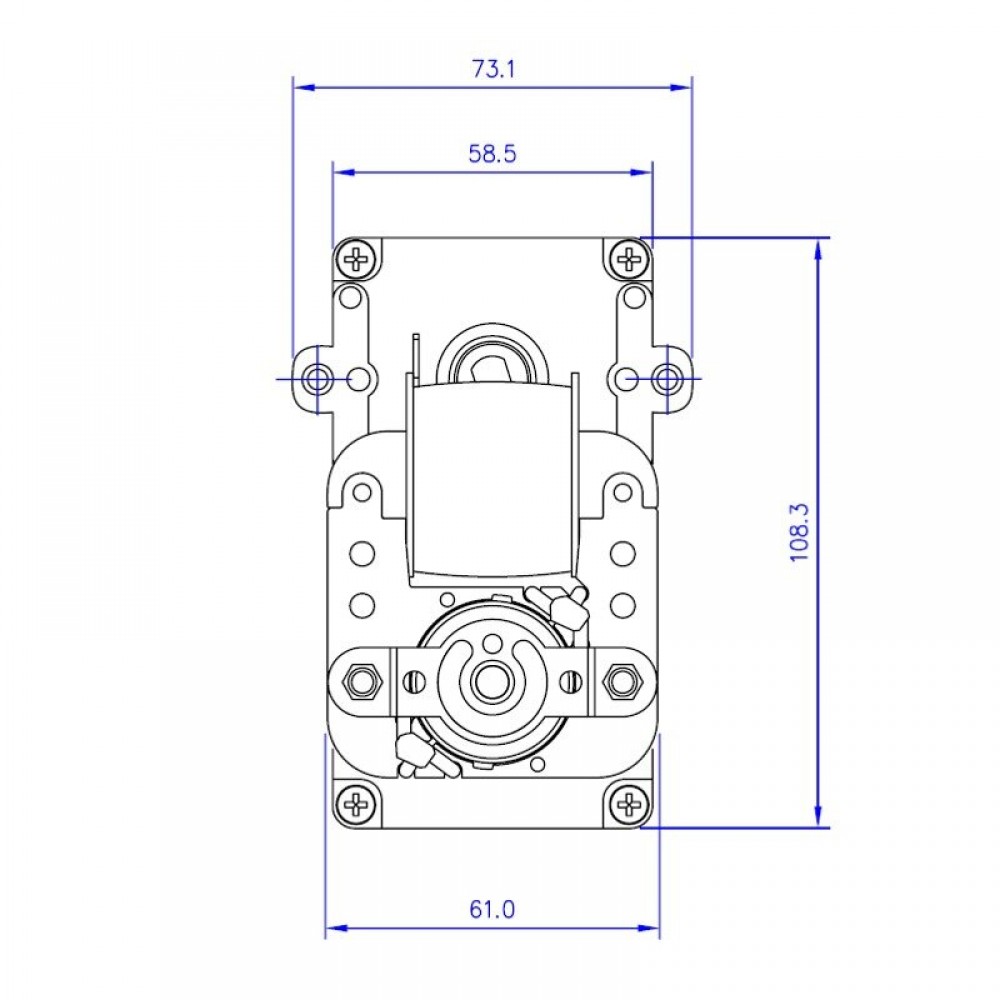

Dimension Depth (mm) 108
Dimension Width (mm) 73
Dimension Height (mm) 79
Warranty 6 months
MPN 14702006
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 26
Type Gear motor
Rotation speed (rpm) 5
Magnetic core (mm) 32
Shaft diameter (mm) 8.5
Shaft milling double
Rotation clockwise
Output torque (Nm) 16
Compatibility Cadel, Deville, Eurofiamma, Eurostek, Italiana Camini, Karmek One, Zibro, Puros, Qlima, Italflame, Tecnoflam, Bestfire, TMC, MG, Ambiente e Calore, Fair, King Fire, Mecatech
