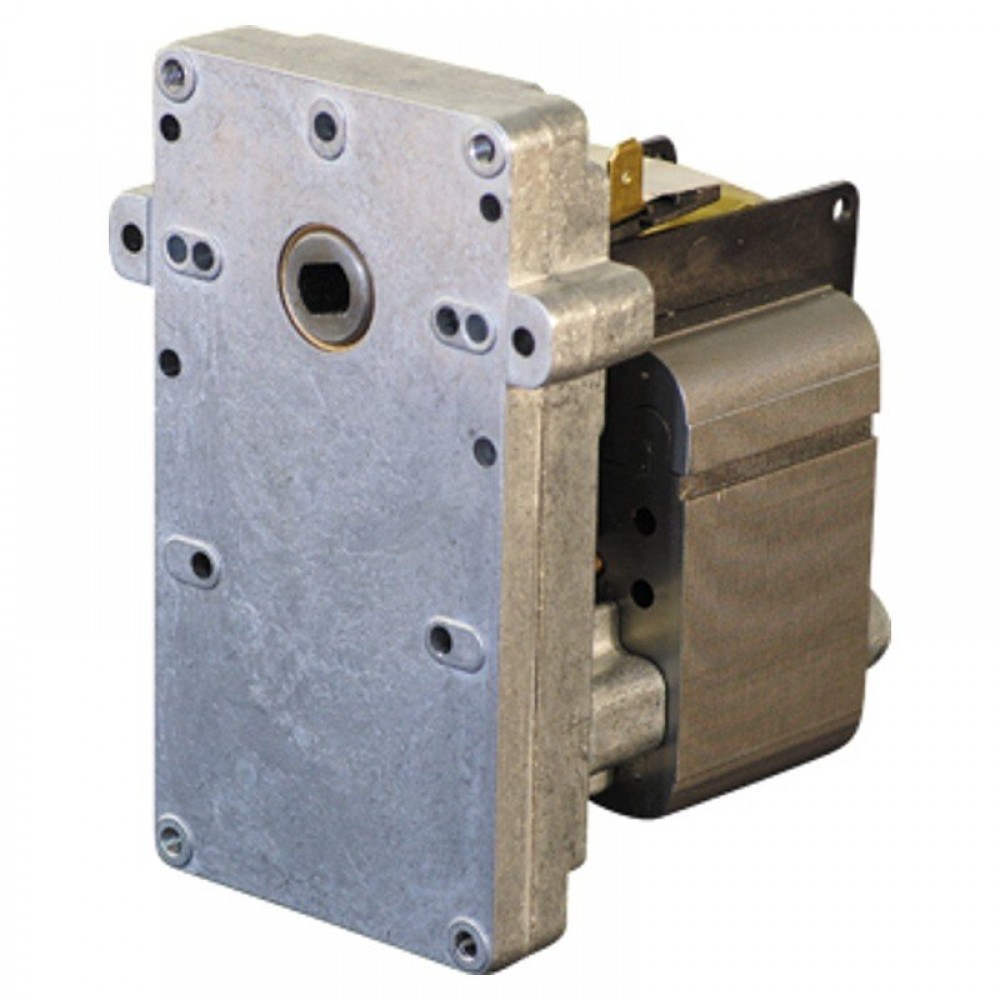

This geared motor was originally designed to complement our range between the FBT3 and UBT6. Designed with a slimline gearbox but with high torque capability allowing this unit to be used in many applications where space is limited but a high torque is required. Typical applications include pellet stoves, vending and actuation.
KB1004 geared motor is suited to be used as rotor in pellet stoves.
For stoves: KARMEK ONE
T14 series, 20Nm output torque, 29Watt consumption, 5rpm speed, anti-clockwise rotation, 8.5mm hollow shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.
Characteristics | |
Weight (kg) | 1.0000 |
Country of Manufacture | UK |

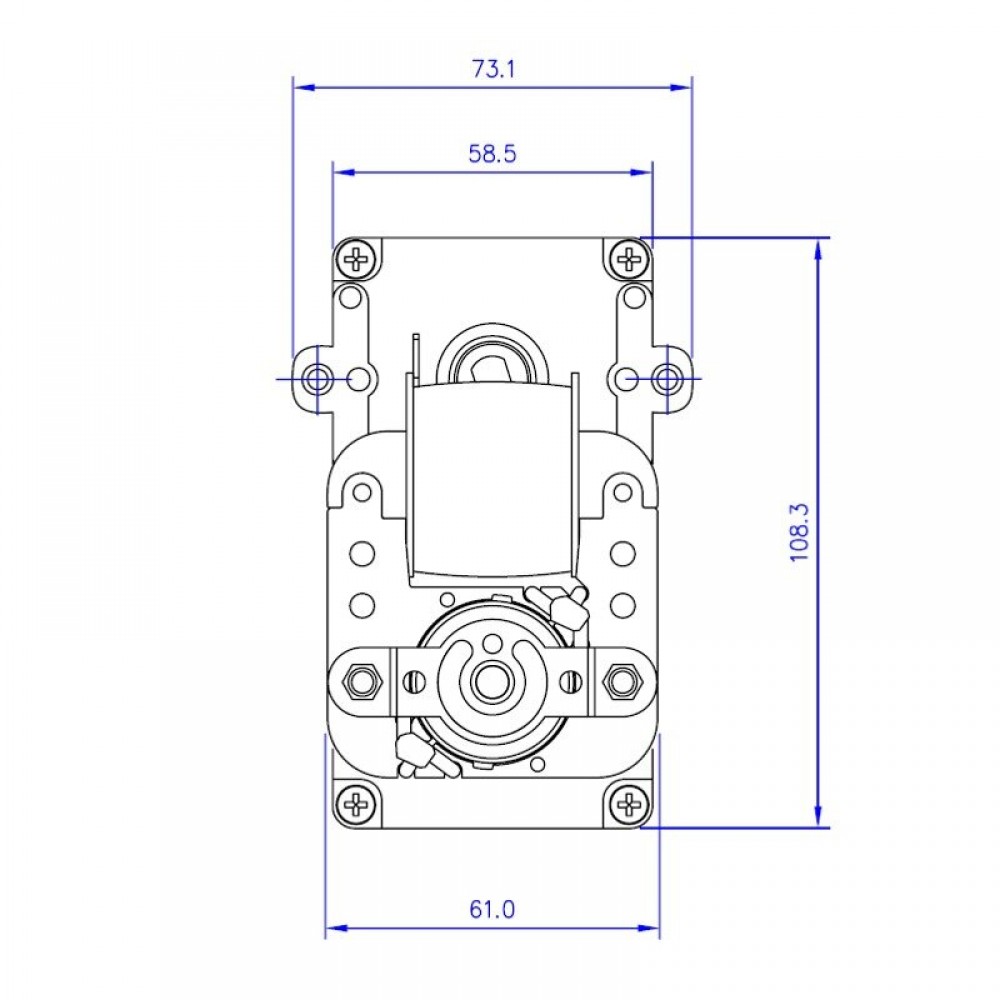

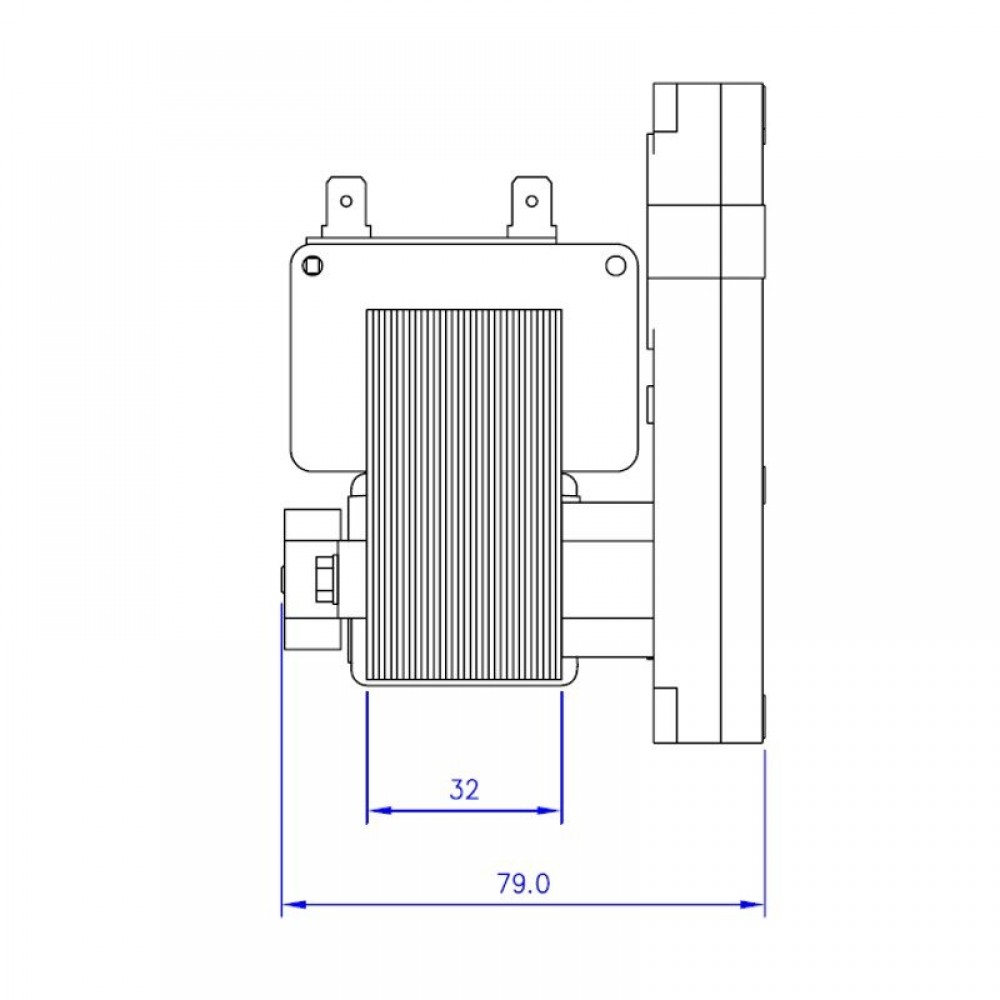

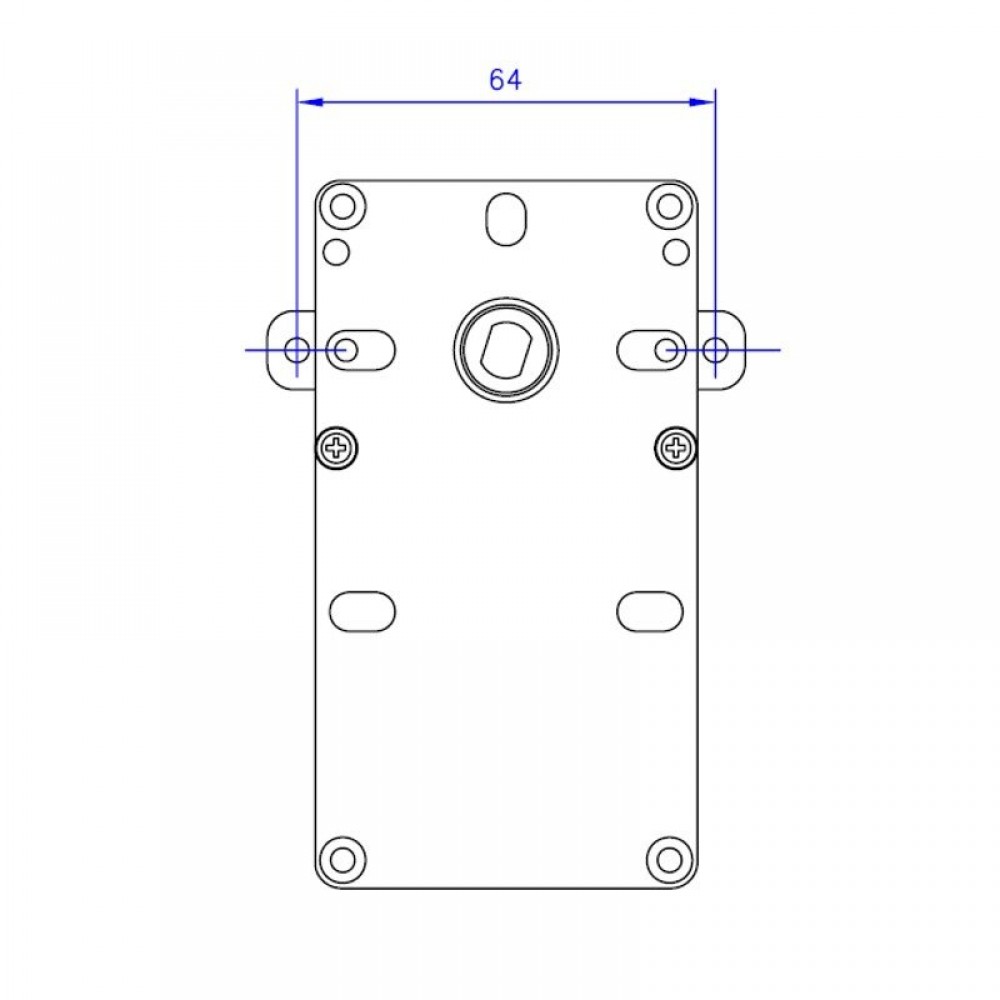

Dimension Depth (mm) | 108 |
Dimension Width (mm) | 73 |
Dimension Height (mm) | 79 |
Warranty | 6 months |
MPN | 14702018 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 29 |
Type | Gear motor |
Rotation speed (rpm) | 5 |
Magnetic core (mm) | 32 |
Shaft diameter (mm) | 8.5 |
Shaft milling | double |
Rotation | clockwise |
Output torque (Nm) | 20 |
Compatibility | Karmek One, Eurostek |
