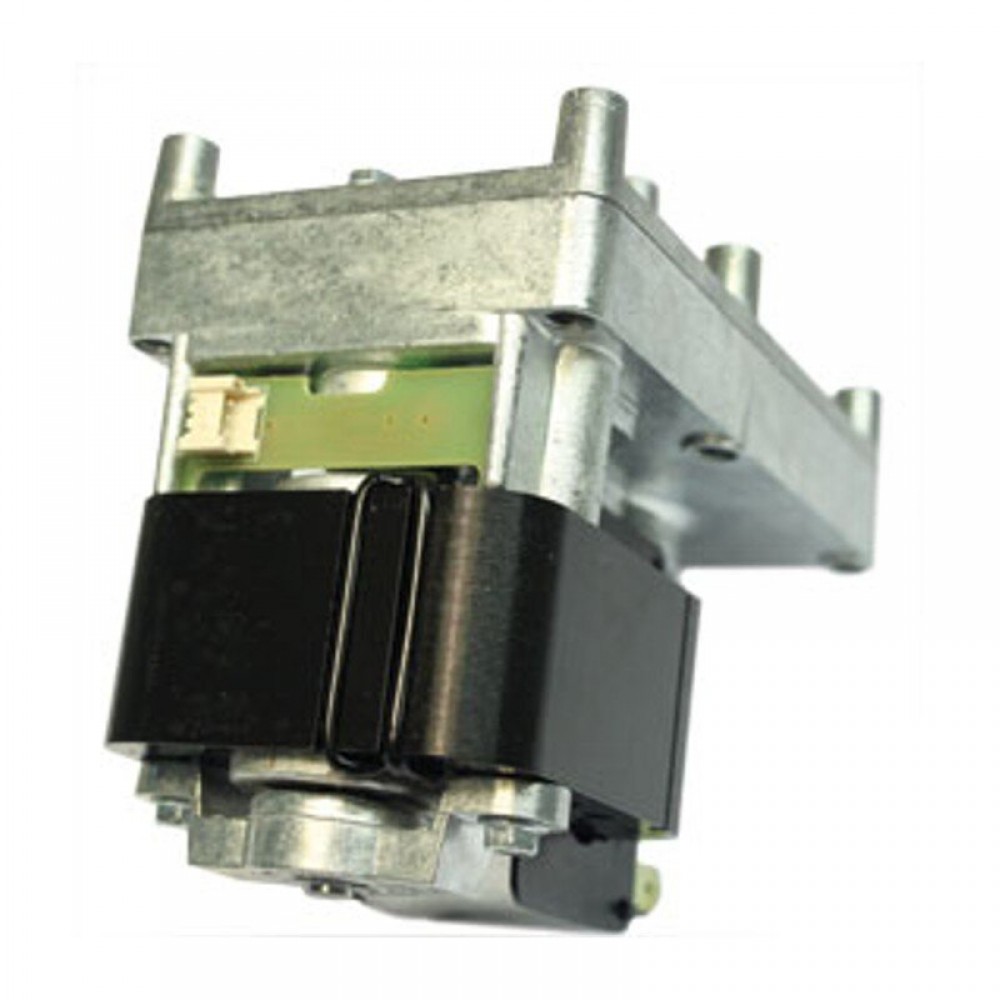

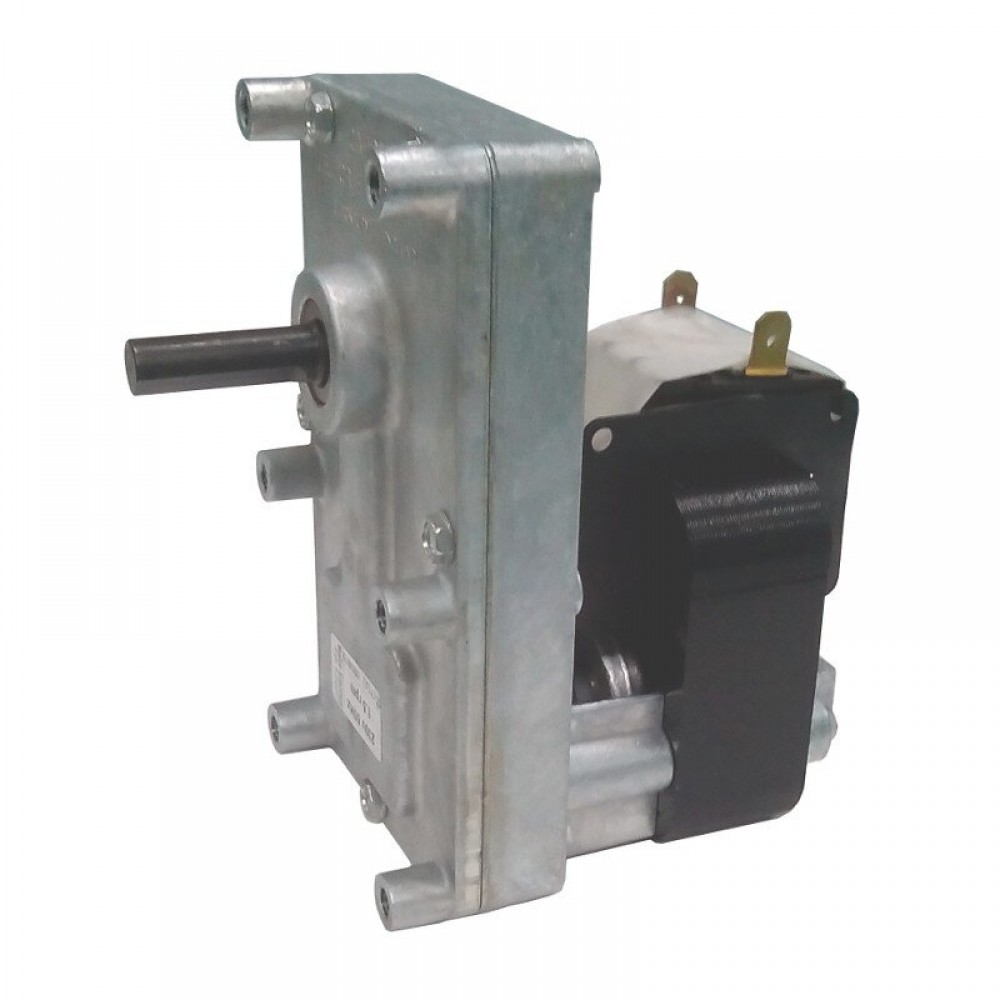

Pellet stove auger motor Mellor FB1183, 3RPM for Clam and others

Pellet stove auger motor Mellor FB1183, 3RPM for Clam and others

T3 series gear motor for pellet stoves, 220 V AC power supply

  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.007
£158.00
Excl. VAT
2 or more £108.90
3 or more £102.85
Estimated delivery
06.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1183 - FB1249 geared motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

For stoves CLAM Cod. 05011710 Mod. Small - Tower+ - Tivoli 11/26 kW - Tivoli 14/34 kW - Vittoria EVO 26 kW - Vittoria EVO 34 kW - Vittoria 34 kW - Termofavilla T.P. 30

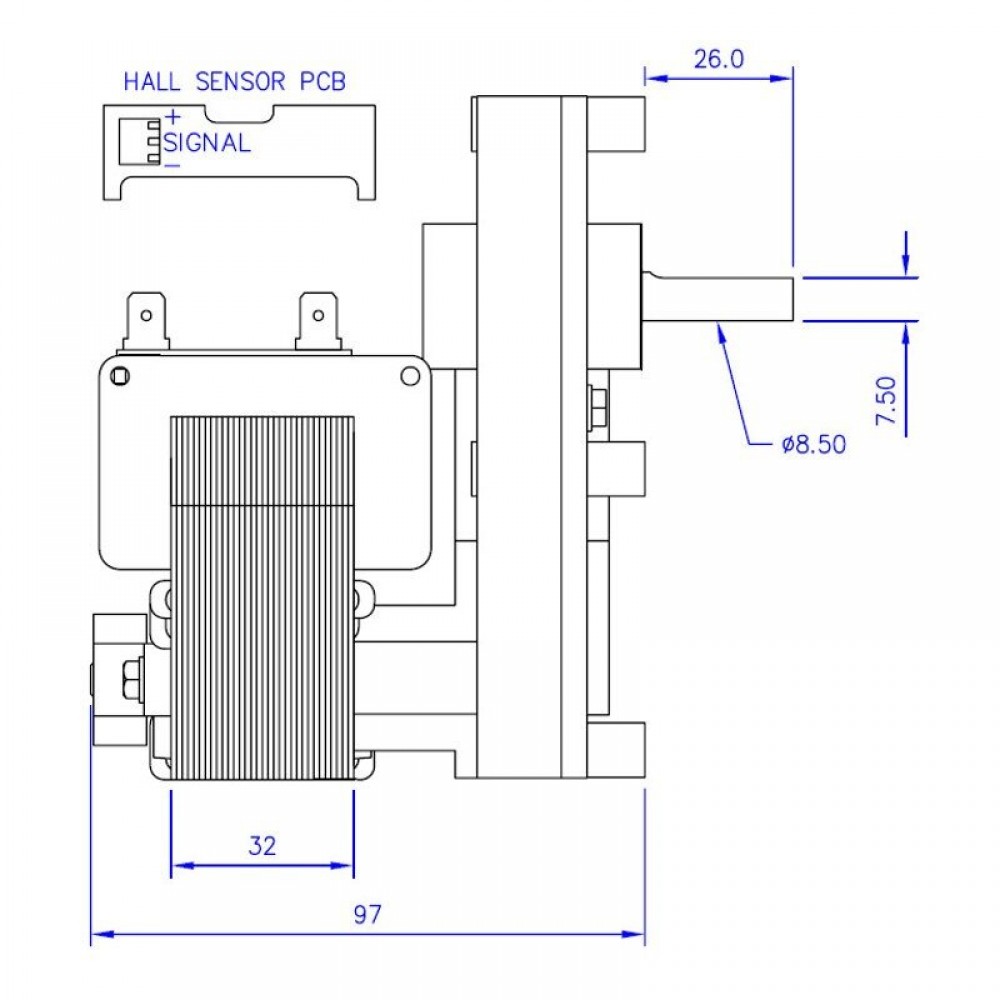

T3 series with encoder, 26Nm output torque, 25Watt consumption, 3rpm speed, clockwise rotation, 8.5mm shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

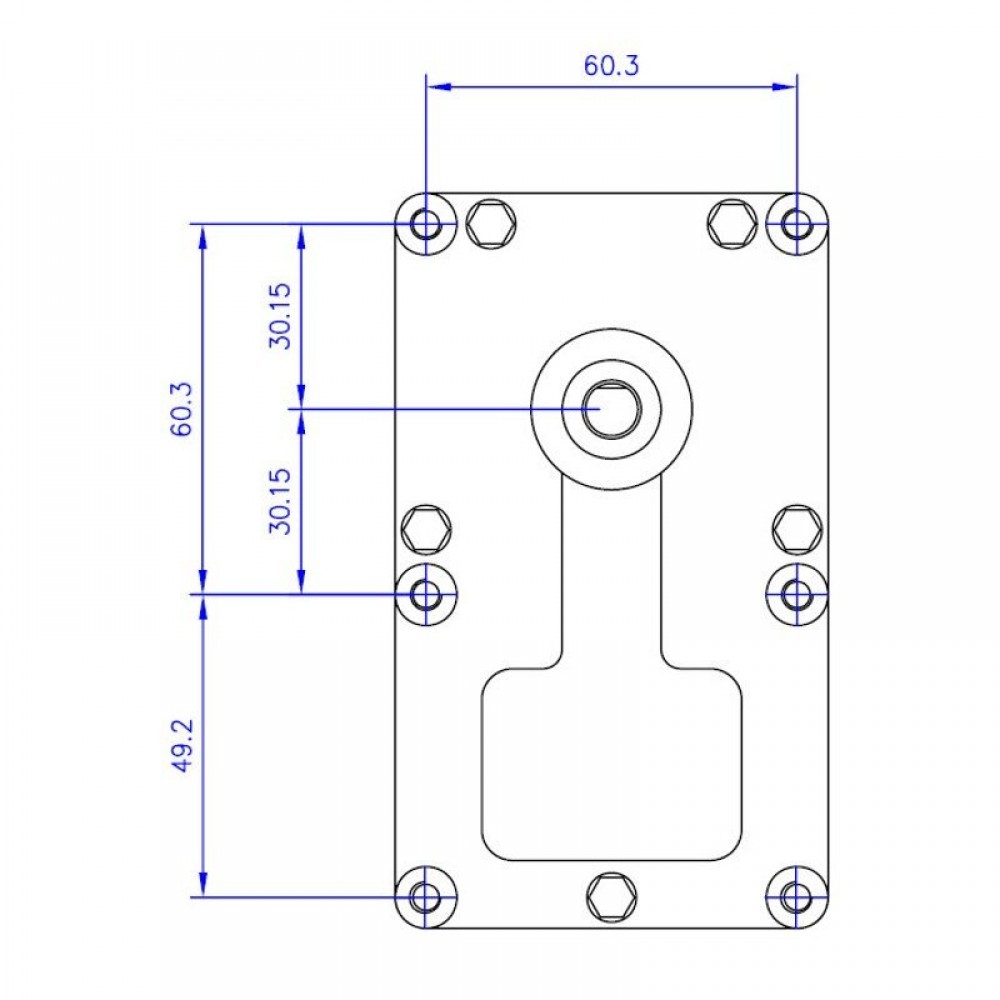

Dimension Depth (mm) 110
Dimension Width (mm) 70
Dimension Height (mm) 113
Warranty 6 months
MPN 14702016
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 25
Power supply [V] 220
Type Gear motor
Rotation speed (rpm) 3
Magnetic core (mm) 32
Shaft diameter (mm) 8.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 26
Compatibility Clam
