Pellet stove auger motor Mellor FB1167, 3RPM for Clam, Ecoteck, Moretti Design, Ravelli and others

Pellet stove auger motor Mellor FB1167, 3RPM for Clam, Ecoteck, Moretti Design, Ravelli and others

T3 series gear motor for pellet stoves, 220 V AC power supply

  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.006
£139.00
Excl. VAT
2 or more £95.22
3 or more £89.93
Estimated delivery
04.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

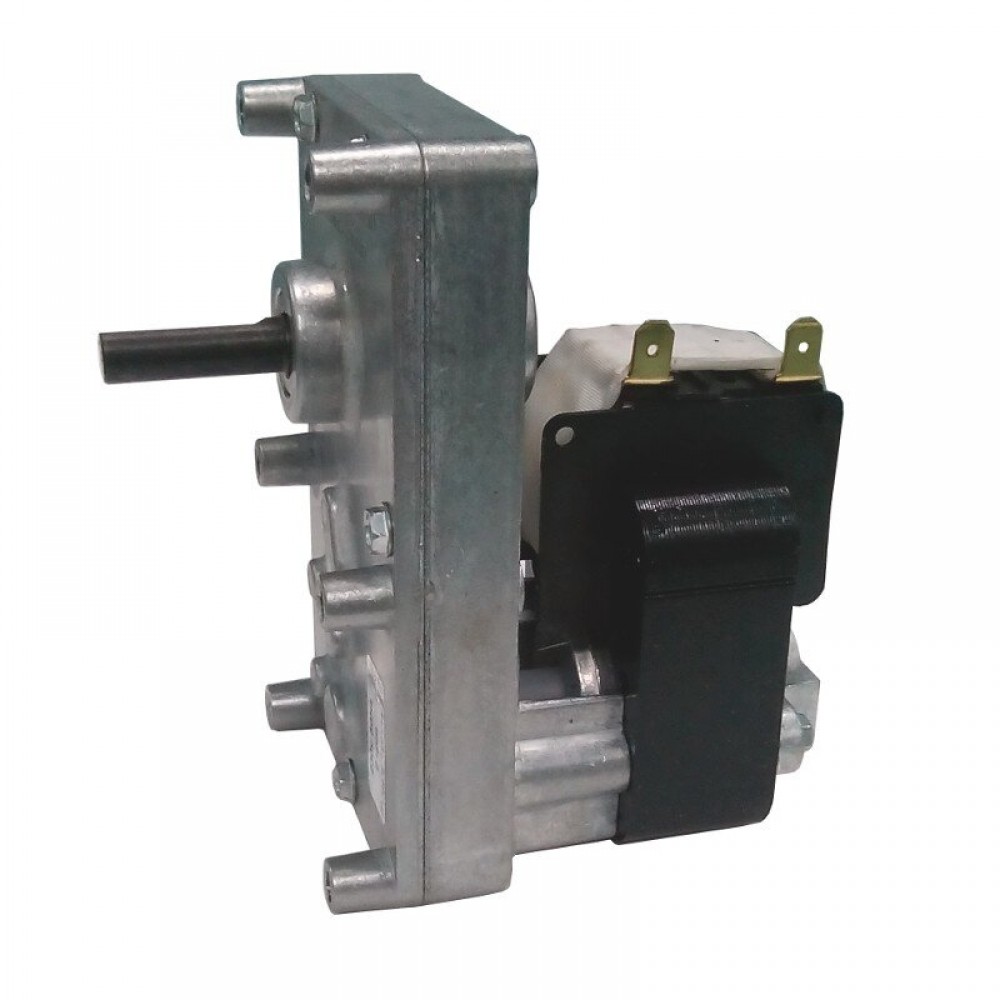

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1167 geared motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

For stoves: MORETTI - RAVELLI cod. 55057 - FB1152 mod. Genova - Pisa - Riviera - HR100 - HRV120 - HRB160 - HRV120 Style - HR evo14 - HR evo14 Touch- HRB120

CLAM cod. 05010842 mod. Vittoria 34 kW - VittoriaEVO 26/34 kW - Vittoria S. 34 kW - Tivoli 26/34 kW - Termofavilla T.P. 30 - Small tower +

T3 series, 25Nm output torque, 28Watt consumption, 3rpm speed, clockwise rotation, 8.5mm shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

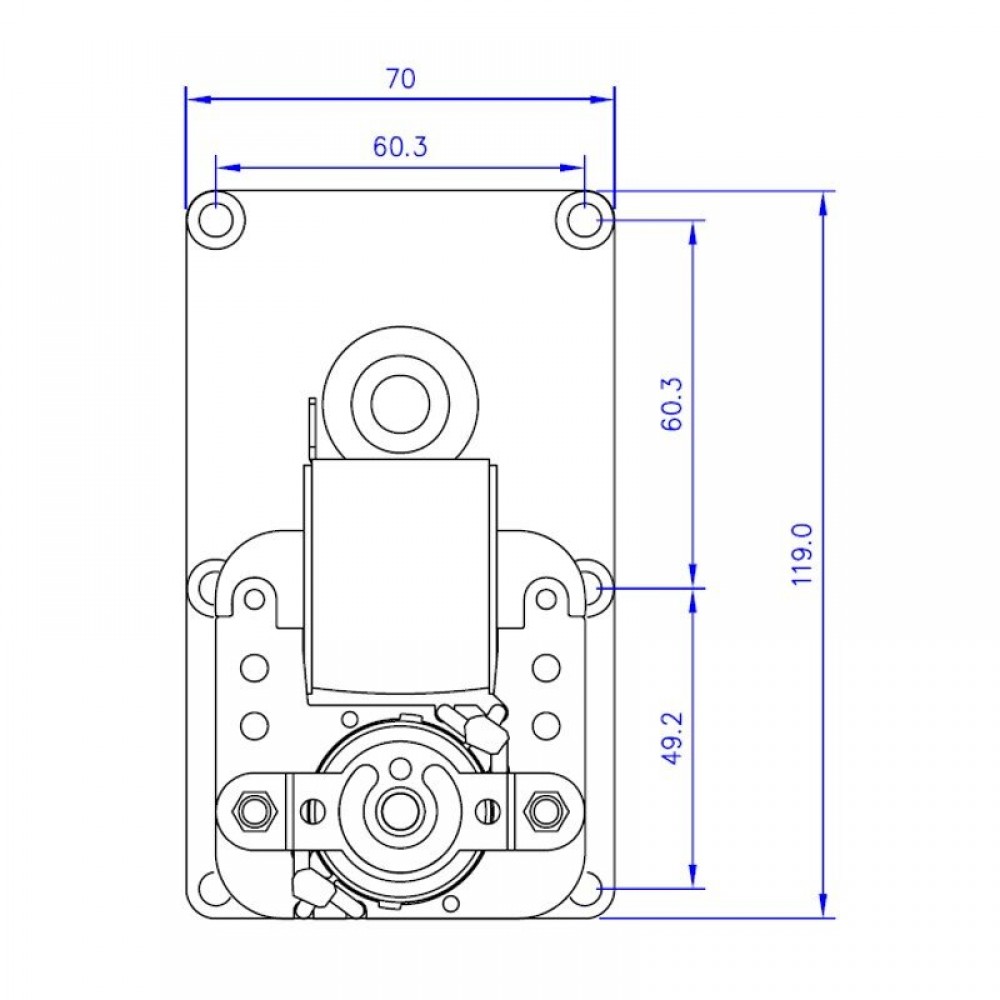

Dimension Depth (mm) 119
Dimension Width (mm) 70
Dimension Height (mm) 113
Warranty 6 months
MPN 14702005
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 28
Power supply [V] 220
Type Gear motor
Magnetic core (mm) 32

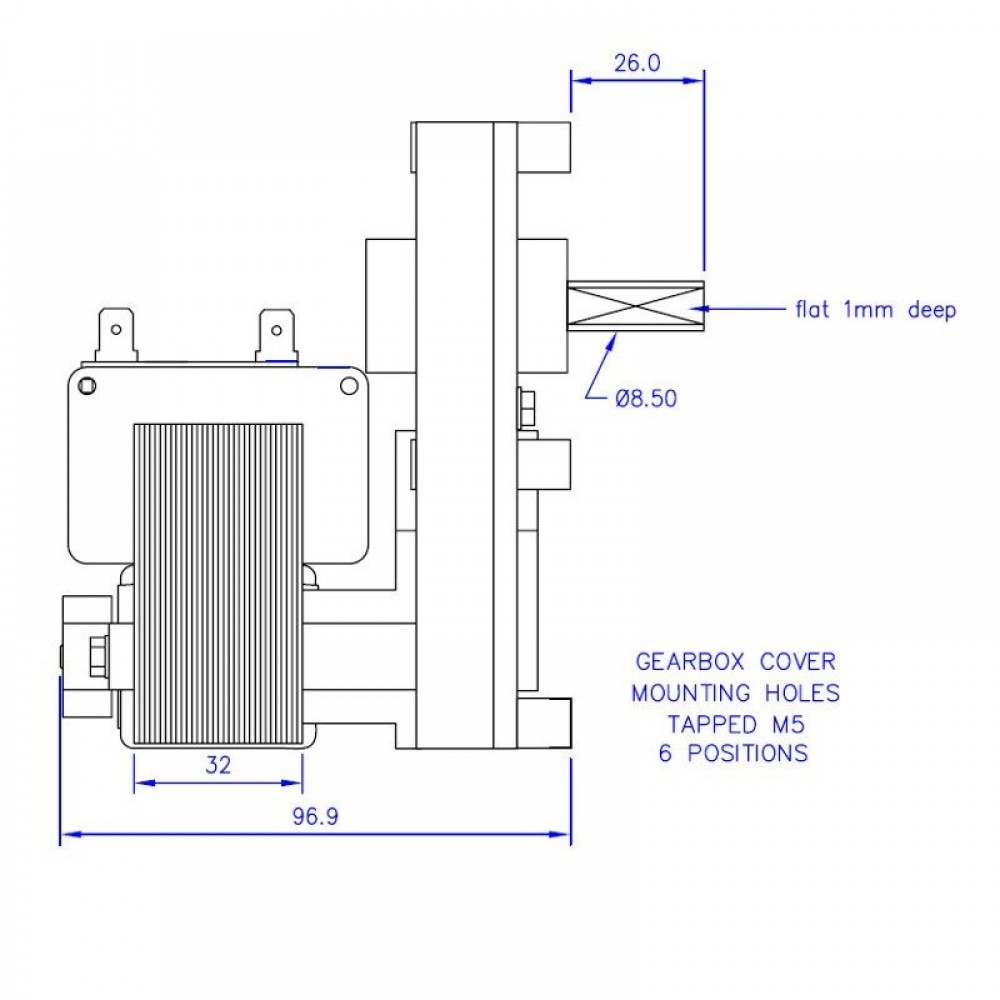

Shaft diameter (mm) 8.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 25
Compatibility Clam, Ecoteck, Moretti Design, Ravelli
