Pellet stove auger motor Mellor FB1183 for pellet stoves Prity, Adler, Anselmo Cola, Arce, Caminetti Montegrappa, Edilkamin, Italiana Camini, Ecoforest and others, 2RPM

Pellet stove auger motor Mellor FB1183 for pellet stoves Prity, Adler, Anselmo Cola, Arce, Caminetti Montegrappa, Edilkamin, Italiana Camini, Ecoforest and others, 2RPM

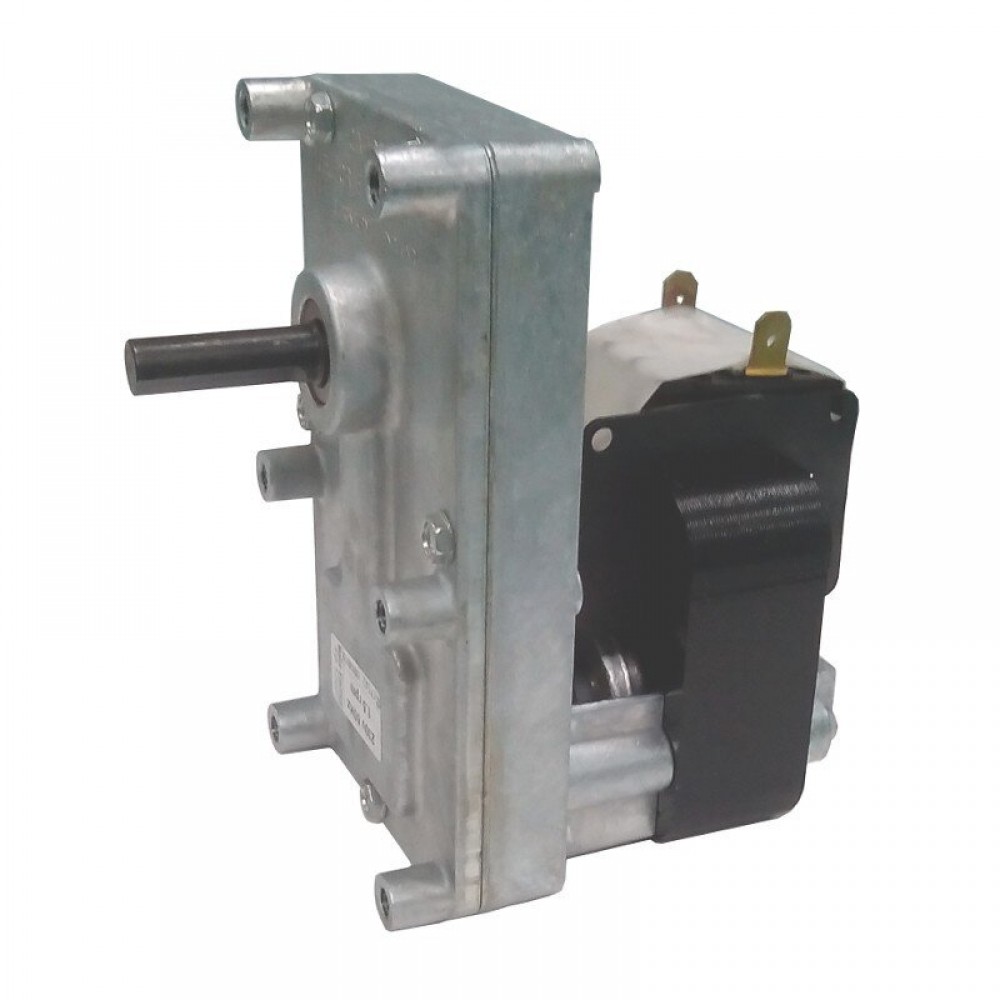

Mellor gear motor for pellet stoves.
  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.030
£102.00
Excl. VAT
2 or more £91.80
3 or more £86.70
Estimated delivery
04.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1183 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

For stoves ECOTECK - MONTEGRAPPA - ARCE - ADLER - ANSELMO COLA - ECOFOREST - ITALIANA CAMINI - EDILKAMIN ref. 791000 - fb1283   Aida - Ania - Aris - Aris D - Aris plus - Bering - Bering plus - Bijoux - Bora - Brio - Cameo - Chip - Chip plus - Classica - Classica plus - Dame - Dida - Dida plus - Dotty - Elise - Ginny 8 - Ginny 12 - Idrochip - Idrofast - Idropellbox - Idropolis - Idropoint - Idrosally - Kelly - Kikka - Kikka plus - Linosa 12 - Lory - Lou - Marea 08 - Maxima - Medea - Micron - Mini norma - Mito idro - Mya - Mya eco - Nancy - Naomy - Nea - Pellet blok - pellet blok 15 - Pellgreen 12 - Point - Point plus - Polis - Polis plus - Prima - Quick - Sally - Sally plus - Serena - Simply - Strass - Ten - Ten plus - Tiny - Tiny ceramica - Zara - Zara plus

Also used for direct pellet stoves Eco Spar.

T3 series, 23Nm output torque, 18Watt consumption, 2rpm speed, clockwise rotation, 9.5mm shaft diameter, 25mm magnetic core, 220 V AC 50/60 Hz power supply.

Equivalent to Kenta cod. 14702057





Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

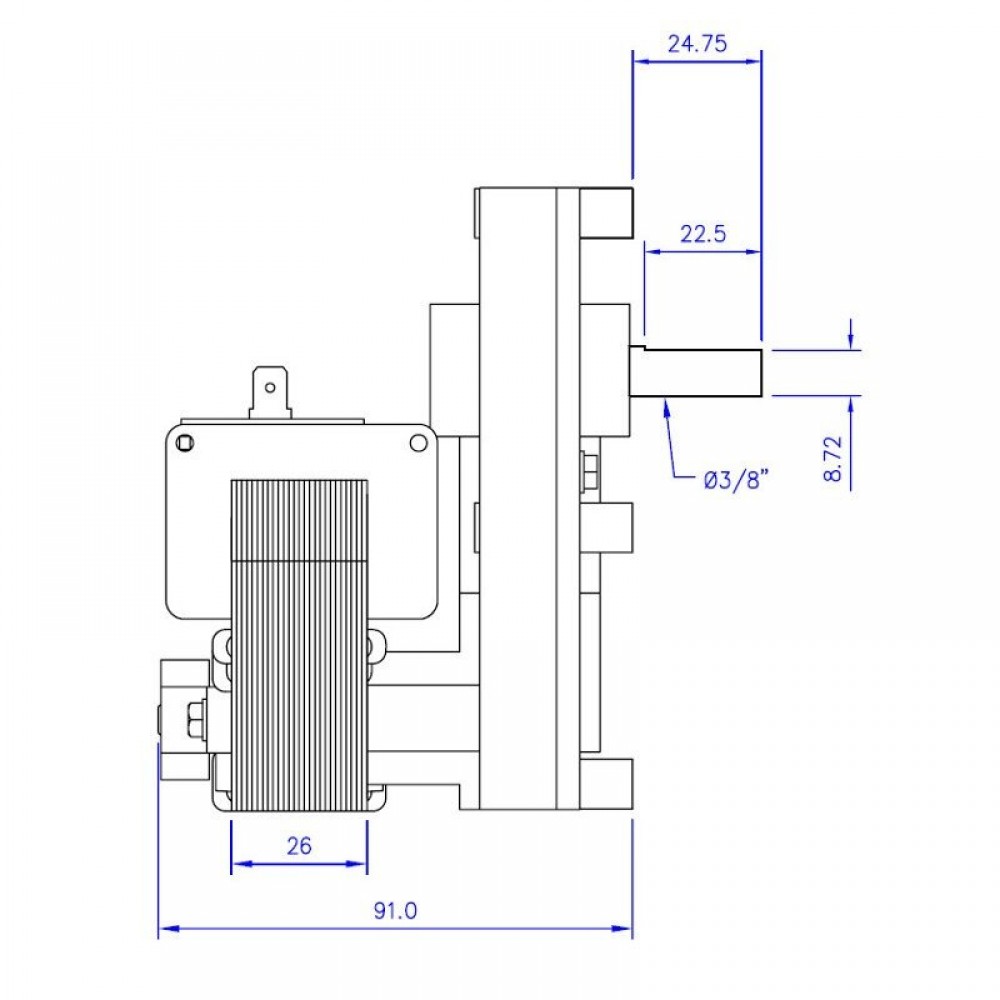

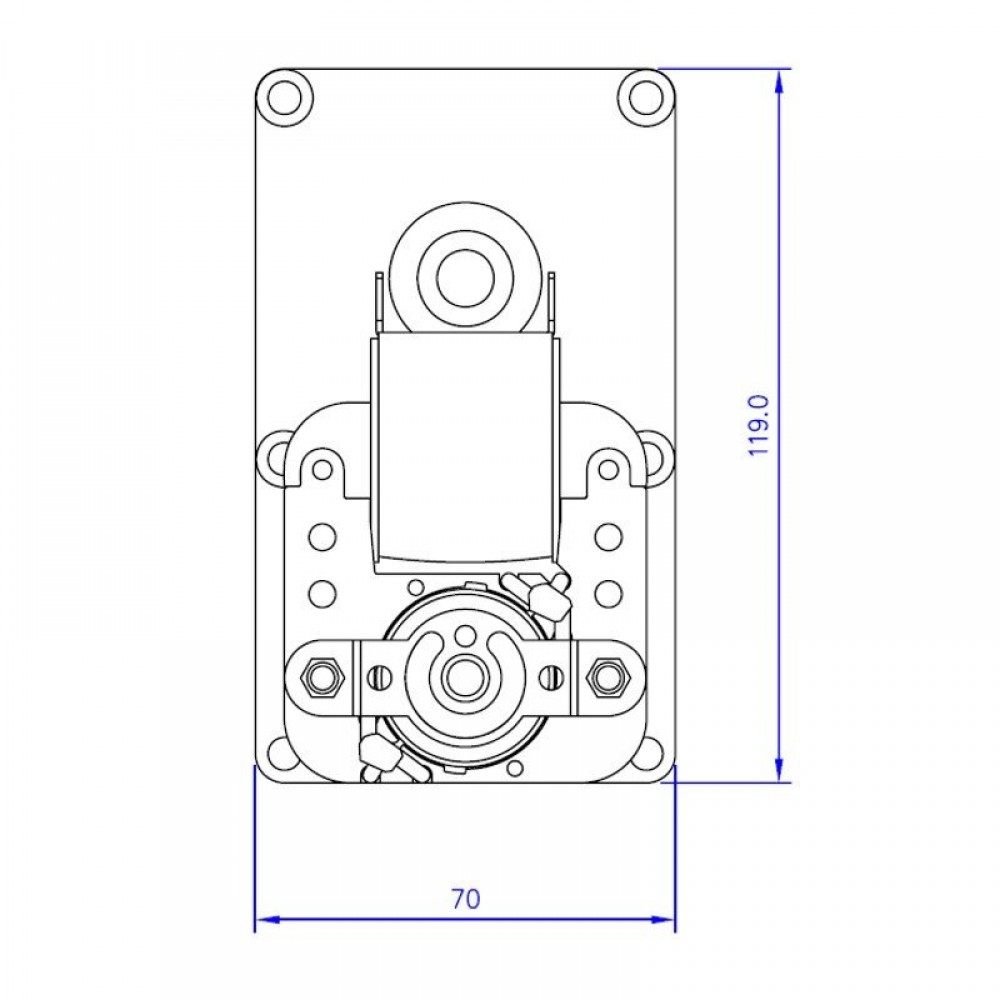

Dimension Depth (mm) 119
Dimension Width (mm) 70
Dimension Height (mm) 91
Warranty 6 months
MPN 14702003
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 18
Type Gear motor
Rotation speed (rpm) 2
Magnetic core (mm) 25
Shaft diameter (mm) 9.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 23
Compatibility Prity, Adler, Anselmo Cola, Arce, Caminetti Montegrappa, Edilkamin, Italiana Camini, Ecoforest
