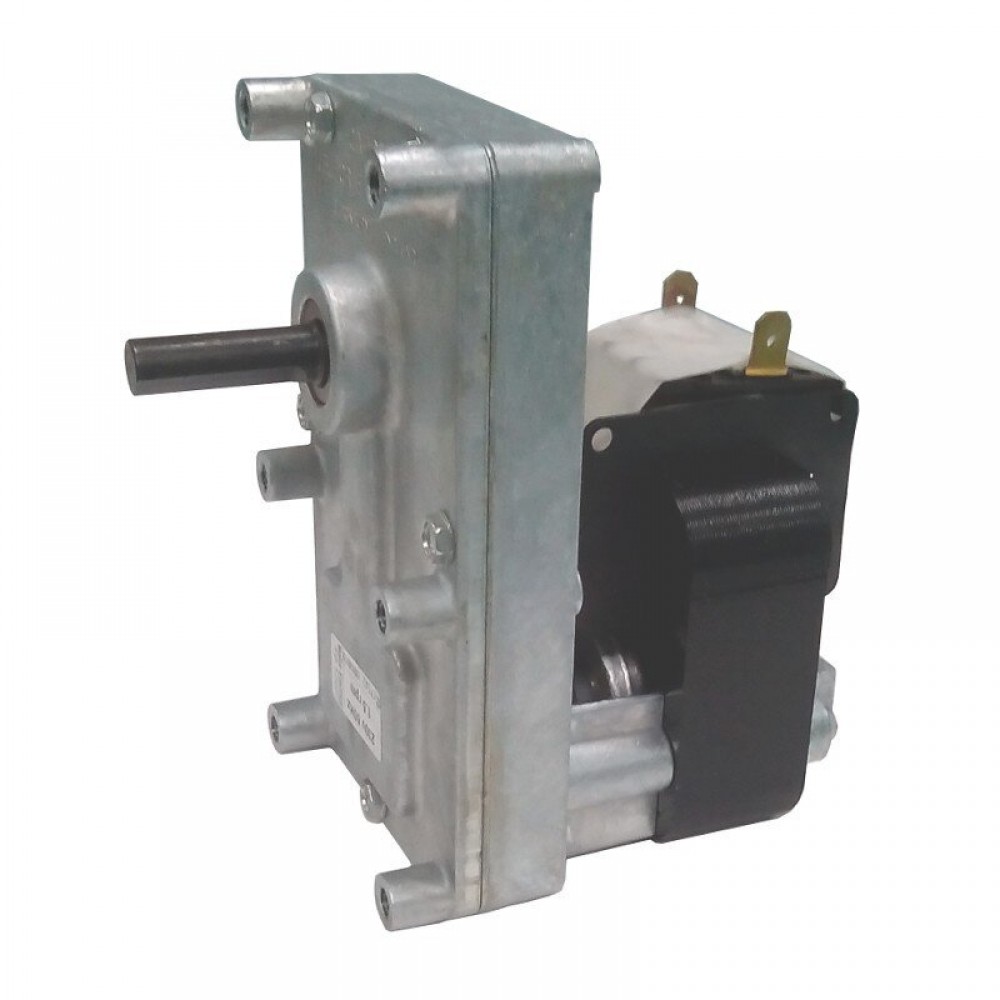

T3 series gear motor for pellet stoves, 220 V AC power supply
Free return
60 daysSee details
We accept payments
See details
The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.
FB1304 geared motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

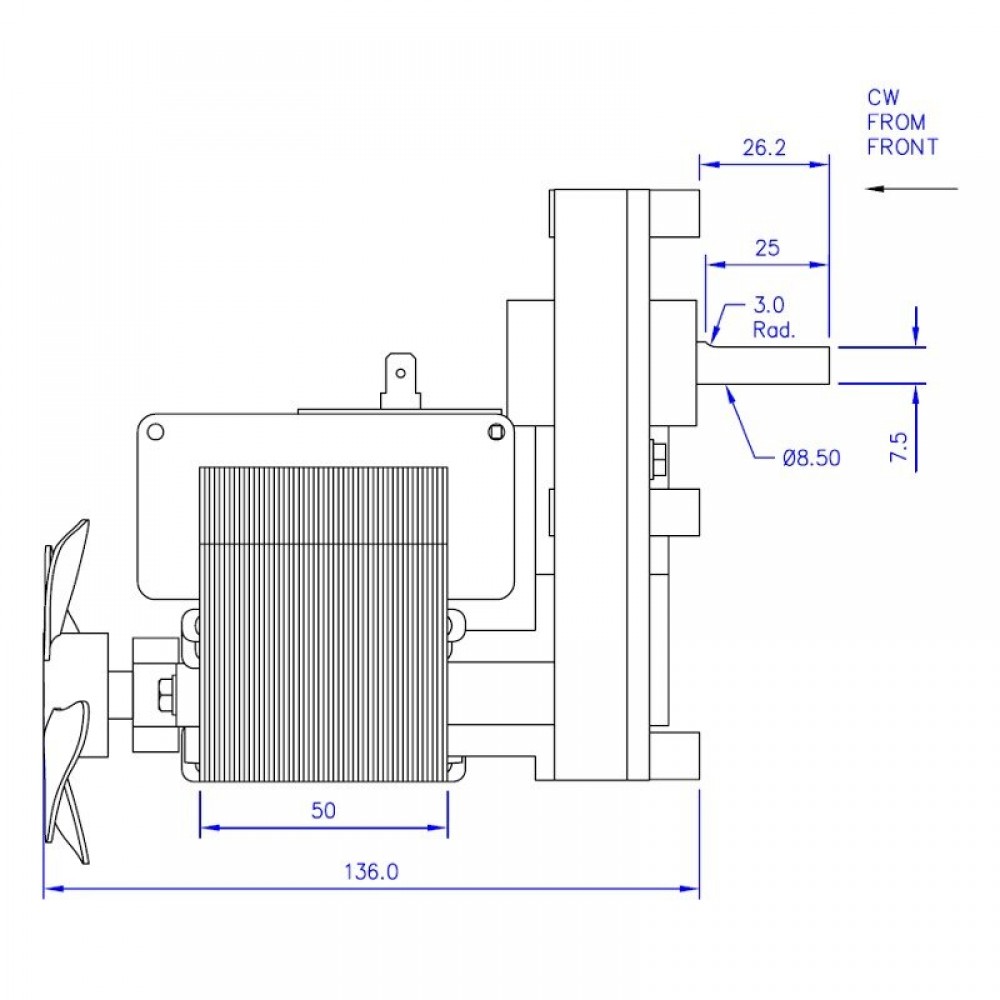

T3 series, 20Nm output torque, 52Watt consumption, 8rpm speed, clockwise rotation, 8.5mm shaft diameter, 50mm magnetic core, 220 V AC 50/60 Hz power supply.
Characteristics | |
Weight (kg) | 1.0000 |
Country of Manufacture | UK |

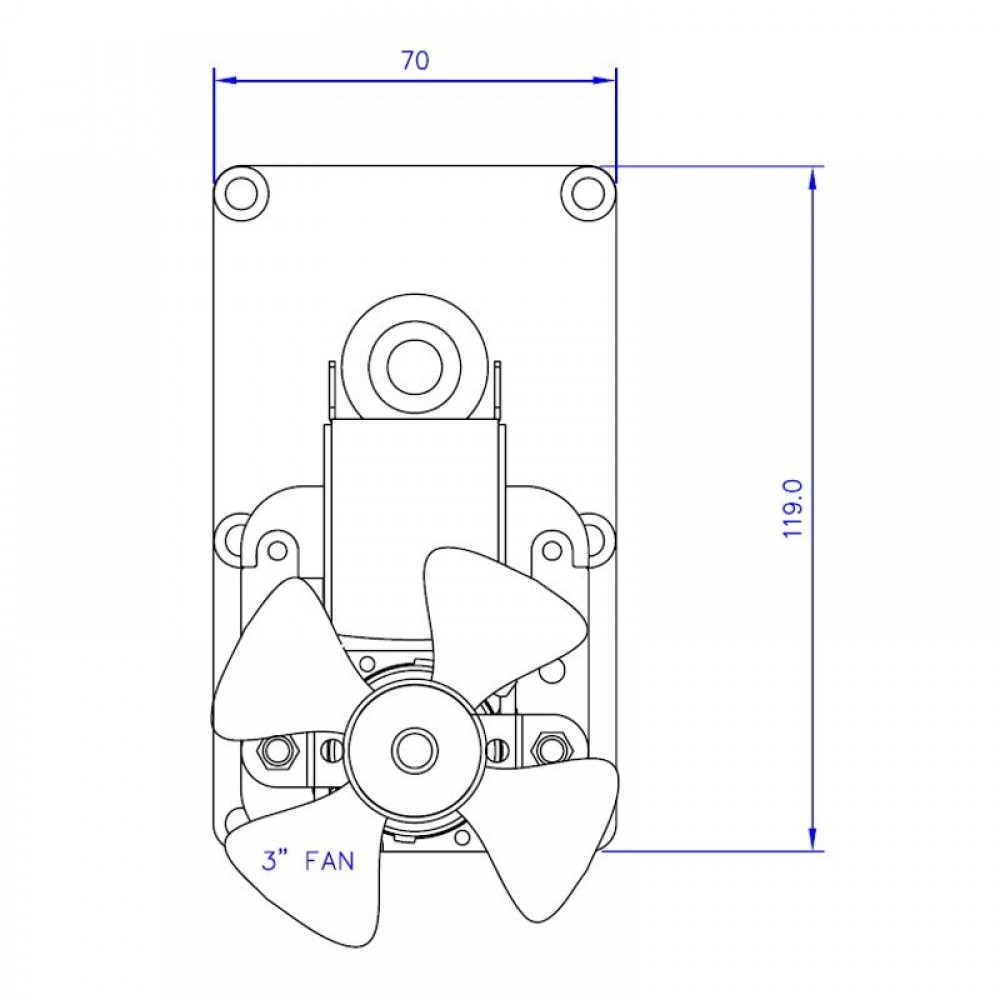

Dimension Depth (mm) | 119 |
Dimension Width (mm) | 70 |
Dimension Height (mm) | 163 |
Warranty | 6 months |
MPN | 14702022 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 52 |
Power supply [V] | 220 |
Type | Gear motor |
Magnetic core (mm) | 50 |
Shaft diameter (mm) | 8.5 |
Shaft milling | single |
Rotation | clockwise |
Output torque (Nm) | 20 |
Compatibility | Cadel, Deville, Eurofiamma, Karmek One, Puros |
