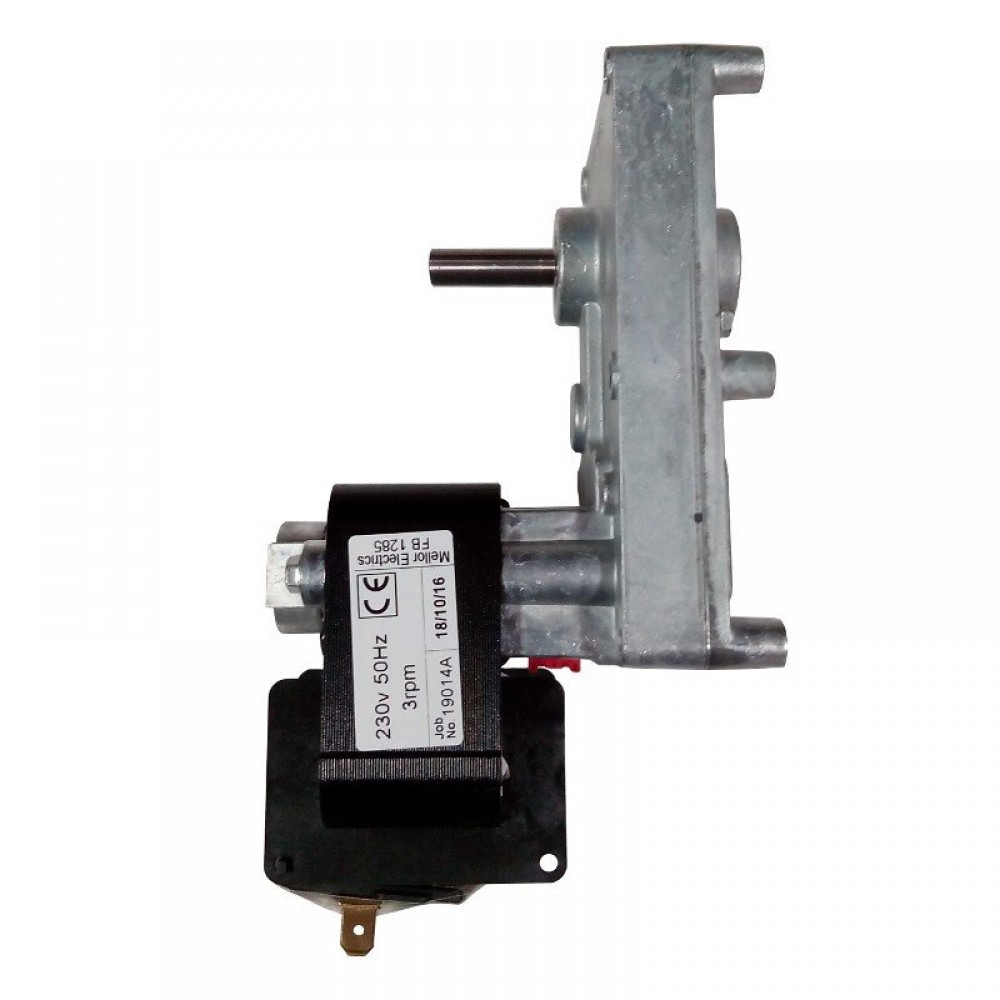

Pellet stove auger motor Mellor FB1285, 3RPM for Clam and others

Pellet stove auger motor Mellor FB1285, 3RPM for Clam and others

T3 series gear motor for pellet stoves, 220 V AC power supply

  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.010
£157.00
Excl. VAT
2 or more £113.40
3 or more £107.10
Estimated delivery
04.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.

FB1285 - DV3029 geared motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.

T3 series with encoder, 26Nm output torque, 25Watt consumption, 3rpm speed, clockwise rotation, 8.5mm shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.

For stoves CLAM Cod. 05023012 -  05010034 Mod. Niagara - Vittoria 26 kW

Equivalent to kenta cod. 14702060

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK

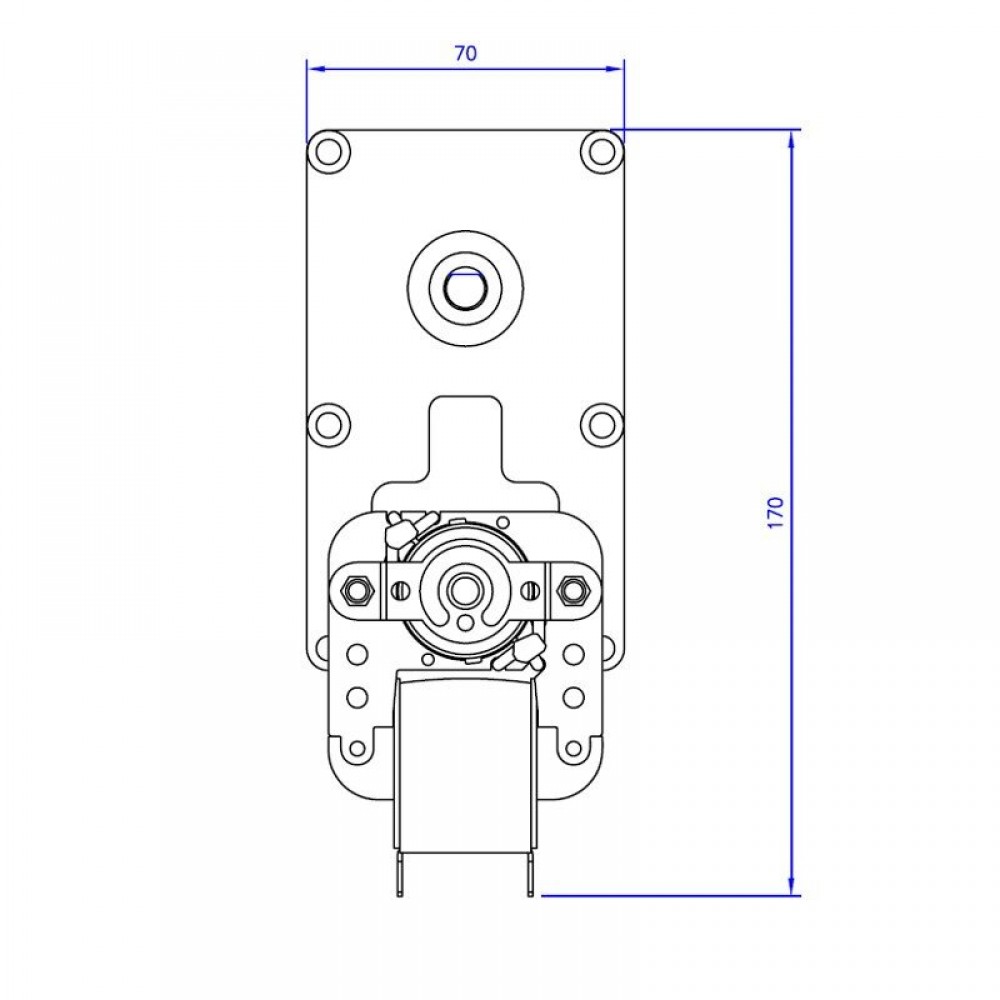

Dimension Depth (mm) 170
Dimension Width (mm) 70
Warranty 6 months
MPN 14702019
Electric power supply (V/Hz) 220-240/ 50-60
Power consumption (W) 25
Power supply [V] 220
Type Gear motor
Rotation speed (rpm) 3
Magnetic core (mm) 32

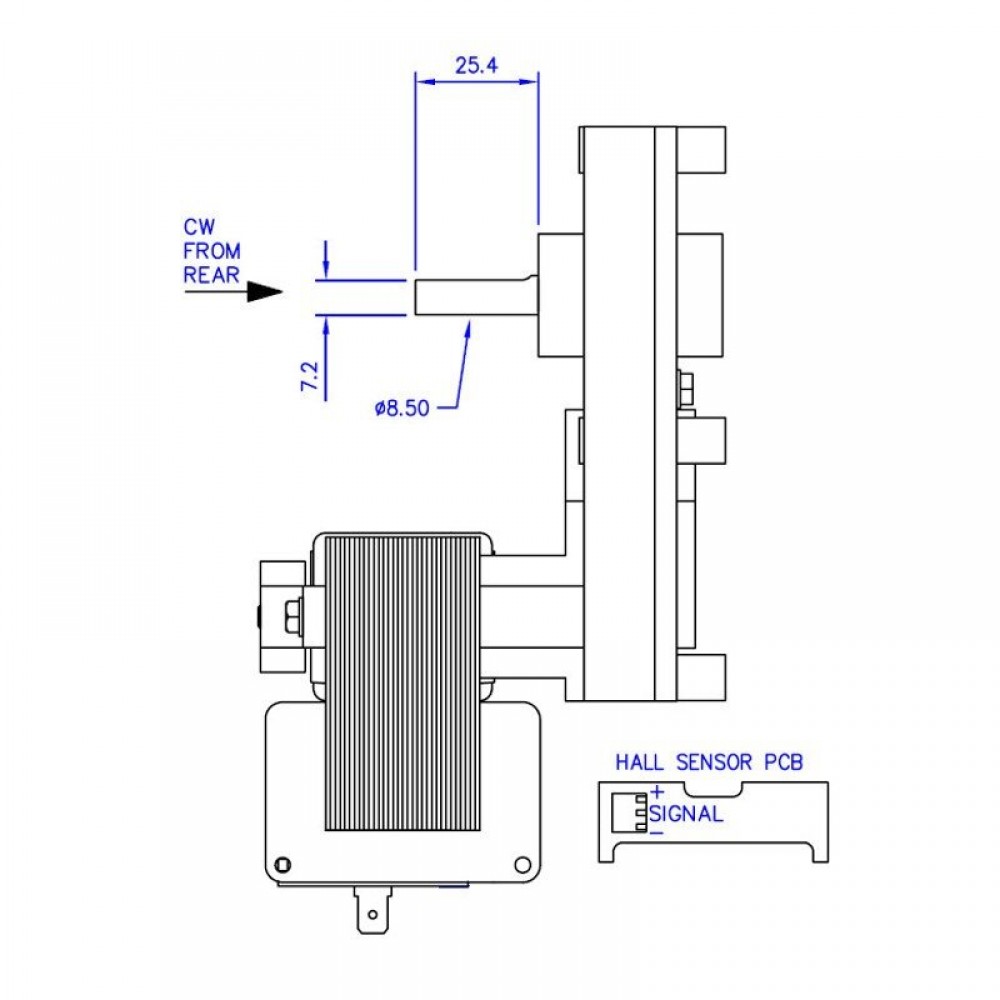

Shaft diameter (mm) 8.5
Shaft milling single
Rotation clockwise
Output torque (Nm) 26
Compatibility Clam
