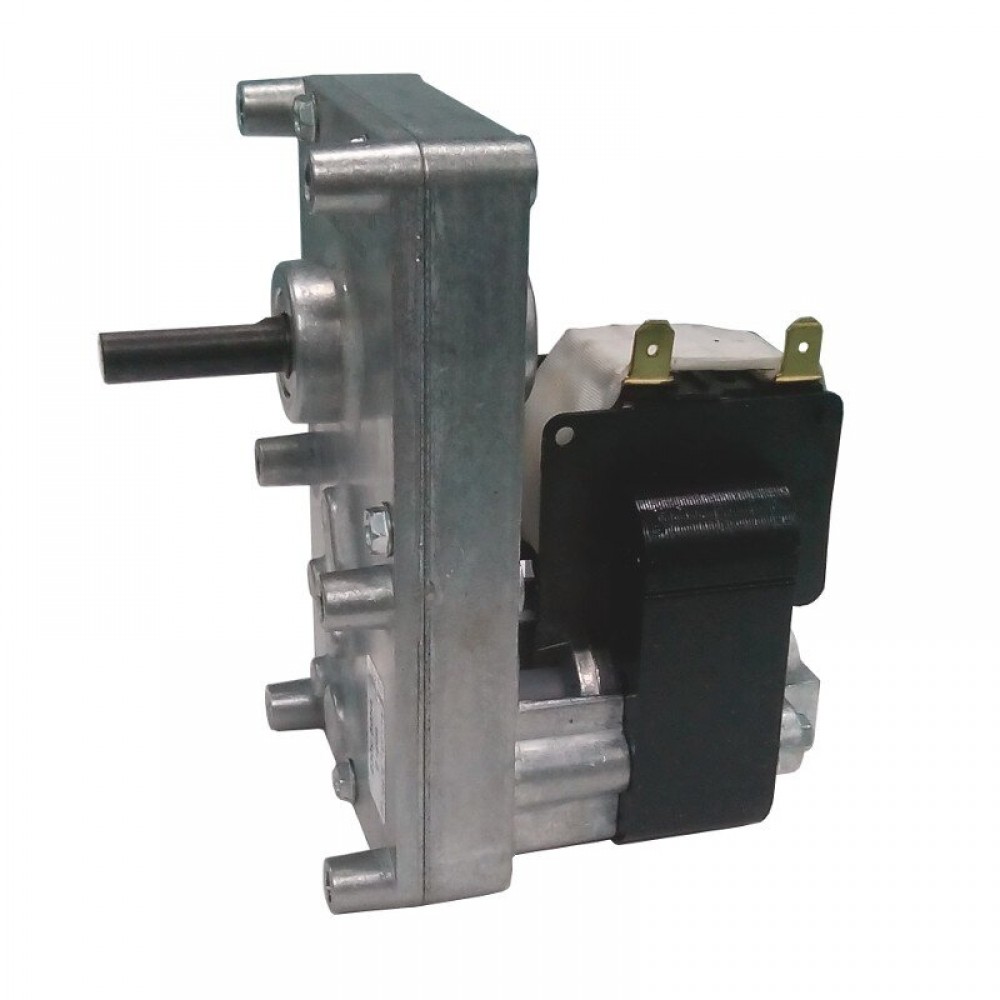

The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.
FB1192 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.
For stoves OLIMPIA SPLENDID ref. RE0601 - ROYAL - PIAZZETTA - KALOR - MCZ - ANSELMO COLA - THERMOROSSI
PALAZZETTI ref. 895707070 - gmsm13000a - mod. Clemy - Nicoletta aria - Letizia
PALAZZETTI ref. 895700800 mod. Classic - Clemy - Rcofire due classic mini - Ecofire Freddy Idro 2003 - Ecofire Luft/Idro - Ecofire Mini Classic - Gaja - Ginevra - Ginevra idro - Insert idro - Lora Idro - Maxi Idro - Mini Lux - Molly idro - Multifire 45 aria - Multifire 45 idro - Nicoletta aria - Sissy
T3 series, 26Nm output torque, 17Watt consumption, 1.26rpm speed, clockwise rotation, 9.5mm shaft diameter, 25mm magnetic core, 220 V AC 50/60 Hz power supply.
Characteristics | |
Weight (kg) | 1.0000 |
Country of Manufacture | UK |

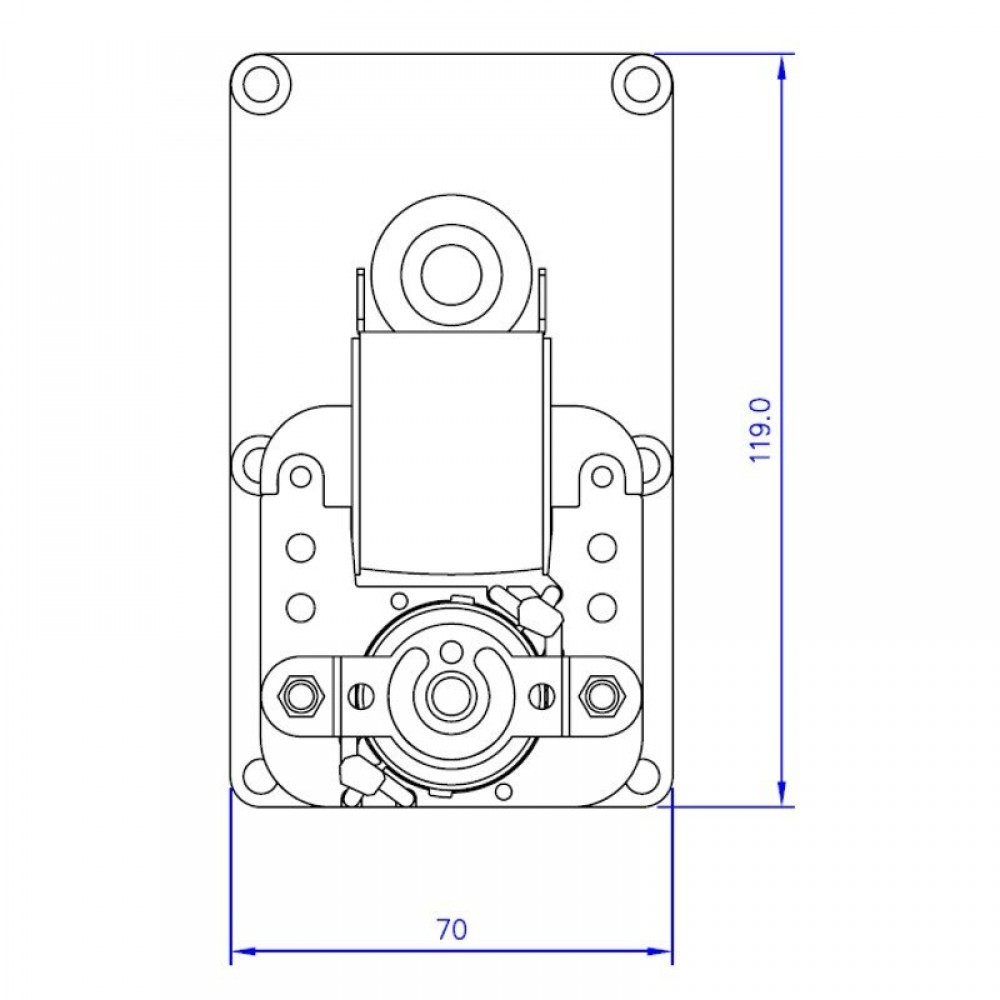

Dimension Depth (mm) | 119 |
Dimension Width (mm) | 70 |
Dimension Height (mm) | 116 |
Warranty | 6 months |
MPN | 14702007 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 17 |
Type | Gear motor |
Rotation speed (rpm) | 1.26 |
Magnetic core (mm) | 25 |

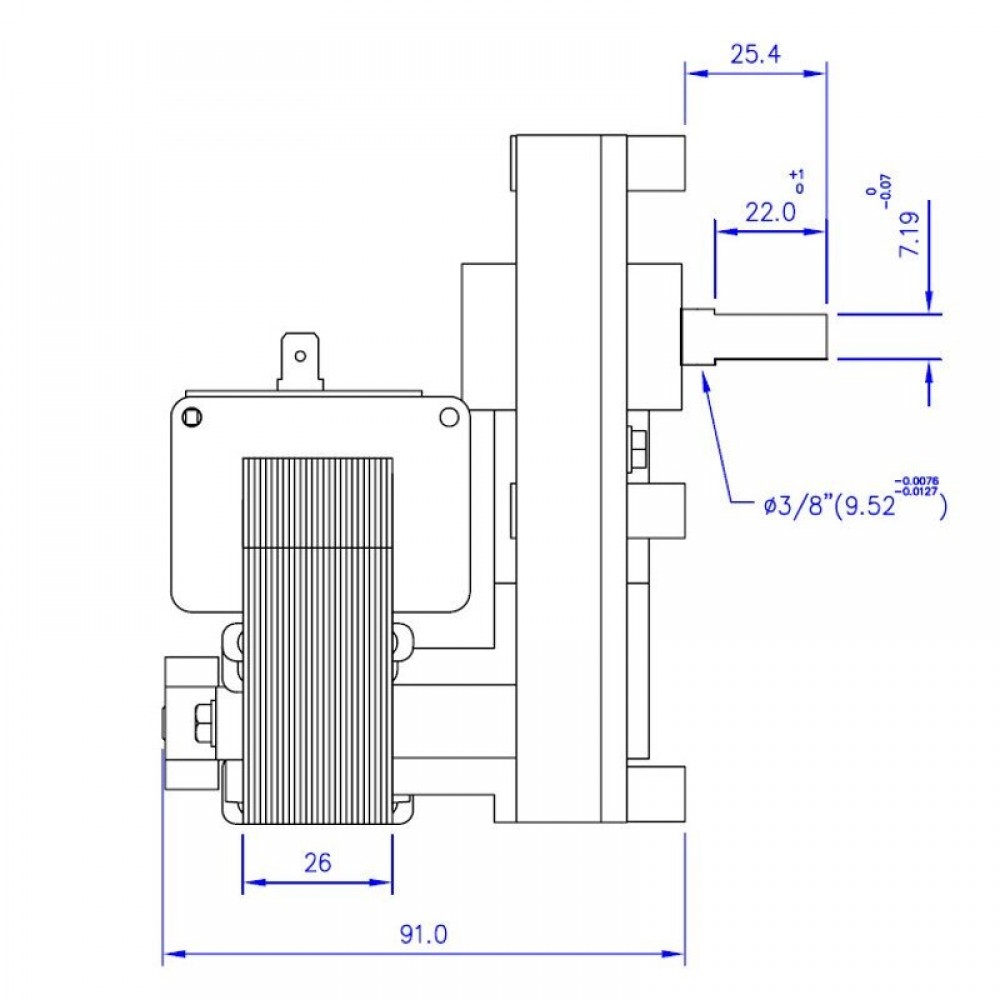

Shaft diameter (mm) | 9.5 |
Shaft milling | double |
Rotation | clockwise |
Output torque (Nm) | 26 |
Compatibility | Anselmo Cola, Biasi, Caminetti Montegrappa, Ferroli, Kalor, MCZ, Olimpia Splendid, Palazzetti, Piazzetta, Royal, Thermorossi |
