The heavyweight of our range, the FBT3 is a low speed, high torque unit designed with pellet fired appliances and fresh brew vending systems in mind, although it is equally suited for many other applications. High quality engineering ensures a quiet and long running life. Output shaft length and diameter to suit individual customer requirements.
FB1171 gear motor is suited to be used as rotor in pellet stoves, pellet burners, pellet boilers, agricultural equipment, composting (waterless) toilets, food and restaurant equipment - conveyor toasters, kebab machines, hot dog rollers, scientific equipment, medical equipment, packaging equipment, vending machines, fresh brew coffee systems, ice makers, peristaltic pumps, diagphragm pumps, amusement machines, point of sale displays, instrumentation & turntables.
For stoves MONTEGRAPPA - ENVIROFIRE - PALLADIO - ITALIANA CAMINI - EDILKAMIN ref. 665100 - 665180 - FB1191 - FB1191CPT - B4415UI - mod. Alba Marea 2004 - Corolla - Moena - Flexa - Forma - Inpellet 49 - Inpellet 54 - Iris 2004 2005 - Iris Plus - Iris Up - Lilia - Lilia Plus - Junior - Lilia - Little - Little Prima - Mariu' - Pellet Piu' 54 - Pellinsert 54 - Pellstar - Rose - Seven - Trend - Trend '05 - Trend Plus - Twin

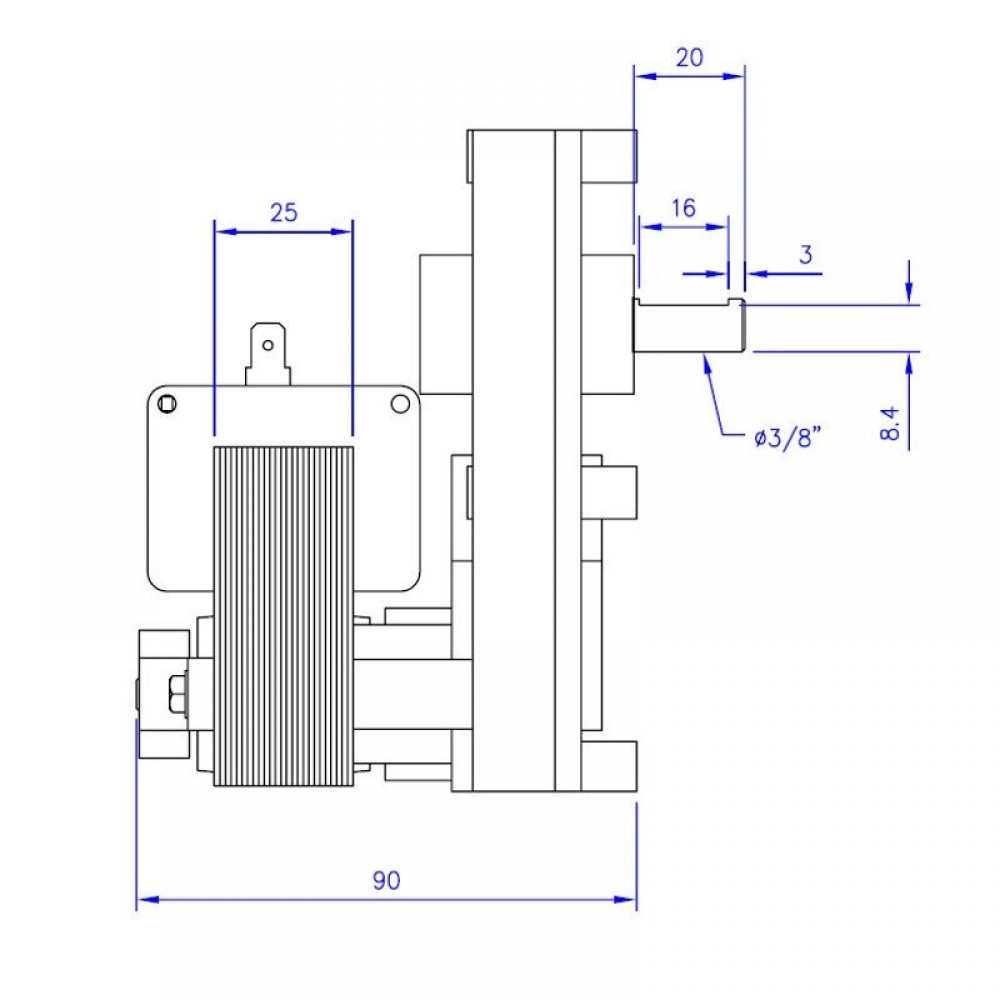

T3 series, 24Nm output torque, 16.5Watt consumption, 1,5rpm speed, clockwise rotation, 9.5mm shaft diameter, 25mm magnetic core, 220 V AC 50/60 Hz power supply.
Characteristics | |
Weight (kg) | 1.0000 |
Dimension Depth (mm) | 119 |
Dimension Width (mm) | 70 |
Dimension Height (mm) | 110 |
Warranty | 6 months |
MPN | 14702002 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 16.5 |
Type | Gear motor |
Rotation speed (rpm) | 1.5 |
Magnetic core (mm) | 25 |
Shaft diameter (mm) | 9.5 |
Shaft milling | single |
Rotation | clockwise |
Output torque (Nm) | 24 |
Compatibility | Eco Spar, Arce, Cadel, Caminetti Montegrappa, Edilkamin, Italiana Camini, Palladio |
