Hollow-shaft pellet stove auger motor Mellor KB1014, 3RPM for Karmek One, Caminetti Montegrappa and others

Hollow-shaft pellet stove auger motor Mellor KB1014, 3RPM for Karmek One, Caminetti Montegrappa and others

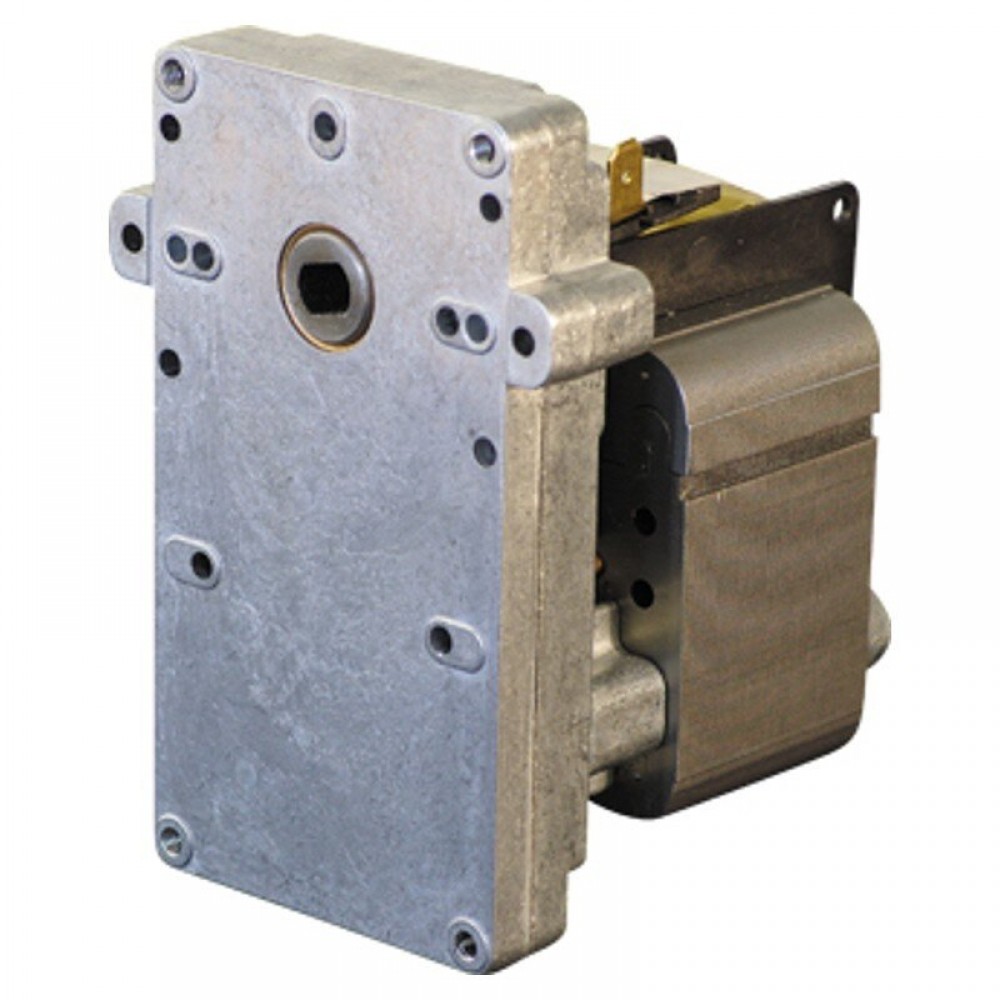

Mellor hollow-shaft gear motor for pellet stoves.
  • Stock: In Stock
  • Brand: Mellor
  • SKU: 16.455.034
£112.00
Excl. VAT
2 or more £100.80
3 or more £95.20
Estimated delivery
04.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

This geared motor was originally designed to complement our range between the FBT3 and UBT6. Designed with a slimline gearbox but with high torque capability allowing this unit to be used in many applications where space is limited but a high torque is required. Typical applications include pellet stoves, vending and actuation.

KB1014 geared motor is suited to be used as rotor in pellet stoves.

Compatible kenta 3 rpm

T14 series, 20Nm output torque, 21Watt consumption, 3rpm speed, clockwise rotation, 8.5mm hollow shaft diameter, 26mm magnetic core, 220 V AC 50/60 Hz power supply.

Characteristics
Weight (kg) 1.0000
Country of Manufacture UK
Dimension Depth (mm) 108
Dimension Width (mm) 73
Dimension Height (mm) 73
Warranty 6 months
Electric power supply (V/Hz) 220-240/50-60
Power consumption (W) 21
Type Gear motor
Rotation speed (rpm) 3
Magnetic core (mm) 26
Shaft diameter (mm) 8.5
Shaft milling double
Rotation clockwise
Output torque (Nm) 20
Compatibility Karmek One, Caminetti Montegrappa
