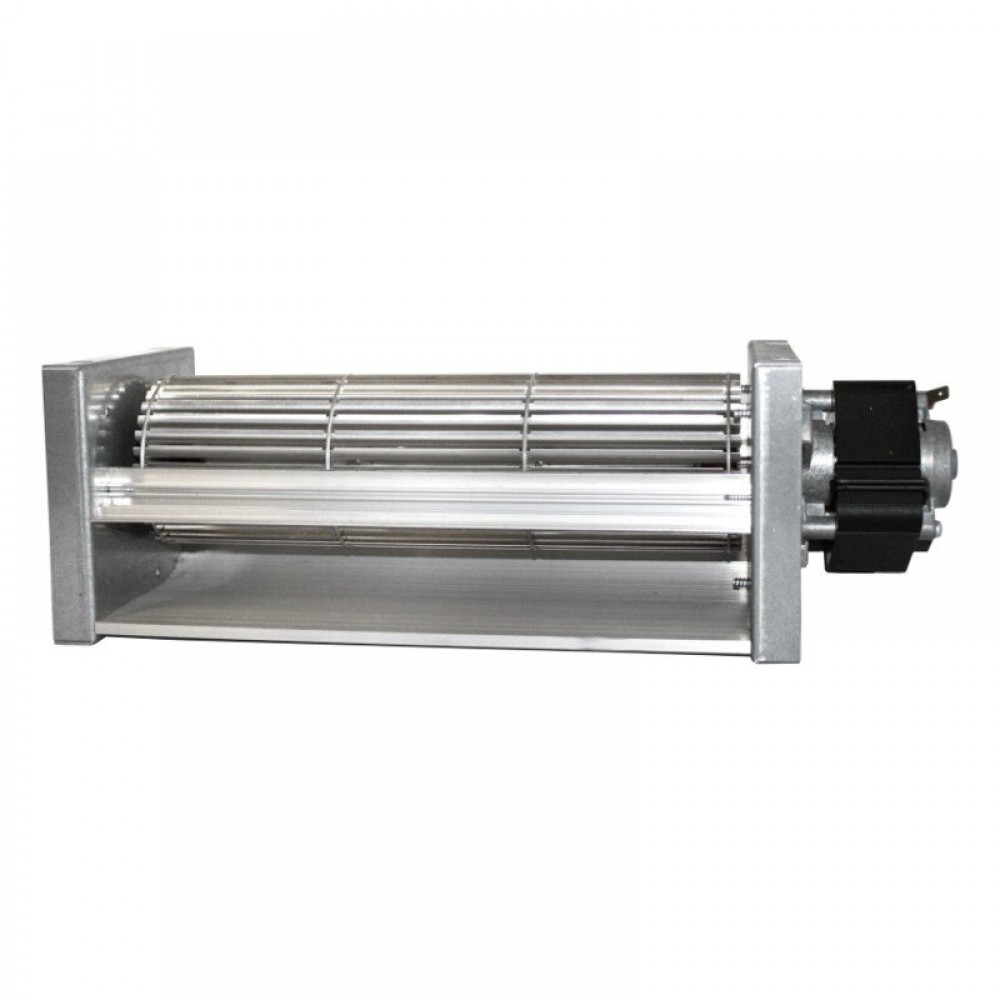

TGA 80/1-270/35 EMMEVI - FERGAS 158205 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
The 80mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 305 m³/h.
Thanks to its small size, its 387mm total length and its 280 x 44 mm nozzle dimensions, the fan has severel employments.
It absorbs 77 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |

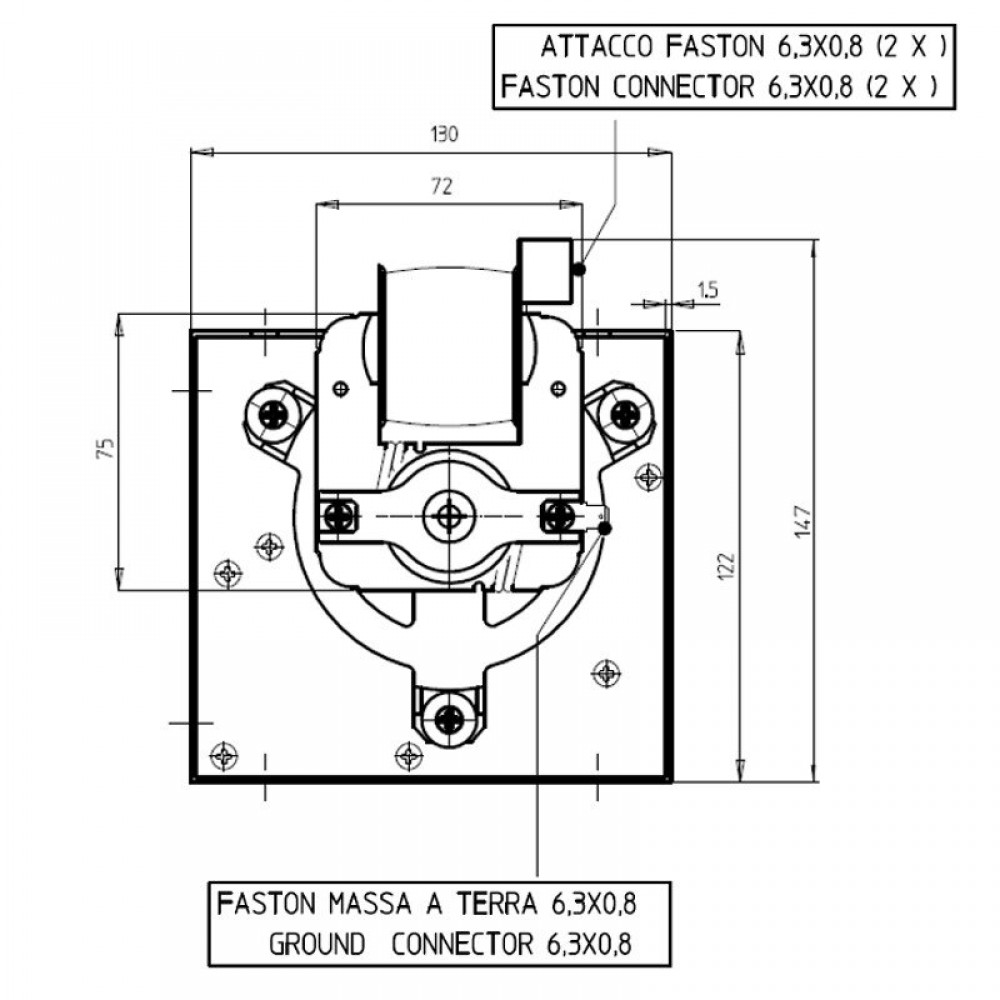

Dimension Depth (mm) | 130 |
Dimension Height (mm) | 147 |
Warranty | 6 months |
MPN | 14706070 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 77 |
Type | Tangential fan |

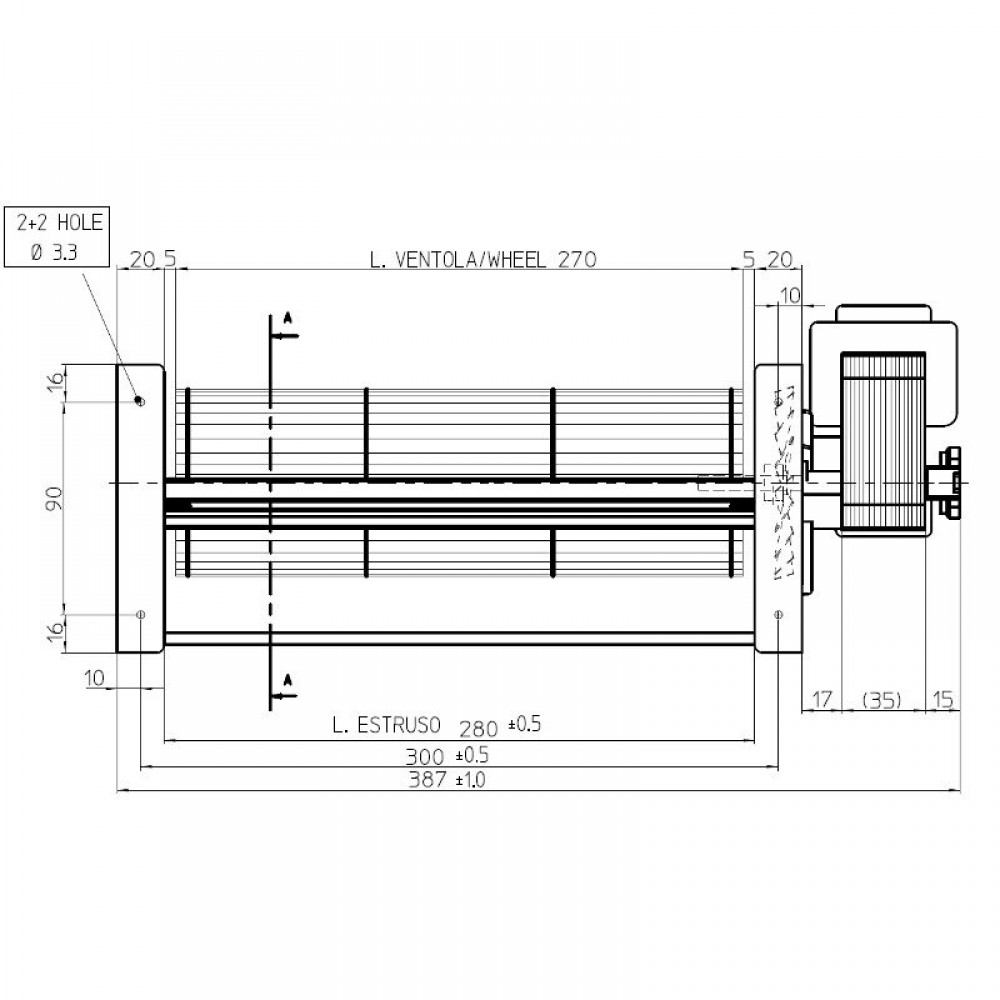

Total length [mm] | 387 |
Maximum airflow rate (m³/h) | 305 |
Magnetic core (mm) | 35 |

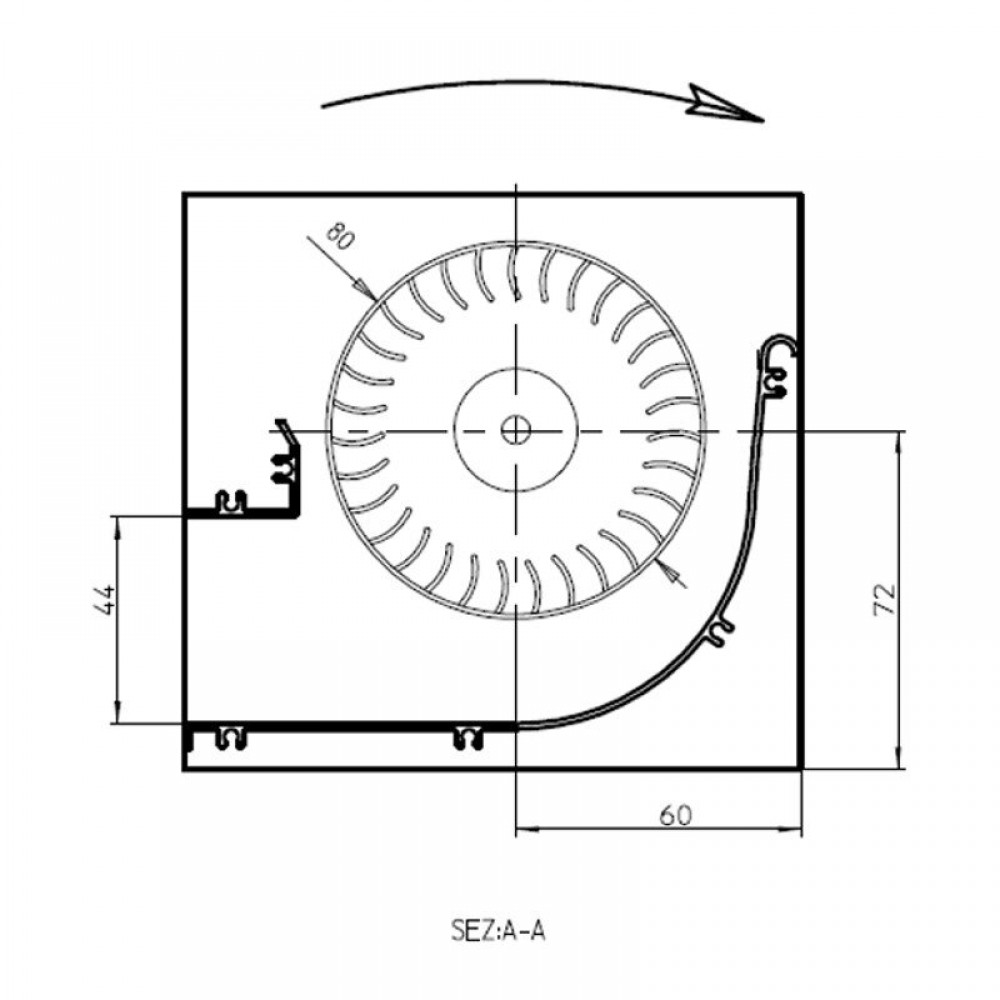

Fan diameter (mm) | 80 |
Fan length | 270 |
Nozzle dimensions (mm) | 280 x 44 |
Compatibility | Sideros |
