Tangential fan for pellet stoves.
Free return
60 daysSee details
We accept payments
See details

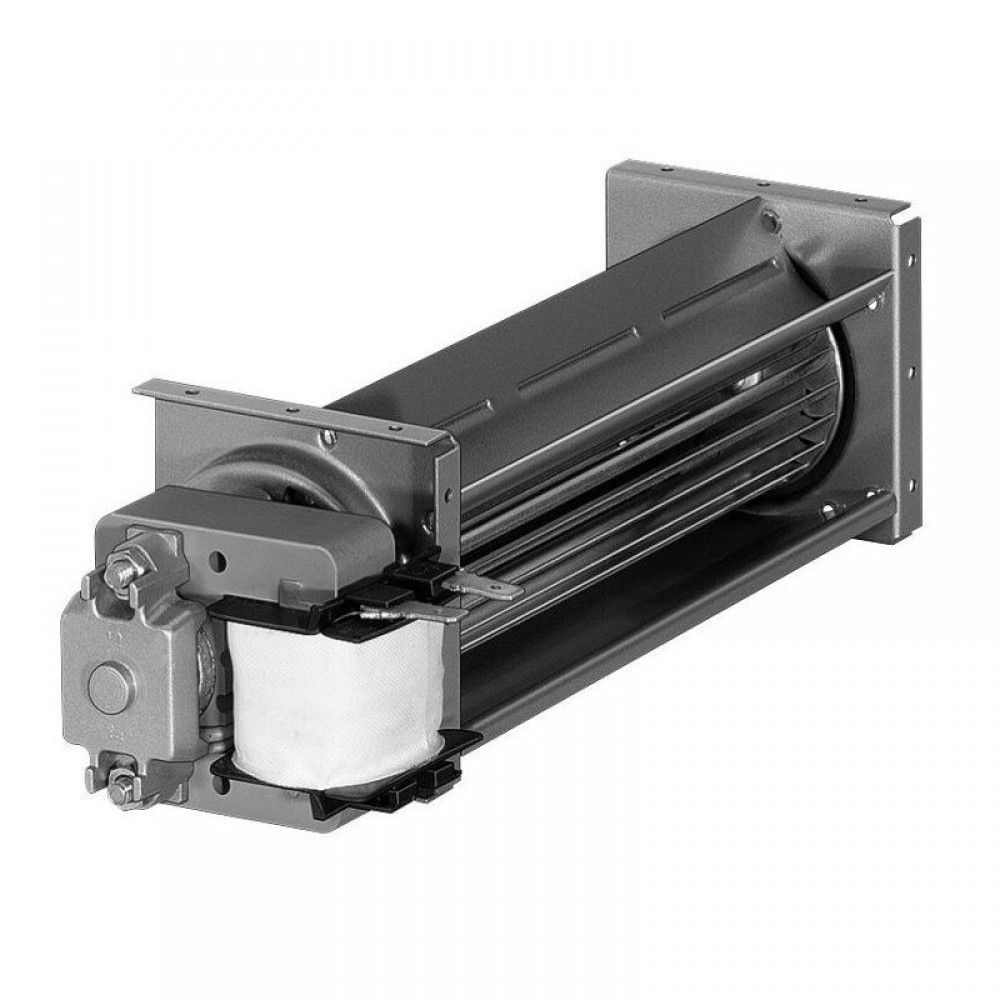

EBM QL4/0020A32-2118LH-463 cod. 554431170 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
The 45 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 106 m³/h
Thanks to its small size, its 282 mm total length and its 200 x 40 mm nozzle dimensions, the fan has severel employments.
LA NORDICA Cod. 0020027 mod. INSERTO 50 verticale ventilato - inserto 60 Ventilato - inserto 80 ventilato
Characteristics | |
Weight (kg) | 1.0000 |

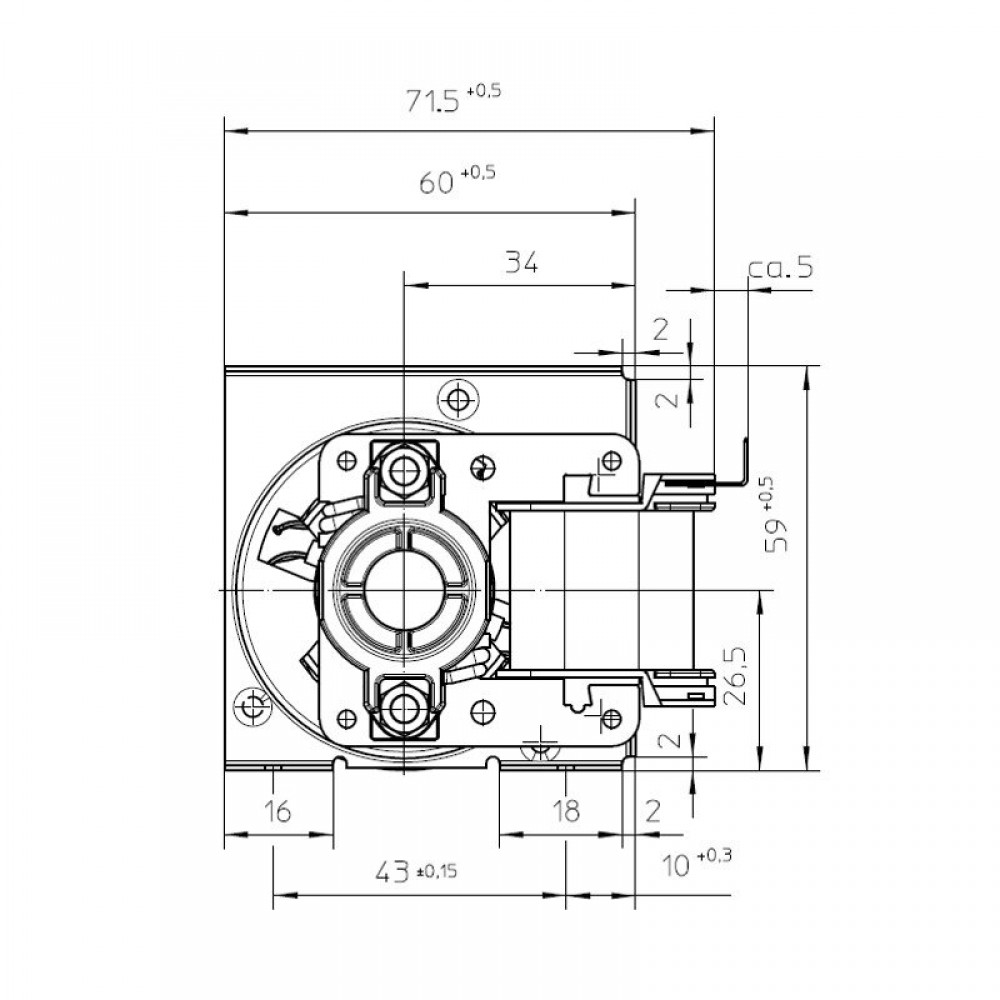

Dimension Depth (mm) | 72 |
Dimension Height (mm) | 59 |
Warranty | 6 months |
MPN | 14706078 |
Power consumption (W) | 22 |
Type | Tangential fan |

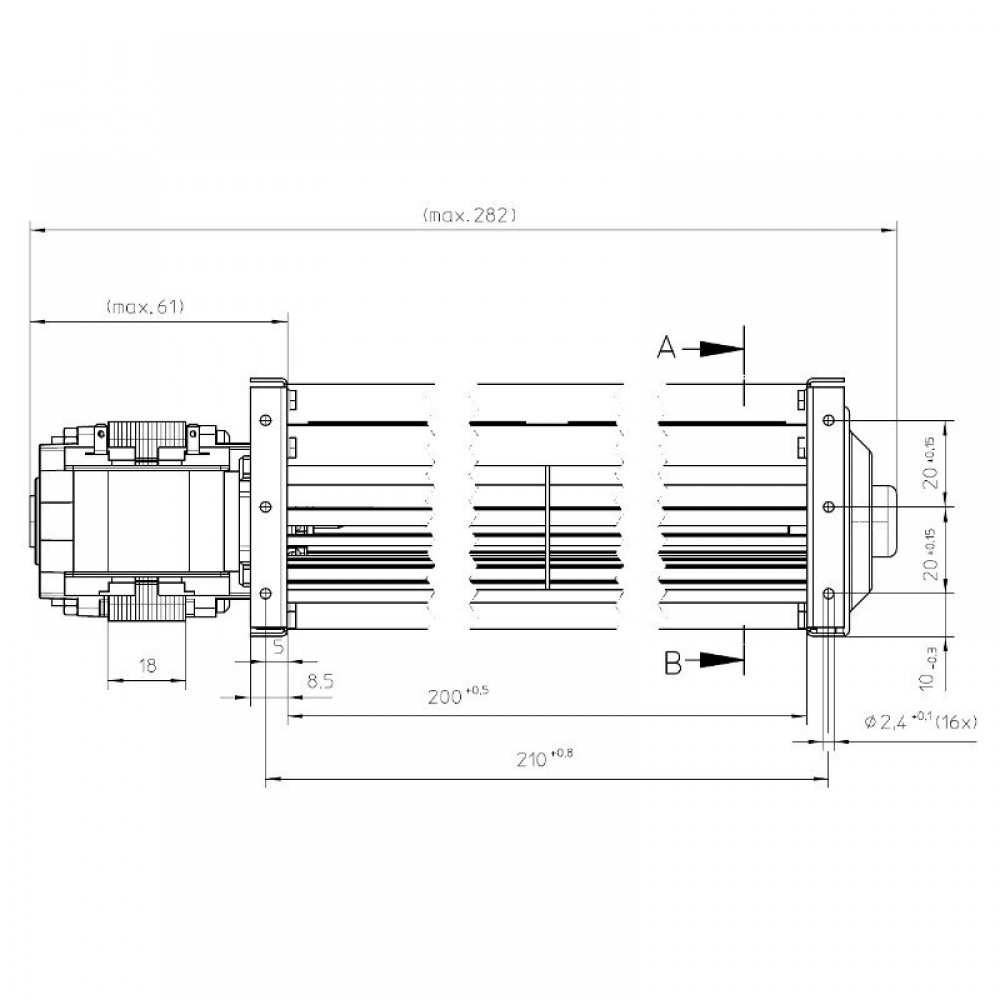

Total length [mm] | 282 |
Maximum airflow rate (m³/h) | 106 |
Magnetic core (mm) | 18 |
Fan diameter (mm) | 45 |
Fan length | 200 |
Nozzle dimensions (mm) | 200 x 40 |
Compatibility | La Nordica |
