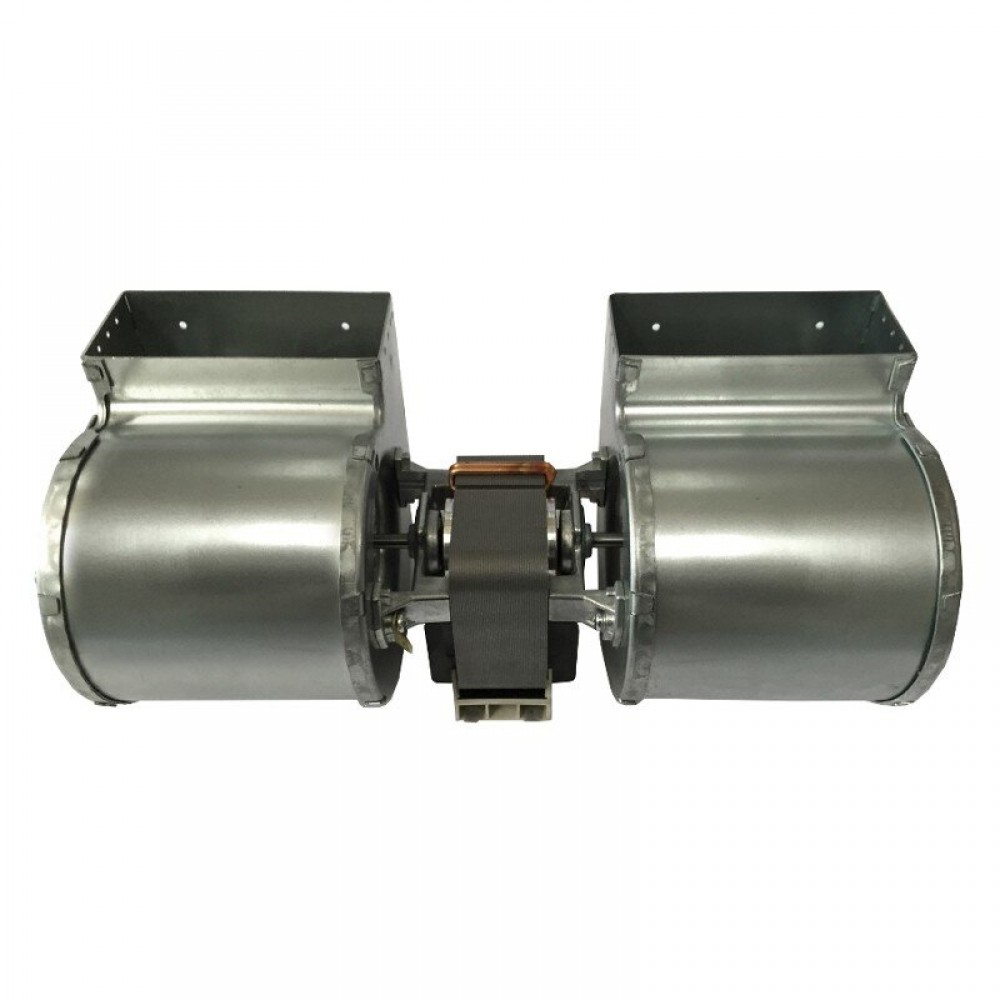

EMMEVI - FERGAS CFD-DA 80X83-35 cod. 207722 centrifugal fan for pellet stoves. Specific for high temperatures, this fan is small and very reliable.
It generate a uniform airflow with a 440 m³/h flow rate.

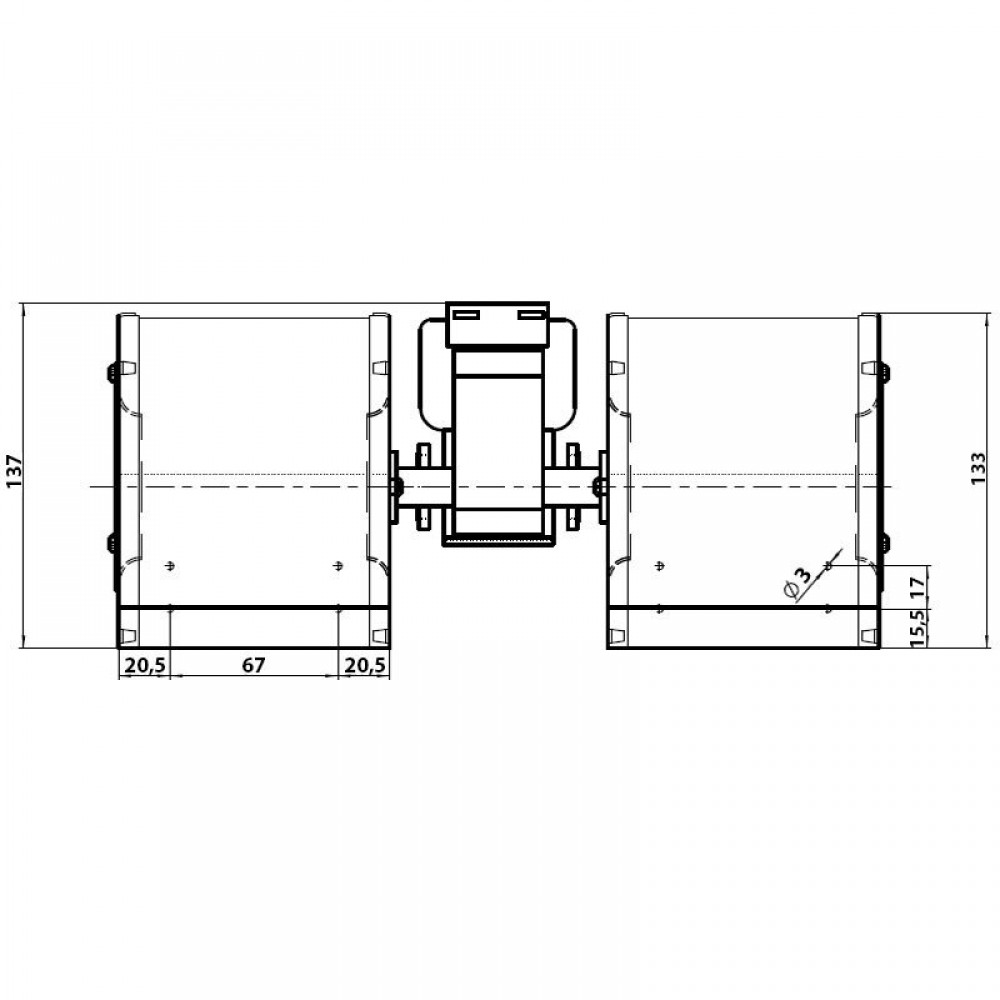

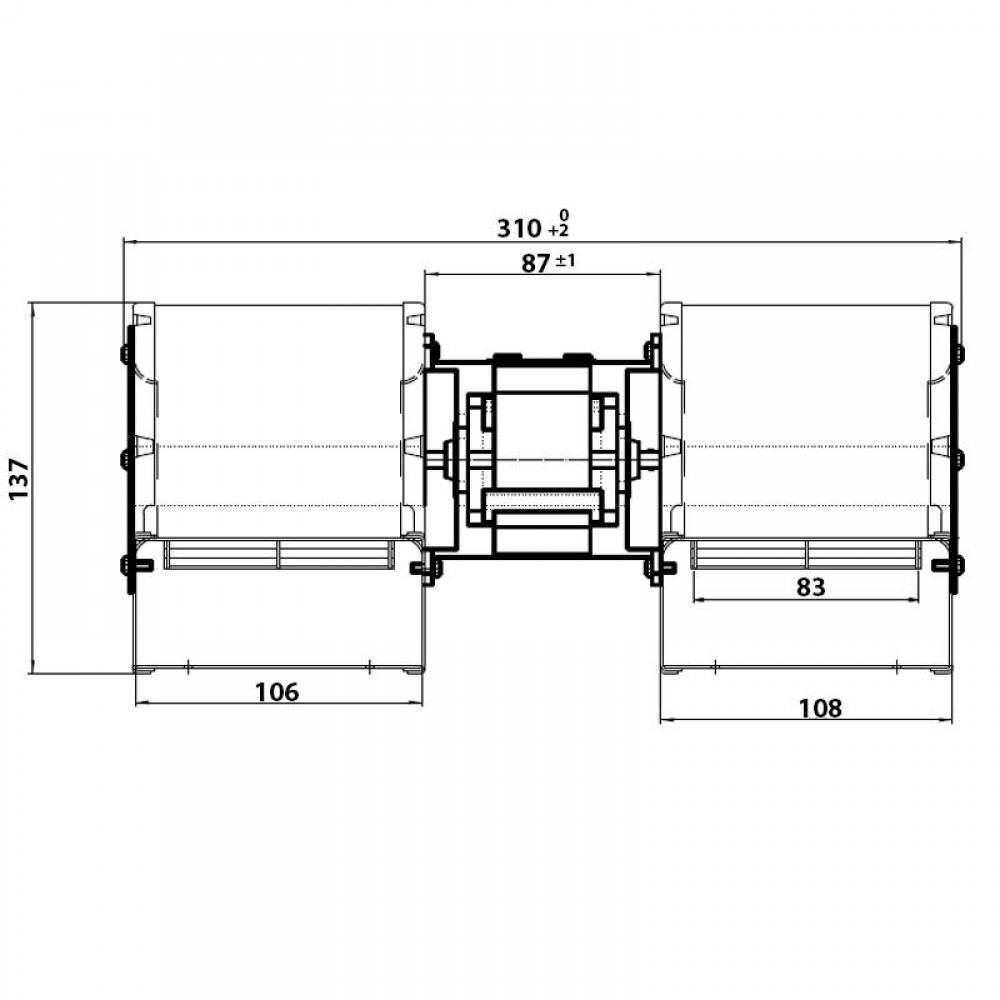

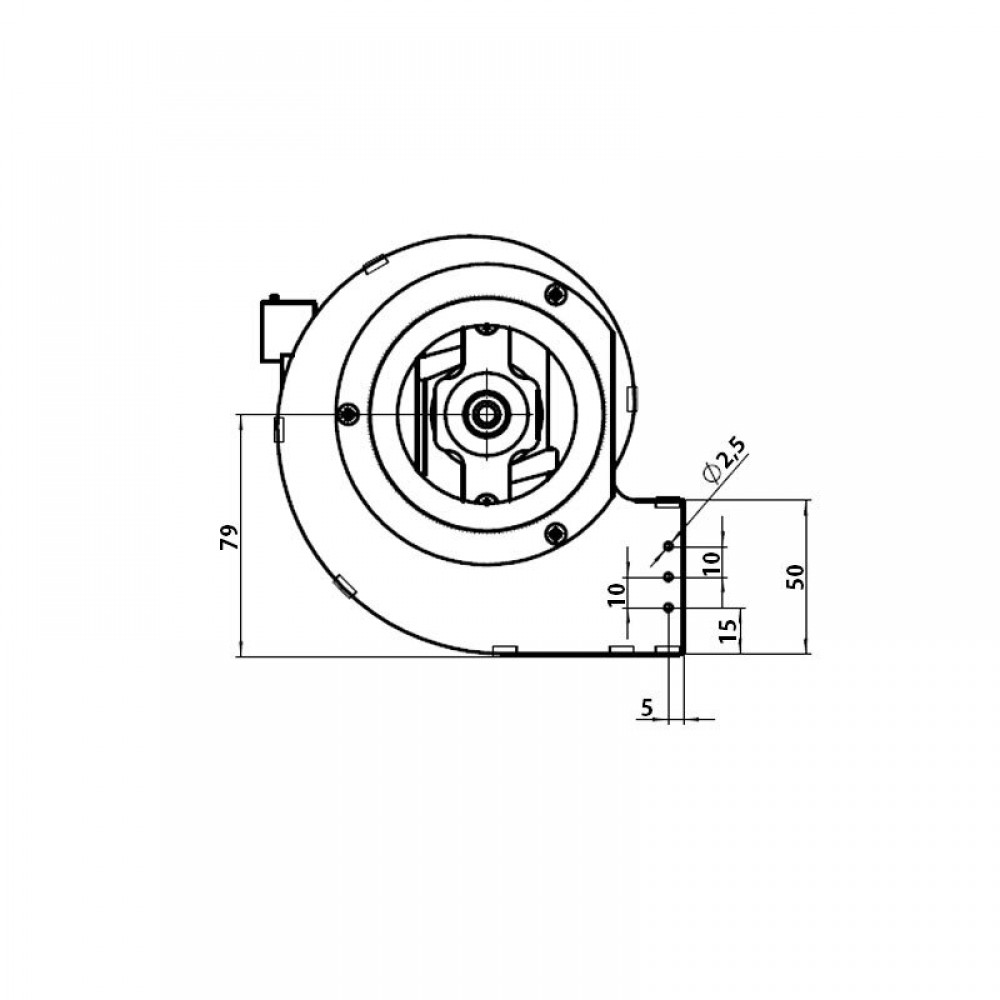

Features: 310mm total length, 2 x 108 x 50 mm output air nozzle.
Equivalent to the following EMMEVI-FERGAS centrifugal fan 207703 - 207709 - 207710 - 207713 - 207718
For the following stoves - ECOTECK - RAVELLI mod. Elena Air Plus - PRISMA - SICALOR - ECOFOREST mod. Suez, Turbo Aire - ITALIANA CAMINI and EDILKAMIN code 231690 for the models Alba – Marea – Atena – Artemide – Arianna - Mariu' and Iris models from 2004 to 2005 up to the serial number 3617078 and Rose model up to the serial number 3626654-substituted in the following versions with the tangential fans code 14706048 and 14706052
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |
Dimension Width (mm) | 310 |
Dimension Height (mm) | 137 |
Warranty | 6 months |
MPN | 14706012 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 130 |
Type | Hot air ventilator |
Maximum airflow rate (m³/h) | 440 |
Nozzle dimensions (mm) | 2 x 108 x 50 |
Compatibility | Ecoforest, Ecoteck, Edilkamin, Italiana Camini, Prisma, Ravelli, Sicalor |
