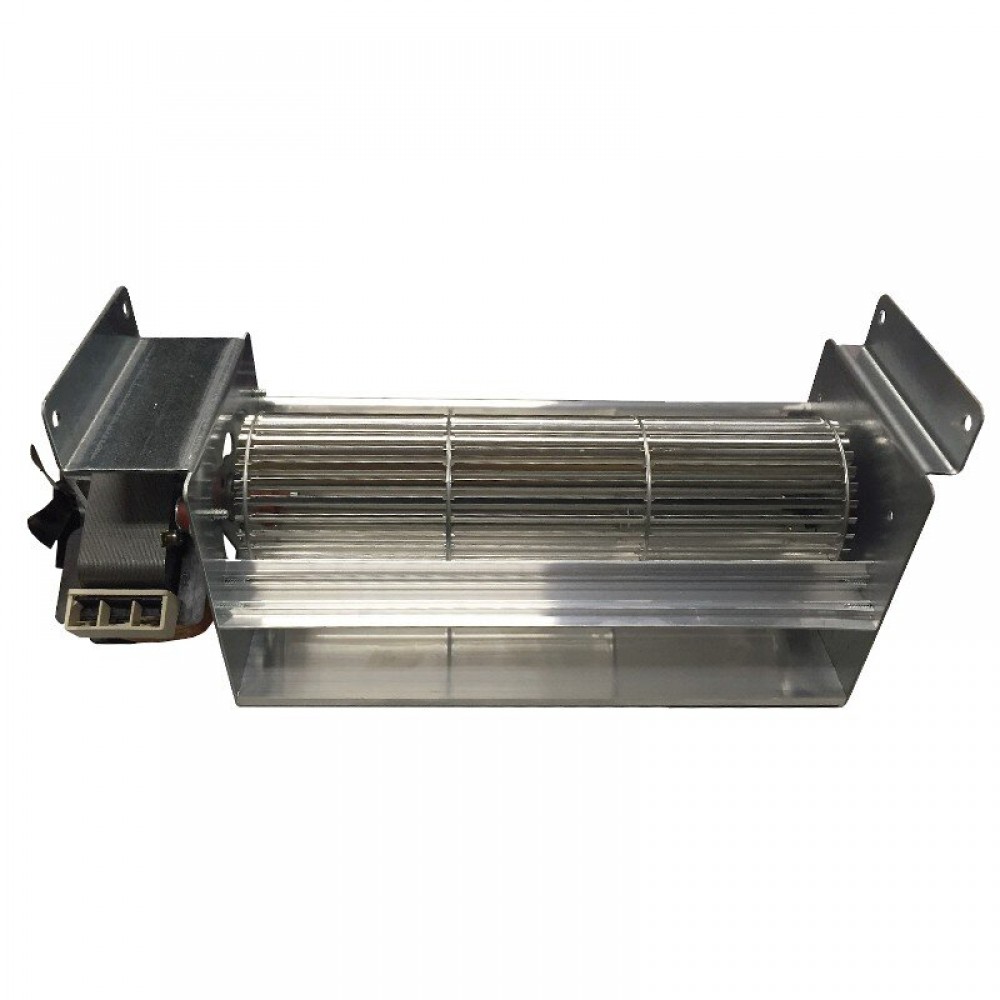

TGO 80/1-270/35 EMMEVI - FERGAS 153455 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
For stoves ITALIANA CAMINI - EDILKAMIN code 284870 for Iris model from the serial number 3617039 up to the serial number 3702078- while for 2004 and 2005 models they require the code 14706012
The 80mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 337 m³/h.

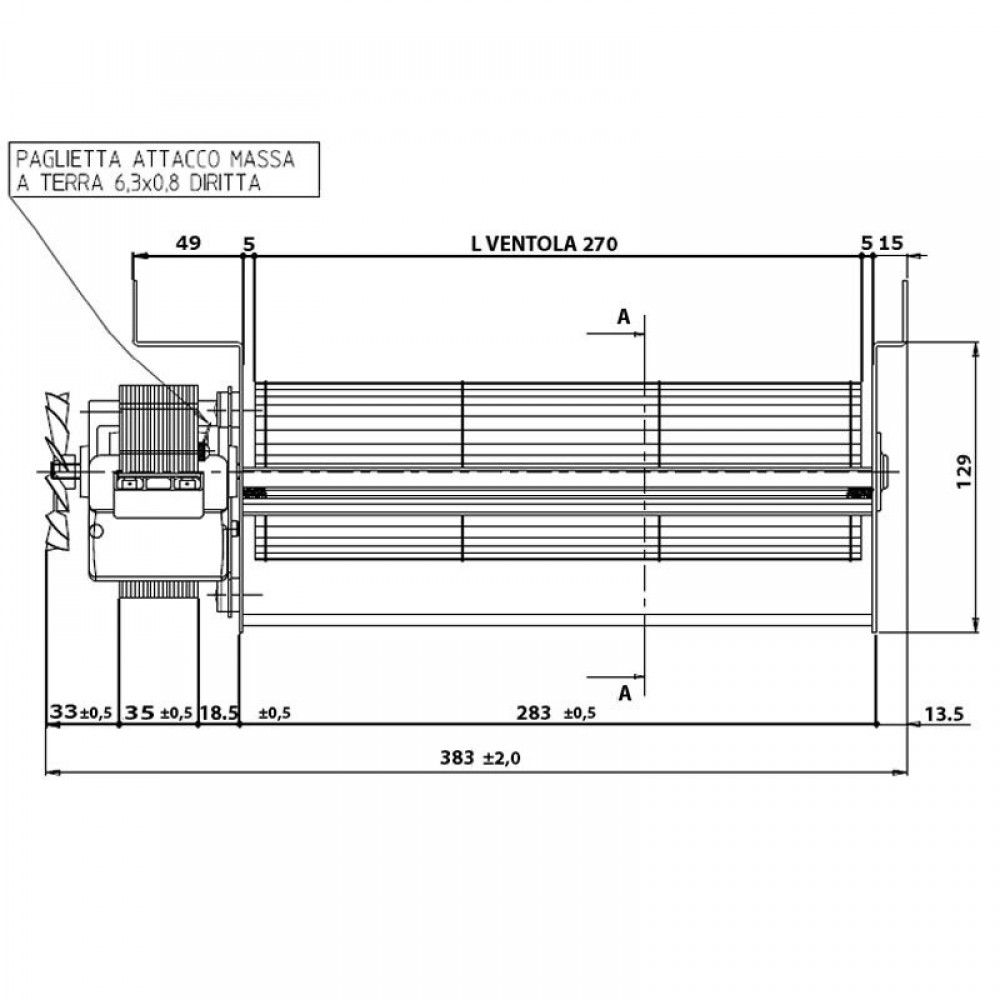

Thanks to its small size, its 383 mm total length and its 283 x 44 mm nozzle dimensions, the fan has severel employments.
It uses 82 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |
Dimension Depth (mm) | 130 |
Dimension Height (mm) | 157 |
Warranty | 6 months |
MPN | 14706052 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 82 |
Type | Tangential fan |
Total length [mm] | 383 |
Maximum airflow rate (m³/h) | 337 |
Magnetic core (mm) | 35 |
Fan diameter (mm) | 80 |
Fan length | 270 |
Nozzle dimensions (mm) | 283 x 44 |
Compatibility | Edilkamin, Italiana Camini |
