TGD 60/1-120/20 EMMEVI - FERGAS 119308 Cross-flow fan with double blower for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
The 60 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 155 m³/h.
Thanks to its small size, its 324 mm total length, the fan has severel employments.
It absorbs 30 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |

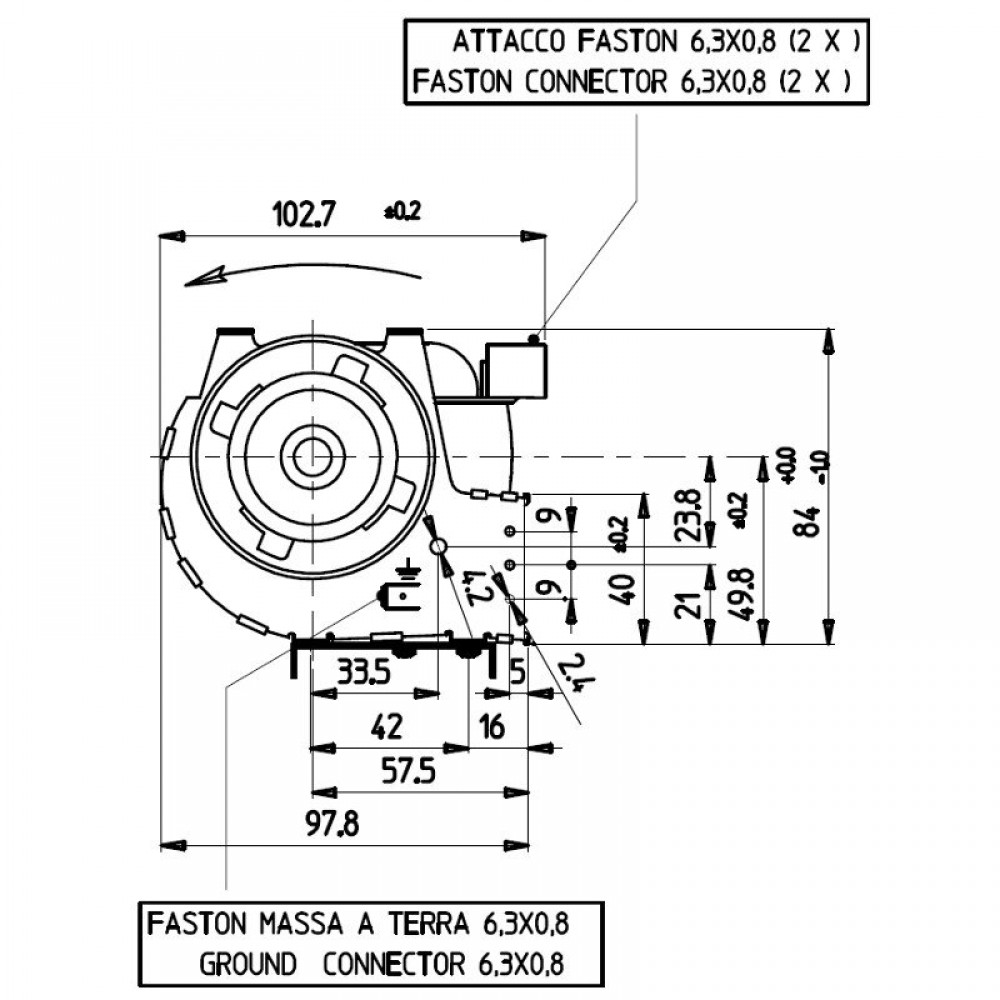

Dimension Depth (mm) | 103 |
Dimension Height (mm) | 84 |
Warranty | 6 months |
MPN | 14706072 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 30 |
Type | Tangential fan |

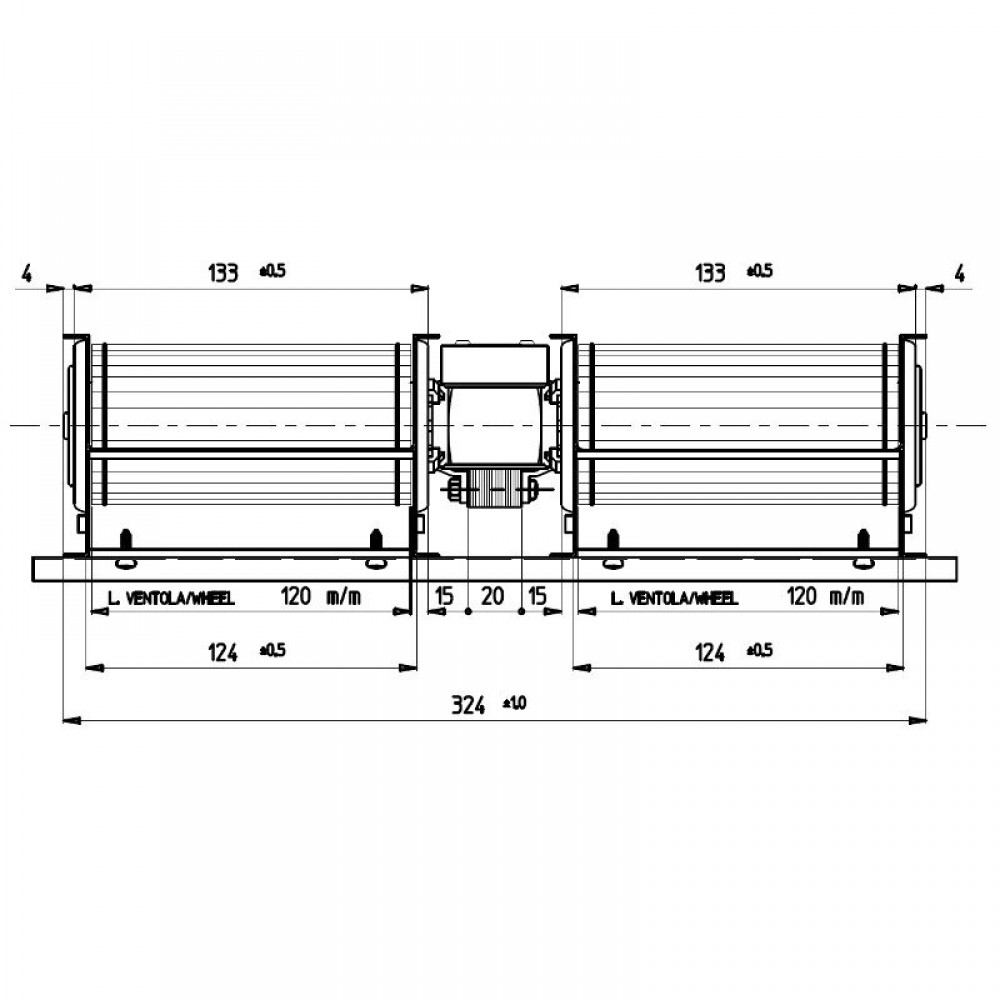

Total length [mm] | 324 |
Maximum airflow rate (m³/h) | 155 |
Magnetic core (mm) | 20 |
Fan diameter (mm) | 60 |
Fan length | 120+120 mm |
Nozzle dimensions (mm) | 2 x 124 x 40 |
Compatibility | Edilkamin, Cadel, Italiana Camini |
