Centrifugal fan GT500CE01-W935050011 for pellet stoves.
Free return
60 daysSee details
We accept payments
See details

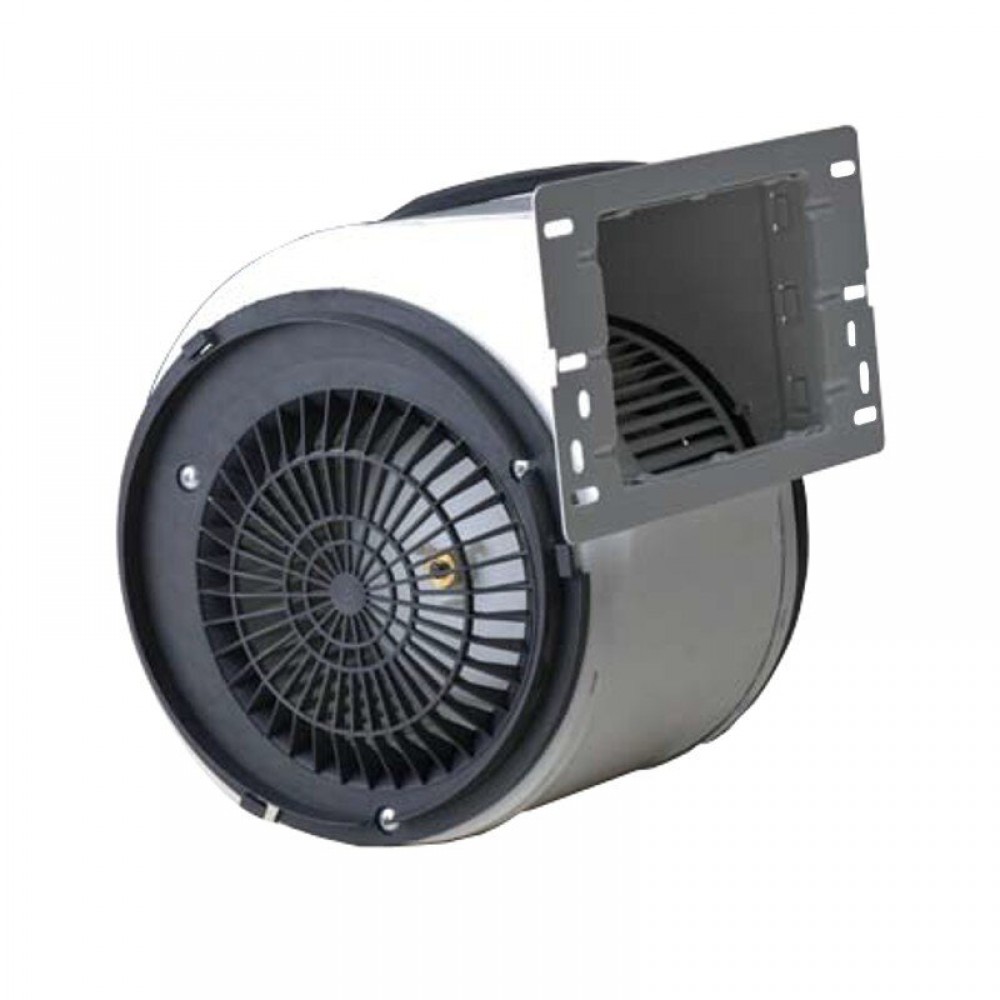

GT500CE01 - W935050011 centrifugal fan for pellet stoves. Specific for high temperatures, this fan is small and very reliable.
It generate a uniform airflow with a 480 m³/h flow rate.
It replaces the centrifugal fan (out of production) GL27DT022 - W93427022

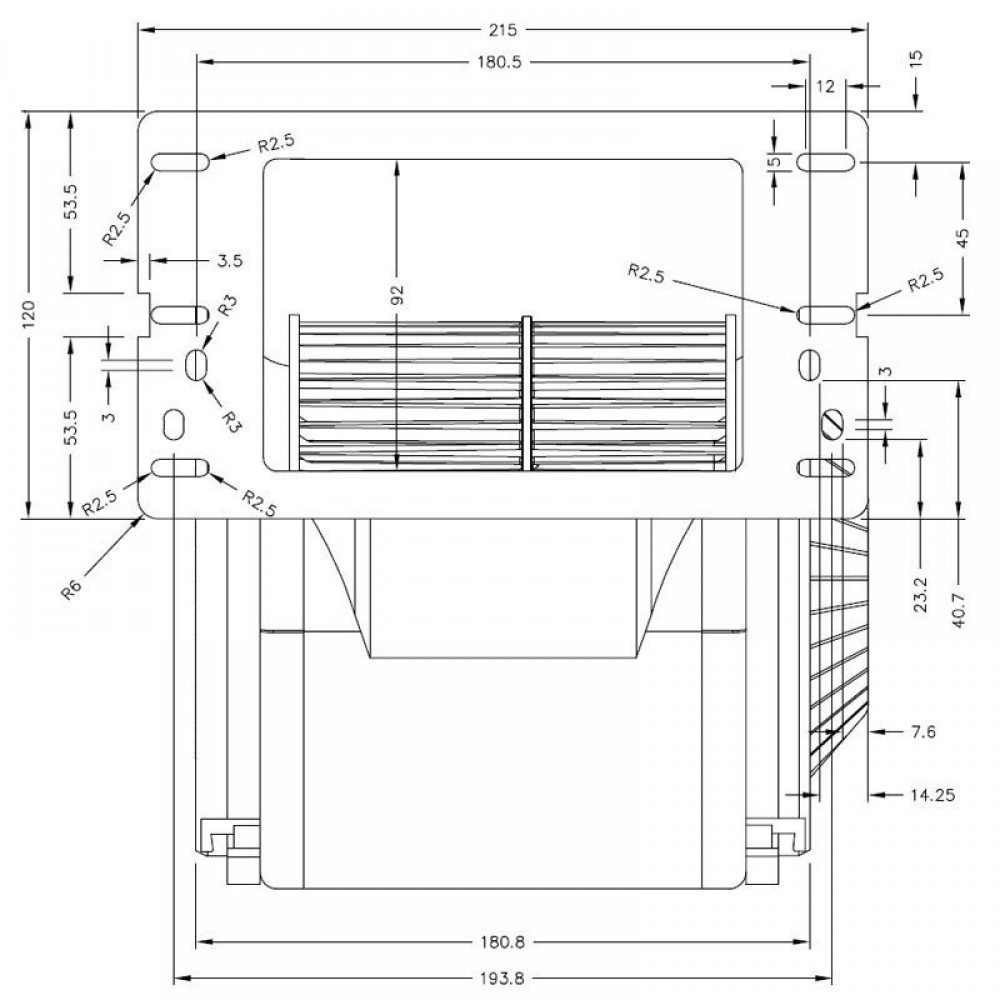

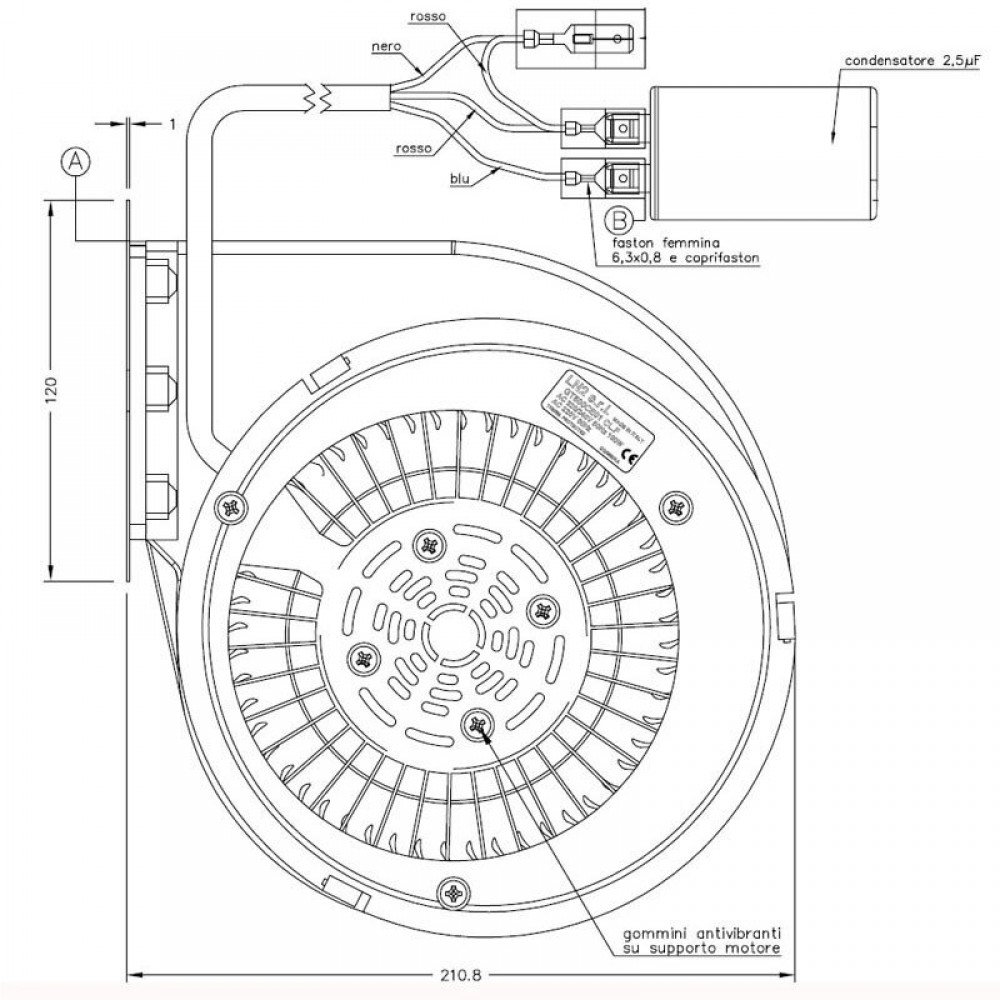

Features: 210 mm total length, 160 x 92 mm output air nozzle.
PUROS ref. RI.00303 - NTL45 mod. Minimaya - Maya - Truciolo - Miditruciolo - Supertruciolo Grazia - Graziosa - Graziosa Ceramica - Ecoviola – Ecolaura
DEVILLE ref. D0026732 mod. Armen, Cordouan, Frehel, Penlan, Penmen, Kermorvan
ECO SPAR mod. Karina 10kW
Characteristics | |
Weight (kg) | 2.0000 |
Dimension Width (mm) | 215 |
Dimension Height (mm) | 232 |
Warranty | 6 months |
MPN | 14706060 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 100 |
Type | Hot air ventilator |
Total length [mm] | 210 |
Maximum airflow rate (m³/h) | 480 |
Nozzle dimensions (mm) | 160 x 92 |
Compatibility | Eco Spar, Deville, Puros |
