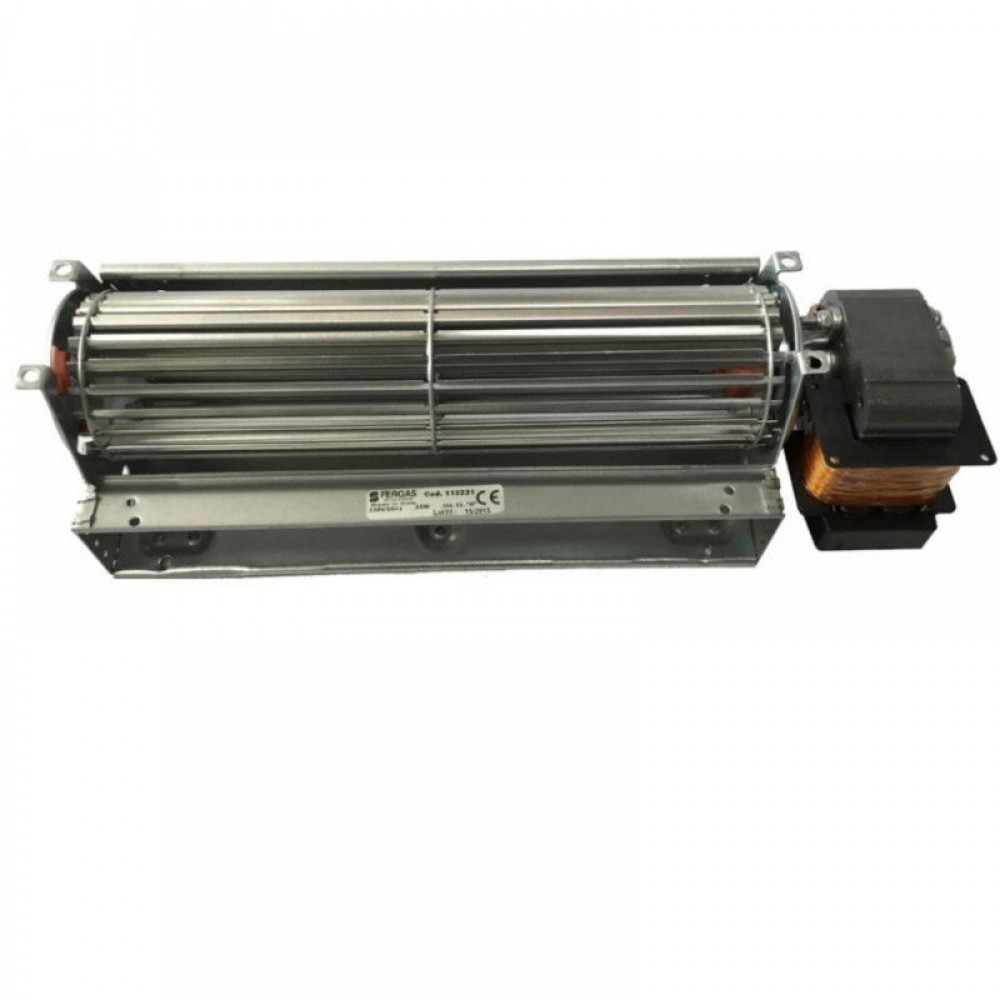

TGA 60/1-240/30 EMMEVI - FERGAS 113231 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans: 113249
Suitable for:
ECOTECK
KARMEK ONE mod. Asia, Bilbao, Granada, Ibiza, Linda, Lisbona, Lisbona S, Nikita acciaio, Oslo, Roma, Varsavia Acciaio, Vigo
RAVELLI mod. Lisa, Lisa plus, Mavì, Riviera, HRV135, HRV170, HRV160 12
The 60 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 220 m³/h.

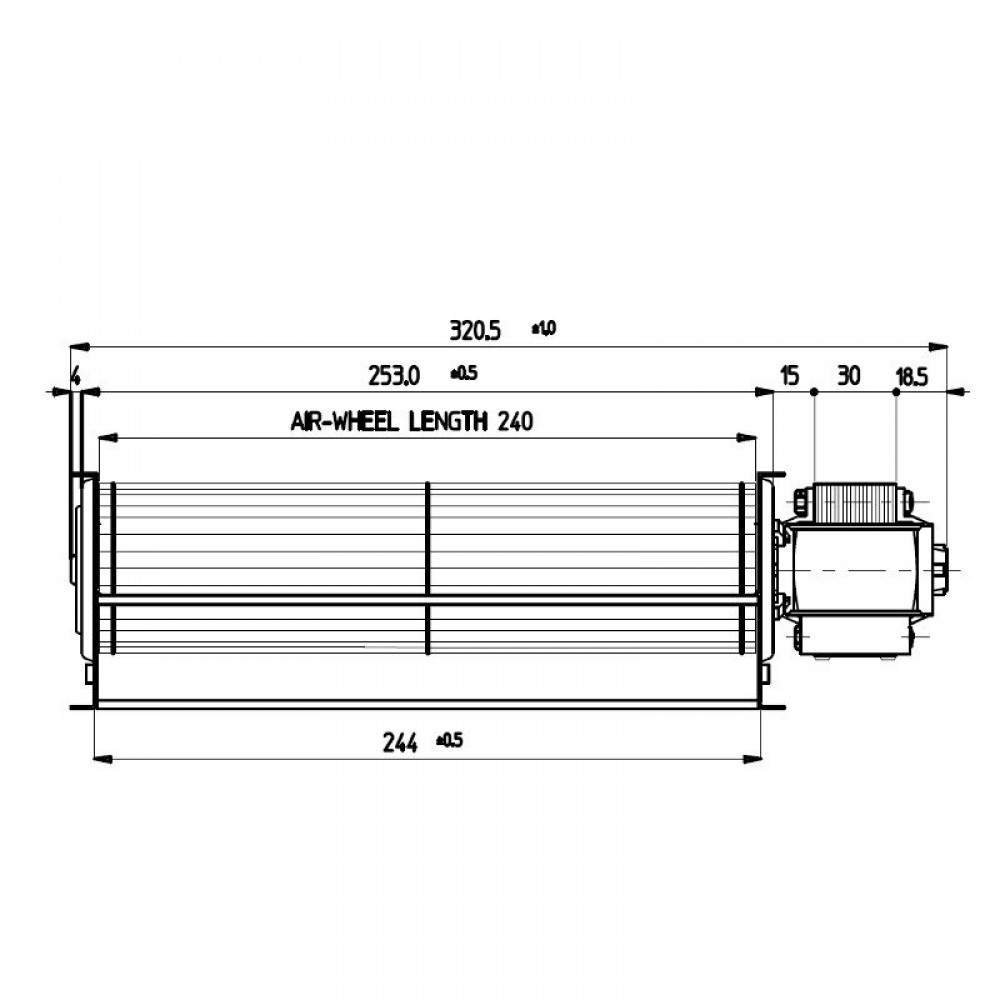

Thanks to its small size, its 320 mm total length and its 244 x 40 mm nozzle dimensions, the fan has severel employments.
It absorbs only 55 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Warranty | 6 months |
MPN | 14706034 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 55 |
Type | Tangential fan |
Total length [mm] | 320 |
Maximum airflow rate (m³/h) | 220 |
Magnetic core (mm) | 30 |
Fan diameter (mm) | 60 |
Fan length | 240 mm |
Nozzle dimensions (mm) | 244 x 40 |
Compatibility | Ecoteck, Karmek One, Ravelli |
