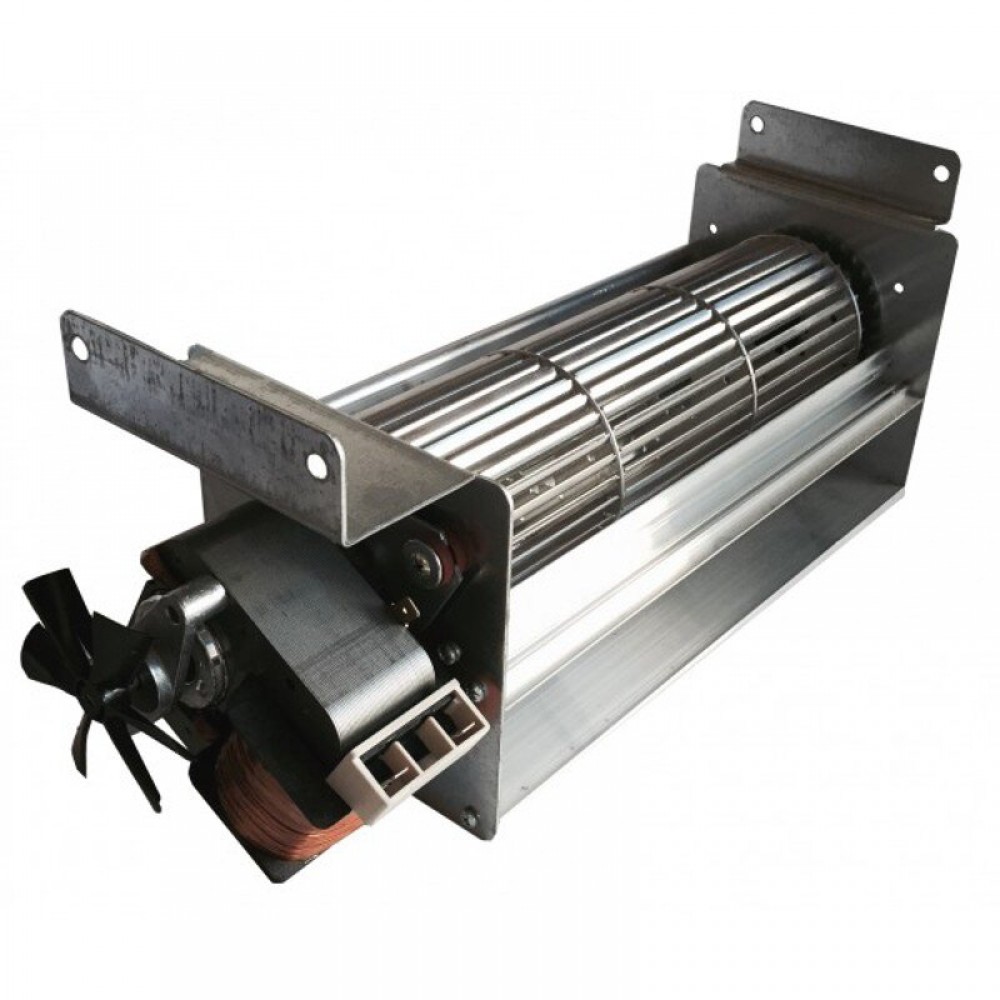

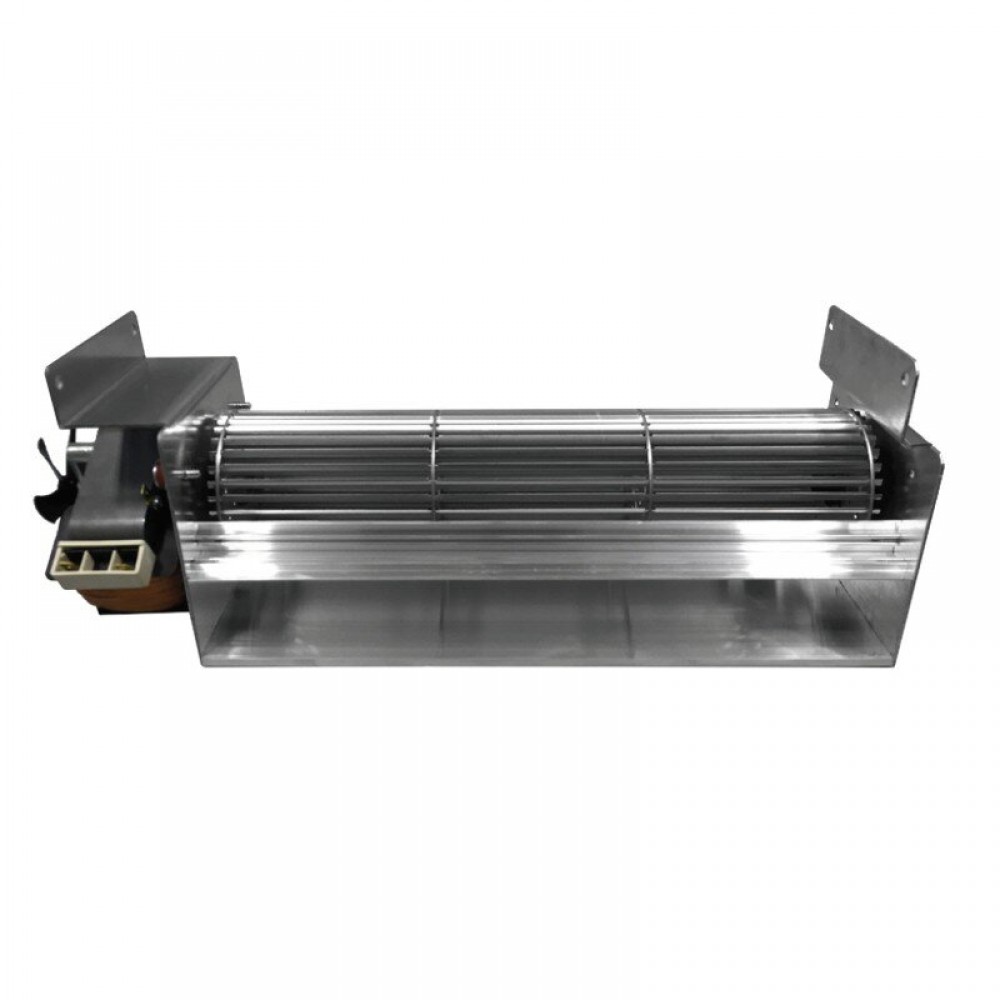

TGO 80/1-330/35 EMMEVI - FERGAS 153612 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
For stoves EDILKAMIN cod. 284880 Mod. Mariu' mat. 5208660 - 5274400 - Rose mat. 3626655 - 3693726
The 80 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 410 m³/h.

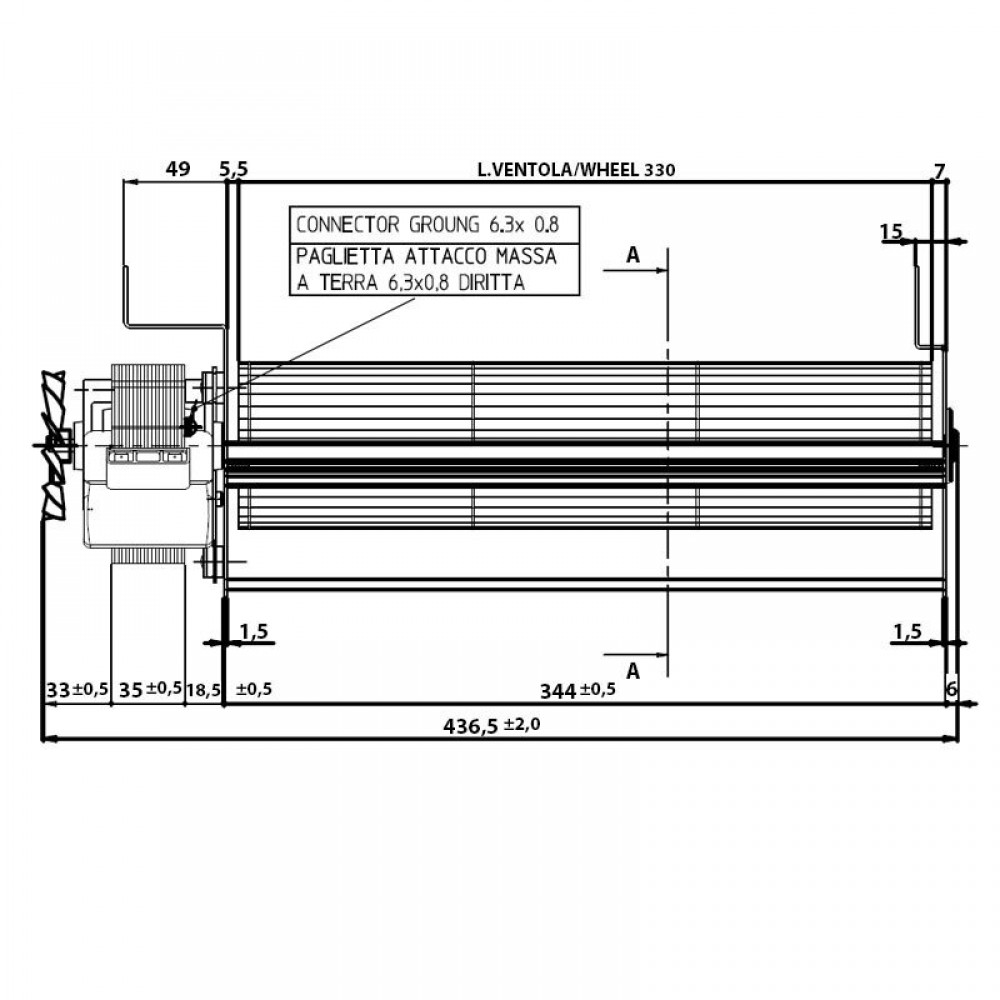

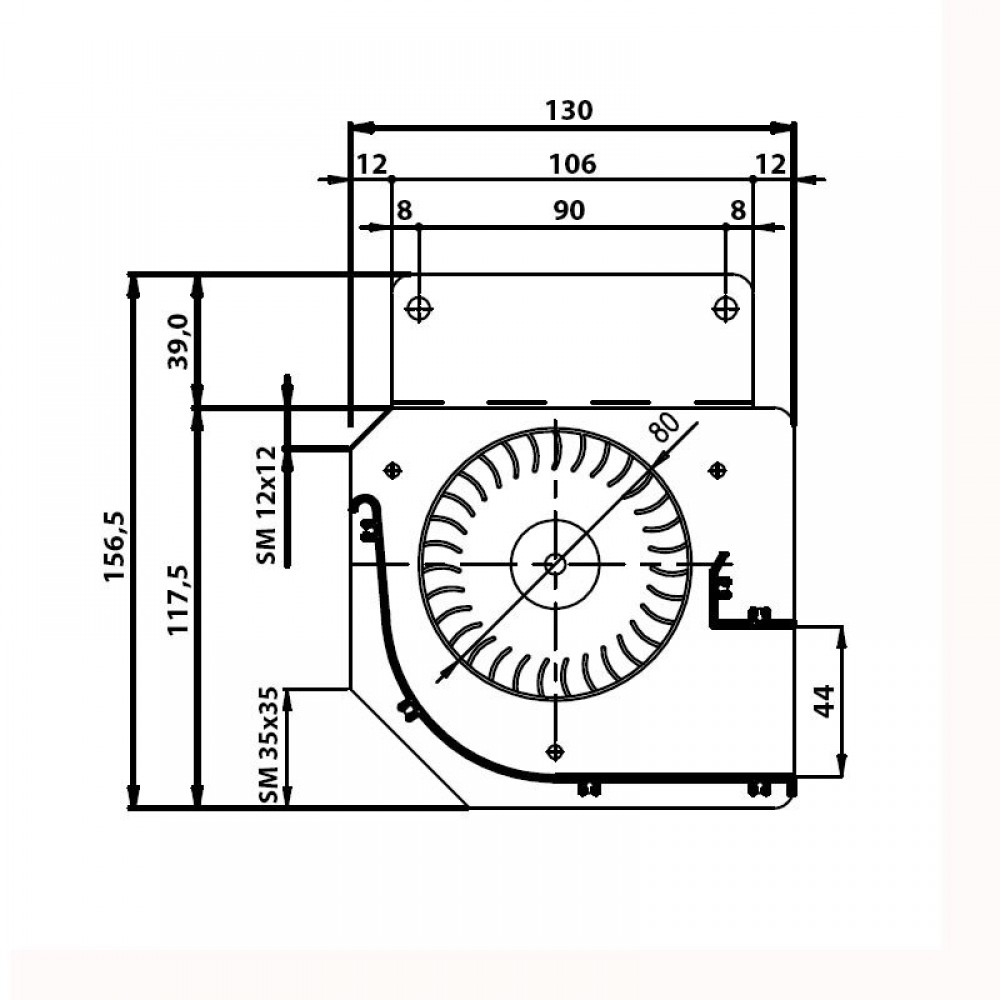

Thanks to its small size, its 436 mm total length and its 344 x 44 mm nozzle dimensions, the fan has severel employments.
It absorbs 91 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |
Dimension Height (mm) | 157 |
Warranty | 6 months |
MPN | 14706038 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 91 |
Type | Tangential fan |
Total length [mm] | 436 |
Maximum airflow rate (m³/h) | 410 |
Magnetic core (mm) | 35 |
Fan diameter (mm) | 80 |
Fan length | 330 mm |
Nozzle dimensions (mm) | 344 x 44 |
Compatibility | Edilkamin |
