Smoke extractor/extractor fan for pellet stoves.
Free return
60 daysSee details
We accept payments
See details

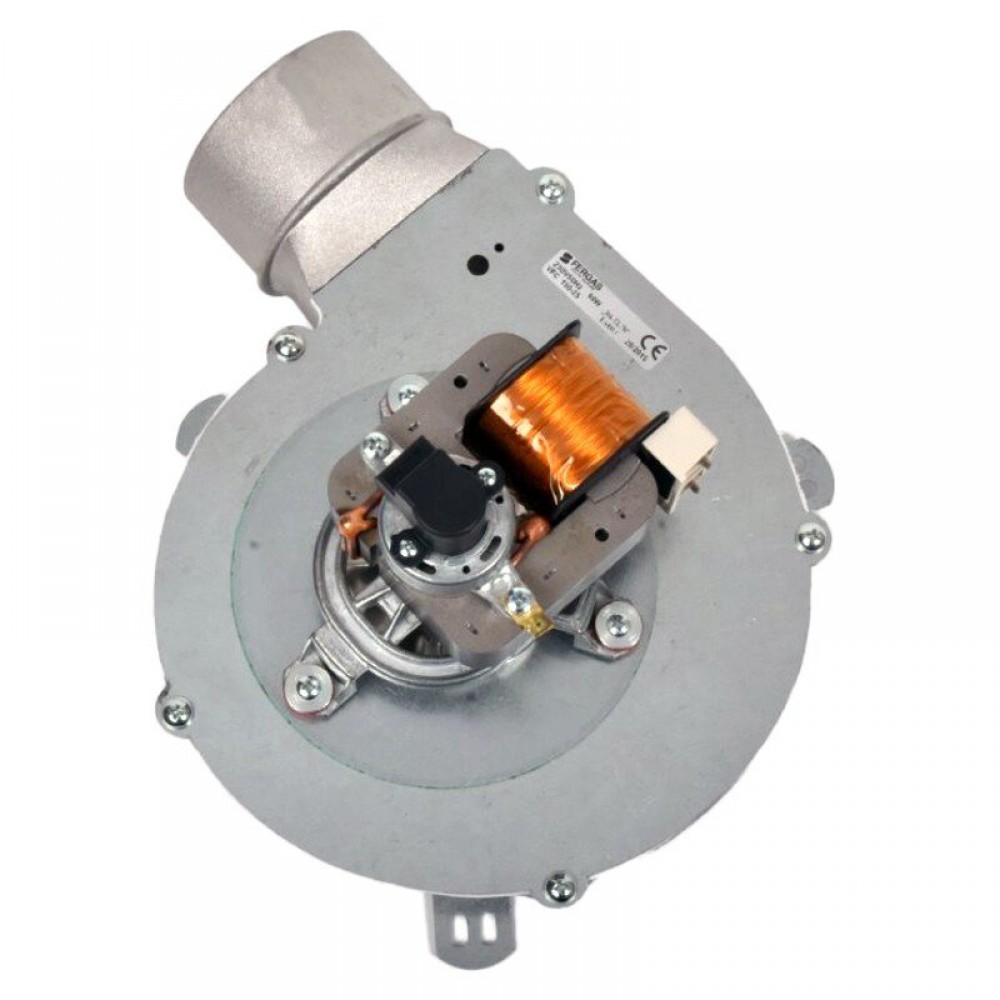

EMMEVI - FERGAS VFC1-120/S cod. 260652X smoke extractor has been designed to be used for pellet stoves and biomass boilers.
Compatible VFC1-120/NS-H20. I260655X
Provided with output diameter is of 80 mm, and INOX steel rotor.
Designed to generate up-to-250Pa-pressures with a maximum airflow range of 117 m³/h.

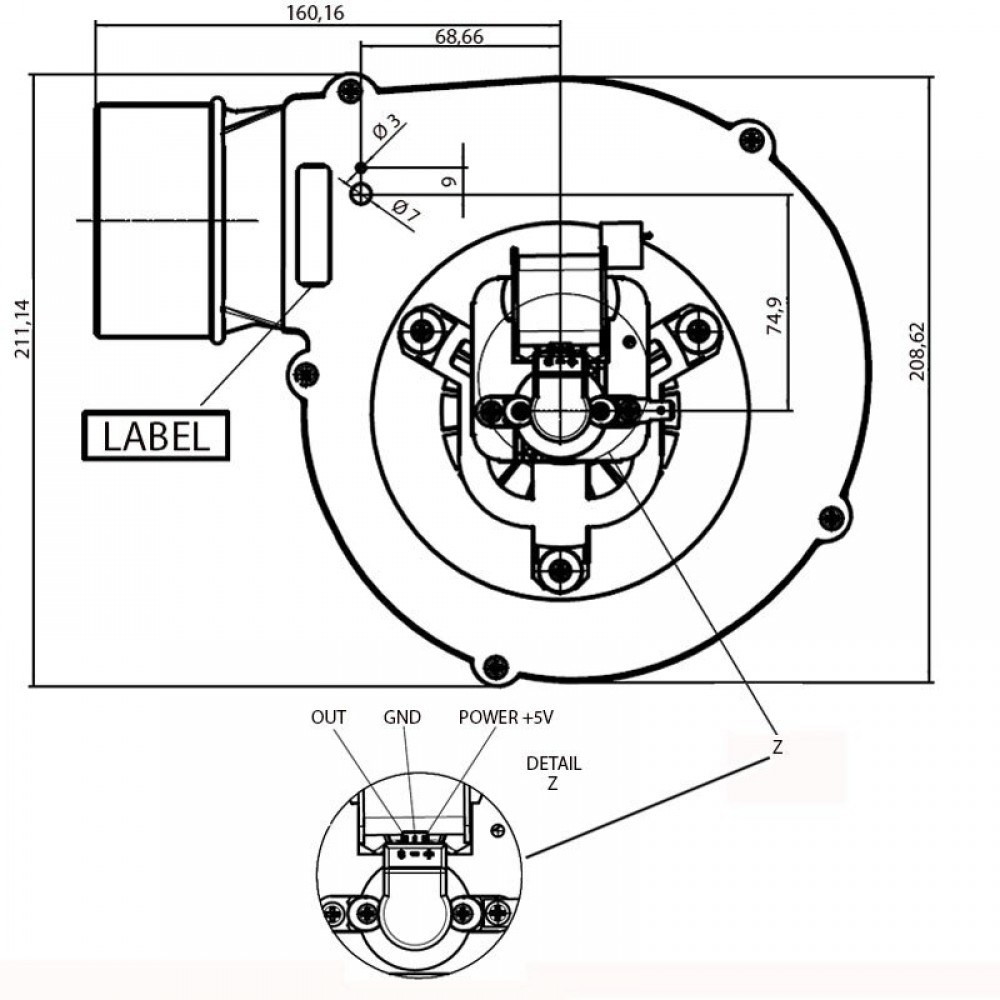

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder) Insulation class: H.
Characteristics | |
Weight (kg) | 2.0000 |

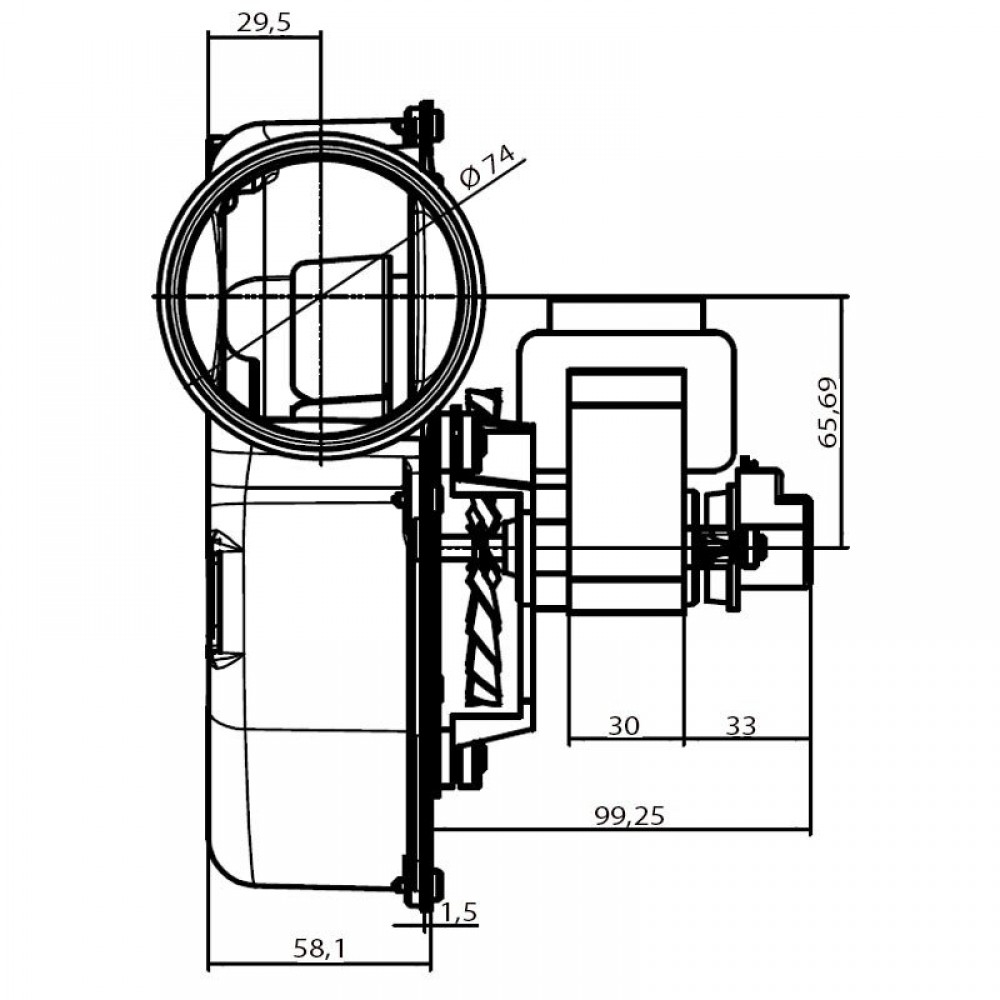

Dimension Width (mm) | 158 |
Dimension Height (mm) | 211 |
Warranty | 6 months |
MPN | 14706015 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 34 |
Type | Smoke extractor fan |
Rotation speed (rpm) | up to 1920 |
Generated pressure (Pa) | up to 250 |
Flange connector (mm) | 80 |
Maximum airflow rate (m³/h) | 117 |
Rotor diameter (mm) | 150 |
Compatibility | Edilkamin, Cadel, Ravelli |
