TGD 60/1-270/30 EMMEVI - FERGAS 120102 Cross-flow fan with double blower for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans 120117 - 120121 - 120122 -120100 - 120103 - 120104 - 120105 - 120113 - 120115 - 120116
The 60 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 248 m³/h.

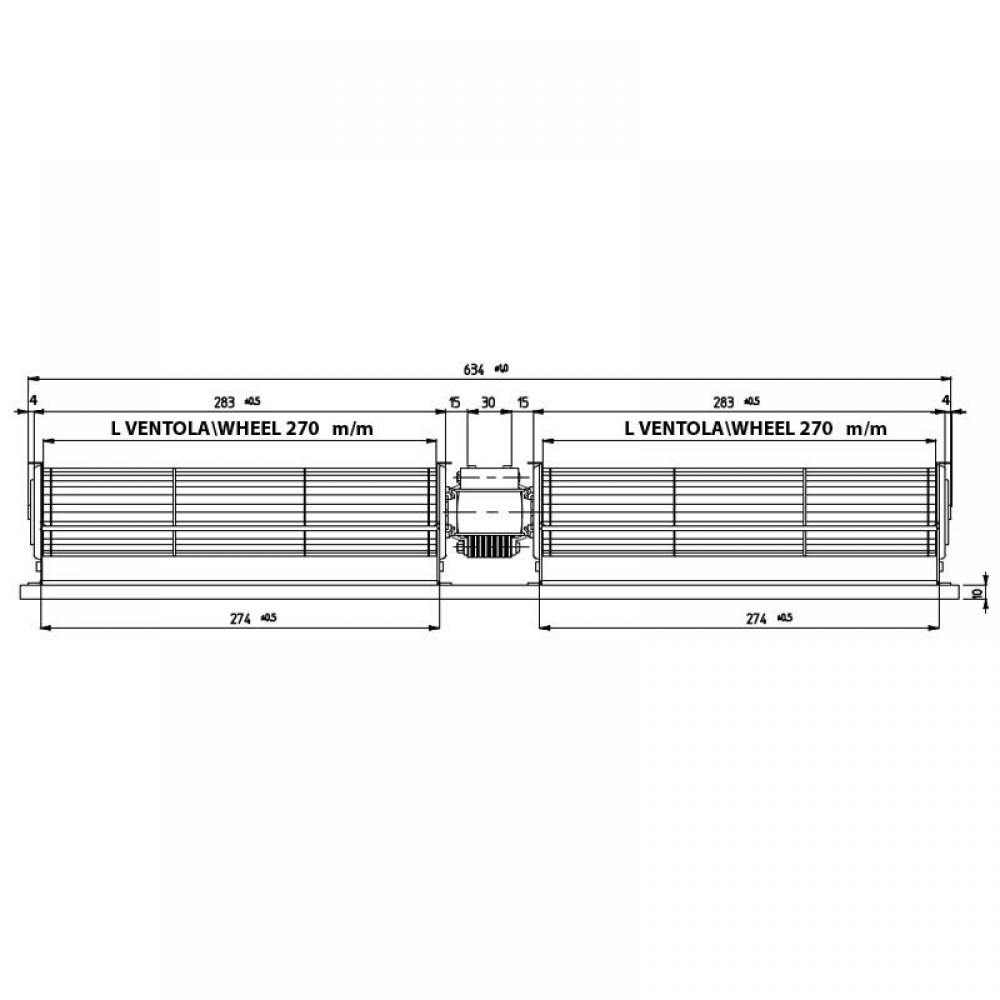

Thanks to its small size, its 645 mm total length, the fan has severel employments.
It absorbs 38 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Warranty | 6 months |
MPN | 14706027 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 38 |
Type | Tangential fan |
Total length [mm] | 645 |
Maximum airflow rate (m³/h) | 248 |
Magnetic core (mm) | 30 |
Fan diameter (mm) | 60 |
Fan length | 270+270 |
Nozzle dimensions (mm) | 2 x 274 x 40 |
Compatibility | Edilkamin, Ecoteck, Ravelli |
