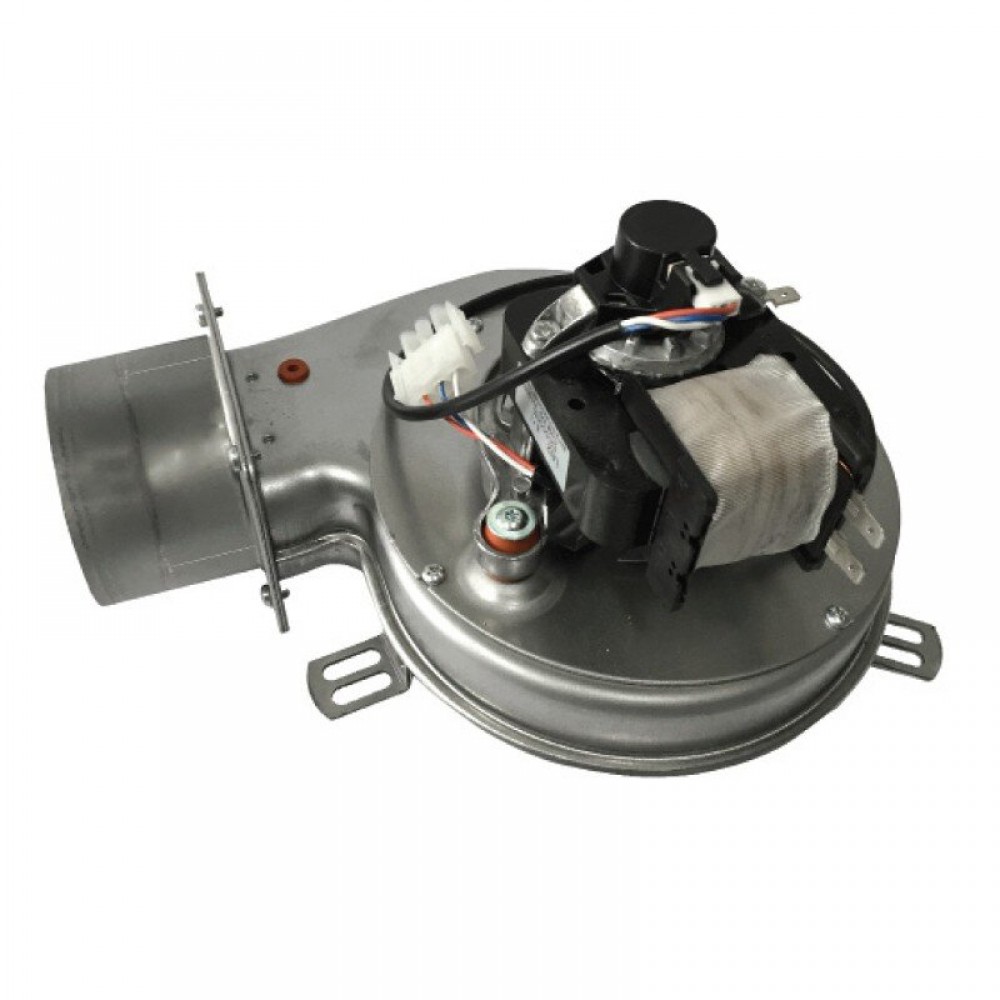

SITGROUP LN2 NATALINI PL21 CE0260 - W931210260 smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 20 KW.
For the following stoves:
ECO SPAR Solara 6kW, Tukana 8kW, Karina 10kW, Gemini 8kW, 10kW, Minima 12kW (incl. B-model), Alba 18kW (incl. B-model), Auriga 25kW (incl. B-model)
AMG - ECOTECK - MCZ - LA NORDICA
ARCE mod. Smart, Smart Jr, Micrò, Micrò Jr
CADEL mod.Cloe, Cloe 3, Diana, Doge 3 Plus, Ibis 11KW, Nice, Prince 3, Rondò, Sfera, Sfera Plus, Sire Plus, Square, Venus, Venus 3 Plus
CALECOSOL mod. Zhana
CAMINETTI MONTEGRAPPA mod. LI8 Evo, LS6 Evo, LS9 Evo, NP7 Evo, NP10 Evo, NX10 Evo
DEVILLE mod. Ambra Air, Isis, Onyx, Pegase, Sirius, Venus
EDILKAMIN mod. Bering, Bora, Classica, Classica Plus, Idrochip, Idropoint, Idropolis, Kikka, Kikka Plus, Micron, Mya, Naomy, Point, Point plus, Polis, Polis plus, Prima, Simpli, Zara, Zara plus, Chip, Jane
EMAFLAM mod. Alma, Alma Rond, Citra, Diama, Hema, Sandro
EUROALPI mod. Marmolada, Pasubio, Vezzana
MORETTI DESIGN mod. A7 Globe, Globe Glass, A7 Style, A8 Compact, A9 Iron, Stone, Piramid, A10 Compact, Style, A11 Glass, Iron, Stone, Ergonomic, Classic, A10 Retro, A12 Retro, Style, Classic Style, All Style, Elegance, A13 Style, All Style, Cless, Relax, C7 Globe, Globe Glass, C8 Compact, C9 Iron, Stone, C10 Compact, C11 Glass, Iron, Stone, C12 Style, All Style, Classic Style, C13 Style, All Style, Clessidra, Venere S, Oldy 9, Ramses, Pretty Plus, Virgo, Micro, Mini, Alba, Pretty, Zeus, Sixty, Oldy, Gioia, Trilly, A6 Iron, A5 Compact, Iride, Athena, Artemide, Vesta, Poseidon, Compact, Genus Mini, Aqua 9 Style, All Style, Aqua 11 Glass, Iron, Stone, Aqua 12 Retro, Aqua 13 Style, All Style, Aqua 15 Iron, Stone, Retro, Aqua 12 Slot, Aqua 16 Slot, Aqua 18 Compact, AQUA 18 Turbo Compact Glass
PALAZETTI mod. Angelica, Caterina, Giada da Rivestire, Isabella, Letizia, Margherita New, Penelope, Silvia, Slimmy, Tracy
PALLADIO mod. Scozia 10kW
PIAZZETTA mod. P158T
QLIMA mod. Delmara 75 S-line, 88 S-line, 125 S-line, Diandra 60 S-line, 90 S-line, Fiorina 103 S-line, 74 S-line, 90 S-line, Tectro TBH 558, TBH 564, TBH 565, TBH 570, Delfina III 90 M-line, Ronda 100 S-line, Ronda 80 glass, Ronda 80 S-line
RAVELLI mod. Lisa 2005, 2006, Young 60, 80, 110
SIDEROS mod. Gemini Più
It can be set up in place of LN2 PL20 model and XIANG RRL152

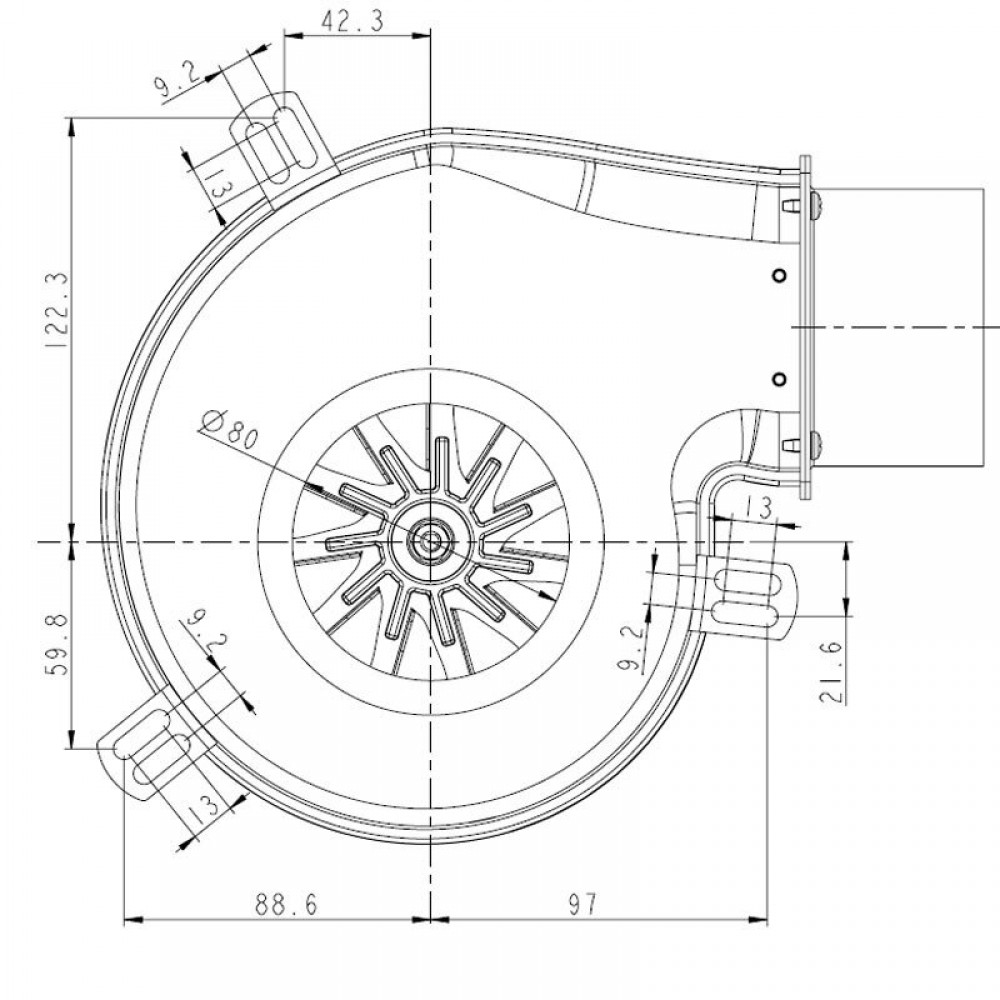

Provided with aluminised steel spiral, which output diameter is of 80 mm, and AISI 430 steel rotor.
Designed to generate up-to-300Pa-pressures with a maximum airflow range of 160 m3/h.

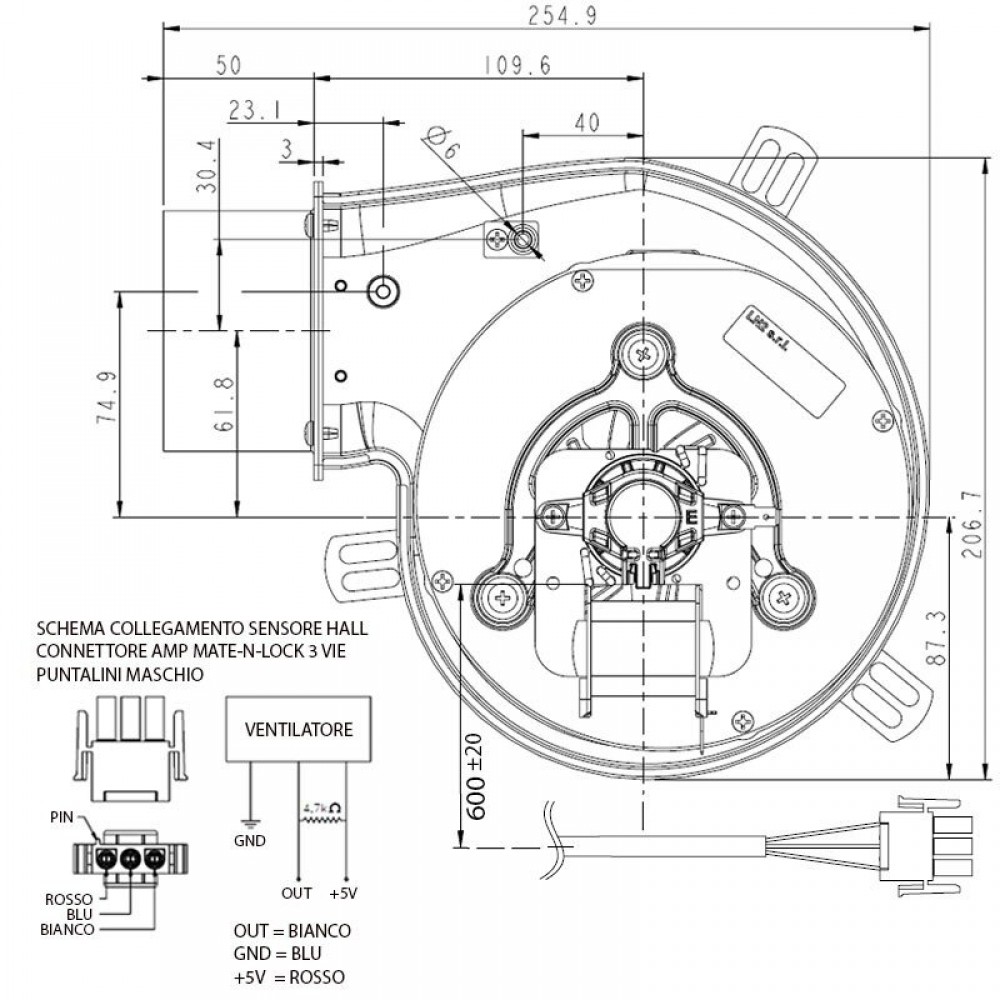

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).
In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.
Characteristics | |
Weight (kg) | 1.0000 |
Country of Manufacture | Italy |
Dimension Depth (mm) | 152 |
Dimension Height (mm) | 207 |
Warranty | 6 months |
MPN | 14706001 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 50 |
Type | Smoke extractor fan |
Total length [mm] | 255 |
Rotation speed (rpm) | up to 2500 |
Generated pressure (Pa) | 300 |
Flange connector (mm) | 80 |
Maximum airflow rate (m³/h) | 160 |
Compatibility | Eco Spar, AMG, Cadel, Arce, Calecosol, Caminetti Montegrappa, Euroalpi, Moretti Design, Sideros, Deville, Ecoteck, Edilkamin, Emaflam, La Nordica, MCZ, Palazzetti, Palladio, Piazzetta, Qlima, Ravelli |
