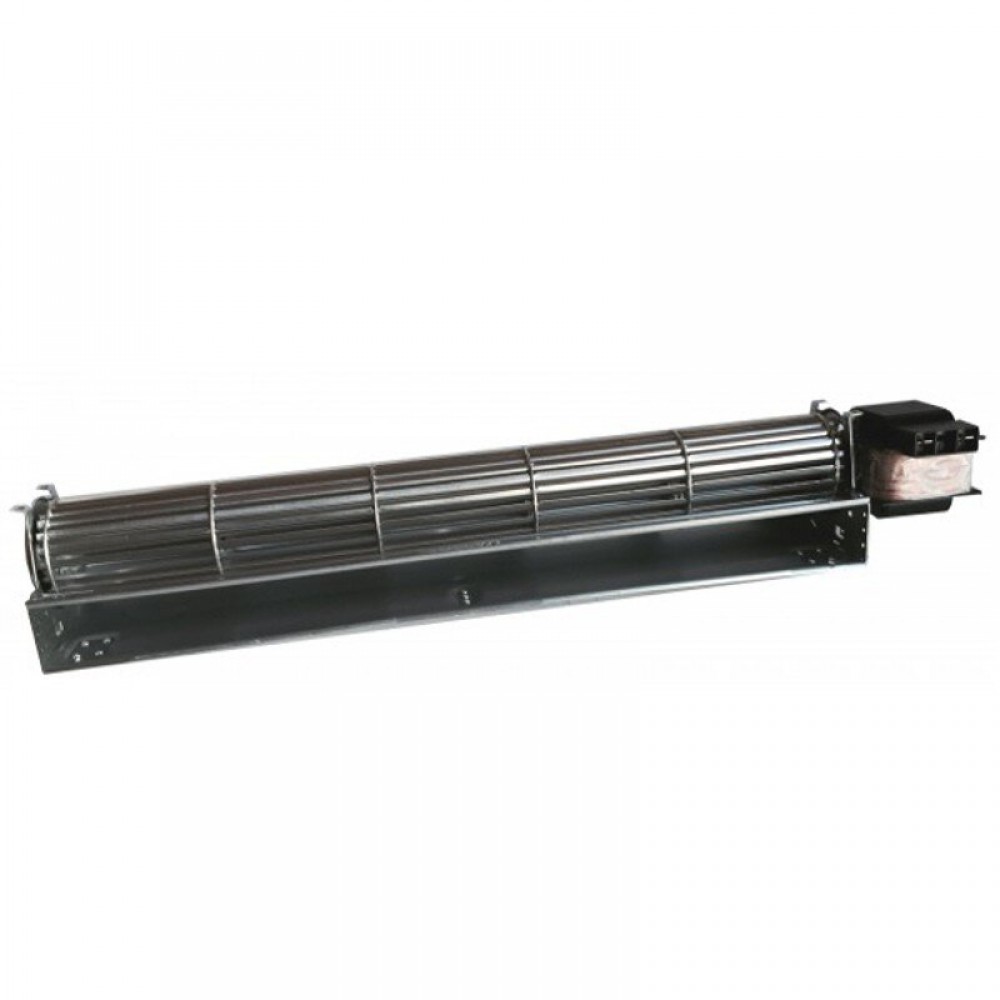

TGA 60/1-420/30 EMMEVI - FERGAS 114612 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans: 114600 - 114601 - 114602 - 114603 - 114610
For stoves: DEVILLE
The 60 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 280 m³/h.

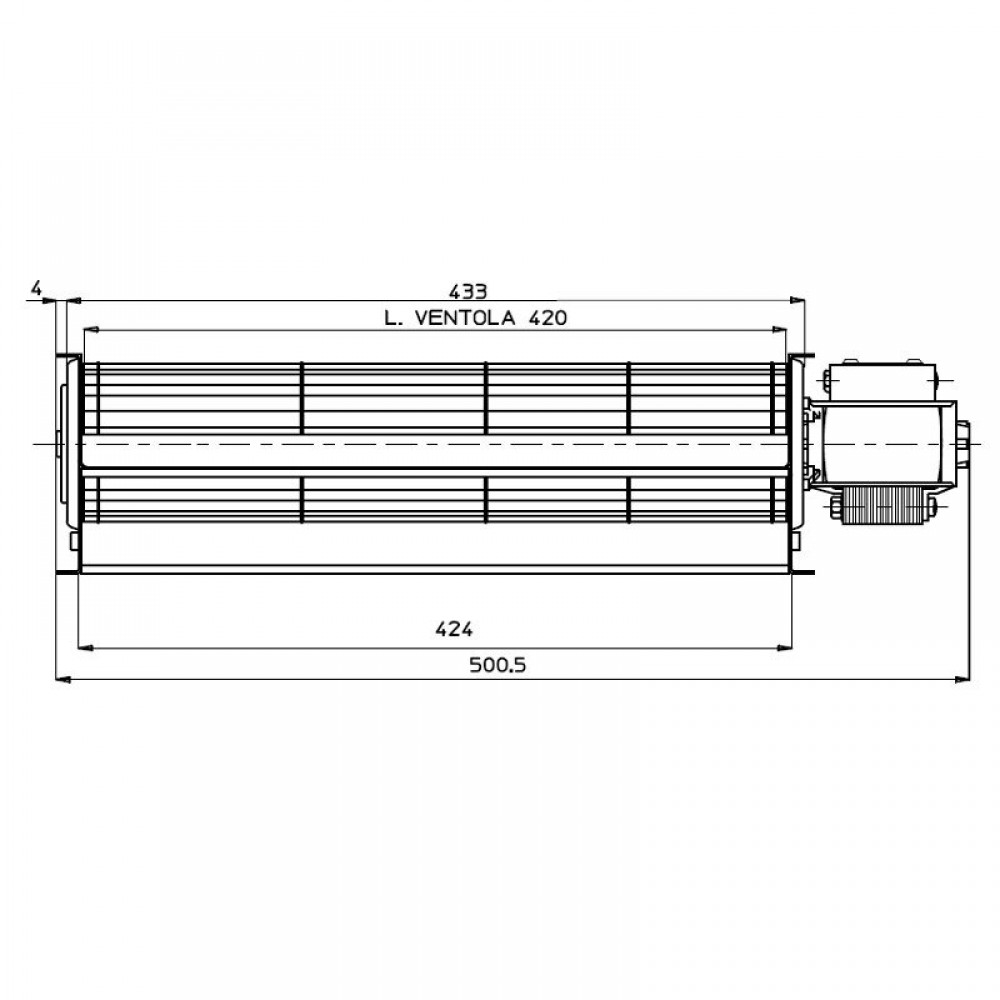

Thanks to its small size, its 500 mm total length and its 424 x 40 mm nozzle dimensions, the fan has severel employments.
It absorbs only 53 Watt at full power.
| Characteristics | |
| Weight (kg) | 2.0000 |
| Country of Manufacture | Sweden |
| Warranty | 6 months |
| MPN | 14706026 |
| Electric power supply (V/Hz) | 220-240/ 50-60 |
| Power consumption (W) | 53 |
| Type | Tangential fan |
| Total length [mm] | 500 |
| Maximum airflow rate (m³/h) | 280 |
| Magnetic core (mm) | 30 |
| Fan diameter (mm) | 60 |
| Fan length | 420 mm |
| Nozzle dimensions (mm) | 424 x 40 |
| Compatibility | Deville |
