Smoke extractor EBM for pellet stoves Elite, Equation, Ferroli, Karmek One and others, Maximum airflow 165 m³/h

Smoke extractor EBM for pellet stoves Elite, Equation, Ferroli, Karmek One and others, Maximum airflow 165 m³/h

Smoke extractor/extractor fan for pellet stoves.

Stock: In Stock
Brand: EBM
SKU: 02.412.005

£152.00

Excl. VAT

2 or more £136.80

3 or more £129.20

Add to Cart

Inquiry

Add to Wish List Compare this Product

Estimated delivery
26.Nov.2024

See Shipping Policy

Free return
60 daysSee details

We accept payments
See details

Description
Characteristics

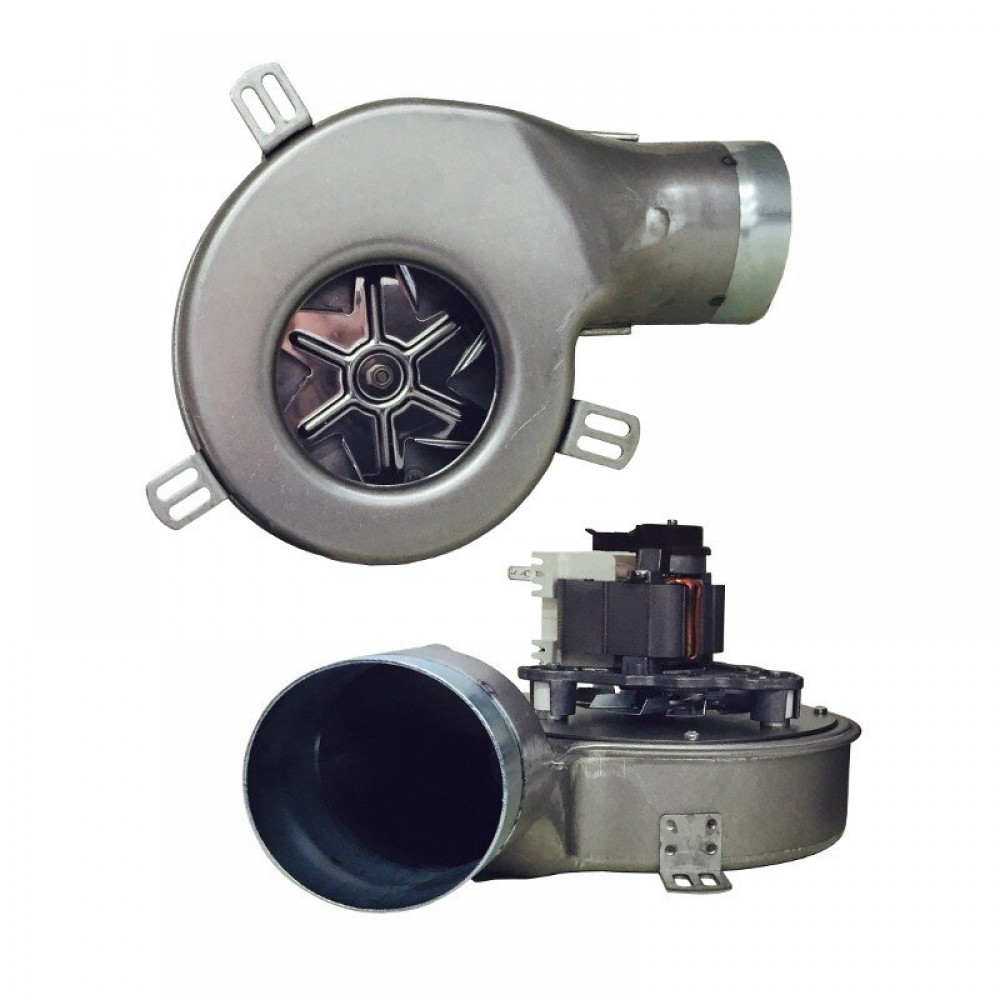

EBM G2E152/0020-3030LH-60 smoke extractor has been designed to be used for pellet stoves and biomass boilers.

Provided with output diameter is of 80 mm and INOX steel rotor.

Designed to generate up-to-280Pa-pressures with a maximum airflow range of 165 m³/h.

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder) Insulation class: H.

For stoves ELITE mod. ELSE95AUB3N-ECO

For stoves EQUATION mod. EQ10

For stoves FERROLI mod. Lira, Mercurio

For stoves KARMEK ONE mod. Alice 2018 canalizzata, Asia, Berlino 1, Bilbao, Bonn, Firenze, Firenze Plus, Ibiza, Ibiza S, SC, Leon, Leon S, S Plus, SC Plus, Lisbona, Lisbona S, Lucca Plus, Oslo, Roma, Valencia S Plus, Vigo, Vigo S, S Plus, Vigo SC Plus

It can replace SIT GROUP LN2 NATALINI PL21 extractor fans.

Characteristics
Weight (kg)	2.0000
Dimension Depth (mm)	143
Dimension Height (mm)	214
Warranty	6 months
MPN	14706009
Electric power supply (V/Hz)	220-240/ 50-60
Type	Smoke extractor fan
Total length [mm]	276
Pressure [Pa]	up to 280
Rotation speed (rpm)	up to 2760
Flange connector (mm)	80
Maximum airflow rate (m³/h)	165
Rotor diameter (mm)	150
Compatibility	Elite, Equation, Ferroli, Karmek One
