TGA 60/1-300/30 EMMEVI - FERGAS 113842 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans: 113838 - 113839 - 113840 - 113841 - 113846 - 113848 - 113800 - 113803 - 113805 - 113809 - 113812 - 113816 - 113817 - 113834
For stoves LA NORDICA ref. 2271005 mod. Bella (Bj. 2002 - Bj. 2006) - Bella Lux (Bj. 2004 - Bj. 2006) - Contessa (Bj. 2004 - Bj. 2006) - Divina (Bj. 2003 - Bj. 2005) - Divina Plus (Bj. 2004 - Bj. 2005) - Divina steel - Delizia Forno (Bj. 2005 - Bj. 2010)
Suitable for ANSELMO COLA
Suitable for FERROLI mod. Antares, Better Crono HR, Mercurio
Suitable for CADEL mod. Cloe, Cloe 3, Diana, Family, Nice, Rondò, Square, Venus 3 Plus
The 60mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 180 m³/h.

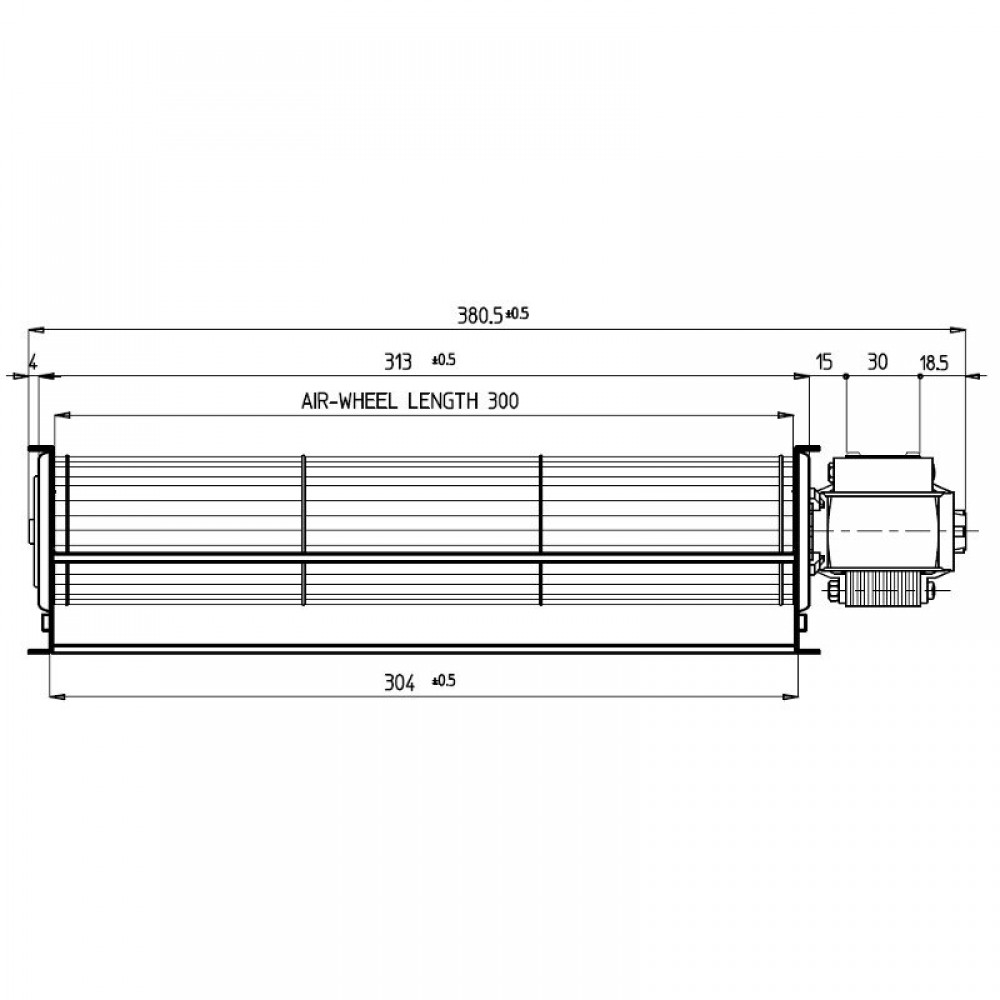

Thanks to its small size, its 380 mm total length and its 304 x 40 mm nozzle dimensions, the fan has severel employments.
It absorbs only 43 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |
Warranty | 6 months |
MPN | 14706035 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 43 |
Type | Tangential fan |
Total length [mm] | 381 |
Maximum airflow rate (m³/h) | 180 |
Magnetic core (mm) | 30 |
Fan diameter (mm) | 60 |
Fan length | 300 mm |
Nozzle dimensions (mm) | 304 x 40 |
Compatibility | Anselmo Cola, Cadel, Ferroli, La Nordica |
