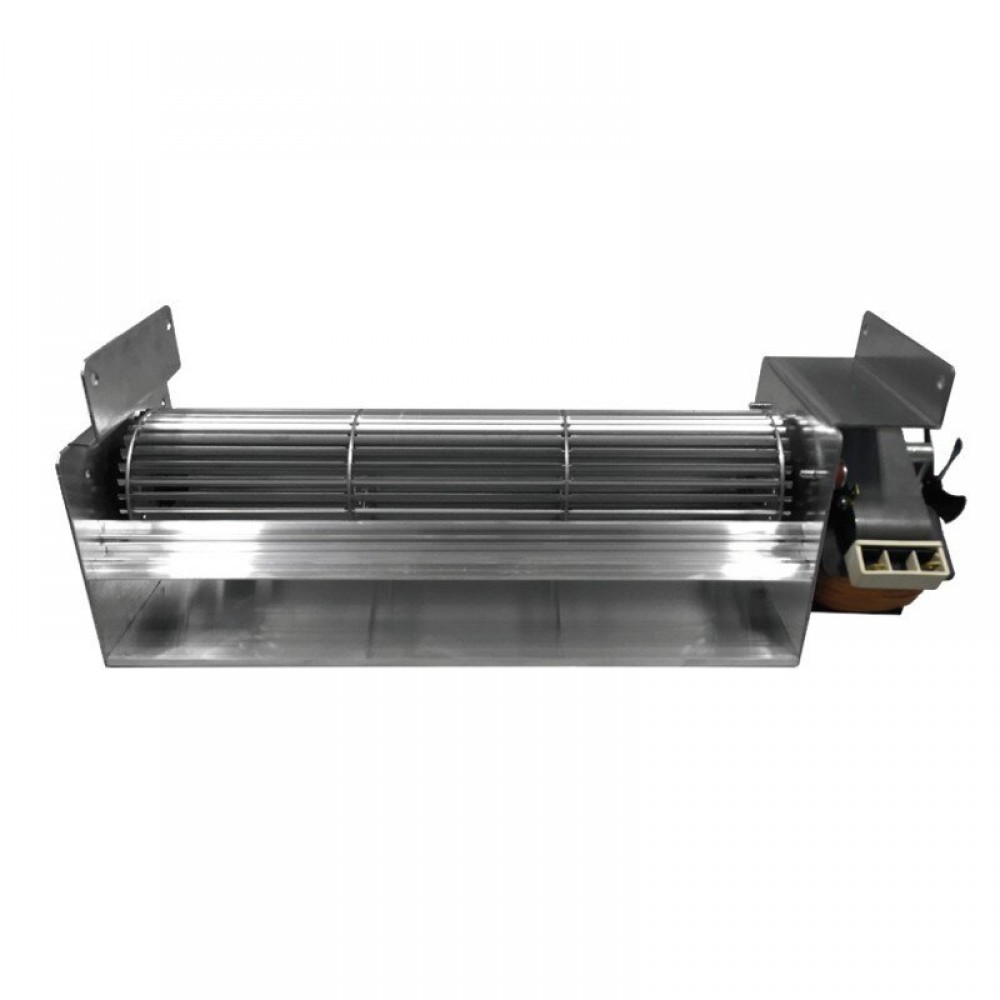

TGA 80/1-330/35 EMMEVI - FERGAS 148402 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
The 80 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 485 m³/h.

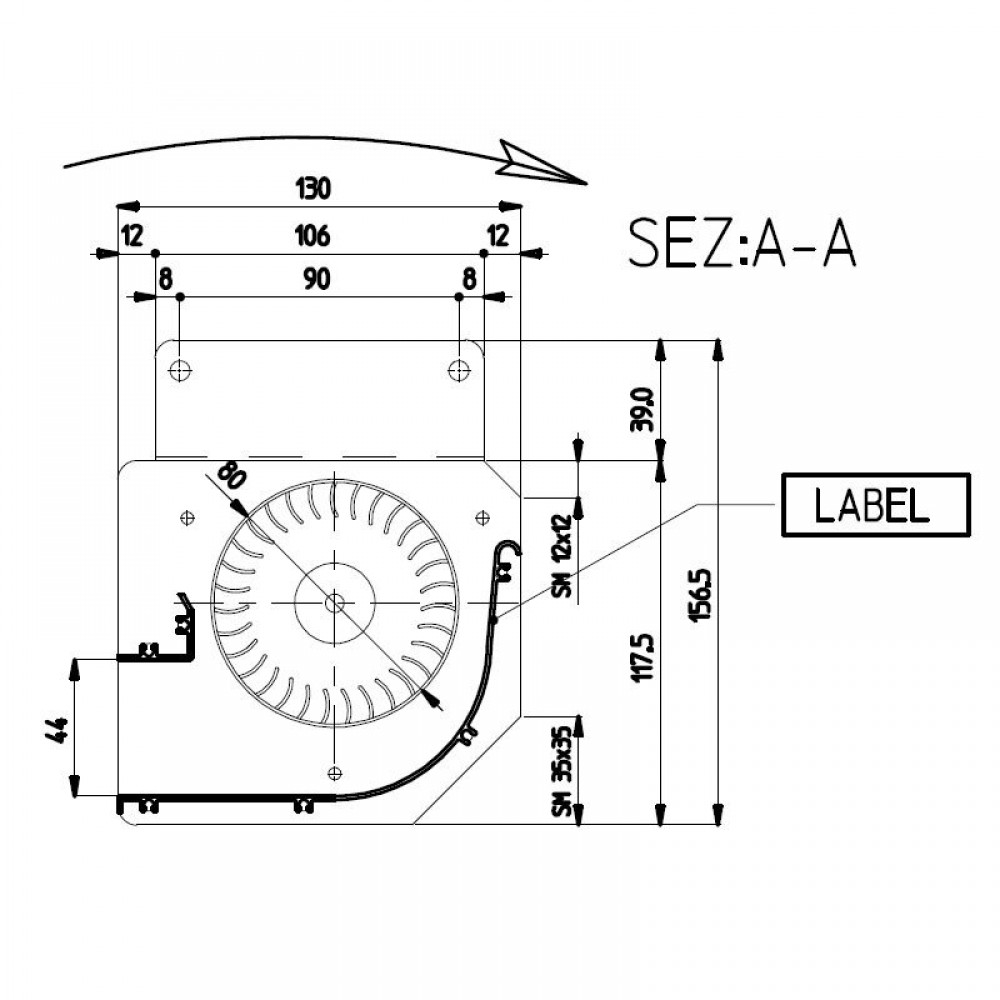

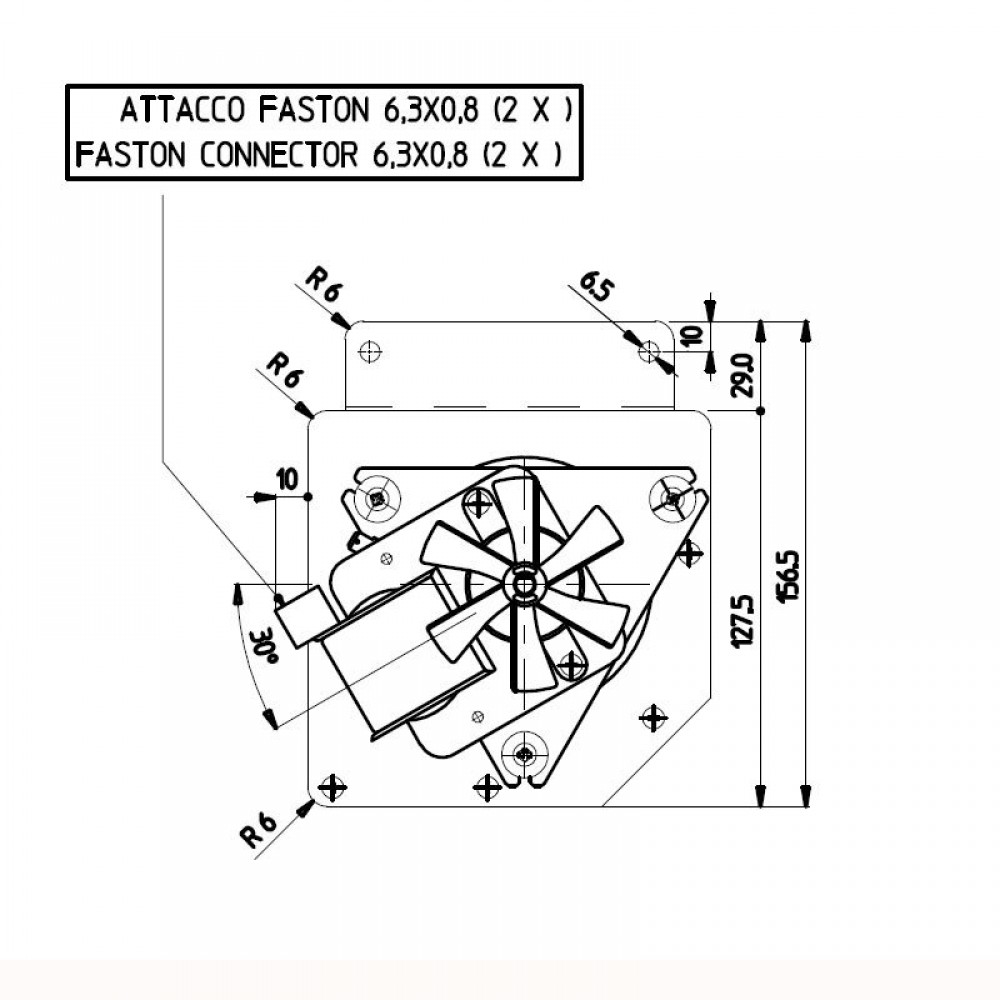

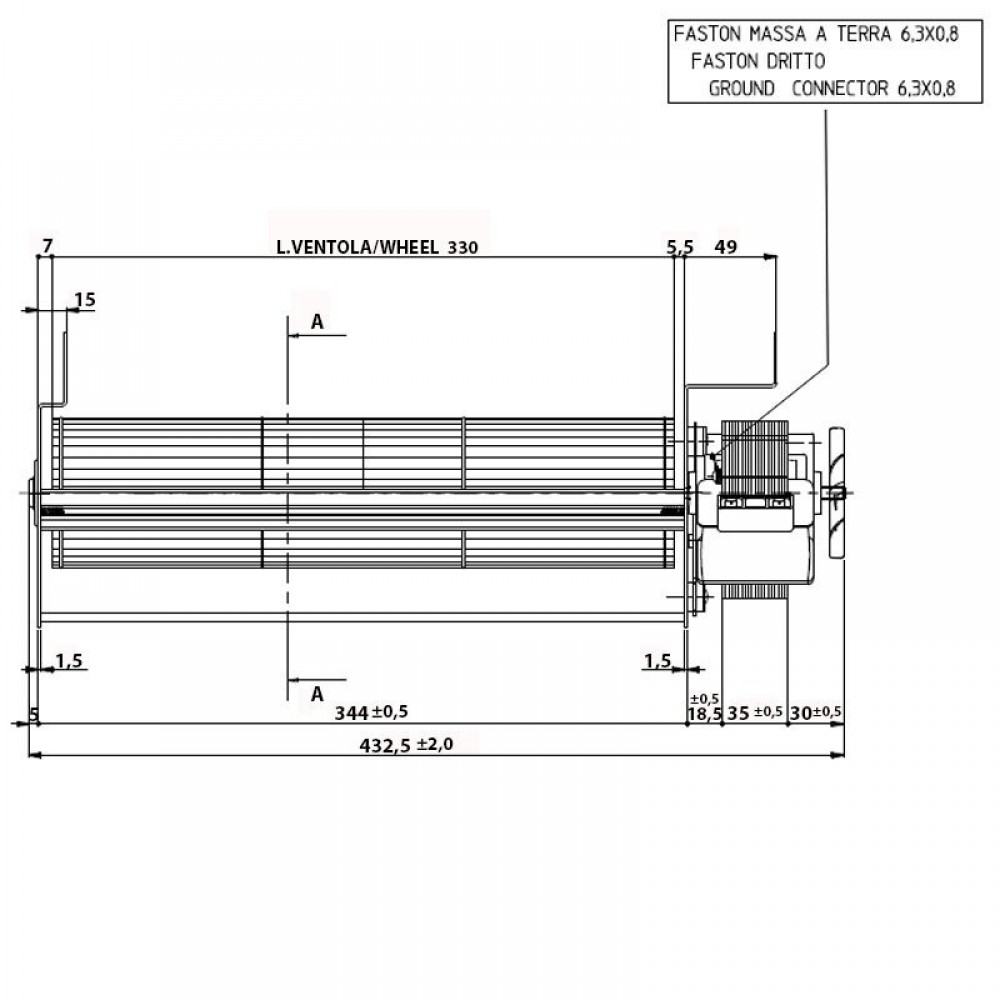

Thanks to its small size, its 432 mm total length and its 344 x 44 mm nozzle dimensions, the fan has severel employments.
It absorbs 130 Watt at full power.
Suitable for EDILKAMIN mod. Mariù, Rose
Characteristics | |
Weight (kg) | 2.0000 |
Dimension Depth (mm) | 130 |
Dimension Height (mm) | 157 |
Warranty | 6 months |
MPN | 14706055 |
Electric power supply (V/Hz) | 220-240/ 50-60 |
Power consumption (W) | 130 |
Type | Tangential fan |
Total length [mm] | 432 |
Maximum airflow rate (m³/h) | 485 |
Magnetic core (mm) | 35 |
Fan diameter (mm) | 80 |
Fan length | 330 mm |
Nozzle dimensions (mm) | 344 x 44 |
Compatibility | Edilkamin |
