Tangential fan for pellet stoves.
Free return
60 daysSee details
We accept payments
See details

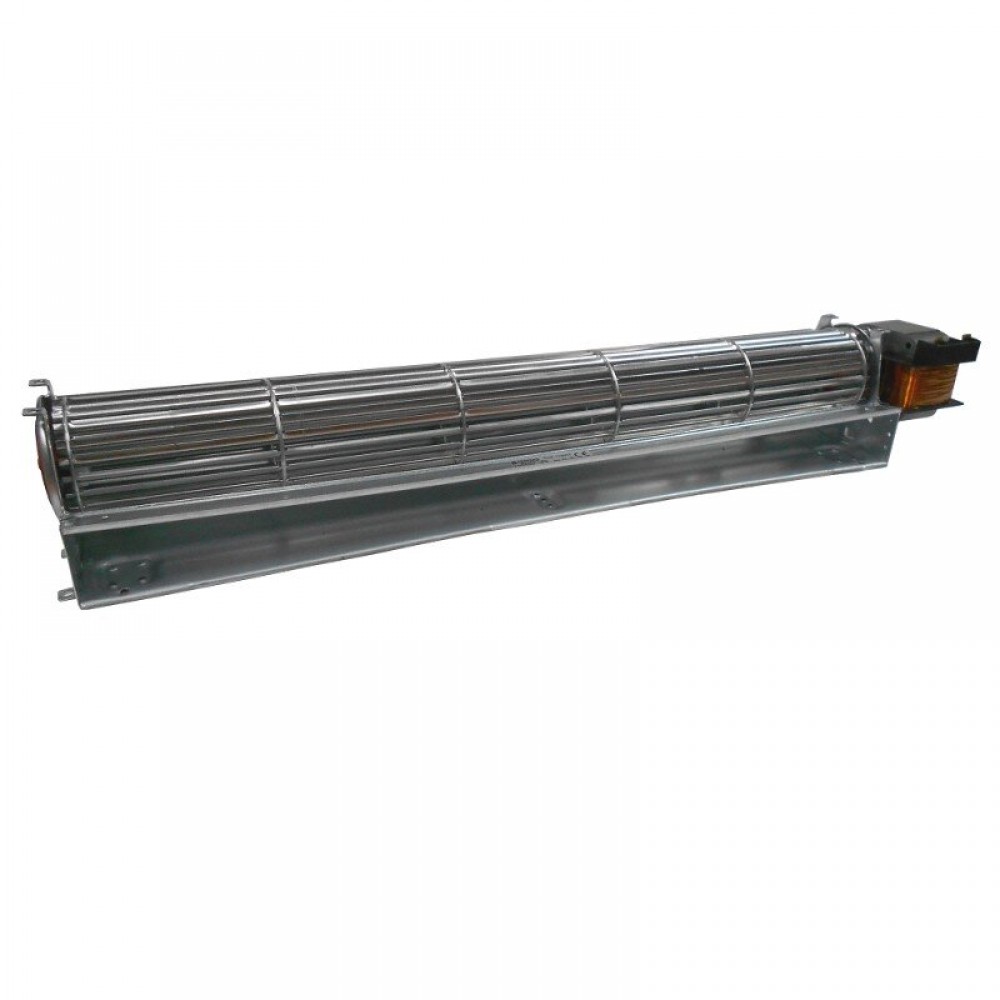

TGA 60/1-480/30 EMMEVI - FERGAS 115007 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans: 115000 - 115005
The 60 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 250 m³/h.

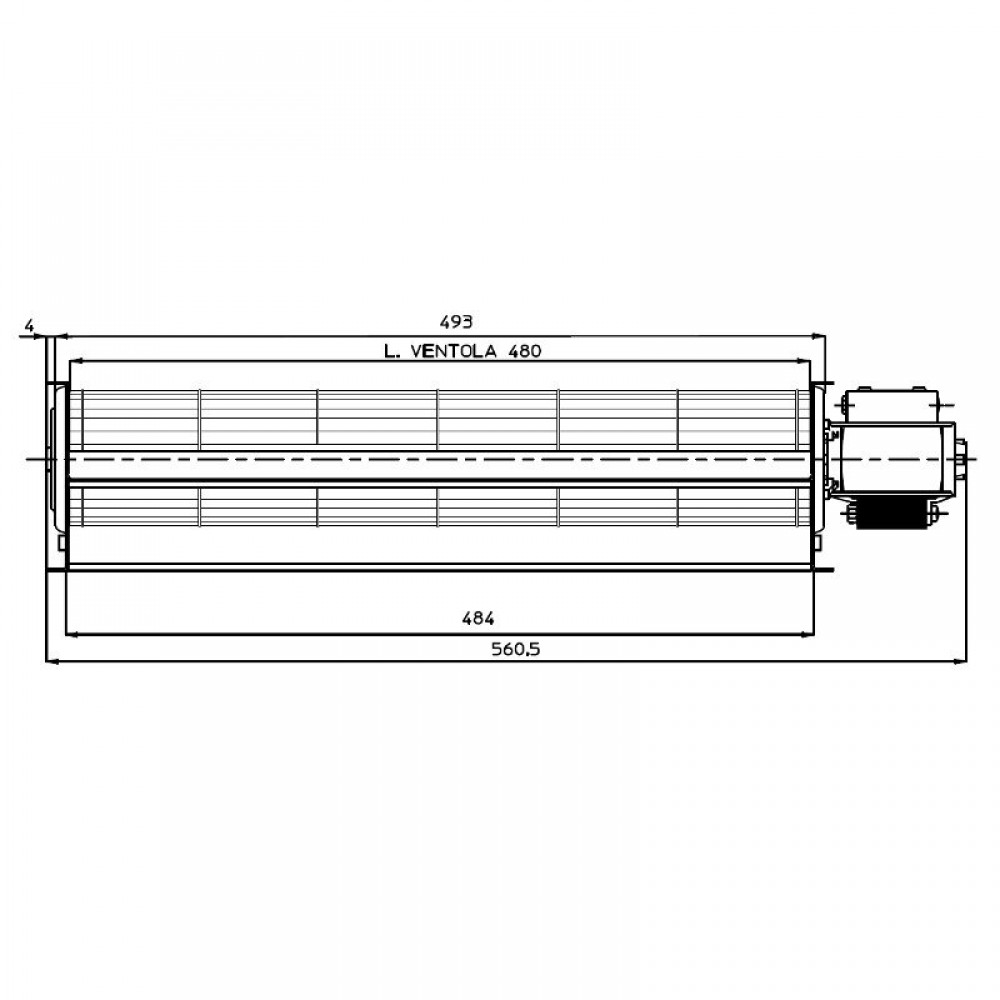

Thanks to its small size, its 560 mm total length and its 484 x 40 mm nozzle dimensions, the fan has severel employments.
It absorbs only 47 Watt at full power.
Characteristics | |
Weight (kg) | 2.0000 |
Country of Manufacture | Sweden |
Warranty | 6 months |
MPN | 14706043 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 47 |
Type | Tangential fan |
Total length [mm] | 560 |
Maximum airflow rate (m³/h) | 250 |
Magnetic core (mm) | 30 |
Fan diameter (mm) | 60 |
Fan length | 480 |
Nozzle dimensions (mm) | 484 x 40 |
Compatibility | Edilkamin, Cadel |
