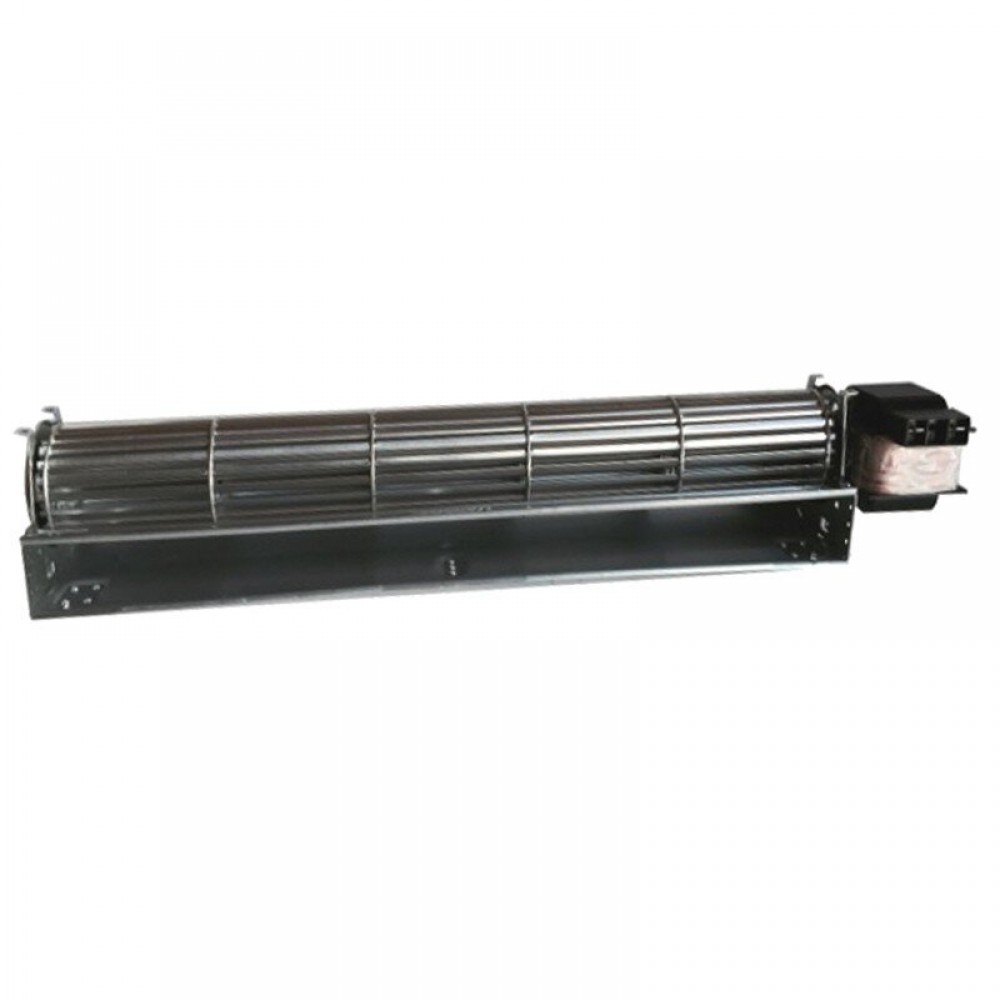

TGA 60/1-360/30 EMMEVI - FERGAS 114433 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
Equivalent to the following EMMEVI-FERGAS cross-flow fans: 114425 - 114430 - 114435 - 114400 - 114406 - 114410 - 114416x - 114419 - 114421 - 114422
For stoves OLIMPIA SPLENDID nod. SPERA PLUS cod. RE0673
The 60 mm rotor create a swirling motion that generate an output air flow that is stable and uniform. Flow range 210 m³/h.

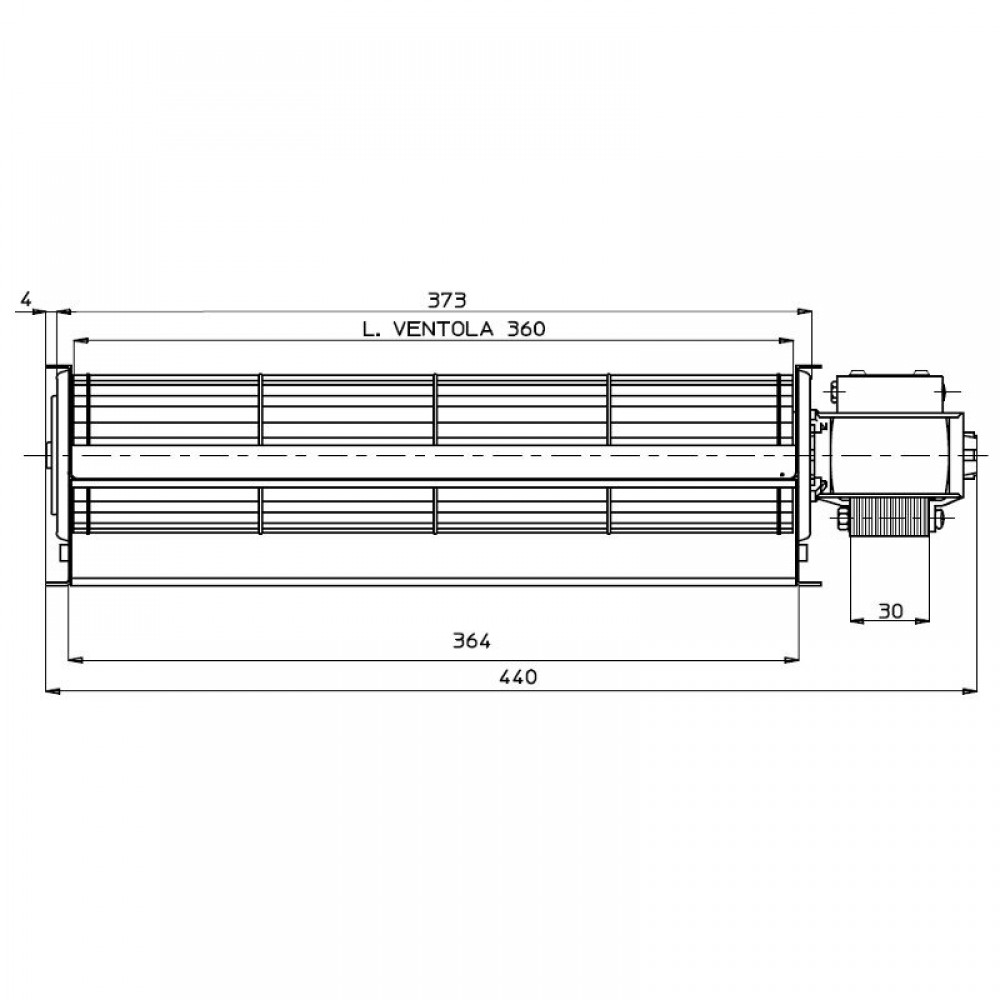

Thanks to its small size, its 440 mm total length and its 364 x 40 mm nozzle dimensions, the fan has severel employments.
It absorbs only 42 Watt at full power.
| Characteristics | |
| Weight (kg) | 2.0000 |
| Warranty | 6 months |
| MPN | 14706037 |
| Electric power supply (V/Hz) | 220-240/ 50-60 |
| Power consumption (W) | 42 |
| Type | Tangential fan |
| Total length [mm] | 440 |
| Maximum airflow rate (m³/h) | 210 |
| Magnetic core (mm) | 30 |
| Fan diameter (mm) | 60 |
| Fan length | 360 mm |
| Nozzle dimensions (mm) | 364 x 40 |
| Compatibility | Ferroli, Lincar, Olimpia Splendid |
