Tangential fan for pellet stoves.
Save 2% with bank transfer.
365 DAY RETURN
365 daysSee details
SECURE PAYMENTS
See details
TGA 80/1-270/35 EMMEVI - FERGAS 158201 tangential fan for pellet stoves. Specific for high temperatures, it is a quiet, small and very reliable product.
For stoves EDILKAMIN code 292240 Lilia and Iris models from 2006 and from the serial number 3702099 up to the serial number 3738550- while the 2004 and 2005 models require the code 14706012 - ITALIANA CAMINI Junior model until 2009
The 80mm rotor create a swirling motion that generate an output air flow that is stable and uniform.

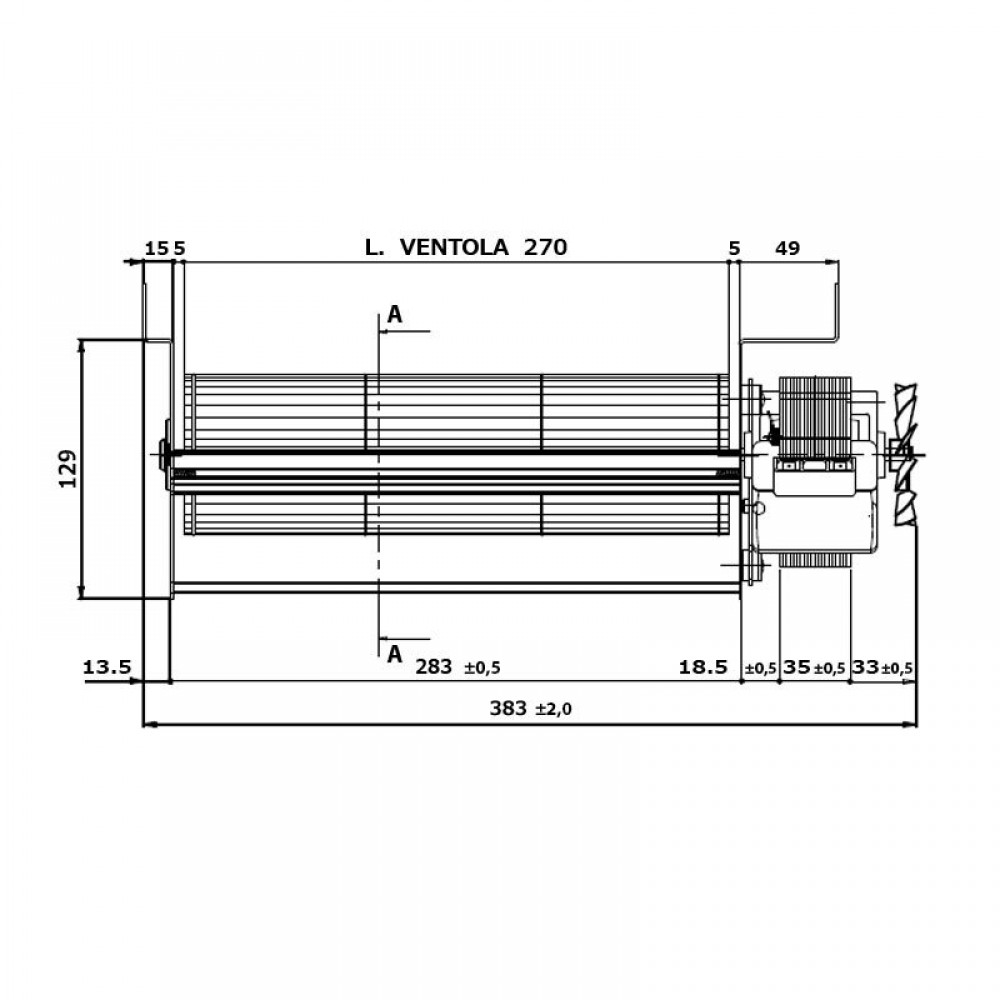

Thanks to its small size, its 383 mm total length and its 283 x 44 mm nozzle dimensions, the fan has severel employments.
It absorbs 115 Watt at full power.
| Characteristics | |
| Weight (kg) | 2.0000 |
| Country of Manufacture | Sweden |
| Warranty | 6 months |
| MPN | 14706048 |
| Electric power supply (V/Hz) | 220-240/ 50-60 |
| Power consumption (W) | 115 |
| Type | Tangential fan |
| Total length [mm] | 383 |
| Maximum airflow rate (m³/h) | 337 |
| Magnetic core (mm) | 35 |
| Fan diameter (mm) | 80 |
| Fan length | 270 mm |
| Nozzle dimensions (mm) | 283 x 44 |
| Compatibility | Edilkamin |
