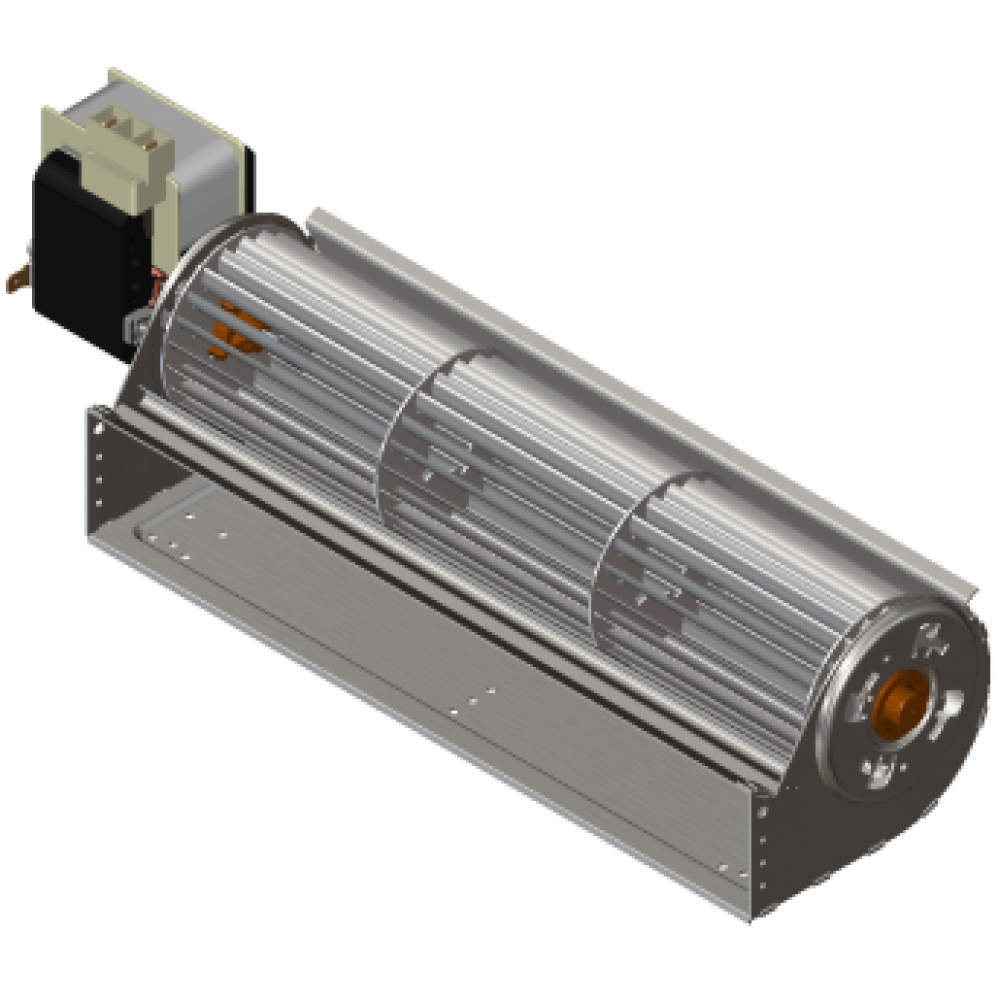

Crossflow blower Trial, THS30B5-014 for Eco Spar pellet stoves

Crossflow blower Trial, THS30B5-014 for Eco Spar pellet stoves

Single air flow blower compatible with EcoSpar 6kW, 8kW pellet stoves.

  • Stock: In Stock
  • SKU: 16.458.001
£104.20
Excl. VAT
2 or more £93.78
3 or more £88.57
Estimated delivery
06.Dec.2024
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

General features


Crossflow blowers are widely used both in household and industrial appliances and machines, thanks to the small radial size together with an axial size with no restriction on the length.

For this type of blower the main flow moves transversely across the impeller, passing the blading twice. The flow is smoothly spreaded along the output cross-section.

Low levels of noise are achieved thanks to the low velocity of the air on the output.

The range of Trial crossflow blowers includes wheels with diameters of 45, 60, 65 or 80 millimeters and lengths ranging from 90 to 610 millimeters.

Applications


  • Heating units
  • Pellet stoves
  • Refrigerating units
  • Household appliances
  • Electric/electronic cooling units
  • Industrial machinery
  • Optical/medical equipment

 Construction details




Trial’s crossflow blowers are recognized in their market for quality and reliability in any working environment.

Through a set of well tested technical solutions, Trial can offer suitable blowers for any market need, combining the best aeraulic performance to low noise, reliability and long life.

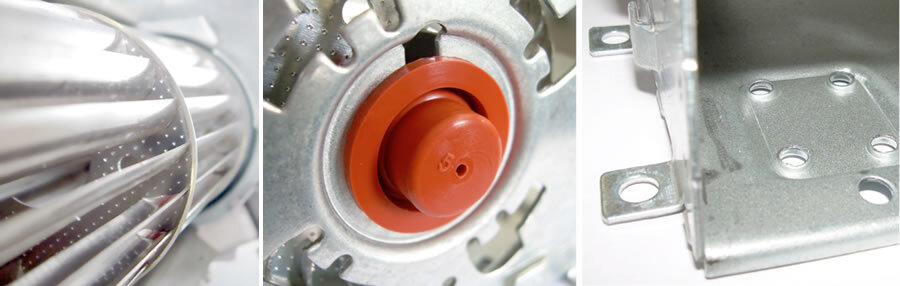

tangenziale-1

Accurate craftmanship and care on details make Trial products unique.

Trial aluminium wheels are produced in house according to stringent quality standards and ensure very good balancing levels thus minimizing noise and vibration on the final product.

The available diameters are 45 mm, 60 mm, 65 mm and 80 mm with lengths up to 610 mm.

The scrolls are made by pre-galvanised or cataphoresis painted  metal sheet.

The motors are suited to each product and can be supplied by a.c. or d.c. sources, with voltage and frequency differences from the European standard, e.g. 110 V 60 Hz. They can be delivered in high efficiency brushless versions.

The working environment temperature range is as wide as -10 to +110 °C.

An adequate supply of lubricant on the sleeve bearings of the shaft ensures a long operative life, but ball bearings can be adopted on request.

Trial products can be customized as far as electrical connection, multiple speed, protection against humidity or dust, etc. are concerned.

They can also be delivered with UL/CSA recognition or with certification by other Authorities.

Characteristics
Weight (kg) 2.0000
Country of Manufacture Italy
Warranty 6 months
IP rate H
Min - max ambient T [°C] 0 - 80
Type Tangential fan
Frequency [Hz] 50/60
Total length [mm] 387
Rotation speed (rpm) 1380
Nominal voltage [V] 230
Free Air Flow [m3/h] 290
Impeller length [mm] 30
Static pressure [Pa] 65
Impeller material Aluminium
Total height [mm] 130
Total depth [mm] 110
Compatibility Eco Spar
