Back Boiler Fireplace Prity P W18, 18.4 kW

Back Boiler Fireplace Prity P W18, 18.4 kW – Whole-Home Radiator Heating and a Wide Fire

The Prity P W18 Back Boiler Fireplace in an elegant black graphite finish combines the cosiness of a built-in fireplace with the efficiency of central heating. The 18.4 kW back boiler supplies the radiators in the home, while a further approx. 5 kW of heat is radiated directly into the room where the fireplace is installed. This allows it to heat a volume of up to approx. 430–510 m³. The wide combustion chamber (827 mm) creates a long, panoramic flame and takes logs up to 63 cm long, while the shallow body (410 mm) makes building in easier. With energy class A, an efficiency of 78.3% and a 3-year warranty, the fireplace is a reliable solution for heating the whole home. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity P W18 Back Boiler Fireplace

• 18.4 kW back boiler – heating of the whole home via radiators.
• Additional radiant output of approx. 5 kW – the room with the fireplace is heated directly.
• Heated volume up to approx. 510 m³ – suitable for houses and larger homes.
• Wide combustion chamber – 450 x 827 x 370 mm, for a long, impressive flame.
• Logs up to 63 cm – less splitting and less frequent loading.
• Shallow body – only 410 mm deep, easy to build in where space is limited.
• 30 L back boiler – steady heat transfer to the heating system.

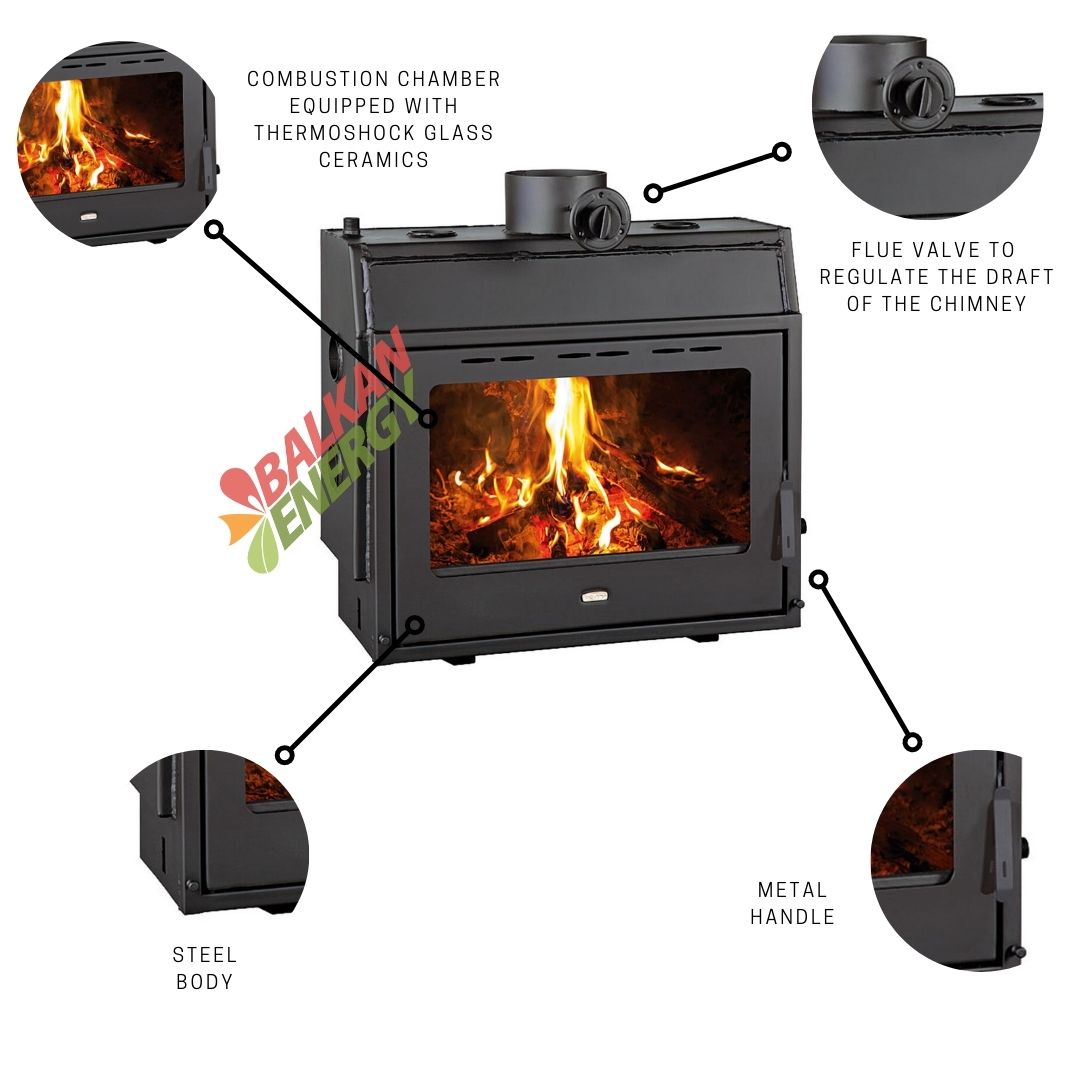

• Thermal-shock-resistant ceramic glass and cast iron grate – a clear view of the flame and even combustion.
• Combustion control damper and manual flue damper – for control over the flame and the chimney draught.
• 3-year warranty – a longer warranty than Wood Burning Fireplaces without a back boiler.

Efficiency and Energy Class

The Prity P W18 Back Boiler Fireplace meets the European Ecodesign requirements, which ensures low harmful emissions, high efficiency and environmentally friendly combustion of wood. With energy class A, an efficiency of 78.3%, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm with a top outlet.

Important Notes on Installation and Use

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a safety valve rated at 1.5 bar is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is recommended to power the circulation pump via a UPS so that it keeps running during a power cut.
• If the system contains copper components, protect it against electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.
• The fireplace requires a chimney with a diameter of 200 mm. Connection to the system is via a G 1" inlet and outlet.

Technical Specifications
