Back Boiler Fireplace Prity M W18, 18.4 kW

Back Boiler Fireplace Prity M W18, 18.4 kW – compact front-facing unit for radiator heating

The Prity M W18 Wood Burning Fireplace in an elegant black graphite finish is a front-facing model that combines the classic look of a built-in fireplace with the efficiency of central heating. The 18.4 kW back boiler supplies the radiators in your home, while around 5 kW more heat radiates directly into the room where the fireplace is installed. This allows it to heat a volume of up to around 430–510 m³. The compact body (700 x 710 mm) is easy to build in, and the 37 L back boiler ensures steady heat transfer to the heating system. With energy class A, 78.3% efficiency and a 3-year warranty, the M W18 is Prity's most affordable 18.4 kW Back Boiler Fireplace. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity M W18 Wood Burning Fireplace

• 18.4 kW back boiler – heats the whole home via radiators.
• Additional radiant output of around 5 kW – the room with the fireplace is heated directly.
• Heated volume of up to around 510 m³ – suitable for houses and larger homes.
• 37 L back boiler – a large water volume for steady and even heat transfer.
• Compact front-facing body – 700 x 710 x 590 mm, easy to build in.
• Prity's most affordable 18.4 kW back boiler fireplace – powerful heating at an excellent price.

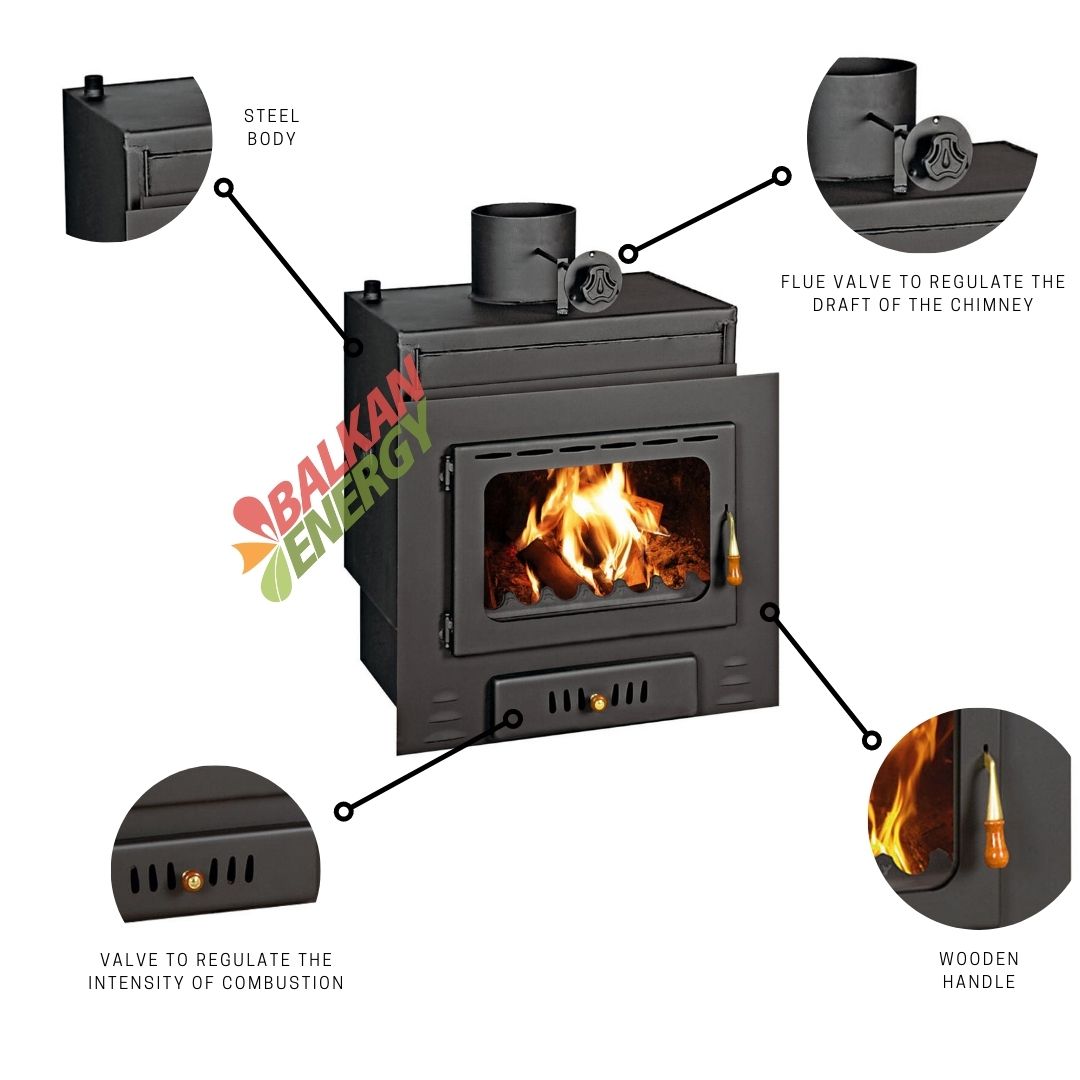

• Thermal shock resistant ceramic glass and cast iron grate – a clear view of the flame and even burning.
• Combustion control damper and manual flue outlet damper – for control over the flame and the chimney draught.
• Sturdy steel body – made of 2 mm thick steel, a 3–4 mm plate, and a wooden door handle.
• 3-year warranty – a longer warranty than wood burning fireplaces without a back boiler.

Efficiency and Energy Class

The Prity M W18 Wood Burning Fireplace meets the European Ecodesign requirements, which guarantees low harmful emissions, high efficiency and environmentally friendly combustion of wood. With energy class A, 78.3% efficiency, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm, with a top flue outlet, and the required draught is 13.7 Pa.

Important for Installation and Operation

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a 1.5 bar safety valve is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is advisable to power the circulation pump via a UPS so that it keeps working during a power cut.
• If the system contains copper components, protect it from electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.
• The fireplace requires a chimney with a diameter of 200 mm. The connection to the system is via a G 1" inlet and outlet.

Technical Specifications
