Back Boiler Fireplace Prity 3C W28, 28 kW

Back Boiler Fireplace Prity 3C W28, 28 kW – three-sided fire panorama and powerful radiator heating

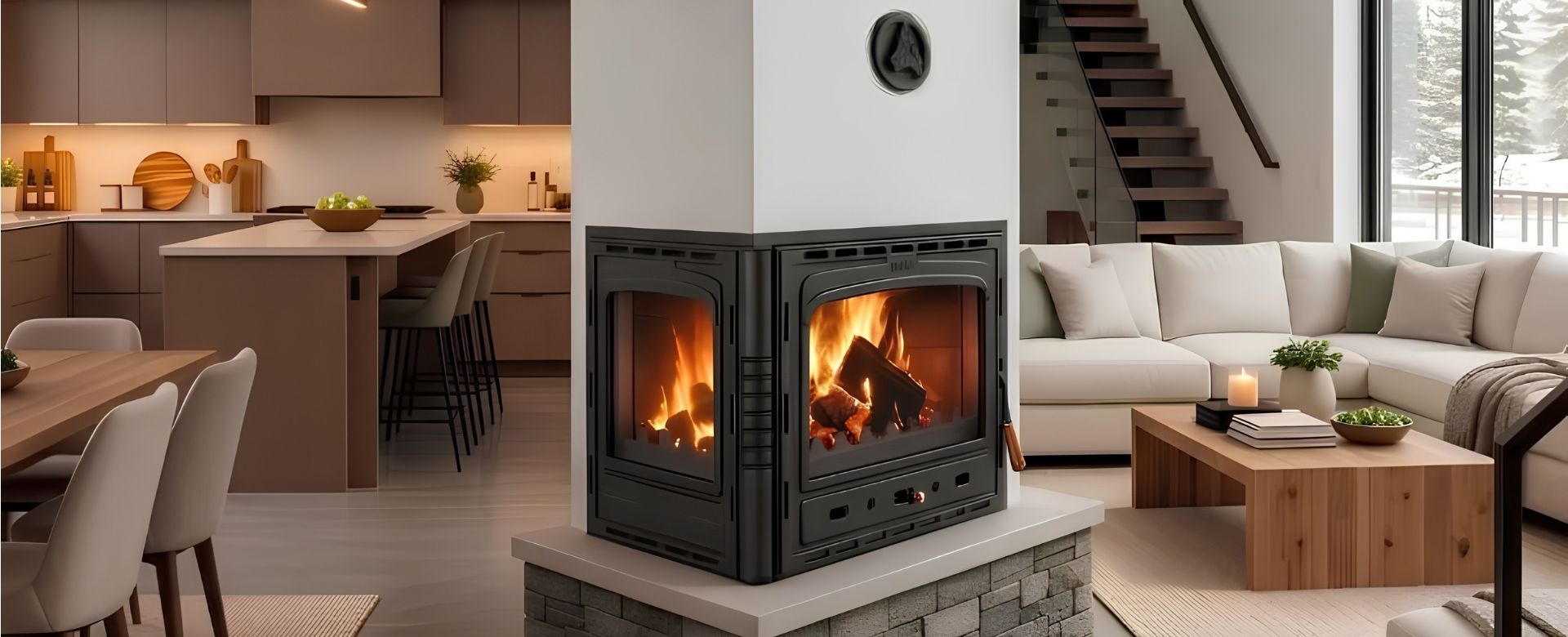

The Prity 3C W28 Wood Burning Fireplace in an elegant black graphite finish combines a three-sided view of the fire with powerful central heating. The flame can be seen through the cast iron door at the front and through the two side glass panels, making it suitable for central placement – as a divider between rooms or as a feature in a spacious living room. The 28 kW back boiler supplies the radiators in your home, while around 5 kW more heat radiates directly into the room where the fireplace is installed. This allows it to heat an area of up to 188 m². The wide combustion chamber (415 x 660 x 595 mm) allows generous loading and long burning, and the internal ash pan makes cleaning easier. With energy class A, 78.6% efficiency and a 3-year warranty, this fireplace is a reliable solution for heating the whole home. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity 3C W28 Wood Burning Fireplace

• Three-sided fire panorama – at the front through the cast iron door and on both sides through the glass.
• 28 kW back boiler – powerful heating of the whole home via radiators.
• Additional radiant output of around 5 kW – the room with the fireplace is heated directly.
• Heated area of up to 188 m² – suitable for large houses and villas.
• Wide combustion chamber – 415 x 660 x 595 mm, for generous loading and long burning.

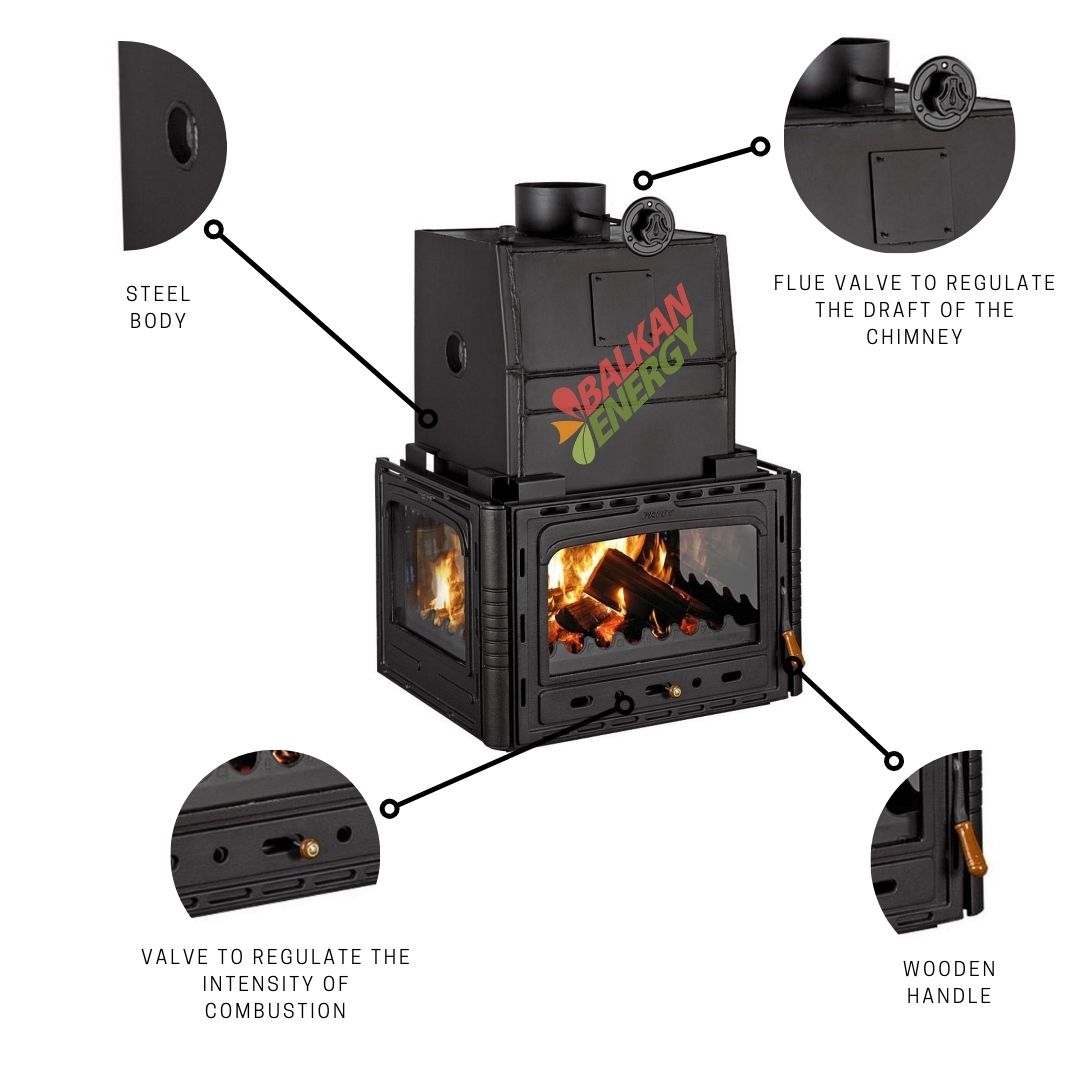

• Cast iron door and window frames – a sturdy construction that is resistant to high temperatures.
• Internal ash pan – easy and clean cleaning.
• Thermal shock resistant ceramic glass and cast iron grate – a clear view of the flame and even burning.
• Combustion control damper and manual flue outlet damper – for control over the flame and the chimney draught.
• 3-year warranty – a longer warranty than wood burning fireplaces without a back boiler.

Efficiency and Energy Class

The Prity 3C W28 Wood Burning Fireplace meets the European Ecodesign requirements, which guarantees low harmful emissions, high efficiency and environmentally friendly combustion of wood. With energy class A, 78.6% efficiency, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm, with a top flue outlet, and the required draught is 12.2 Pa.

Important for Installation and Operation

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a 1.5 bar safety valve is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is advisable to power the circulation pump via a UPS so that it keeps working during a power cut.
• If the system contains copper components, protect it from electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.
• The fireplace requires a chimney with a diameter of 200 mm. The connection to the system is via a G 1" inlet and outlet.
• The body is tall (1020 mm) and heavy (198 kg, without water) – check the load-bearing capacity of the floor. Leave both side glass panels uncovered when building the surround.

Technical Specifications
