Back Boiler Fireplace Prity ATC W20, 21.1 kW

Back Boiler Fireplace Prity ATC W20, 21.1 kW – corner panorama with cast iron door and radiator heating

The Prity ATC W20 Wood Burning Fireplace in an elegant black graphite finish is a corner model with panoramic glass and a cast iron door and windows – Prity's most refined corner fireplace with a back boiler. The 21.1 kW back boiler supplies the radiators in your home, while around 5 kW more heat radiates directly into the room where the fireplace is installed. This allows it to heat an area of up to 142 m² (around 384 m³). The wide combustion chamber (870 mm) creates an impressive, panoramic flame and takes logs up to 58 cm, while the internal ash pan makes cleaning easier. With energy class A, 80% efficiency and a 3-year warranty, this fireplace is a reliable solution for heating the whole home. Made in Bulgaria by Prity 95 Ltd – a manufacturer of heating appliances since 1995.

Advantages of the Prity ATC W20 Wood Burning Fireplace

• Corner model with panoramic glass – the fire can be seen from different points in the room.
• Cast iron door and windows – sturdy, resistant to high temperatures and with a classic look.
• 21.1 kW back boiler – powerful heating of the whole home via radiators.
• Additional radiant output of around 5 kW – the room with the fireplace is heated directly.
• Heated area of up to 142 m² – suitable for larger houses and villas.
• High efficiency – 80% – more heat from every load of wood.
• Wide combustion chamber and logs up to 58 cm – 330 x 870 x 585 mm, for generous loading and long burning.
• Internal ash pan – easy and clean cleaning.
• 34 L back boiler – steady heat transfer to the heating system.

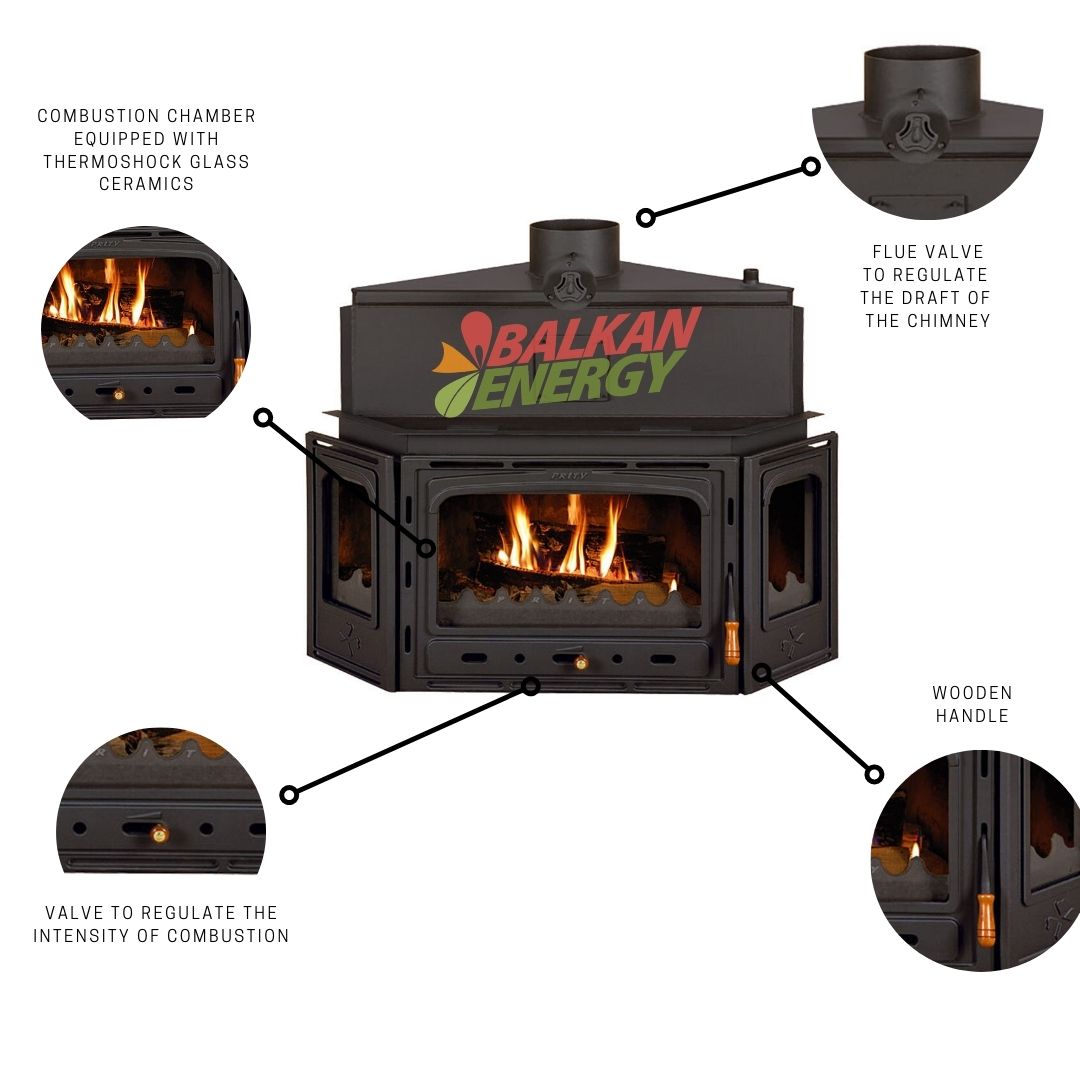

• Thermal shock resistant ceramic glass and cast iron grate – a clear view of the flame and even burning.
• Combustion control damper and manual flue outlet damper – for control over the flame and the chimney draught.
• 3-year warranty – a longer warranty than wood burning fireplaces without a back boiler.

Efficiency and Energy Class

The Prity ATC W20 Wood Burning Fireplace meets the European Ecodesign requirements, which guarantees low harmful emissions, high efficiency and environmentally friendly combustion of wood. With energy class A, 80% efficiency, compliance with the Ecodesign standard, CE certification and a 3-year warranty, it provides economical and eco-friendly heating. The chimney diameter is 200 mm, with a top flue outlet, and the required draught is 12.1 Pa.

Important for Installation and Operation

• Do not light the fireplace without water in the back boiler and without connected radiators or convectors – this will damage the appliance.
• An open heating system is recommended. With a closed system, a 1.5 bar safety valve is mandatory.
• The fireplace has no built-in overheating protection – the system must be designed and installed by a specialist.
• With forced circulation, it is advisable to power the circulation pump via a UPS so that it keeps working during a power cut.
• If the system contains copper components, protect it from electrolysis with a magnesium anode or similar protection. Protect all parts from freezing.
• The fireplace requires a chimney with a diameter of 200 mm. The connection to the system is via a G 1" inlet and outlet.
• The body is large (1080 x 810 x 750 mm) and heavy (170 kg) – allow enough space in the corner and check the load-bearing capacity of the floor. Leave the panoramic glass uncovered when building the surround.

Technical Specifications
