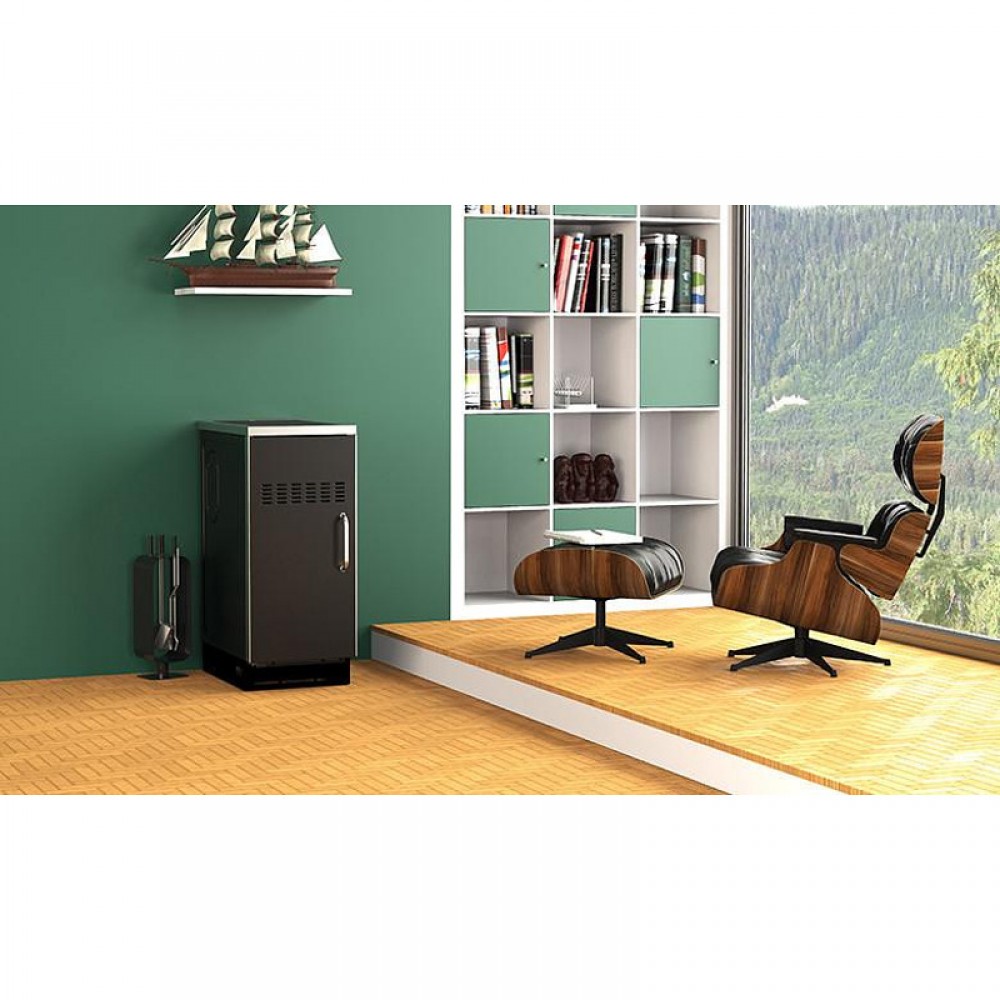

Wood burning boiler Alfa Plam Central 23 Anthracite, 20kW
Central heating wood burning stove with insulation and enameled coating, suitable for premises up to 150m2 (approximately).
- Stock: In Stock
- Brand: Alfa-Plam
- SKU: 08.438.056
*Read more about spare parts guarantee here
Free return
60 daysSee details
We accept payments
See details
Color: anthracite
Fuel type – wood, coal
- Built-in hot water boiler for a central heating system
- Cast iron grate
- Equipped with a manual damper for controlling the secondary air supply
- Equipped with a thermometer to monitor the water temperature in the boiler
- Equipped with a regulator for the water in the boiler
20 kW
374 x 267 x 307 mm
150 mm
300-500 m3
120-200 m2
140/153 kg
A
Warning! Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the stove without water in the boiler will cause it to crack.
Achieving the desired heat output depends on the selected fuel with the necessary caloricity and humidity; its subsequent kindling and refueling; the regulation of the primary and the secondary air as well as the draught; the organizing of effective air heat exchange etc.
Characteristics | |
Approximate surface (m²) | 120 - 200 |
Weight (kg) | 132.0000 |
Country of Manufacture | Serbia |
Dimension Depth (mm) | 610 |
Dimension Width (mm) | 360 |
Dimension Height (mm) | 850 |
Warranty | 2 Years |
Maximum water temperature (°C) | 90 |
Certification | CE |
Thermometer | Yes |
Energy efficiency class | A |
Heat output (kW) | 20 |
Recommended fuel | briquettes |
Efficiency (%) | 72 |
Approximate heating capacity (m³) | 300 - 500 |
Water heating output (kW) | 14 |
Construction material | Steel |
Boiler capacity (L) | 16 |
Space heating output (kW) | 6 |
Temperature indicator | Yes |
Cold water inlet | 1 1/4" |
Hot water outlet | 1 1/4" |
Overheating protected | Yes |
Ash and soot container | Yes |
Heating type | Hydro - Radiator |
Lining | Decorative lining |
Cooling loop | Yes |
Drain | 1/2" |
Maximum system pressure (bar) | 1.9 |
Placement | Center |
Recommended system type | Open |
Flue damper | No |
