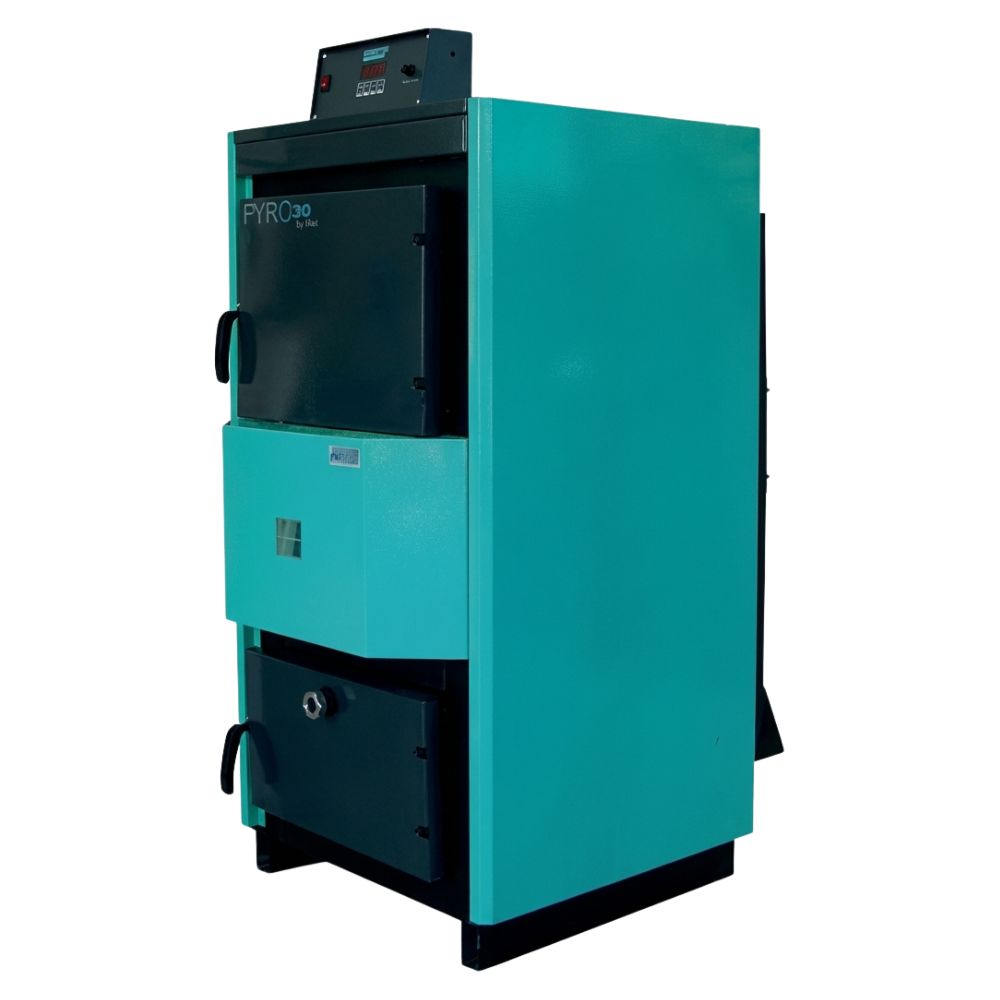

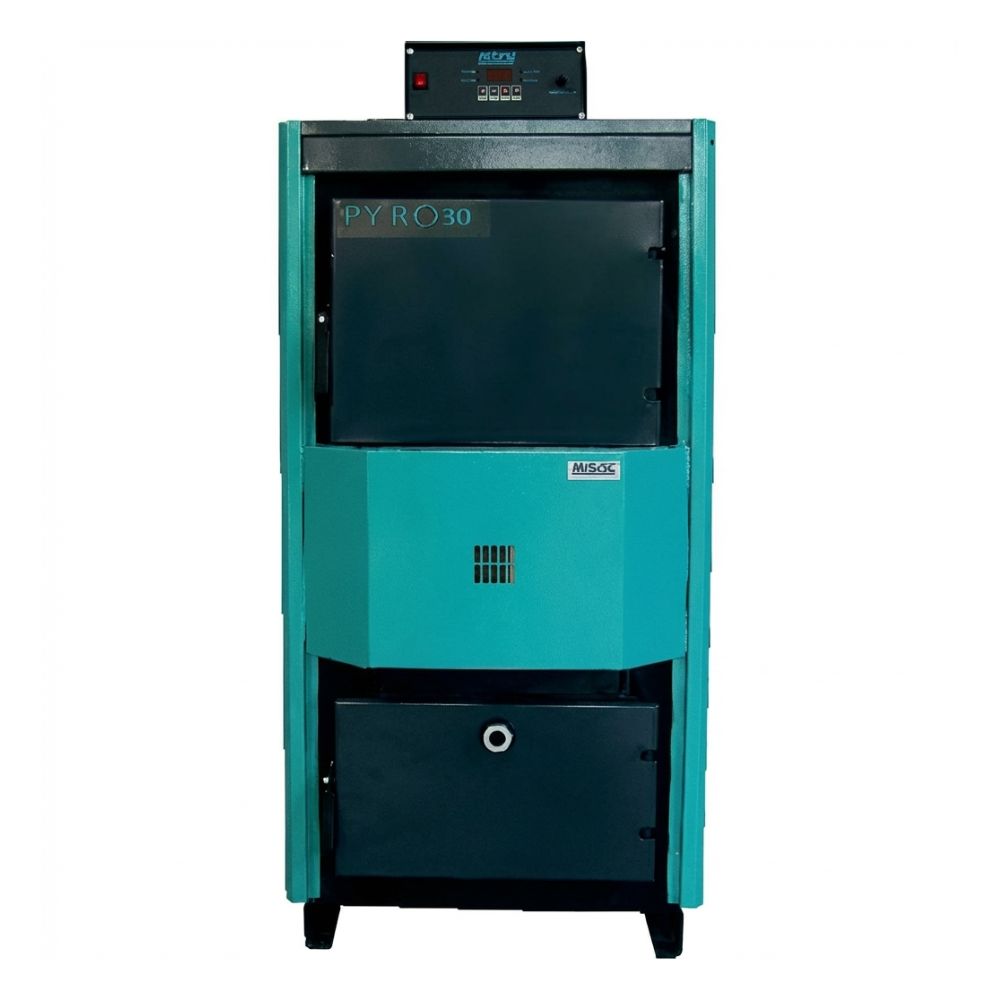

Pyrolysis Wood Boiler for Central Heating Mavil Pyro 60, 59kW

Steel Pyrolysis Boiler PYRO – High Efficiency and Long Service Life

The PYRO pyrolysis boiler is a modern Wood Boiler for Central Heating solution based on the principle of wood gasification. Thanks to its innovative design, compliant with the EN 303-5 standard, the boiler ensures maximum thermal efficiency, minimal unburned residues, and exceptional operational autonomy.

How does the PYRO pyrolysis boiler work?

Unlike traditional Wood Boiler for Central Heating systems, PYRO uses reverse flame combustion. The fuel mixture – composed of wood gases produced in the upper combustion chamber and primary combustion air – passes through the openings at the bottom of the boiler, where the characteristic reverse flame is created. This guarantees complete fuel combustion and significantly reduces the formation of unburned residues.

1. Wood storage
2. Gasification zone
3. Charcoal zone
4. Refractory hearth
5. Combustion chamber with reverse flame
6. Flue gas baffles
7. Heat exchange surfaces
8. Stainless steel plates with thickness of 20 mm

Technical Specifications

• Type: Steel pyrolysis Wood Boiler for Central Heating
• Heating capacity: from 59 kW
• Standard: EN 303-5
• Steel sheet thickness: 8 mm
• Insulation: Refractory with high thermal resistance

Main Advantages of the PYRO Boiler

Exceptional Autonomy

With proper sizing and correct usage, a full load of the combustion chamber provides around 12 hours of operation. This means only two refuelings per 24 hours – a convenience appreciated by all households.

High-Durability Materials

The combustion chamber is made of 8 mm thick steel sheets, ensuring a long service life. The internal refractory insulation with high thermal resistance optimizes the use of high temperatures and minimizes condensation effects.

High Thermal Efficiency

The special absorber allows the use of combustion air at pressure different from atmospheric. This improves wood gasification and combustion, increases thermal efficiency and combustion chamber temperature, and further reduces unburned residues.

Easy and Safe Operation

The boiler features an electronic control panel that monitors all necessary parameters. The automatic smoke extraction system when the door is open makes refueling convenient and safe. The built-in overheating protection mechanism provides additional peace of mind.


Where is the PYRO pyrolysis boiler suitable?

The PYRO boiler provides economical and efficient heating, suitable for single-family houses, villas, and small industrial buildings. With a capacity of 34 to 58.5 kW, it meets the needs of larger residential areas.

Why choose a pyrolysis boiler over a traditional Wood Boiler for Central Heating?
