Smoke extractor/ extractor fan for pellet boiler stoves.
Free return
60 daysSee details
We accept payments
See details

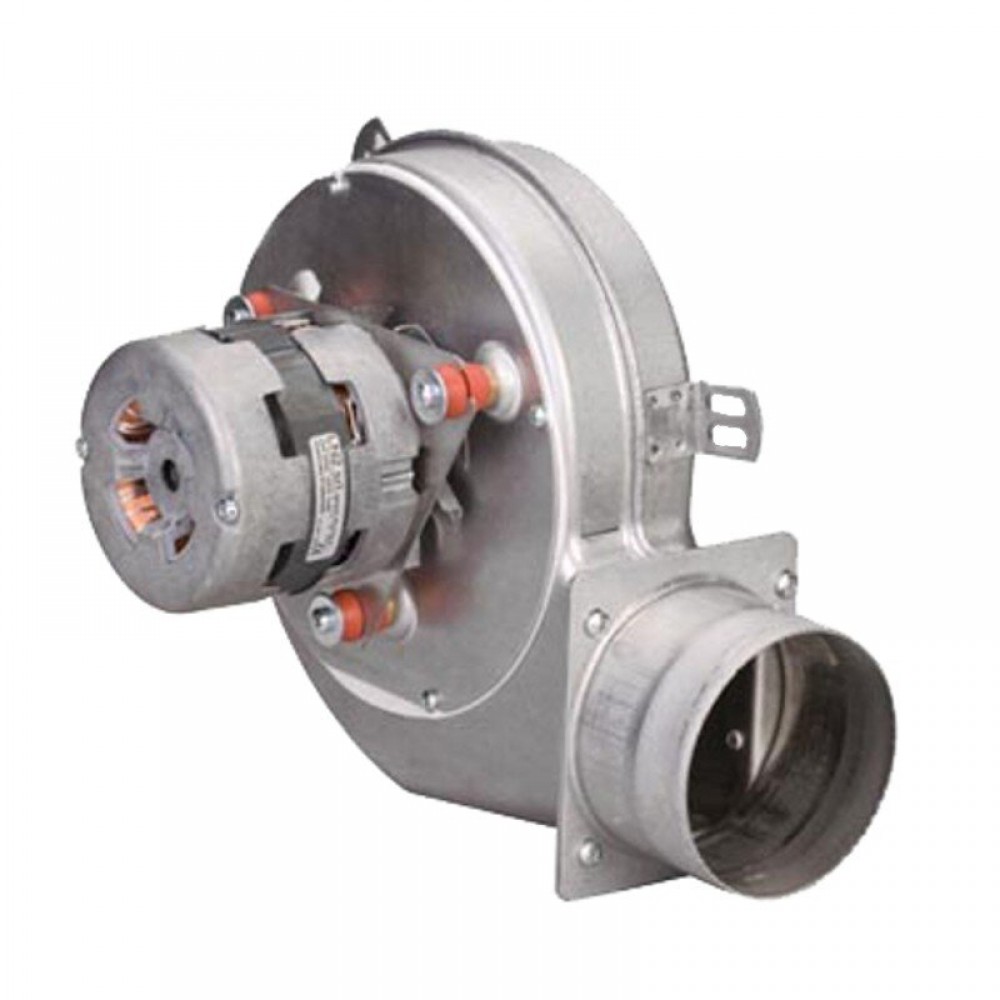

SITGroup LN2 NATALINI PL30 smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 60 KW.
For the following stoves MONTEGRAPPA - ADLER - ECP SPAR mod. Maxima 33kW, Orion 42kW - EDILKAMIN mod. Blade
MCZ ref. 41451100300 mod. Toba HYDRO 22 - Toba HYDRO 22 HE - Toba HYDRO/S 22
RED ref. 41451100300 mod. Compact 18 - Compact 24 - Compact 24 ver.2012 - Compact 35 - Logika 25 - Logika 25 ACS - Logika Refill 25 ACS - Logika Refill 25 - Logika 35 - Logika Refill 35 - Logika 35 ACS - Logika Refill 35 ACS - Lotus
Provided with aluminised steel spiral, which output diameter is of 100 mm, and AISI 430 steel rotor.
Designed to generate up-to-500Pa-pressures with a maximum airflow range of 285 m3/h.

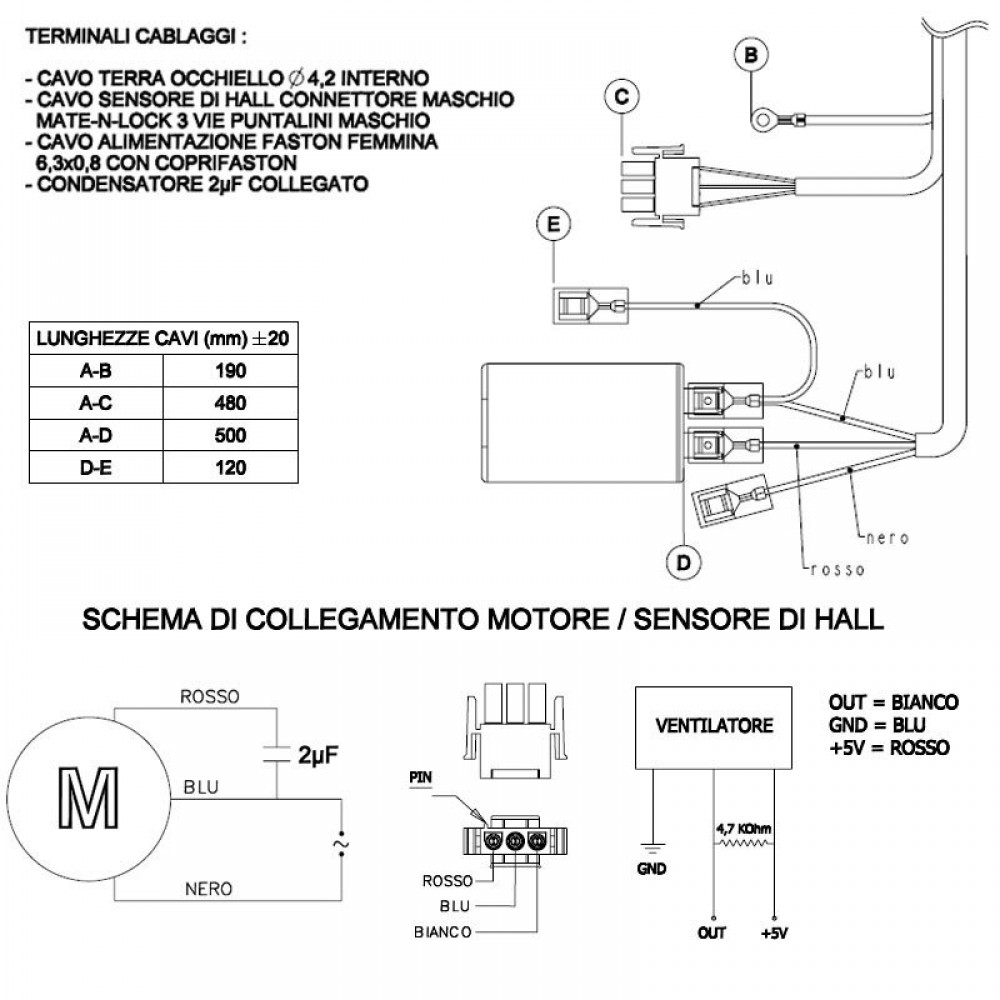

Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).
In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.
Characteristics | |
Weight (kg) | 1.0000 |
Country of Manufacture | Italy |
Dimension Depth (mm) | 152 |
Dimension Height (mm) | 258 |
Warranty | 6 months |
MPN | 14706002 |
Electric power supply (V/Hz) | 220-240/50-60 |
Power consumption (W) | 70 |
Type | Smoke extractor fan |
Total length [mm] | 300 |
Rotation speed (rpm) | up to 2500 |
Generated pressure (Pa) | 500 |
Flange connector (mm) | 100 |
Maximum airflow rate (m³/h) | 285 |
Compatibility | RED |
