Circulation pump Grundfos UPS2, 25-80 180

New generation high-efficiency circulating pump for underfloor heating, radiator heating, single-pipe and double-pipe heating systems.

  • Stock: In Stock
  • Brand: Grundfos
  • SKU: 08.320.009
£304.41
Excl. VAT
Add to Cart
Inquiry
Add to Wish List Compare this Product
Estimated delivery
03.Jan.2025
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

The GRUNDFOS UPS2 pump allows constant adjustment of the pump performance according to the actual needs of the system.
The UPS2 terminal box can be installed in different positions (following the installation and operating instructions).
Choose the settings that meet the needs of your installation and you're done.
UPS2 gives you the option to choose a maximum pressure head between 4 m, 5 m or 6 m.
Complies with the EUP 2015 Energy Efficiency Directive. Low energy consumption compared to traditional circulating pumps.
Power failure is not a problem - the pump remembers all the settings.

Usage:

  • Systems with constant or variable flow rates where it is desirable to optimize the pump operating point settings.
  • Systems with variable flow temperature in the pipes.

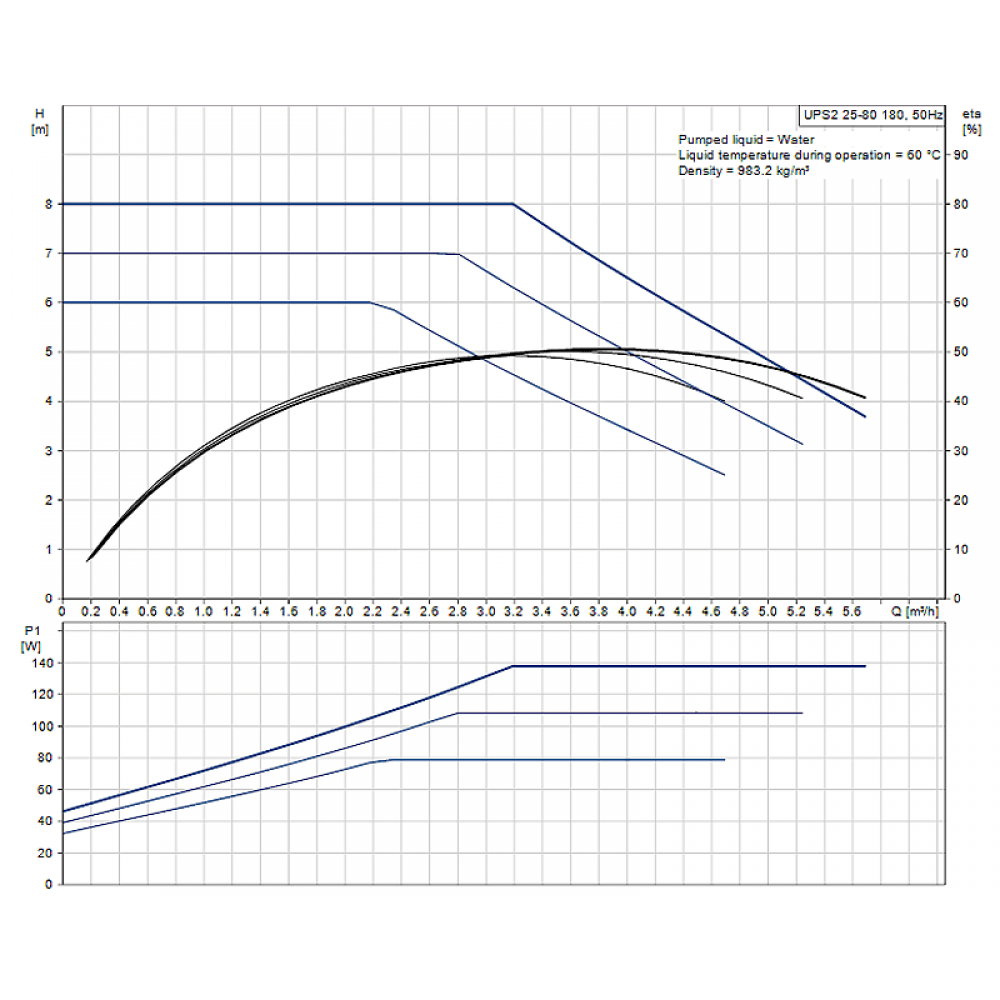

Characteristics
Weight (kg) 2.5000
Country of Manufacture Denmark
Warranty 2 Years
Operating pressure (bar) Max 10
Temperature range +2°C до +95°C
Power consumption (W) 11-140
Rate of flow 0.2-5.7 m³/h
Media temperature 0°C до +40°C
Power supply [V] 230
Pressure head Max 8.4
Insulation class F
Type 25-80 180
Anti blocking protection Electronic
Frequency [Hz] 50
Material Cast Iron
Type File Information
User manual_Grundfos_UPS_EN.pdf 7.22MB
