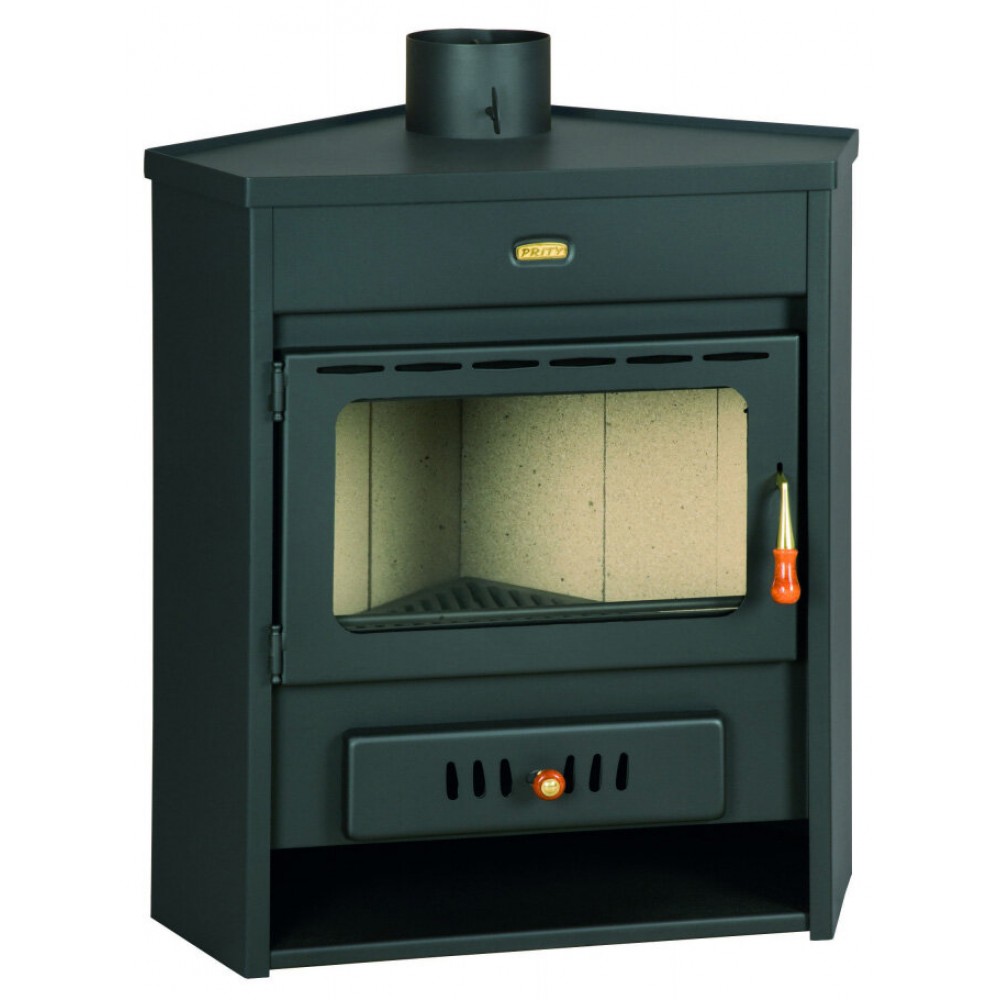

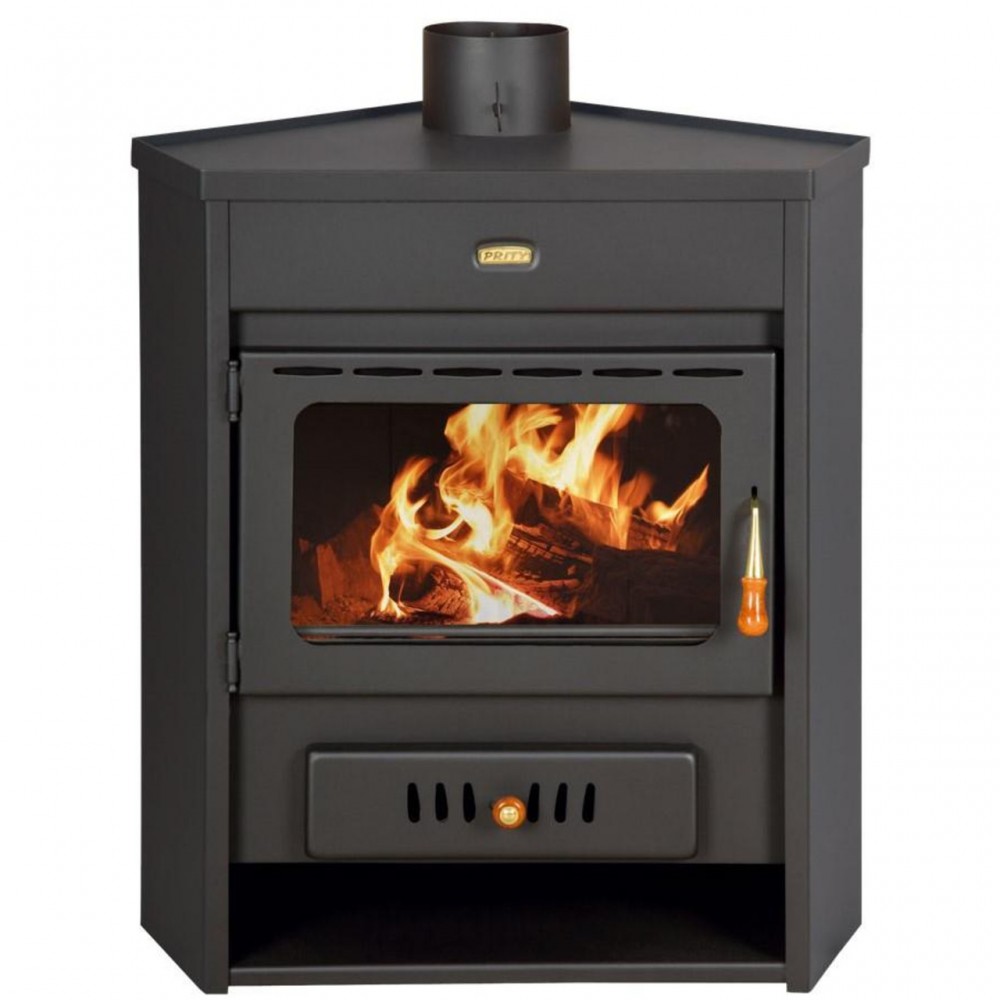

Wood Burning Stove With Back Boiler Prity AM W12, 13.3kW

Wood Burning Stove With Back Boiler Prity AM W12, 13.3kW

Wood burning boiler stove specially designed for corner placement.

  • Stock: In Stock
  • Brand: Prity
  • SKU: 08.435.032
£762.62
Excl. VAT

*Read more about spare parts guarantee here

Estimated delivery
04.Jan.2025
DHL Schenker
See Shipping Policy

Free return
​60 daysSee details

We accept payments
    See details

multi-fuel-stove-with-back-boiler-prity-am-w12-3




multi-fuel-stove-with-back-boiler-prity-am-w12-2



multi-fuel-stove-with-back-boiler-prity-am-w12-6


multi-fuel-stove-with-back-boiler-prity-am-w12-5


multi-fuel-stove-with-back-boiler-prity-am-w12-4






multi-fuel-stove-with-back-boiler-prity-am-w12-1







PRODUCT DETAILS

  • Built-in hot water boiler for a central heating system;
  • Body made of 2mm thick sheet steel;
  • Top made of 3-4mm thick sheet steel;
  • The combustion chamber is equipped with heat resistant ceramic glass;
  • Cast iron grate;
  • Front damper for controlling the air supply;
  • Smoke damper for adjusting the flame intensity;
  • Wooden door handles;
  • Compartment to store and dry moist wood.

Achieving the desired heat output depends on:

  • the selected fuel with the necessary caloricity and humidity;
  • its subsequent kindling and refueling;
  • the regulation of the primary and the secondary air;
  • the regulation of the draught;
  • the organizing of effective air heat exchange etc.



Characteristics
Weight (kg) 113.0000
Country of Manufacture Bulgaria
Dimension Depth (mm) 550
Dimension Width (mm) 720
Dimension Height (mm) 820
Warranty 3 Years
Certification CE
Maximal thermal output (kW) 18
Approximate heating surface (m²) 105
Energy efficiency class A
Flue (mm) 150
Exhaust Location Top side
Heat output (kW) 13.3
Efficiency (%) 70
Approximate heating capacity (m³) 277
Water heating output (kW) 7.3
Construction material Steel
Boiler capacity (L) 7
Required chimney draught (Pa) 12
Space heating output (kW) 6
Overheating protected No
Heating type Hydro - Radiator
Features Niche
Emissions (g/s) 18,1
Lining None
Placement Corner
Combustion chamber dimensions (Height, Width, Depth), mm 440x430x385
Recommended system type Open
Flue damper Yes
Type File Information
Manual_Prity_E N.pdf 1014.47KB

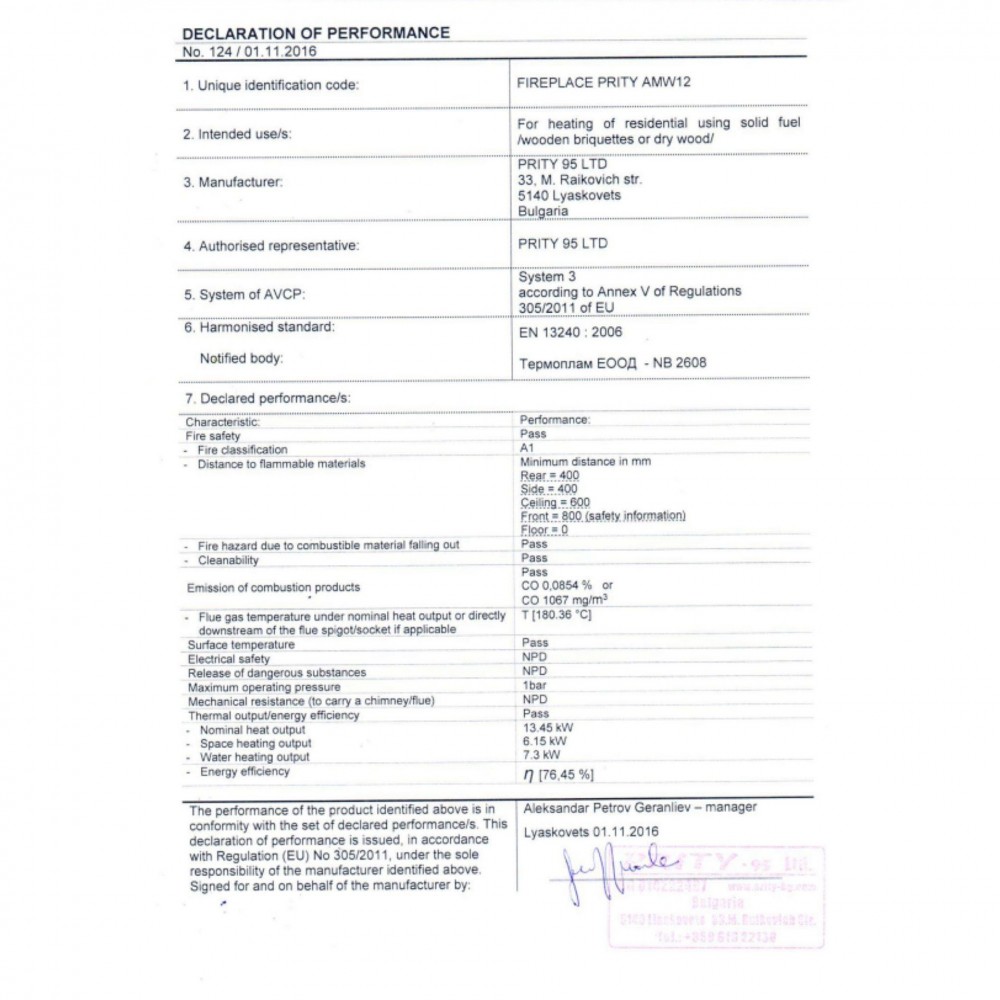

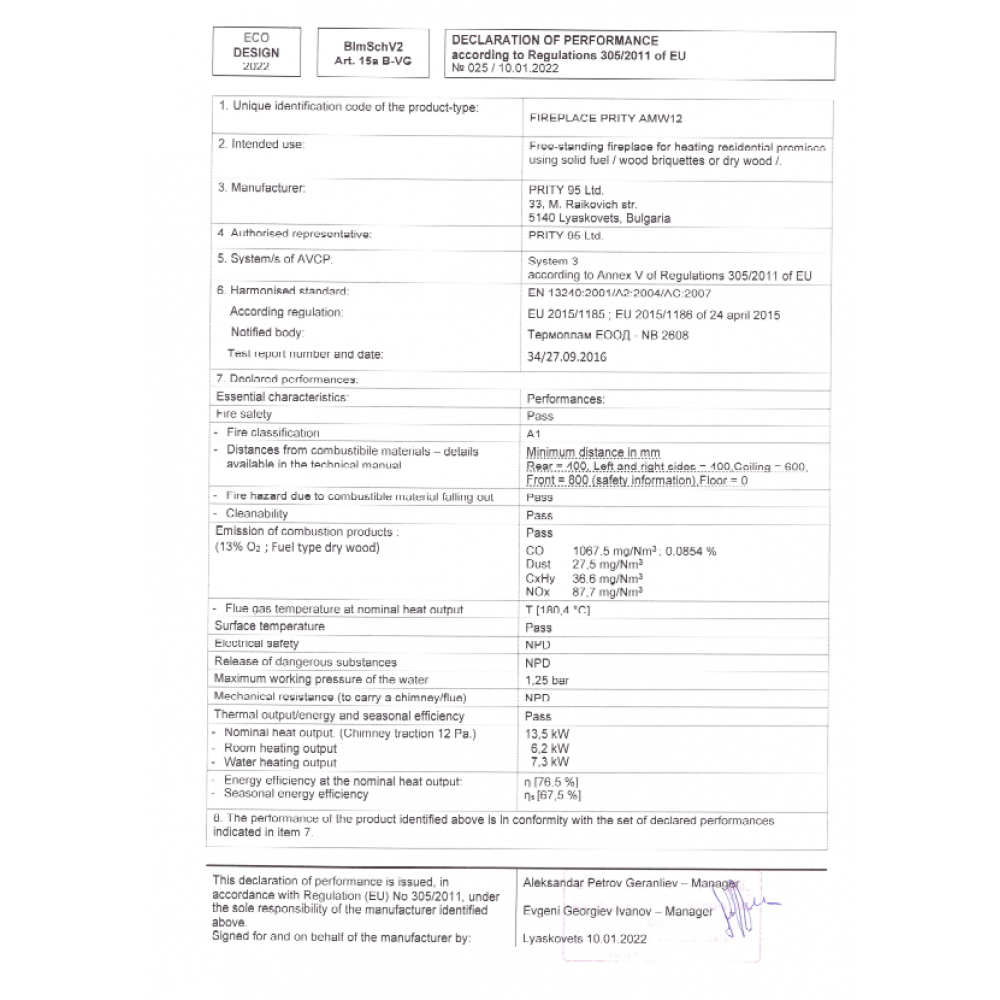

Declaration of performance_AM W12.pdf 2.76MB

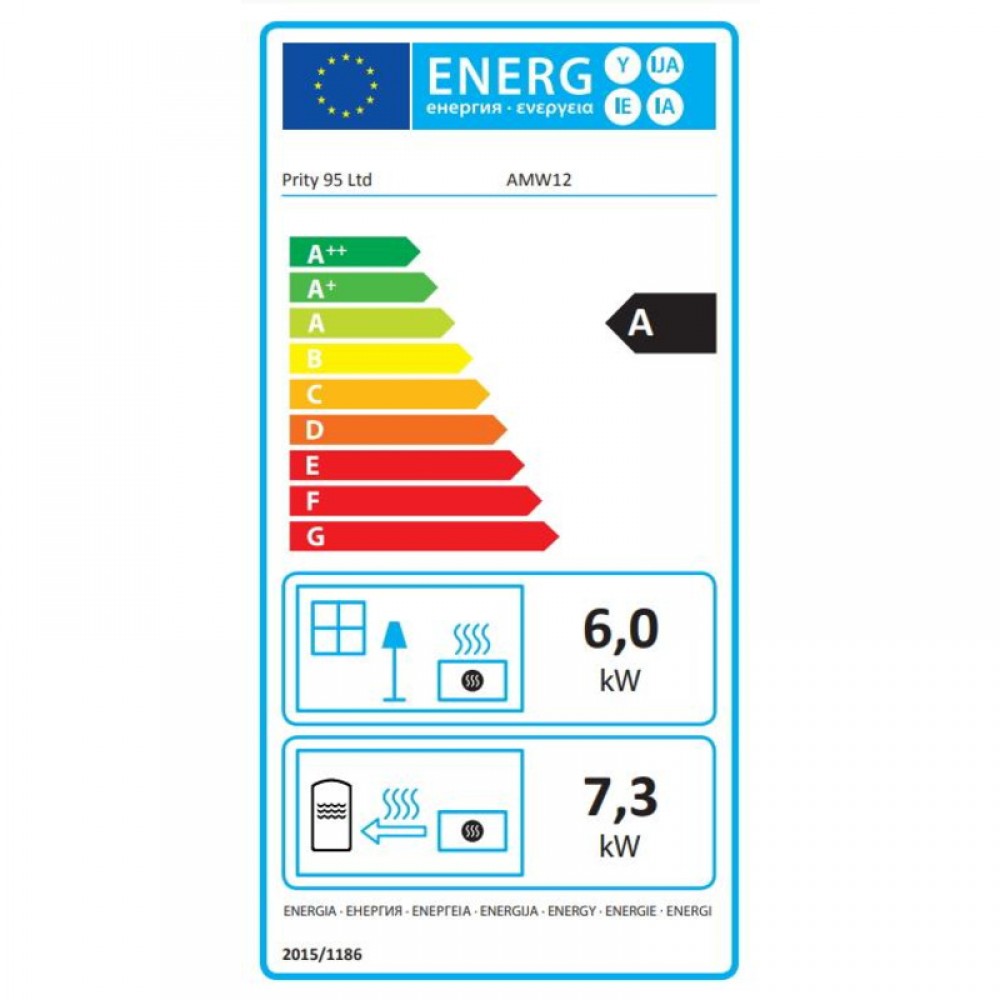

Energy efficiency label_AM_W12.pdf 89.98KB
