Wood Burning Stove With Back Boiler and Oven Prity FG W20, 17.3kW
Wood Burning Stove With Back Boiler and Oven Prity FG W20, 17.3kW






- Stock: In Stock
- Brand: Prity
- SKU: 08.435.010
£1,199.00
Excl. VAT
Save 5% with bank transfer.
Estimated delivery
10.Apr.2025
See Shipping Policy


Free return
60 daysSee details
We accept payments
See details
You may also need
The Ribimex Minìcen vacuum cleaner is specifically designed to clean ash out of fireplaces, wood stoves, pellet stoves and barbecue grills, somet..
£30.02
The frequent use of PISSA off will prevent further creosote from forming.
With PISSA off, you can have your chimney clean from creosote in order to a..
£9.80
The floor plates for wood-burning stoves are made of high-quality steel with a thickness of 2 mm, which protects the floor from contami..
£72.50
Ideally suited for keeping the fireplace tidy while stoking the fire.
Manufactured from quality cast iron and steel to ensure long lasting...
£39.30
All pressurized central heating systems need a way to be controlled and ensure their safety. This kit contains all the basic devices necessary to do j..
£209.84 £233.16
The floor plates for wood-burning stoves are made of high-quality steel with a thickness of 2 mm, which protects the floor from contami..
£72.50
The floor plates for wood-burning stoves are made of high-quality steel with a thickness of 2 mm, which protects the floor from contami..
£72.50
The floor plates for wood-burning stoves are made of high-quality steel with a thickness of 2 mm, which protects the floor from contami..
£72.50
All pressurized central heating systems need a way to be controlled and ensure their safety. This kit contains all the basic devices necessary to do j..
£194.01 £215.56
PRODUCT DETAILS
- Built-in hot water boiler for a central heating system;
- Body made of 2mm thick sheet steel;
- Top made of 3-4mm thick sheet steel;
- The combustion chamber is equipped with heat resistant ceramic glass;
- Hardened glass pane of the oven;
- Equipped with a thermometer;
- Cast iron grate;
- Front damper for controlling the air supply;
- Smoke damper for adjusting the flame intensity;
- Wooden door handles;
- Decorative painted side plates.
Achieving the desired heat output depends on:
- the selected fuel with the necessary caloricity and humidity;
- its subsequent kindling and refueling;
- the regulation of the primary and the secondary air;
- the regulation of the draught;
- the organizing of effective air heat exchange etc.
Characteristics | |
Characteristics | Oven |
Nominal heat output (kW) | 17.3 |
Weight (kg) | 192.0000 |
Country of Manufacture | Bulgaria |
Dimension Depth (mm) | 550 |
Dimension Width (mm) | 650 |
Dimension Height (mm) | 1150 |
Warranty | 3 Years |
Certification | CE |
Approximate heating surface (m²) | 148 |
Energy efficiency class | A |
Flue (mm) | 150 |
Exhaust Location | Top side |
Maximum heat output (kW) | 20 |
Efficiency (%) | 69 |
Approximate heating capacity (m³) | 400 |
Nominal water heating output (kW) | 17.3 |
Construction material | Steel |
Required chimney draught (Pa) | 11.5 |
Space heating output (kW) | 6.5 |
Temperature indicator | Yes |
Cold water inlet | 1" |
Hot water outlet | 1" |
Overheating protected | No |
Heating type | Hydro - Radiator |
Oven dimensions (Height, Width, Depth), mm | 190 x 395 x 410 |
Emissions (g/s) | 28,4 |
Lining | Decorative lining |
Placement | Center |
Loading door size (Height, Width), mm | 190 x 310 |
Maximum length of the firewood logs (mm) | 440 |
Recommended system type | Open |
Flue damper | Yes |
Type | File Information |
![]() |
Manual_Prity_E _N.pdf File size 1014.47KB |
![]() |

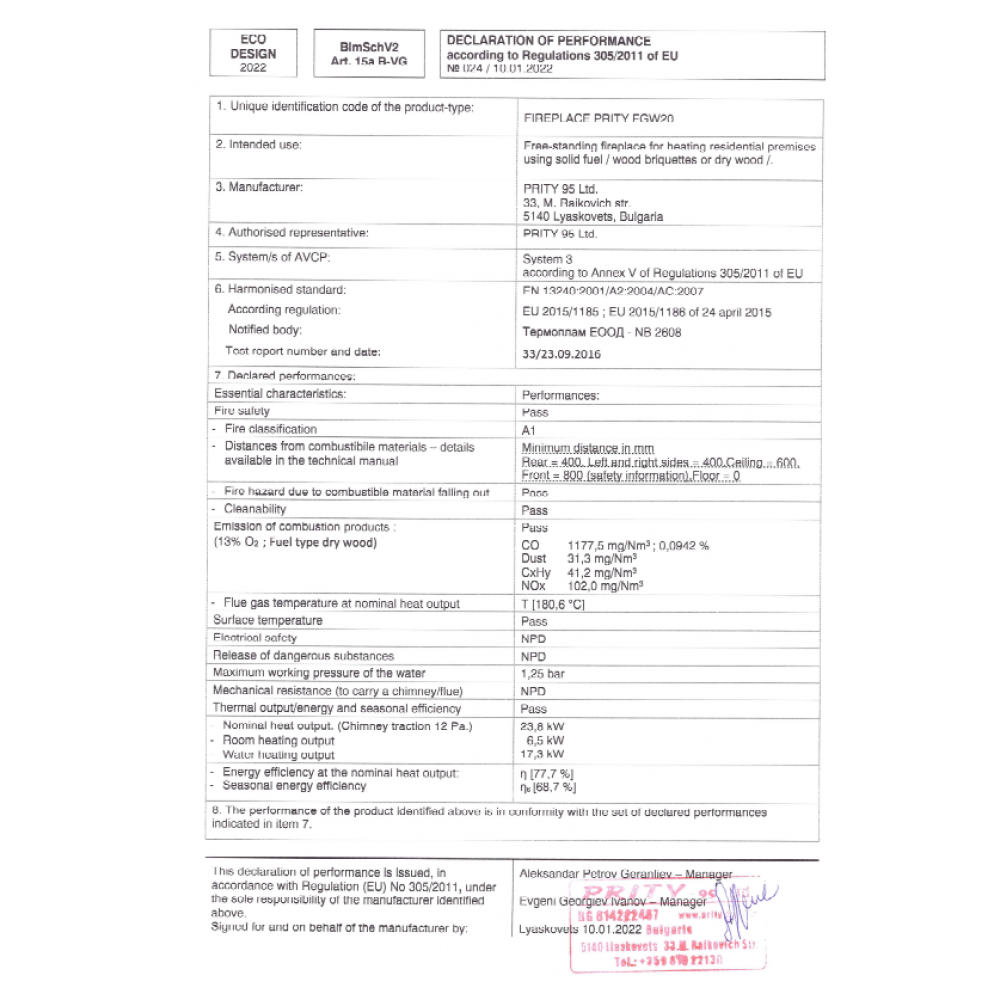

Declaration_of _performance_F G_W20.pdf File size 2.94MB |
![]() |
Energy_efficie ncy_label_FG_W 20.pdf File size 89.95KB |
