Wood Burning Stove With Back Boiler and Oven Prity FG W18 R, 23.4kW

Wood Burning Stove With Back Boiler and Oven Prity FG W18 R, 23.4kW

Wood burning boiler stove with oven. Legs, medium size.

  • Stock: In Stock
  • Brand: Prity
  • SKU: 08.435.009
£918.00
Excl. VAT

Available Options

*Read more about spare parts guarantee here

** Orders over £130 need to be declared and additional fees will be applied.

Estimated delivery
16.Jul.2024
DHL Schenker
See Shipping Policy

60 days refund

Buyer pays for return postageSee details

We accept payments
    See details

wood-burning-stove-with-back-boiler-and-oven-prity-fg-w18-r-5




wood-burning-stove-with-back-boiler-and-oven-prity-fg-w18-r-6



wood-burning-stove-with-back-boiler-and-oven-prity-fg-w18-r-2


wood-burning-stove-with-back-boiler-and-oven-prity-fg-w18-r-3


wood-burning-stove-with-back-boiler-and-oven-prity-fg-w18-r-4






wood-burning-stove-with-back-boiler-and-oven-prity-fg-w18-r-1







PRODUCT DETAILS

  • Built-in hot water boiler for a central heating system;
  • Body made of 2mm thick sheet steel;
  • Top made of 3-4mm thick sheet steel;
  • The combustion chamber is equipped with heat resistant ceramic glass;
  • The combustion chamber is equipped with heat resistant ceramic glass;
  • Hardened glass pane of the oven;
  • Cast iron grate;
  • Front damper for controlling the air supply;
  • Smoke damper for adjusting the flame intensity;
  • Wooden door handles;
  • Decorative painted side plates;

Achieving the desired heat output depends on:

  • the selected fuel with the necessary caloricity and humidity;
  • its subsequent kindling and refueling;
  • the regulation of the primary and the secondary air;
  • the regulation of the draught;
  • the organizing of effective air heat exchange etc.



Characteristics
Weight (kg) 150.0000
Country of Manufacture Bulgaria
Dimension Depth (mm) 530
Dimension Width (mm) 570
Dimension Height (mm) 1005
Warranty 3 Years
Certification CE
Maximal thermal output (kW) 23.4
Approximate heating surface (m²) 131
Flue (mm) 130
Exhaust Location Top side
Heat output (kW) 23.4
Efficiency (%) 75-80
Approximate heating capacity (m³) 354
Water heating output (kW) 18
Construction material Steel
Required chimney draught (Pa) 12
Space heating output (kW) 5.4
Temperature indicator Yes
Cold water inlet 1"
Hot water outlet 1"
Overheating protected No
Heating type Hydro - Radiator
Other Features Oven
Oven dimensions (Height, Width, Depth), mm 190x 395x 410
Emissions (g/s) 24
Lining Decorative lining
Placement Center
Maximum length of the firewood logs (mm) 430
Combustion chamber dimensions (Height, Width, Depth), mm 270x465x430
Recommended system type Open
Flue damper Yes
Type File Information

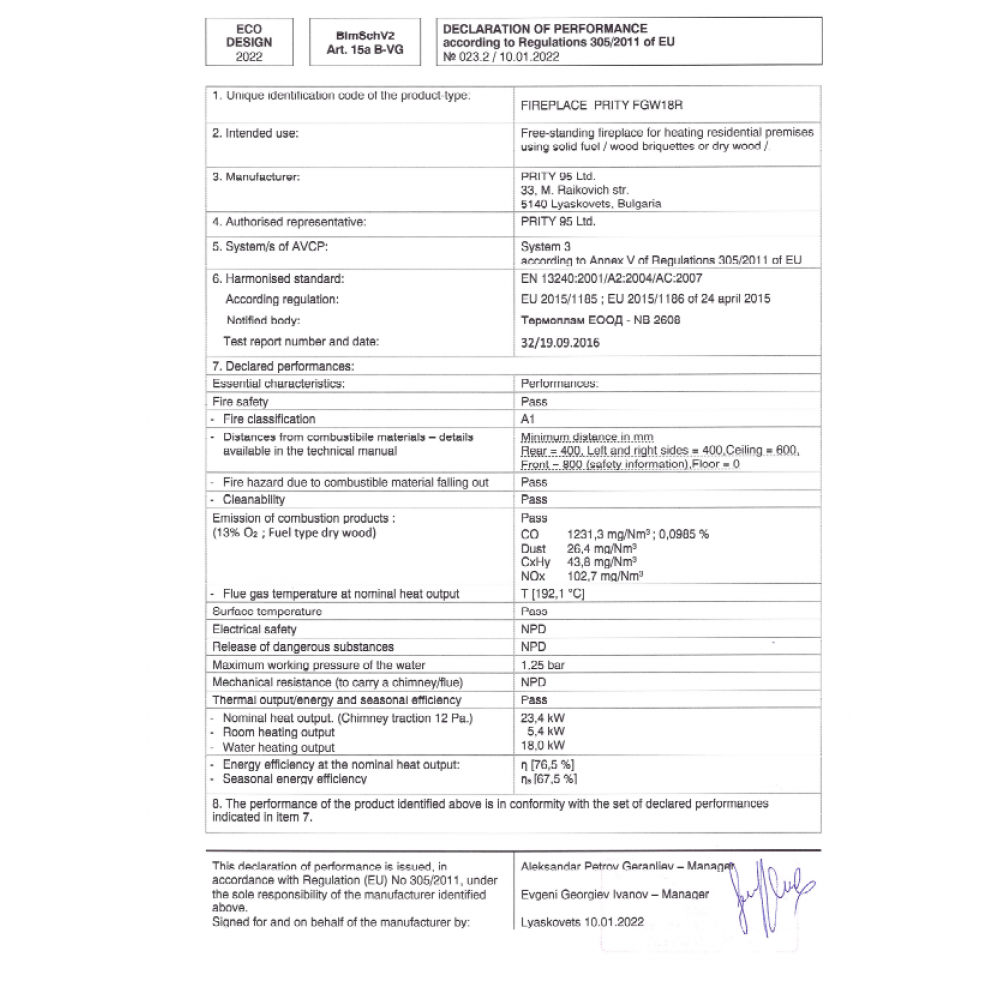

Declaration_of _performance_F G_W18_R.pdf 2.93MB
Energy_efficie ncy_label_FG_W 18_R.pdf 89.72KB
Manual_Prity_E N.pdf 1014.47KB
