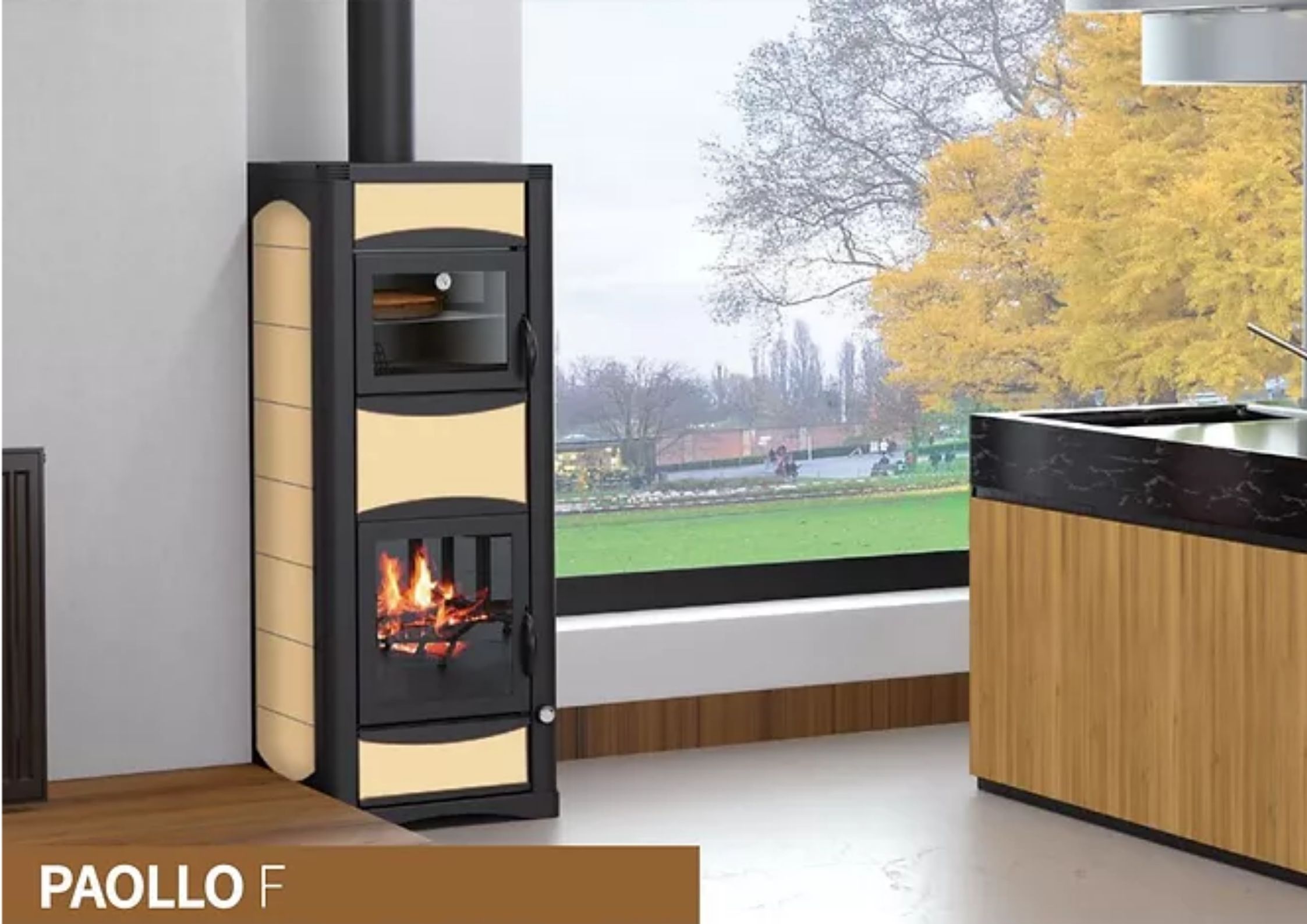

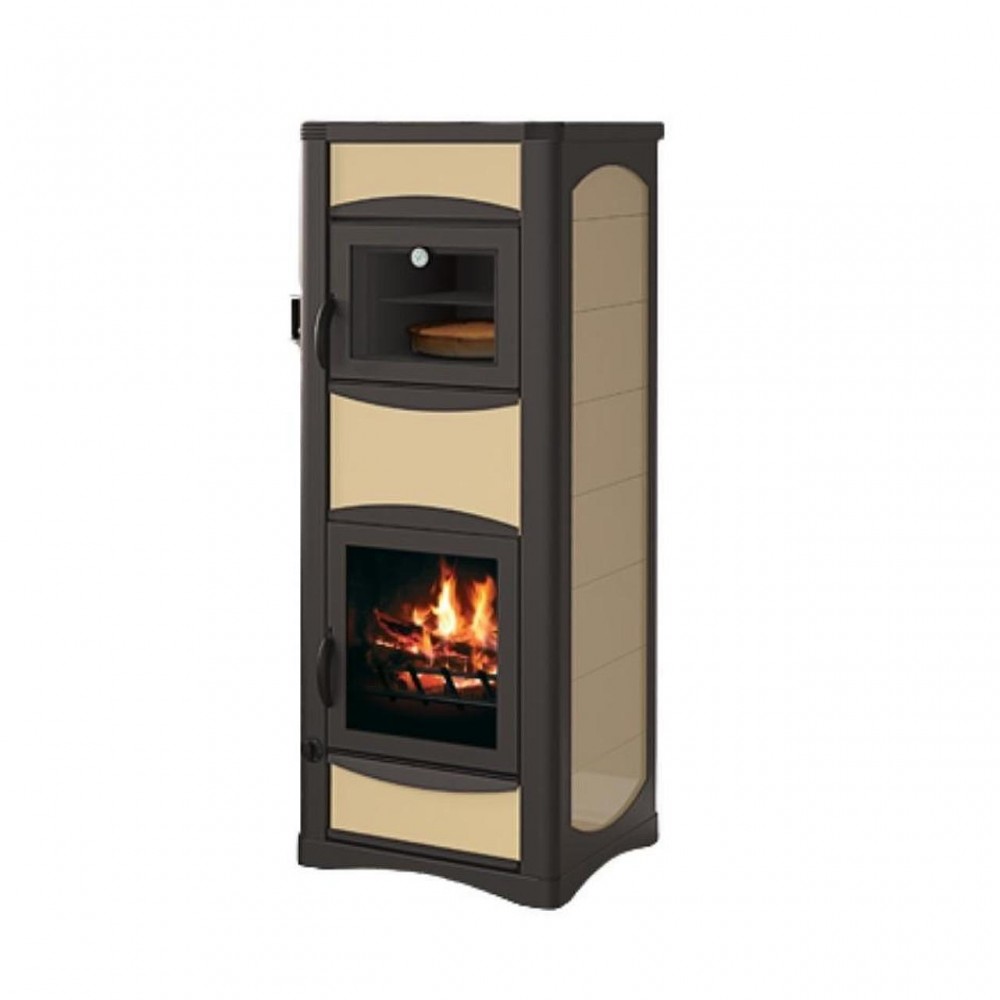

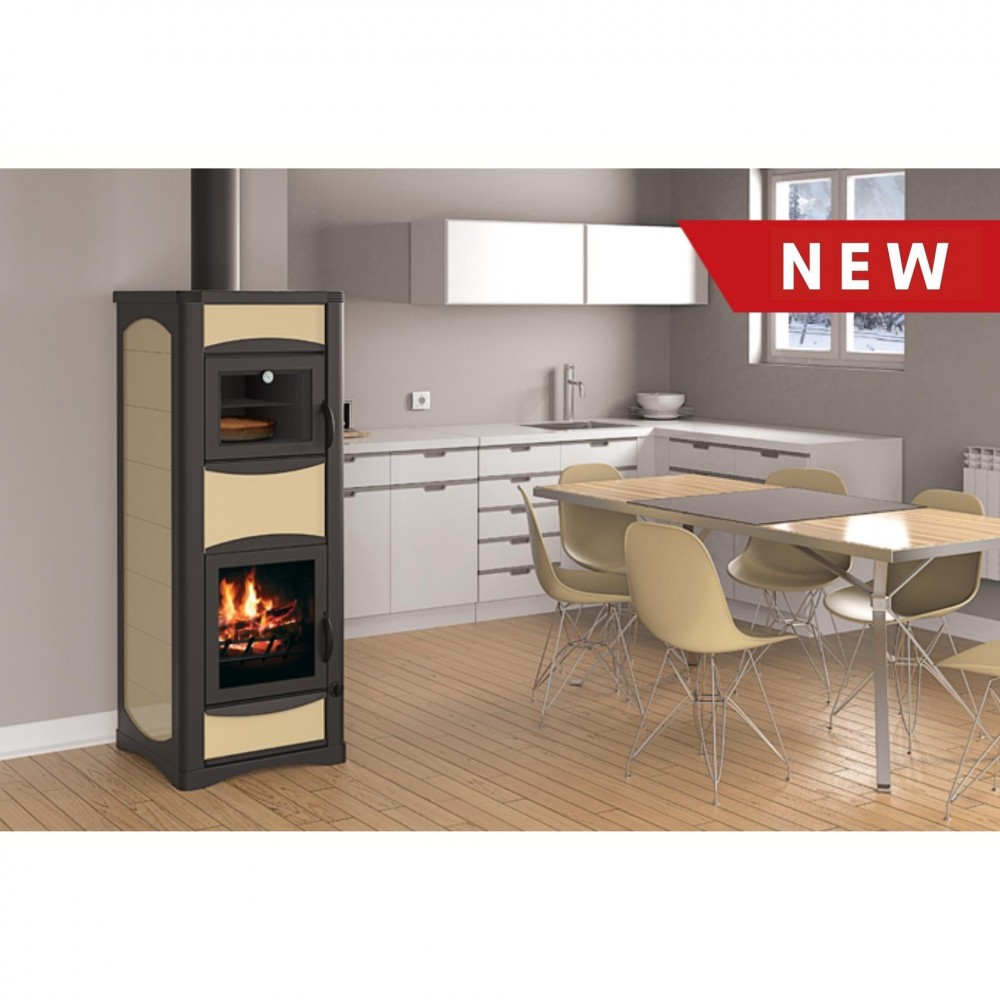

Wood Burning Stove With Back Boiler and Oven Alfa Plam Paollo F, 20 kW
Do you need chimney?
- Stock: Out of stock
- Brand: Alfa-Plam
- SKU: 08.435.055
You may also need
-400x400.jpg "Wood Stove Hearth Pad Oval, Black steel 2mm, Size 80x80cm")
-400x400.jpg "Wood Stove Hearth Pad Oval, Black steel 2mm, Size 80x80cm")
-400x400.jpg "Wood Stove Hearth Pad, Black steel 2mm, Size 60x80cm")
-400x400.jpg "Wood Stove Hearth Pad, Black steel 2mm, Size 98x98cm")
-400x400.jpg "Wood Stove Hearth Pad, Black steel 2mm, Size 98x98cm")
Color: black / beige
- Built-in hot water boiler for a central heating system
- Equipped with a thermometer.
- The combustion chamber is equipped with heat resistant ceramic glass
- Front damper for controlling the air supply
- Metal door handles
WARNING!
- Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the guaranty.
Achieving the desired heat output depends on:
- the selected fuel with the necessary caloricity and humidity
- its subsequent kindling and refueling
- the regulation of the primary and the secondary air
- the regulation of the draught
- the organizing of effective air heat exchange, etc.
Recommendations
- We recommend the installation to be done in an open type system.When connected in closed circuit system it must be fully protected using safety valves for temperature and pressure up to 1.5bar. All elements of the installation must be protected from freezing. In installation with forced ciculation we recommend the pump to be backed-up by a UPS.
- In case of presence of copper in any part of the plumbing installation the fireplace must be protected from electrolysis by installing a magnesium anode or other protective system.
| Type | File Information |
 |
Manual_EN.pdf File size 1.31MB |
