Wood burning stove with back boiler Zvezda GF VR 16, 15.4kW

Wood burning stove with back boiler GF VR 16, 15.4 kW – home heating, central system and oven to the Eco Design standard

The wood burning stove with back boiler GF VR 16 in the elegant colour graphite black is a multifunctional heating solution that warms the room, your central heating system and features a built-in oven for cooking. With a heat output of 15.4 kW, an approximate heated area of up to 130 m² and a heated volume of up to 350 m³, it is suitable for larger homes with a radiator installation. The appliance complies with the European ecological standard Eco Design, which guarantees low emissions, high efficiency and eco-friendly burning. Made of high-quality cold-rolled steel, it combines durability, high performance and a stylish look.

Advantages of the GF VR 16 stove with back boiler

• Compliance with the Eco Design standard – guarantees low harmful emissions, high efficiency and eco-friendly burning of the wood.

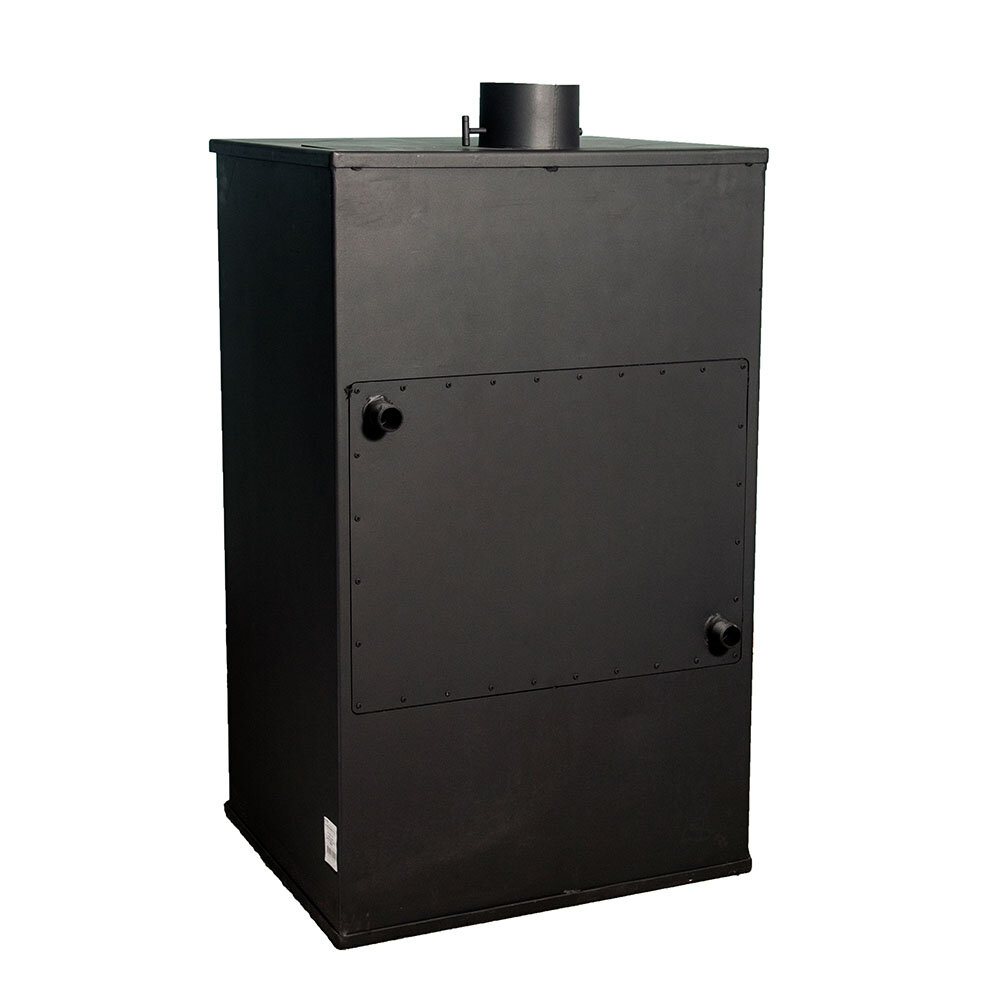

• Back boiler for the central heating system – allows connection to a radiator installation for heating the whole home.

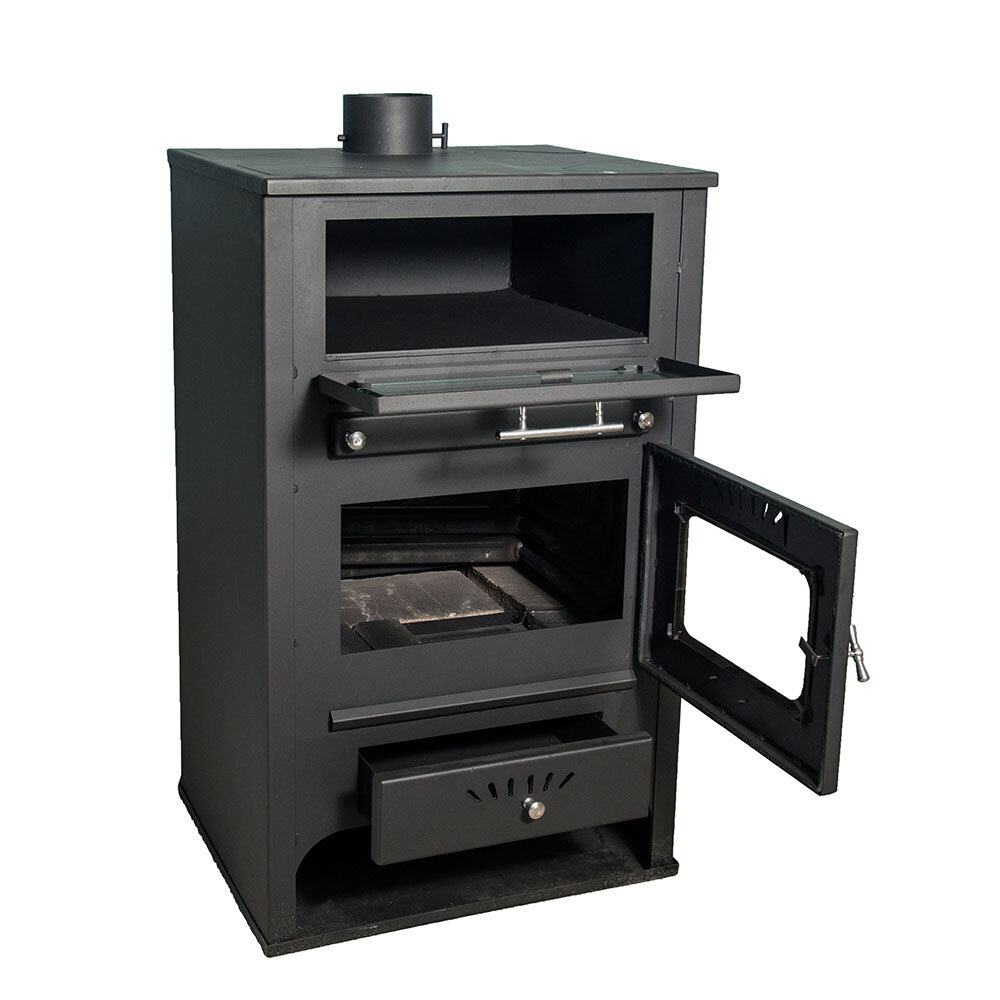

• Built-in oven with tempered glass – allows cooking and baking directly on the stove.
• Built-in thermometer – for convenient monitoring of the operating temperature.
• High-temperature resistant paint – the body is made of cold-rolled steel for maximum strength and durability.
• Thermal shock resistant glass ceramic – the combustion chamber is equipped with glass ceramic withstanding temperatures of up to 850 °C, which provides an excellent view of the flame.
• Cast iron grate – resistant to high temperatures and ensuring even burning.
• Combustion control valve – located at the front, it allows precise control over the intensity of the flame.
• Secondary air valve – raises the combustion temperature and the efficiency of the appliance, while preventing the glass from blackening.
• Manual flue control valve – for precise regulation of the chimney draught.
• Metal door handles for comfortable and safe use.

Output distribution

The total heat output of 15.4 kW is distributed between 9 kW heat transfer to the back boiler and 6.4 kW radiated heat into the room, which provides a balance between heating the radiators and direct comfort in the room. With a working pressure of 1 bar and water inlets/outlets 1", the stove integrates easily into a standard heating system.

Oven and combustion chamber

The built-in oven measuring 160 × 440 × 440 mm allows cooking and baking directly on the stove, while the spacious combustion chamber measuring 330 × 500 × 400 mm accommodates larger logs for longer burning. The loading door measures 200 × 400 mm.

Efficiency and energy class

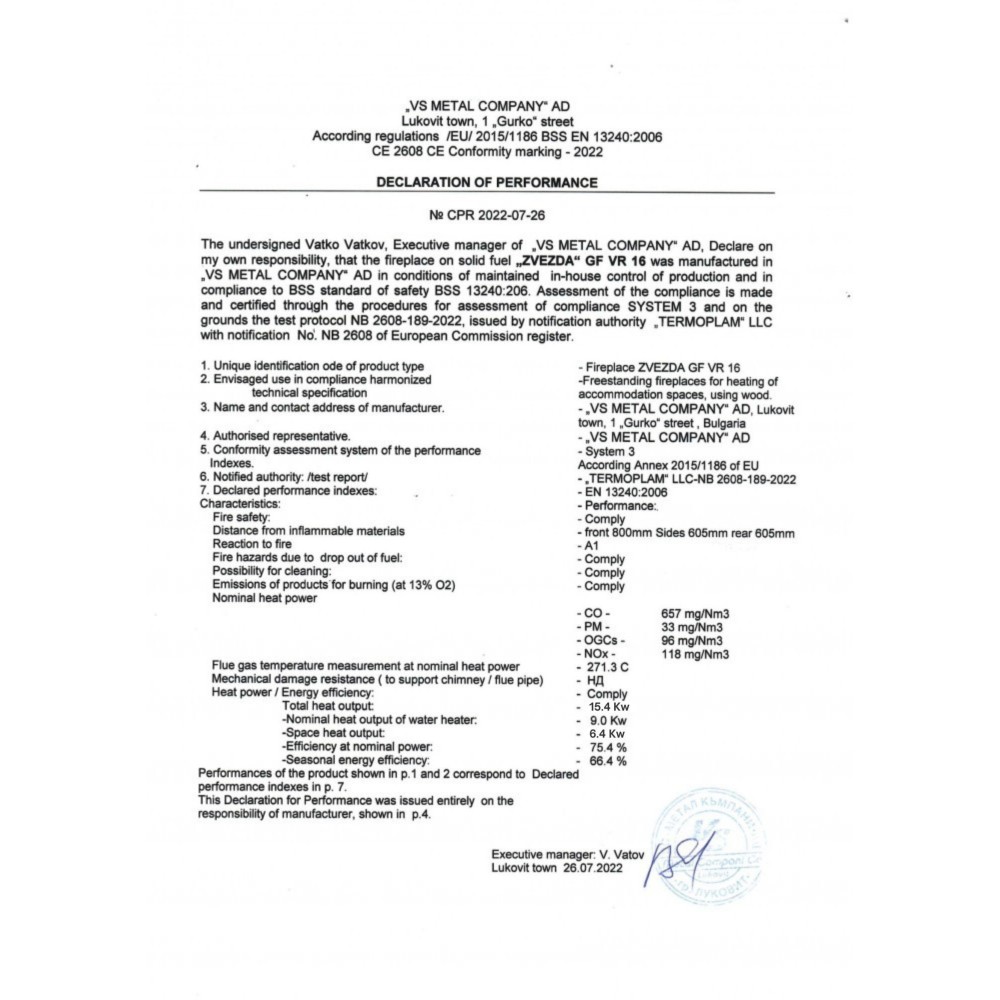

With energy class A, compliance with the standard Eco Design and certificate CE, the GF VR 16 stove guarantees economical wood consumption and eco-friendly burning. The flue diameter is 130 mm, which allows easy connection to a standard chimney system.

Technical parameters
