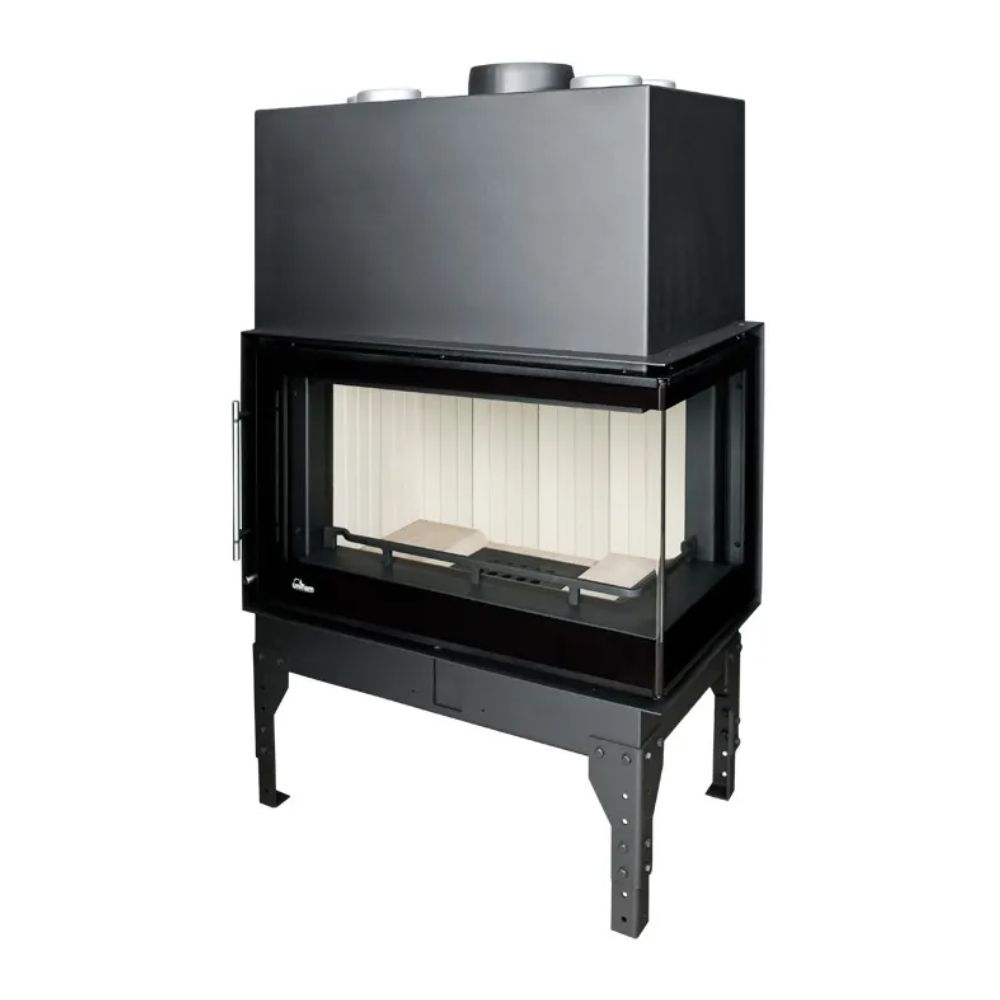

Wood Burning Fireplace UNIFLAM 860 EVO PBS with air ducts and air supply, right side, 15kW

The UNIFLAM 860 EVO PBS fireplace with a flue damper is an excellent choice for those looking for a reliable, economical and environmentally friendly heating appliance with a long service life. It is suitable for both newly built buildings and for renovation of existing heating systems.

Key features and benefits :

• Nominal power: 15 kW – ideal for large rooms and overall heating.

• Efficiency: 81% – extremely high level of heat transfer.

• Average CO emissions: <0.089% – meets strict eco requirements.

• Flue gas temperature: 260°C – optimal operation and efficient draft.

• Maximum wood length: 55 cm – possibility of using longer logs.

• Flue diameter: Ø200 mm – standard size for easy installation.

• Air supply: Ø125 mm – directly from the outside environment.

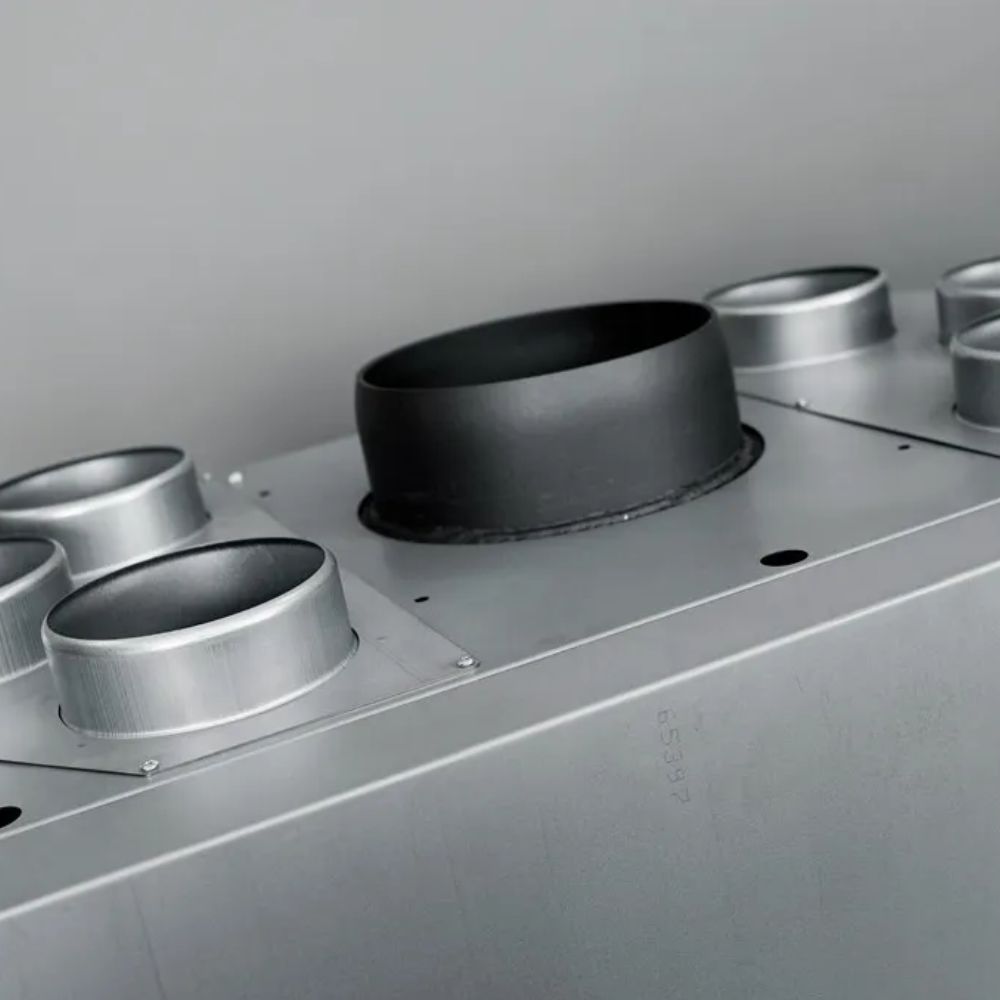

• Warm air distributor: 5 x Ø125 mm – for multi-directional heating.

• Weight: 256 kg – stable and durable steel construction.

Comfort and control functionalities :

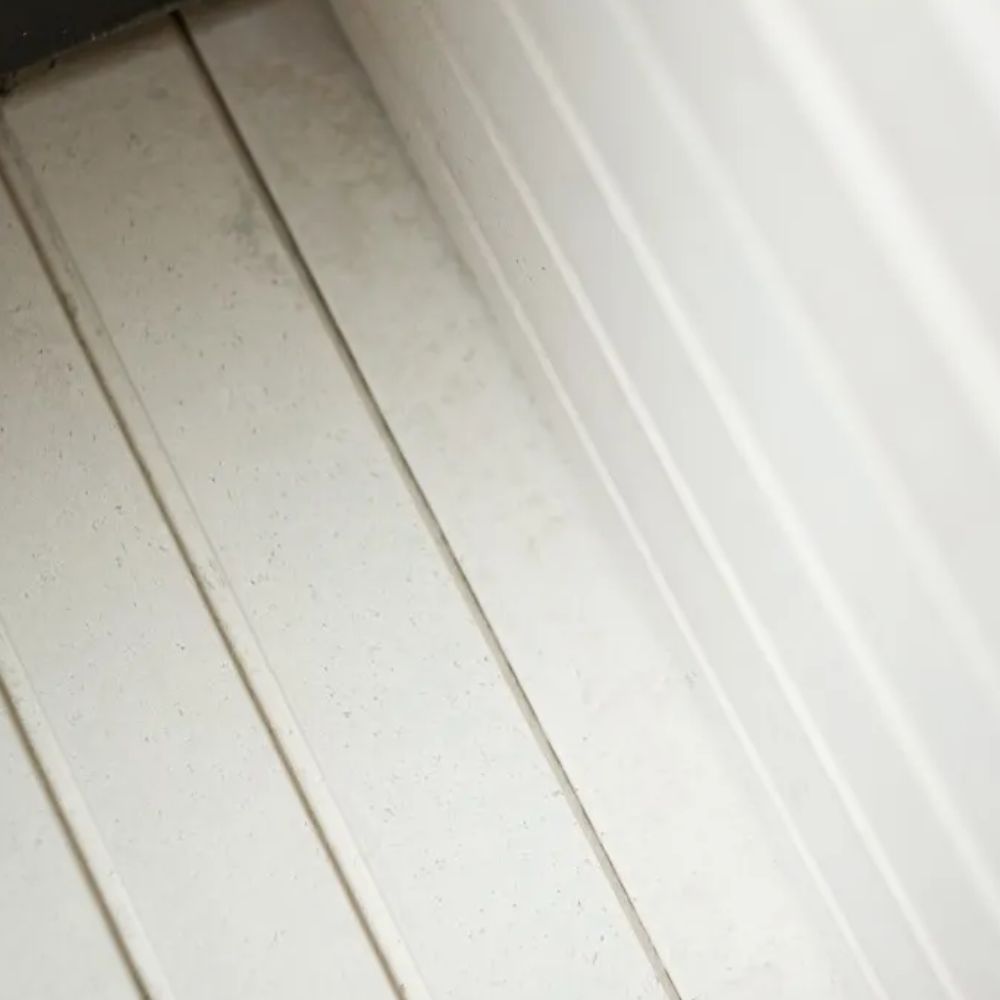

• Fireclay lining of the combustion chamber (RATH plates) – maintains high temperature and increases efficiency.

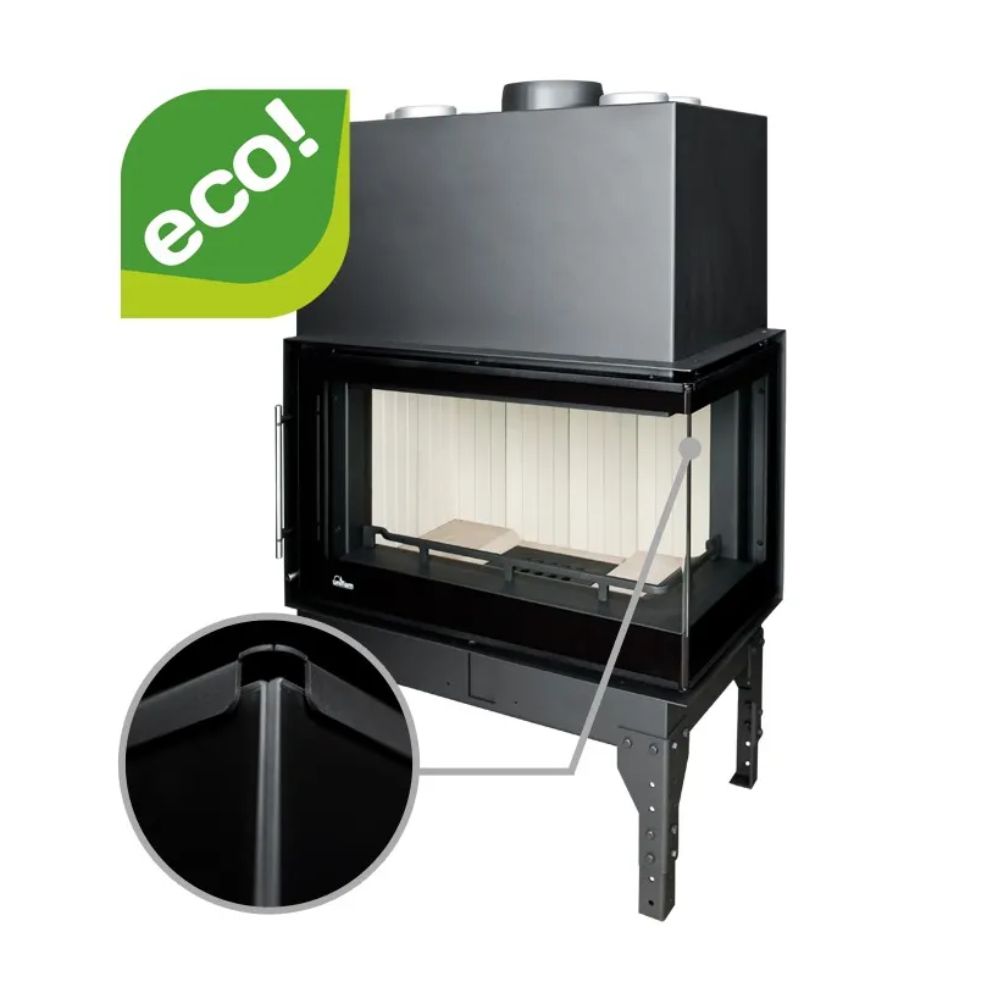

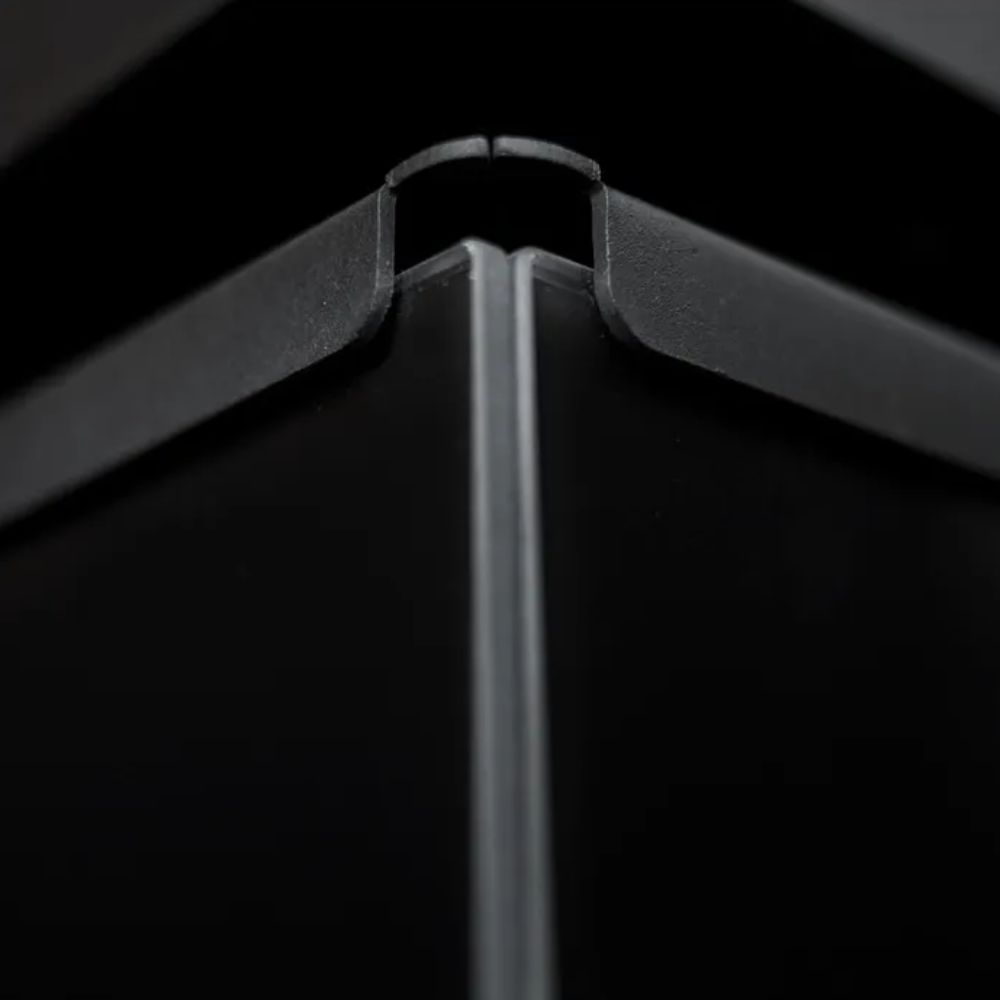

• Corner glass  (connected) – creates an impressive view of the fire from two sides.

• Glass ceramic glass with black decoration - a modern and elegant finish.

• Airwash system – keeps the glass clean by directing air.

• Air supply from outside – ideal for low-energy and passive houses, with regulation from the facade .

• Adjustable feet – make leveling and installation easier.

• Deflectors and steel heat exchangers – extend the heat path and increase efficiency.

• Ashtray and cast iron grate – easy maintenance and reliability.

• Durable seal  – guarantees long-term tight door closure.

• Fuel: wood - an ecological and affordable source of energy.

Certificates and warranty :

• Energy class: A+ – excellent economy and sustainability.

• Certificates: CE, ECO DESIGN compliance , BImSchV2 and EN 13229 – guaranteed safety, ecology and compliance.

• Warranty: 5 years – long-term protection for your investment.

Advantages of the UNIFLAM EVO series :

• Ideal for low-energy and passive houses with mechanical ventilation – thanks to the direct outside air and multi-directional heat distribution.

• Modern appearance: wide glass facade and stainless steel handles for an elegant, contemporary style.

• Easy maintenance: spacious ashtray, durable grill and effective glass cleaning system.

• Installation flexibility: adjustable feet, direct air supply and warm air distributor – make it easy to adapt to different spaces.
