Wood Burning Fireplace with Back Boiler Zvezda Camera B10 VR 16, 16.4kw

Name: ᐉ Wood Burning Fireplace with Back Boiler Zvezda Camera B10 VR 16, 16.4kw – Top Prices | BalkanEnergy.CO.UK
Brand: Zvezda
Price: 641.25 GBP
Availability: InStock

Wood Burning Fireplace with Back Boiler Zvezda Camera B10 VR 16, 16.4kw | Wood Burning Fireplace Inserts | Wood Burning Fireplaces |

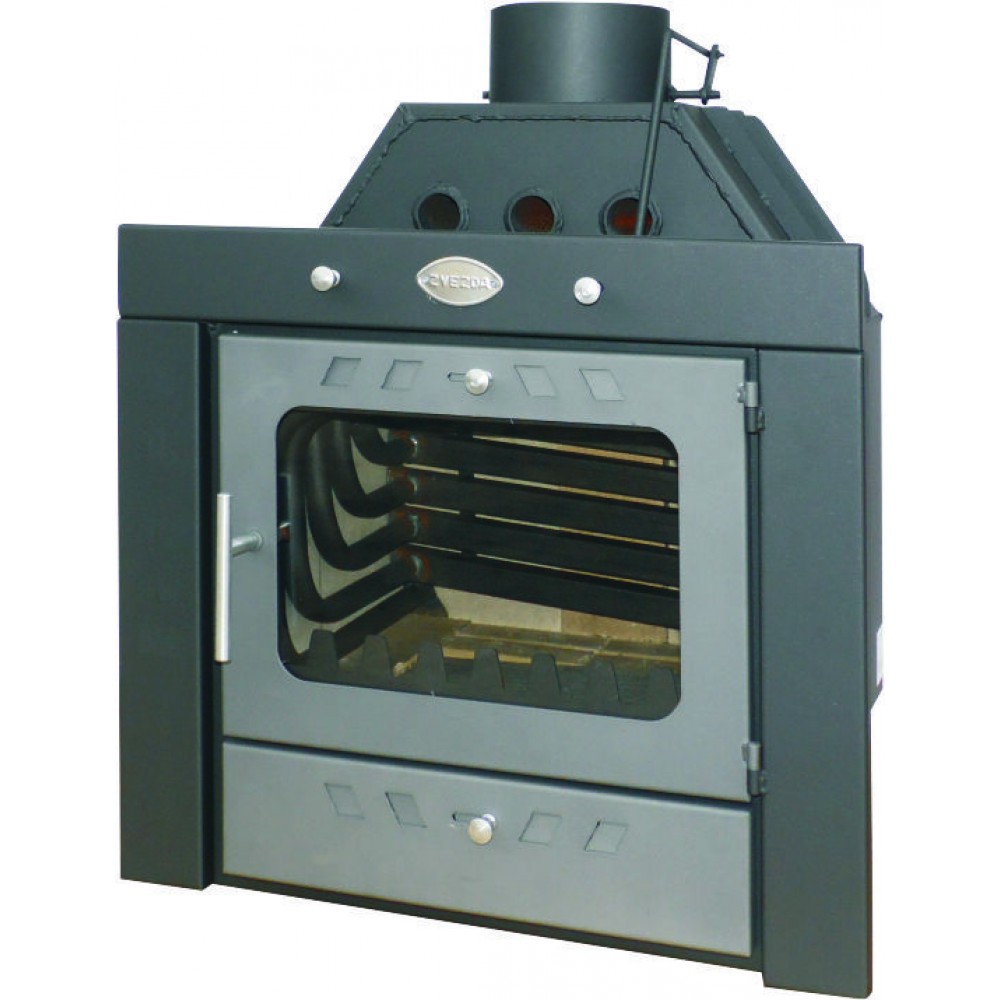

Wood Burning Fireplace with Back Boiler Zvezda Camera B10 VR 16, 16.4kw

Wood burning fireplace with water mantle and a plain line design. Equipped with metallic door handle and metallic handles for air flow control.

Approximate heating surface (m²)
130

Energy efficiency class
A

Approximate heating capacity (m³)
350

Water heating output (kW)
8

Space heating output (kW)
8.4

Stock: In Stock
Brand: Zvezda
SKU: 08.434.050

£641.25

Excl. VAT

Available Options

Additional Warranty

Add 1 year spare parts guarantee* (+£35.00)

Add 2 years spare parts guarantee* (+£50.00)

Qty

Add to Cart

Inquiry

Add to Wish List Compare this Product

*Read more about spare parts guarantee here

Estimated delivery
04.Dec.2024

See Shipping Policy

Free return
60 daysSee details

We accept payments
See details

Color: Graphite black and grey

Combustion chamber lined with chamotte bricks that accumulate heat and increase burning temperature
The combustion chamber door is equipped with heat resistant ceramic glass
Manufactured from cold rolled steel
Cast iron grid
Equipped with two manual dampers: Front damper for controlling the air supply and smoke damper for adjusting the flame intensity

WARNING!

- Not to be fired when not connected to radiators / fan convector heaters. Burning wood in the fireplace without water in the boiler will cause it to crack and subsequent loss of the warranty

- Achieving the desired heat output depends on:

the selected fuel with the necessary caloricity and humidity
its subsequent kindling and refueling
the regulation of the primary and the secondary air
the regulation of the draught
the organizing of effective air heat exchange, etc.

- In case of presence of copper in any part of the plumbing installation the fireplace must be protected by electrolysis with installation of magnesium anode or other protective system

Characteristics
Weight (kg)	120.0000
Country of Manufacture	Bulgaria
Dimension Depth (mm)	600
Dimension Width (mm)	705
Dimension Height (mm)	870
Operating pressure (bar)	1
Certification	CE
Nominal thermal power (kW)	16.4
Approximate heating surface (m²)	130
Energy efficiency class	A
Flue (mm)	200
Heat output (kW)	16.4
Efficiency (%)	60-80
Approximate heating capacity (m³)	350
Water heating output (kW)	8
Construction material	Steel
Space heating output (kW)	8.4
Cold water inlet	1"
Hot water outlet	1"
Overheating protected	No
Ash and soot container	Yes
Heating type	Hydro - Radiator
Placement	Insert
Loading door size (Height, Width), mm	200 x 350
Recommended system type	Open
Flue damper	Yes
