Buffer Tank Sunsystem, Model PR2 500, Capacity 500L, Two heat exchanging coils Vessel
Buffer Tank Sunsystem, Model PR2 500, Capacity 500L, Two heat exchanging coils Vessel
- Stock: In Stock
- Brand: Sunsystem
- SKU: 01.409.019
£959.20
Excl. VAT
The buffer tanks of series PR2 of the company SUNSYSTEM used for improving the performance and efficiency of heating, through the production and storage of hot water, which is used in the central space heating system. These specific buffer tanks allow the use of up to 3 external heat sources and optional kit for electric heating with nominal power 3kW, 4.5kW, 6kW or 7.5kW.
Product Features
- Range of volumes of 300-3000 liters
- Upright storage tank made of steel S235JR
- Primer coated on the outside
- CFC free soft PU-foam insulation with thickness of 100 mm
- PVC coating in RAL 9006 or other colors on demand
- All threads are internal
- Option for installing a heating element as back-up source of heat
- Compressive strength 3 bar
Energy Efficiency Directive 2010/30 /EU,
Regulation 812/2013:
Class C - capacity from 300 to 3000 Liters;;

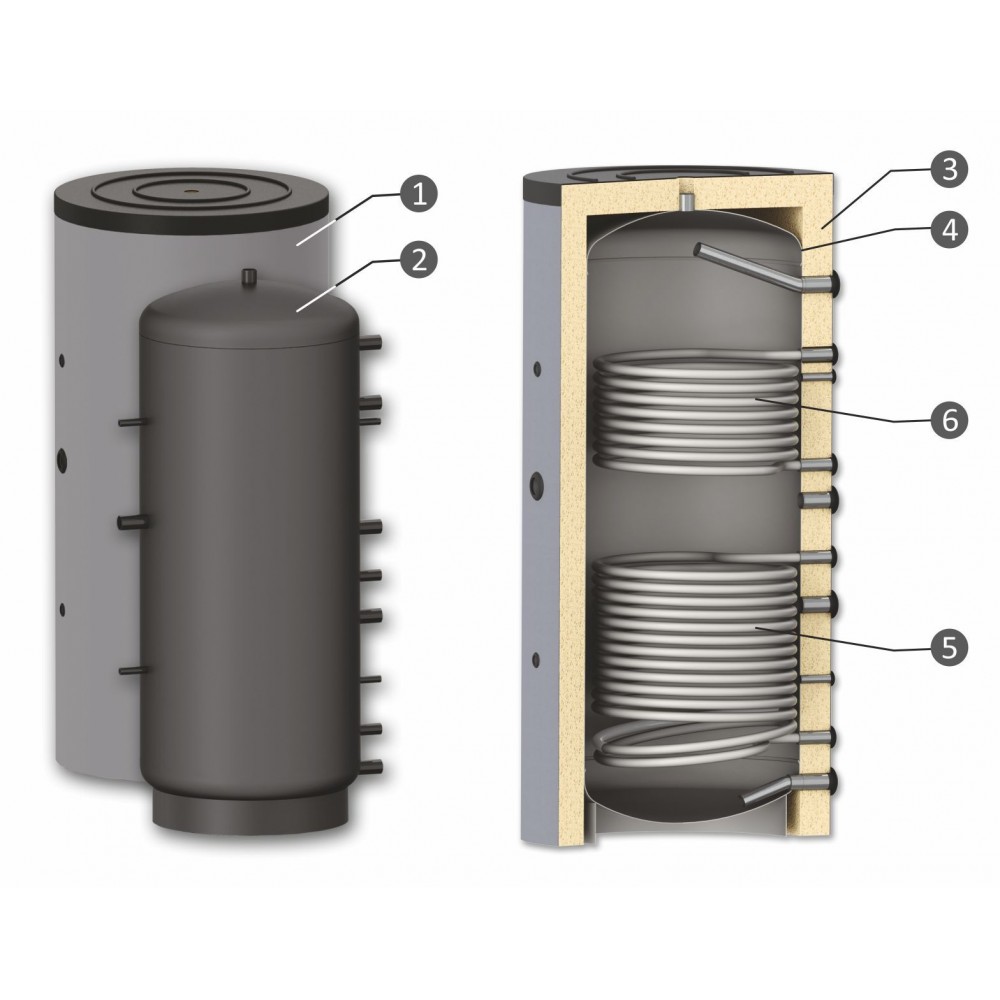

1. Aesthetic PVC jacket with color RAL 9006
2. Primer coated outer surface
3. Removable insulation
4. Water tank of low-carbon steel
5. Lower coil S1
6. Upper coil S2
| Type | File Information |
 |
User manual_Sunsystem.pdf File size 6.4MB |
